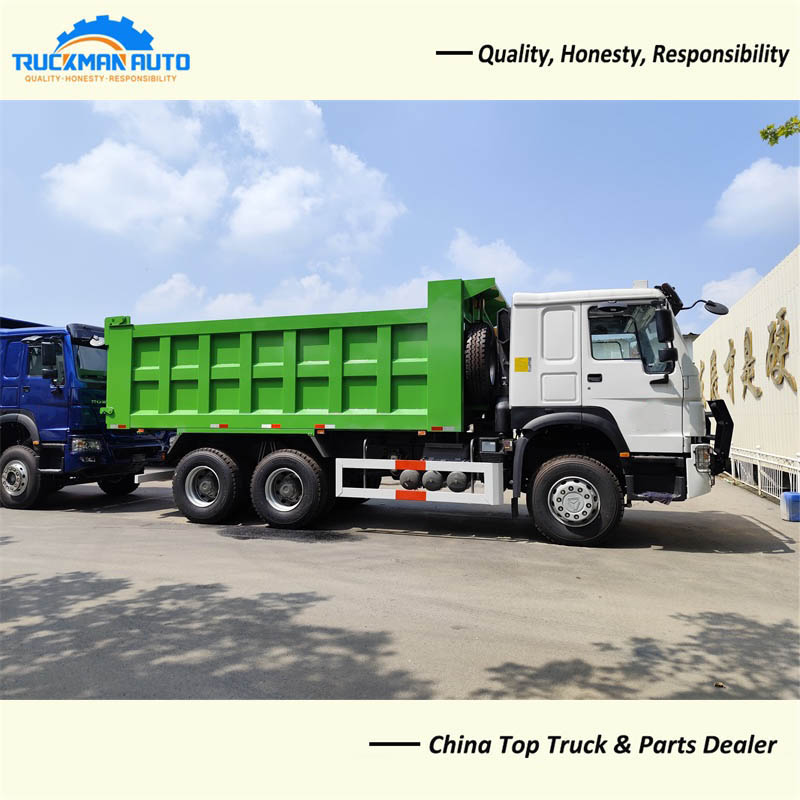

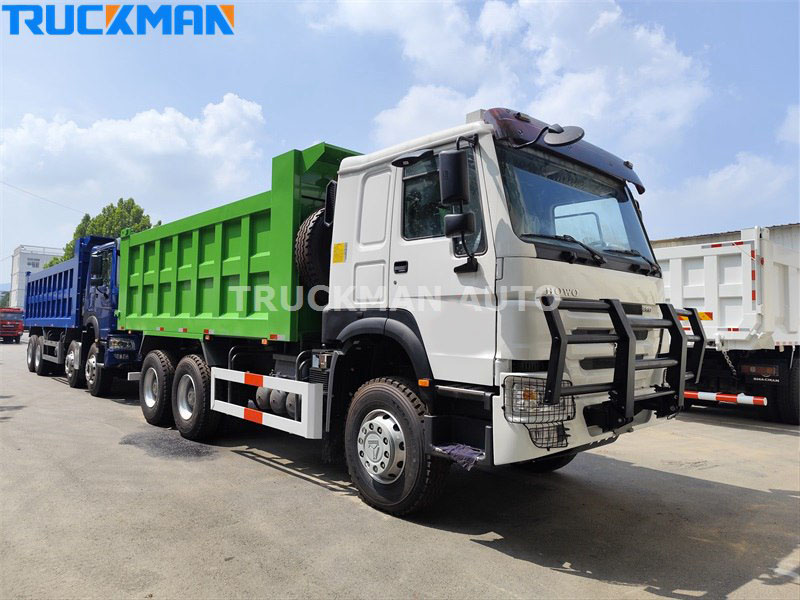

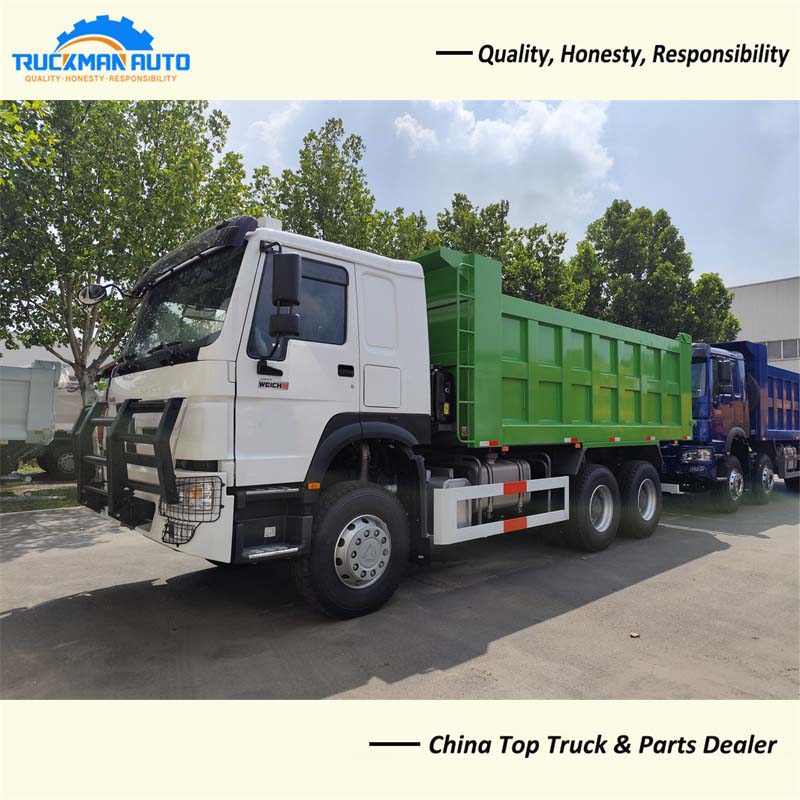

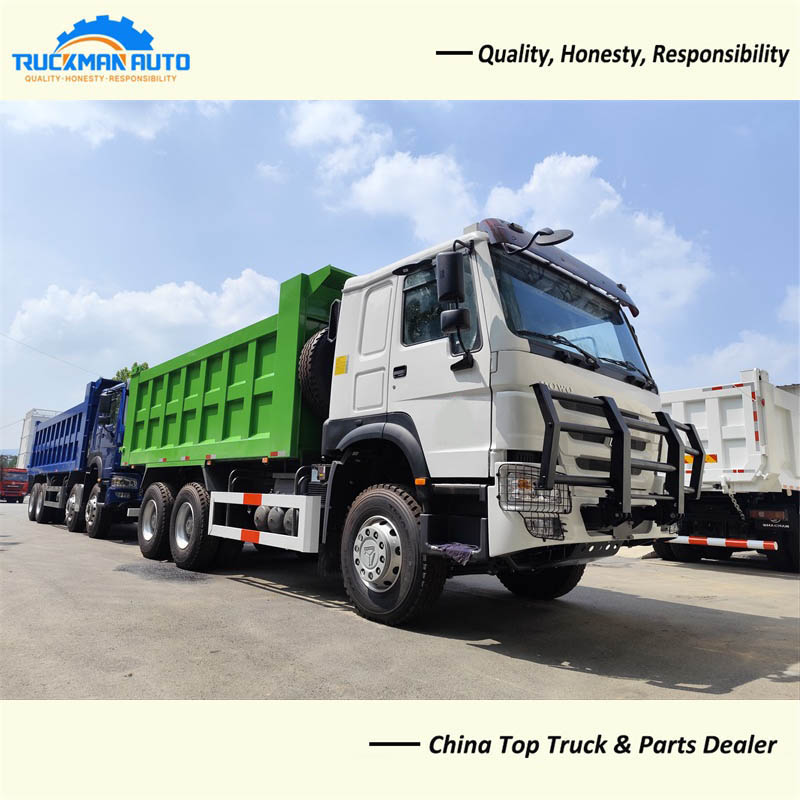

10 Wheels SINOTRUK HOWO 380HP Dump Truck For Rwanda
10 Wheels SINOTRUK HOWO 380HP Dump Truck Features

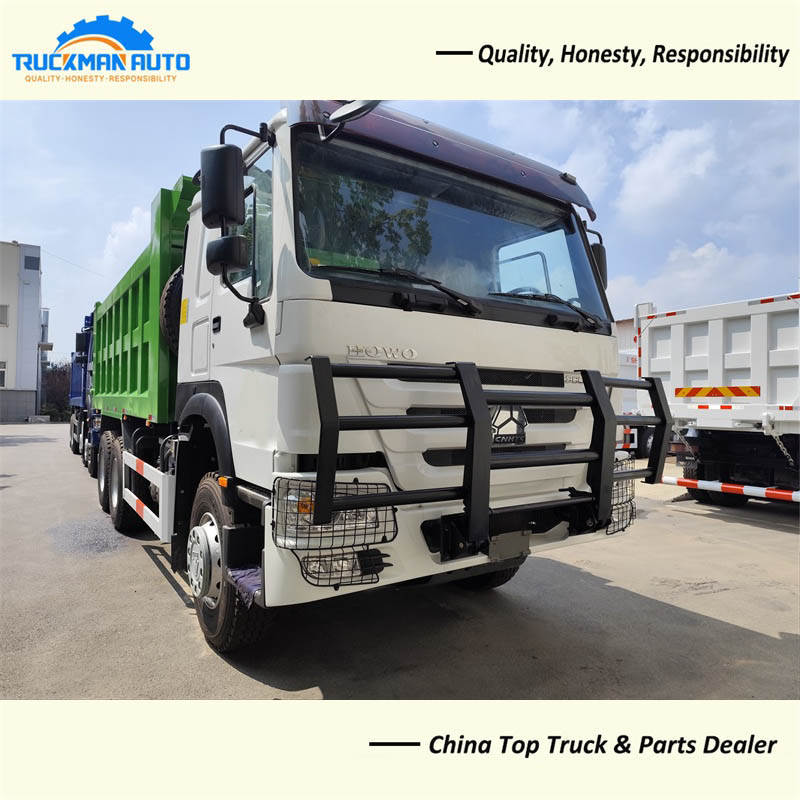

The SINOTRUK dump truck adopts WEICHAI 380HP engine with strong power, superior performance, low fuel consumption and low emission. The drive axle wheel hub bearing load distribution is reasonable, long life and high reliability. The lamps are installed with protective net to prevent splashing stones from damaging the lamps. The bumper is installed in front of the vehicle, which can reduce the collision of the dump truck and improve the service life.
10 Wheels SINOTRUK HOWO 380HP Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
10 Wheels SINOTRUK HOWO 380HP Dump Truck |
|
Application |
Construction work |
|
Engine |
WP10.380E22, 380HP,EURO 2 |
|
Cabin |
With one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 pcs |
|
Cargo Box |
5600x2300x1500mm |
|
Fuel Tank |
300L |
10 Wheels SINOTRUK HOWO 380HP Dump Truck specification only for your reference, we will recommend other model Dump Truck basic your request.

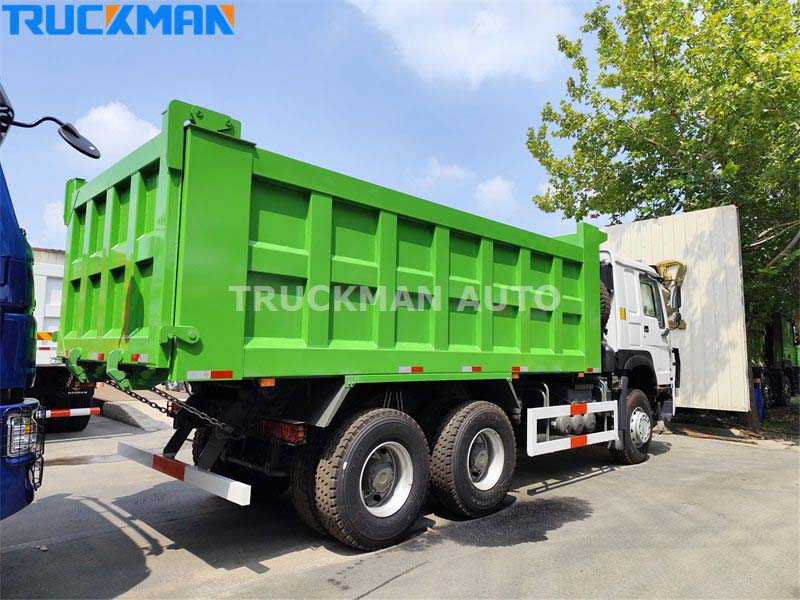

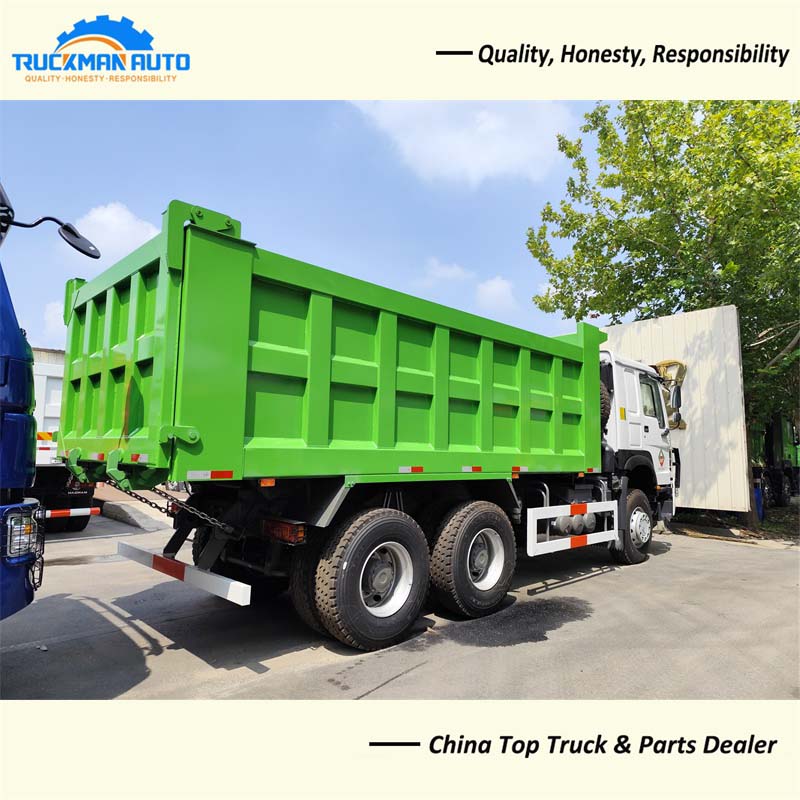

10 Wheels SINOTRUK HOWO 380HP Dump Truck Cargo Box
The 10 Wheels HOWO dump truck adopts the cargo box of rectangular bucket, and the cargo box adopts the robot welding technology, which greatly improves the precision of the cargo box and thus ensures the stability of the welding quality. Shot blasting technology is used to clean the residue on the surface of the cargo box, thus increasing the bonding force between the coating and the substrate, and the cargo box will not fade after a long time of use. Adopting manganese plate material, high strength, not easy to be deformed or broken, and there are also U-shaped bucket cargo box for choice.
How to Improve the Passing Capacity of a Dump Truck Chassis?

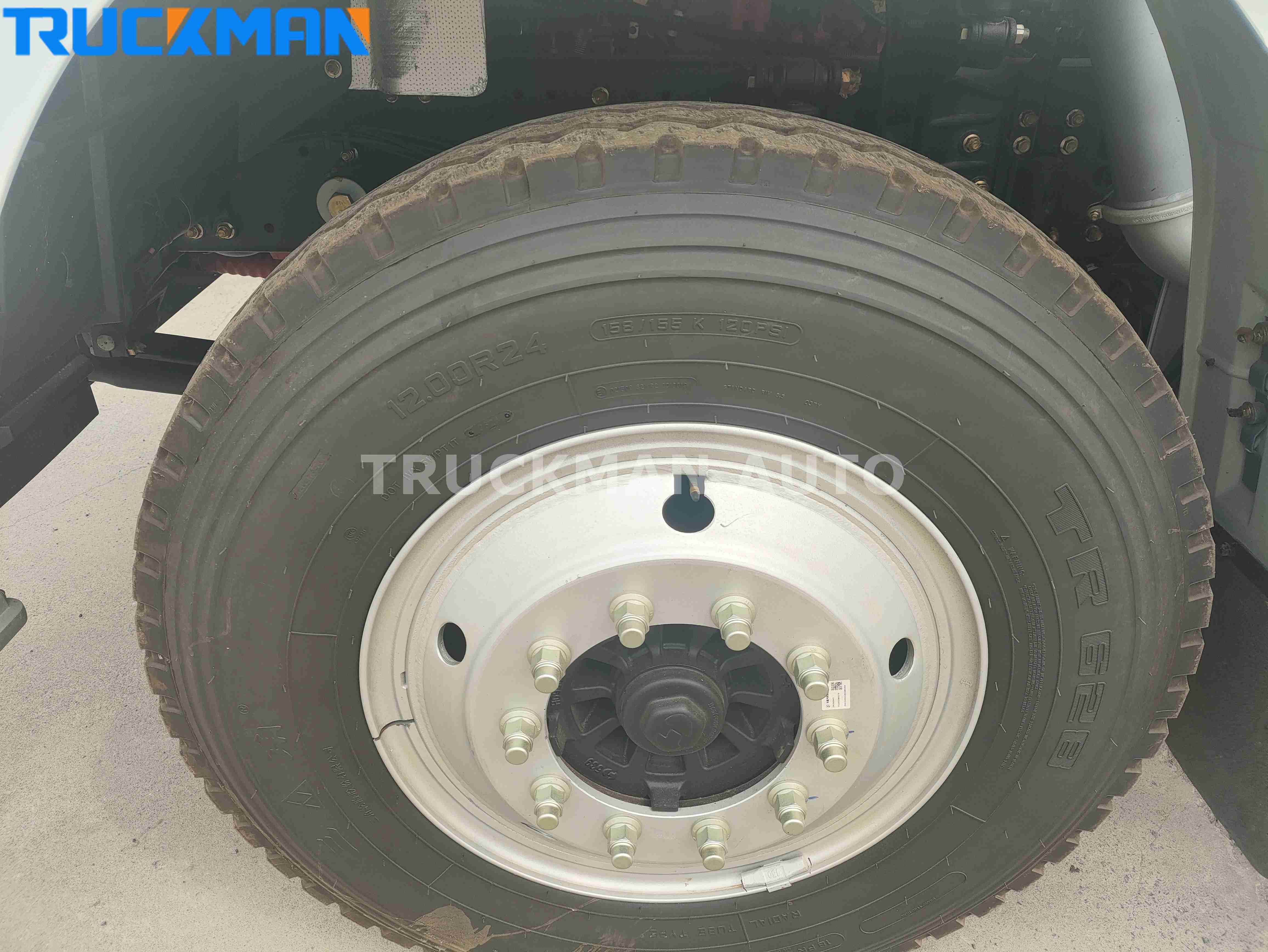

The overall height of dump trucks is low, which not only has poor passability, but also some key components, such as engine oil sump and gearbox, are easy to suffer damage in complicated road conditions. Therefore, to increase the overall height including the cab, you can use a large diameter tires, you can use 12.00R24 tires, increase the tire to bring better stability, mud, sand performance will also be better, large diameter, ground clearance height increased. You can choose all-wheel drive, the body height from the ground is large enough to cope with many unpaved roads.
