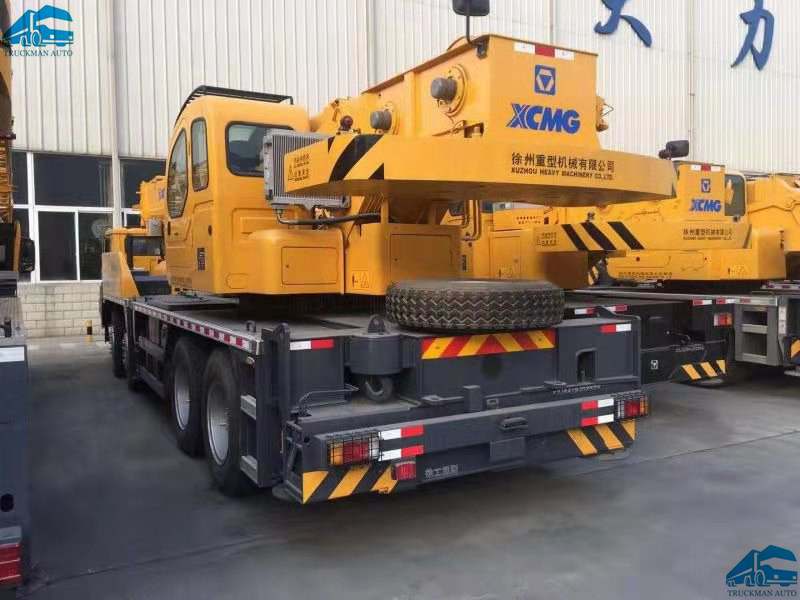

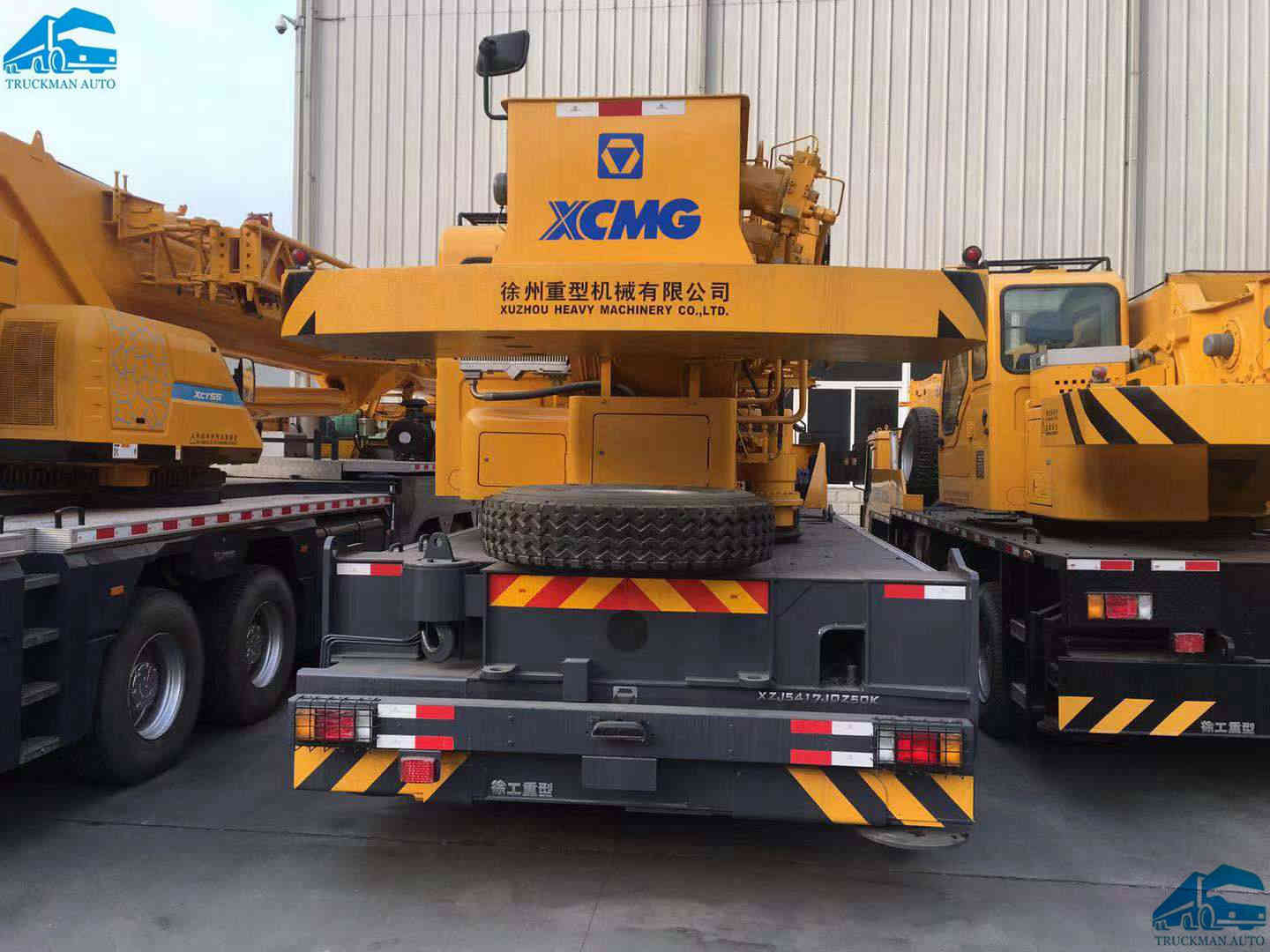

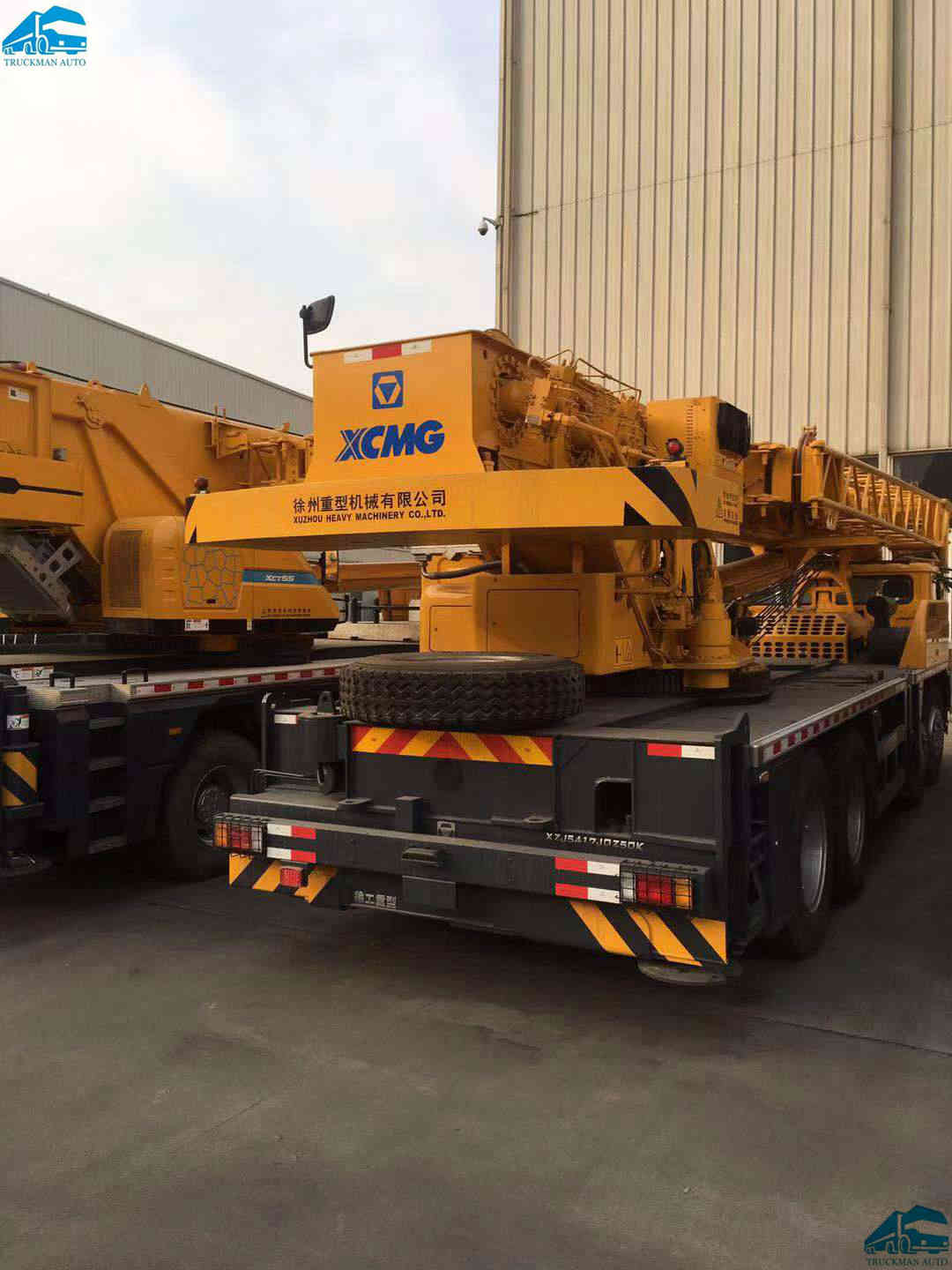

2015 Year In Stock !!! XCMG Brand 50 Tons Truck Crane For Sale
XCMG 2015 year stock truck crane, no used, working time 1700h, and loading capacity is 50 tons. With one year warranty also.
The specification of truck crane as follow:
|
Dimension |
Unit |
QY50K-Ⅱ |
|
Overall length |
mm |
13750 |
|
Overall width |
mm |
2800 |
|
Overall height |
mm |
3520 |
|
Weight |
|
|
|
Total weight in travel |
kg |
41000 |
|
Front axle load |
kg |
15000 |
|
Rear axle load |
kg |
26000 |
|
Power |
|
|
|
Engine model |
|
WD615.334(domestic III) |
|
Engine rated power |
kW/(r/min) |
247/2200 |
|
Engine rated torque |
N.m/(r/min) |
1350/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
80 |
|
Min. turning diameter |
m |
24 |
|
Min. ground clearance |
mm |
291 |
|
Approach angle |
° |
17 |
|
Departure angle |
° |
11 |
|
Max. grade ability |
% |
40 |
|
Fuel consumption for 100km |
L |
45 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
50 |
|
Min. rated working radius |
m |
3 |
|
Turning radius at turntable tail |
m |
3.482 |
|
Max. lifting torque |
kN.m |
1764 |
|
Base boom |
m |
11.3 |
|
Fully extended boom |
m |
42.7 |
|
Fully extended boom+ jib |
m |
57.7 |
|
Longitudinal outrigger span |
m |
5.91 |
|
Lateral outrigger span |
m |
6.9 |
|
Working speed |
|
|
|
Boom luffing time |
s |
88 |
|
Boom full extension time |
s |
180 |
|
Max. swing speed |
r/min |
≥2.0 |
|
Max. speed of main winch (single rope) (no load) |
m/min |
≥110 |
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
≥110 |
