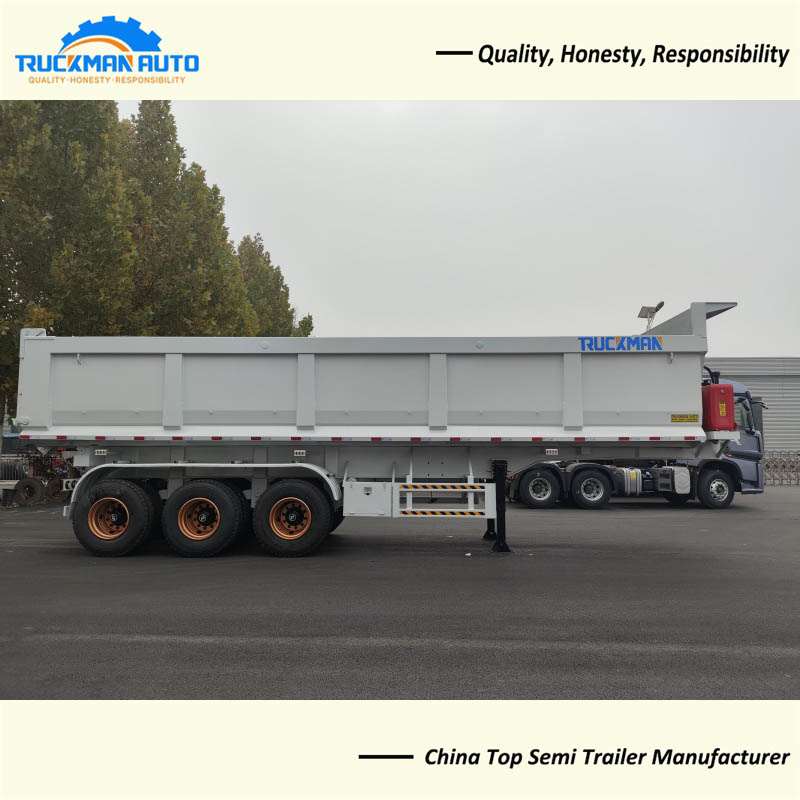

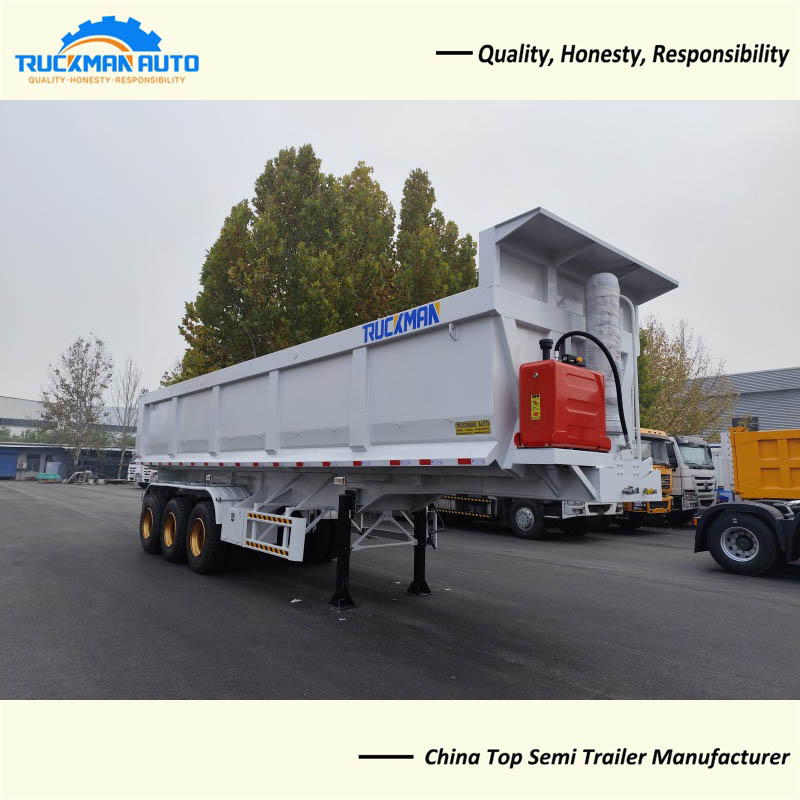

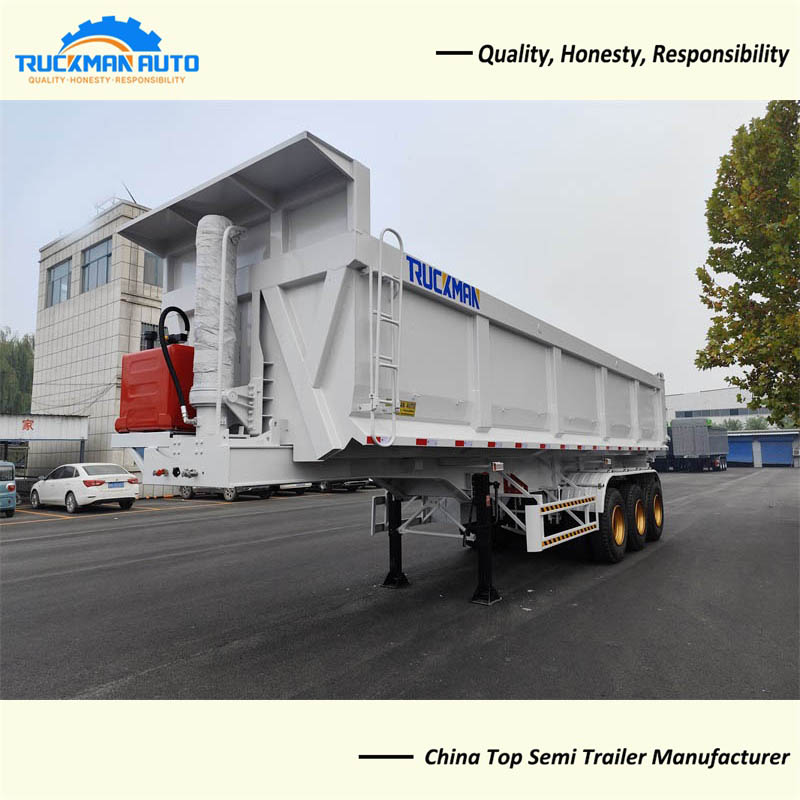

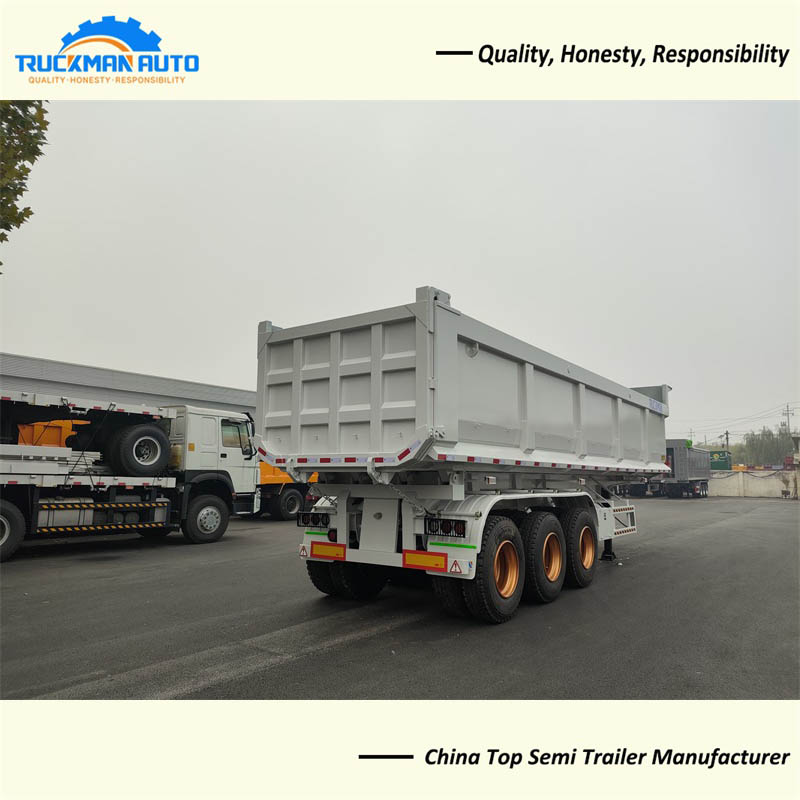

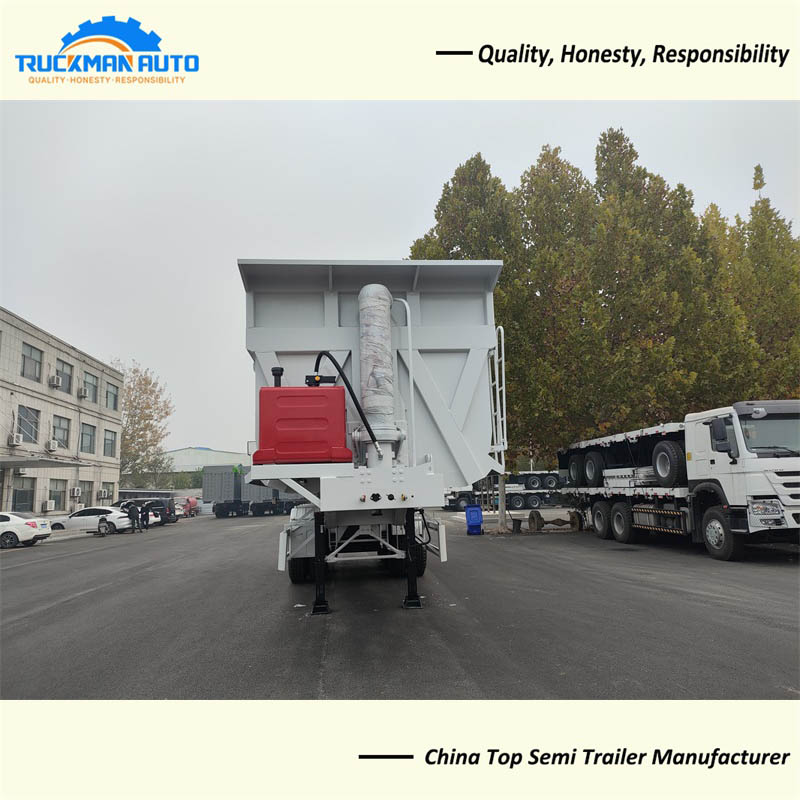

3 Axles 80 Tons Dump Trailer Features
The 3 axles dump trailer uses 12+1 13R22.5 tires without inner liner and 3 16-ton axles, which can carry 50-80 tons of cargo. The 80 tons dump trailer is also equipped with a 90# traction pin. Customers need to use a 90# saddle to tow this dump trailer. The 80 tons dump trailer is also equipped with a braking system from the well-known brand WABCO to provide safe braking for this dump trailer.
3 Axles 80 Tons Dump Trailer Specification
Description |
Parameter Value |
Product Name |
3 Axles 80 Tons Dump Trailer |
Application |
Logistics work |
Loading Capacity |
80tons |
Axle |
3 axle, 3x16000kg,ZYbrand |
Support Leg |
28 tons, JOST brand |
Tire |
13R22.5, 12+1 pcs |
Tractor Pin |
3.5 inch, JOST brand |
Brake System |
WABCO valve and brake chamber |
Color |
Optional |
Dimension |
10650x2550x3760mm |
3 Axles 80 Tons dump trailer specification only for your reference, we will recommend other model SINOTRUK truck basic your request.

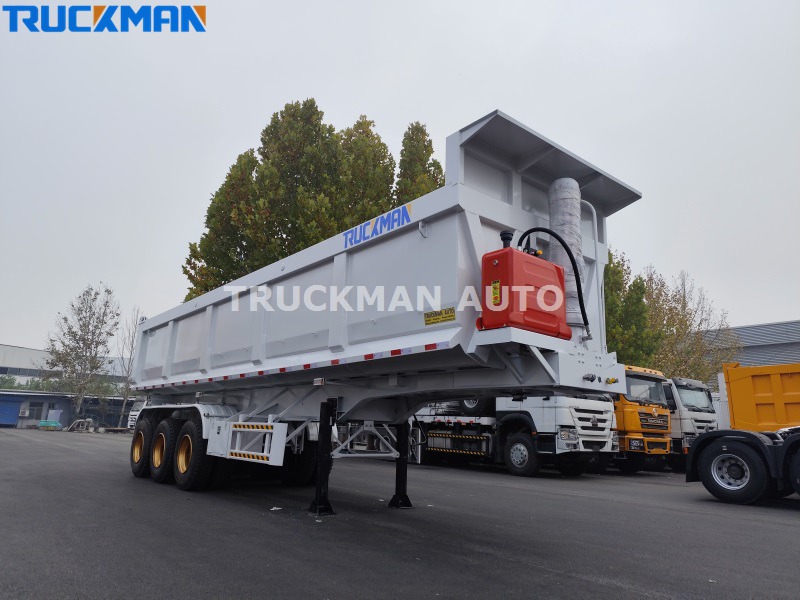

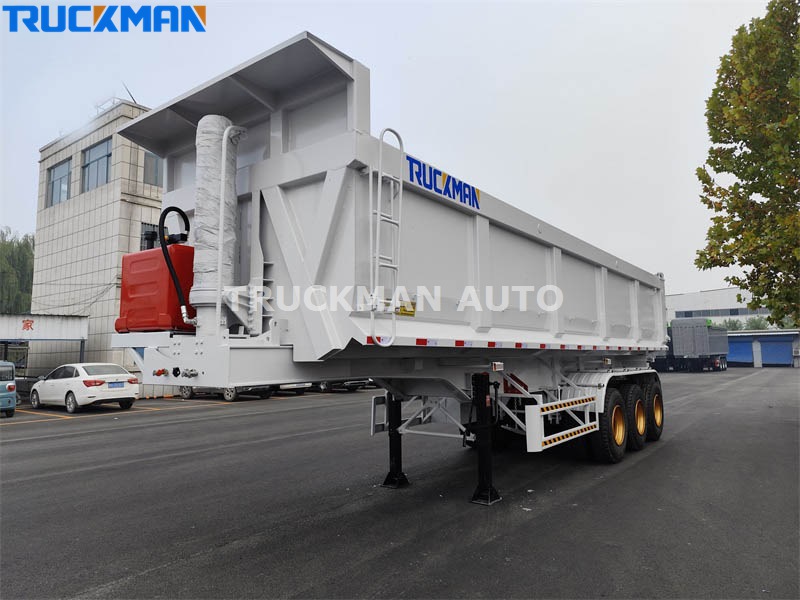

3 Axles 80 Tons Dump Trailer Cargo Box
The 3 axles dump trailer uses a U-shaped cargo box. Because the U-shaped cargo box has no dead corners, the cargo will be unloaded very cleanly without any residue. In addition, 4 reinforcing ribs are added on each side of the 3 axles dump trailer, and triangular reinforcing blocks are installed at the bottom of the cargo box, which gives the cargo box a better support effect, making it more solid, durable and not easy to expand.

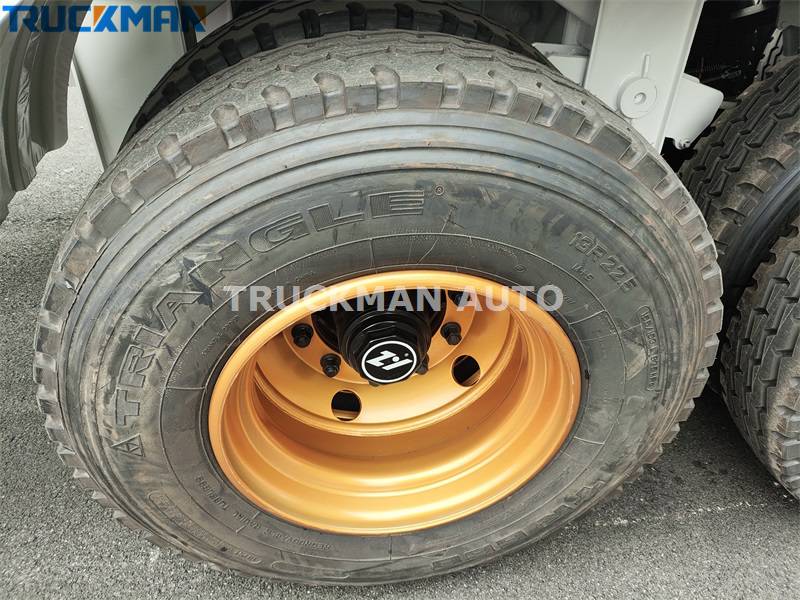

3 Axles 80 Tons Dump Trailer Tire
The 80 tons dump trailer uses a 13R22.5 linerless tire. Compared with 12R22.5 tires and 315/80R22.5 tires, this tire is more durable, has a stronger load-bearing capacity, and a longer service life. In addition, this tire uses a thickened 18mm steel rim, which has a better load-bearing capacity. Because this tire has no liner, it has better heat dissipation performance and is very suitable for use in some countries with hot areas.
