BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire

BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
Product Name : BEIBEN 6x4 2642 Truck Head For Côte d'Ivoire
Product ID : 2642
Loading Tons : 100,000kg
Engine : 420HP, EURO 2
Gearbox : 12 forward and 2 reverse gear
Cabin : NG80B, with one bed, A/C
Fifth Wheel : #90 single direction
Directions

BEIBEN 6x4 2642 Truck Head Features



BEIBEN 6x4 2642 truck head use the Φ430 clutch, diaphragm spring, hydraulic boost, application 12 forward and 2 reverse gearbox, FAST brand. With automatically adjust brake system, save the maintenance time.



-. Cross section dimension of frame is 317×70×8.5+7+12mm, for heavy duty loading.



-. Electrical system including the battery: 2X12V/135Ah, generator: 28V-70A and starter: 5.58Kw/24V.





BEIBEN 6x4 2642 Truck Head Specification



Description

Parameter Value

Product Name

BEIBEN 6x4 2642 Truck Head

Application

Transport cargoes etc

Loading Capacity

100,000kg

Engine

WP12.420E32, 420HP, EURO II, mechanical pump

Cabin

NG80B, with one bed, A/C, left hand drive

Gearbox

12JS200T, 12 forward and 2 reverse gear

Tire

315/80R22.5, 10+1 pcs, tubeless model

Steering

ZF8098, hydraulic boosting

Front Axle

7.5 ton, 1x7500kg

Driving Axle

13 ton, 2x13000kg

Fuel Tank

400L

Dimension

7200x2560x3200mm



The BEIBEN 6x4 2642 truck head specification only for your reference, we will recommend other model BEIBEN truck head basic your request.

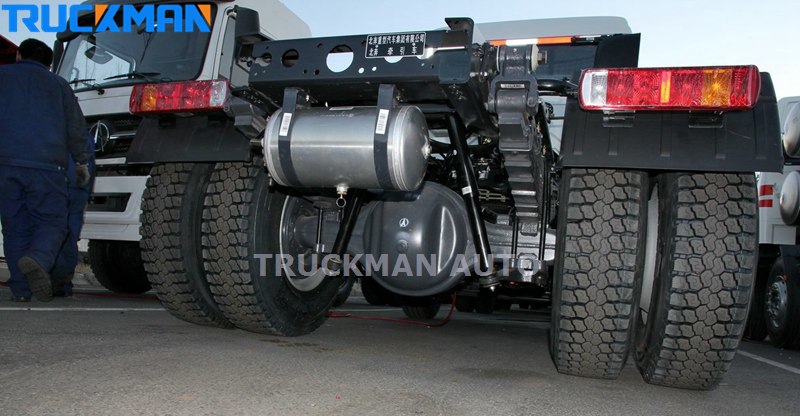

BEIBEN 6x4 2642 Truck Head Axle



BEIBEN truck head axle adopts Mercedes-Benz technology, advanced and precise axle, stable quality, large transmission torque, strong axle load bearing capacity to implement the German DIN standard, smooth operation. The load of the front axle is 7.5 tons, the load of the rear axle is 13 tons, and the drive axle housing has been tested by the national authority, under the condition of loading 2.5 times the gravity, the fatigue life test is not broken for 1.17 million times continuously.
