BEIBEN V3 420HP 6x4 Prime Mover
-1. BEIBEN North Benz Brand Truck Head Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine: 340HP-380HP, WEICHAI technology
-. Heavy-duty load capacity: 40 to 100 tons
-. FAST brand gear box, easily shift gear
|
Wheel base |
3450+1450 |
||
|
Dimension |
7050×2495×3260mm |
||
|
Curb weight |
8800kg |
||
|
Front overhang/rear overhang |
1410/740mm |
||
|
Approach angle/Departure angle |
26/64 |
||
|
Max Speed |
≥85 |
||
|
Engine |
Model |
WP10.340E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
|
|
Fuel type |
Diesel |
||
|
Emission |
EUROIII |
||
|
Rated Power / rotating |
250Kw/2200rpm (340HP) |
||
|
Displacement(ml) |
9726 |
||
|
Fuel tanker capacity (L) |
400L |
||
|
Clutch |
Model |
#430, Single dry frictional disc,Hydraulic boosting |
|
|
Gearbox |
Model |
12JS160T |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
Model |
TAS85 |
|
|
Front axle |
7.5 tons no-driving steering axle |
||
|
Rear axle |
13 tons double reduction driving axle, speed ratio5.263 |
||
|
Tire |
12.00R20 radial tire |
||
|
Cabin |
NG80B Long cab with one sleeper Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C. |
||
|
Fifth wheel |
#50 single direction (JOST) |
||

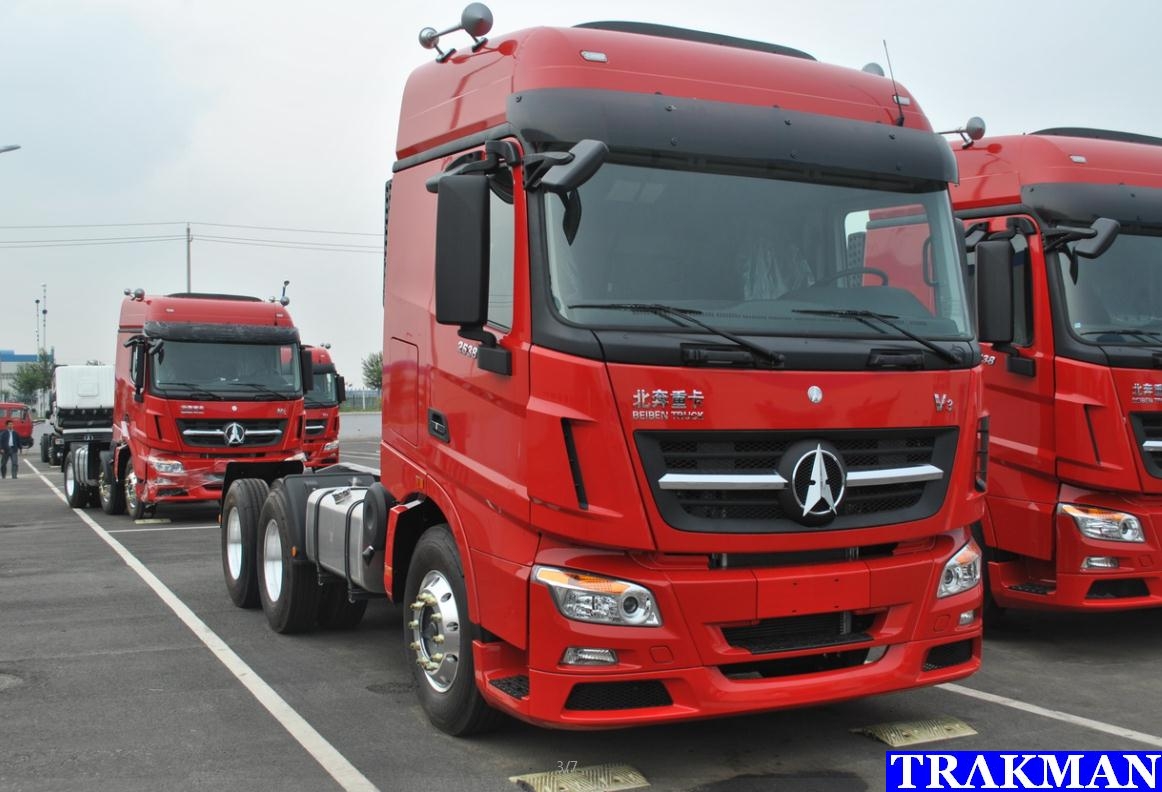

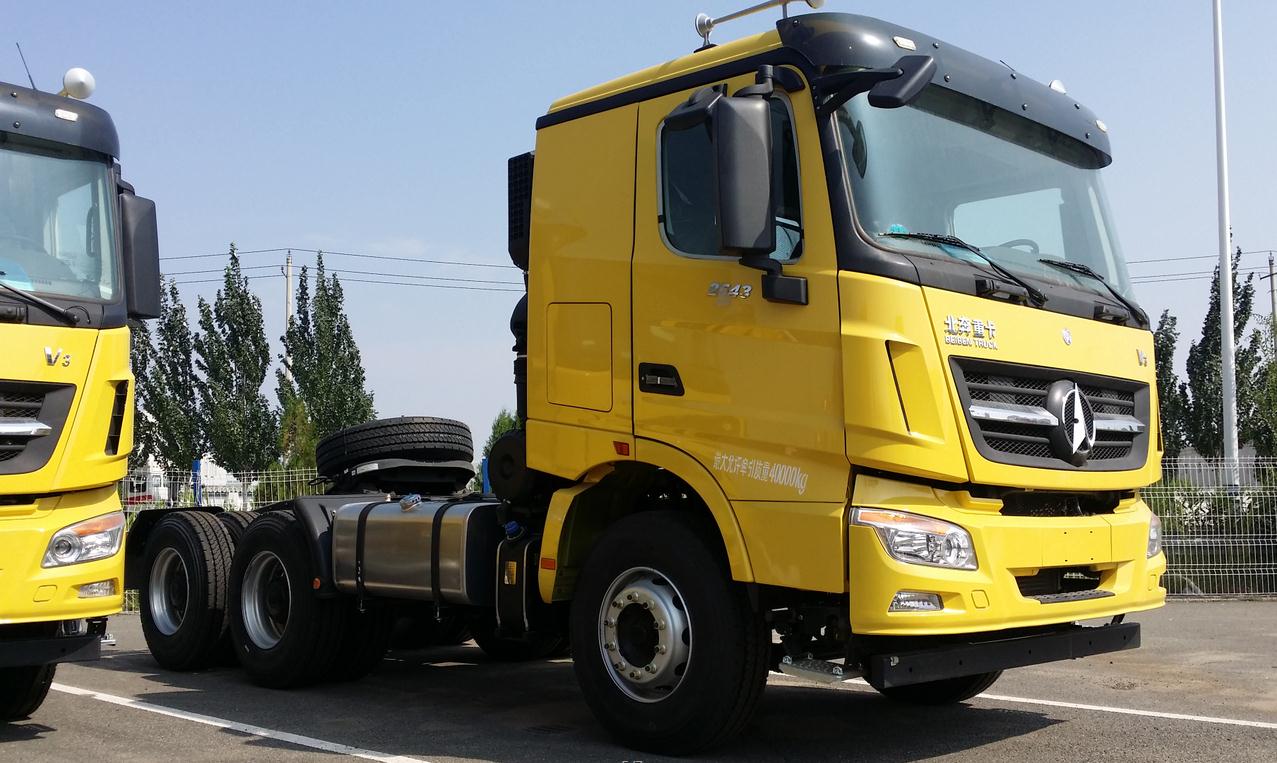

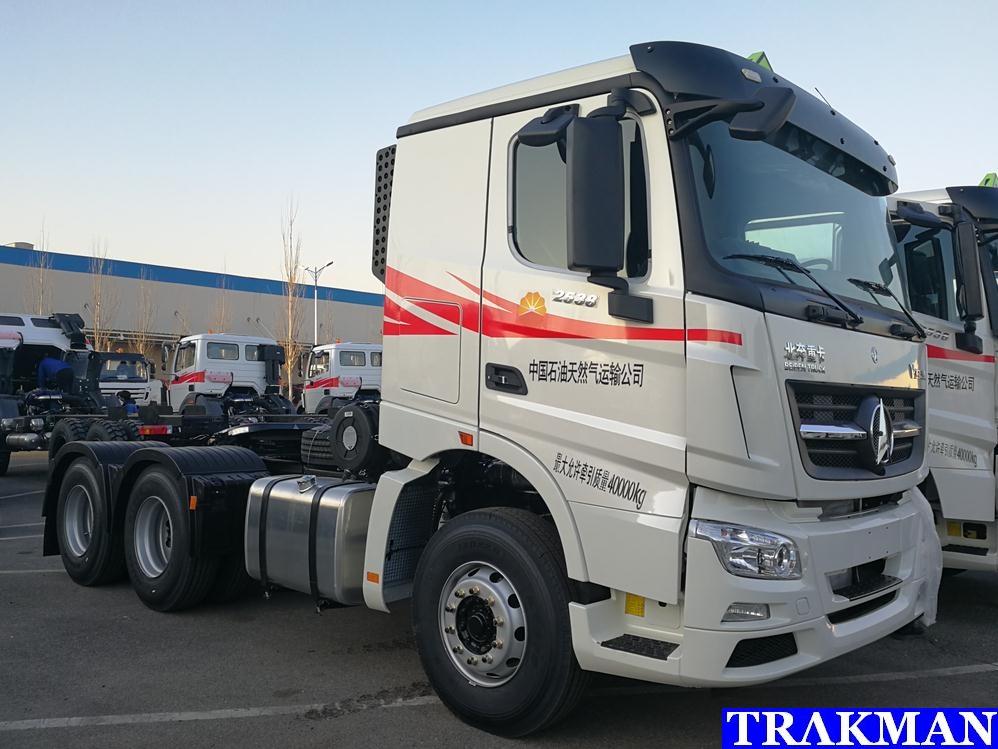

-2. Truck Picture For Reference.
-3. Truck Detail Picture.
-4. Other Product.
Now our company also deal with big loading capacity tipper semi trailer, please contact us get more detail.
