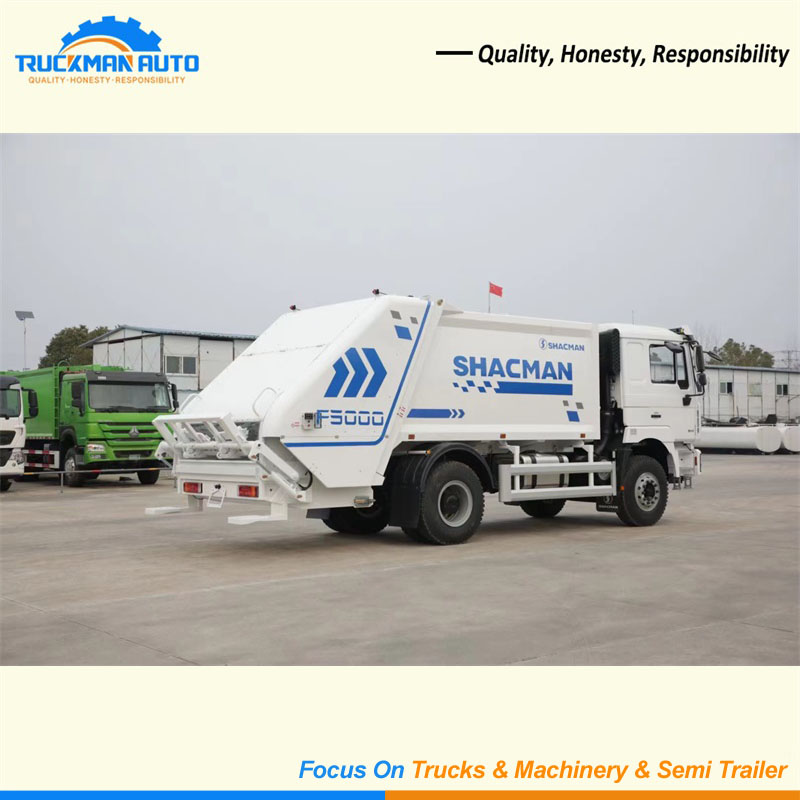

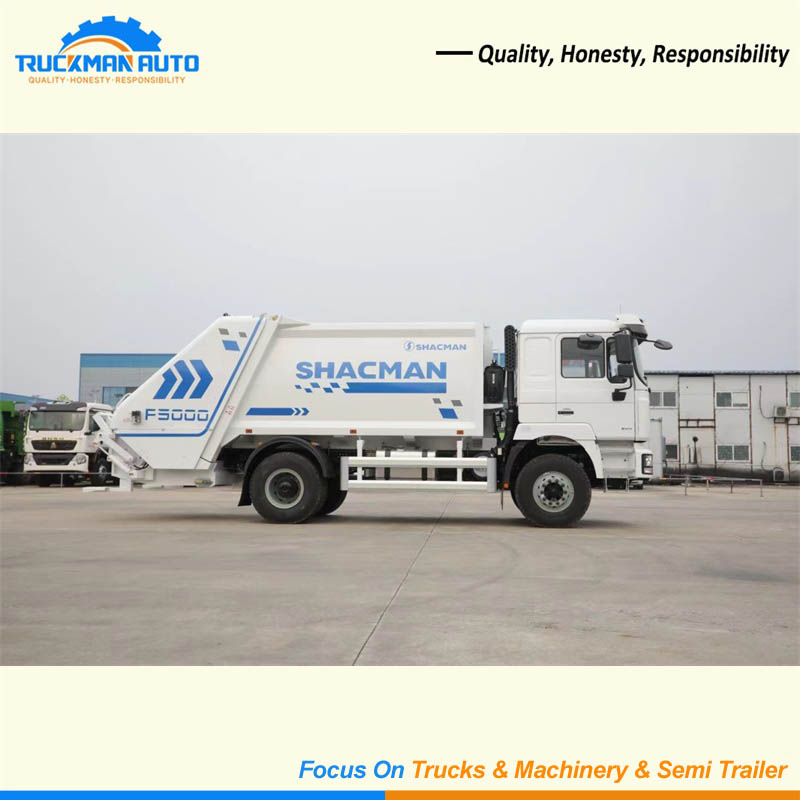

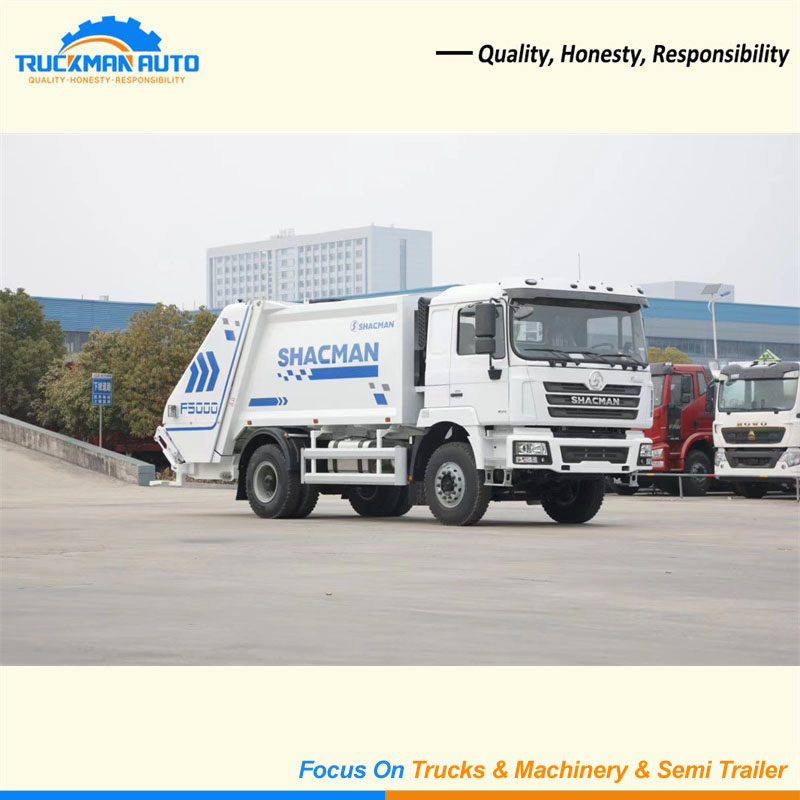

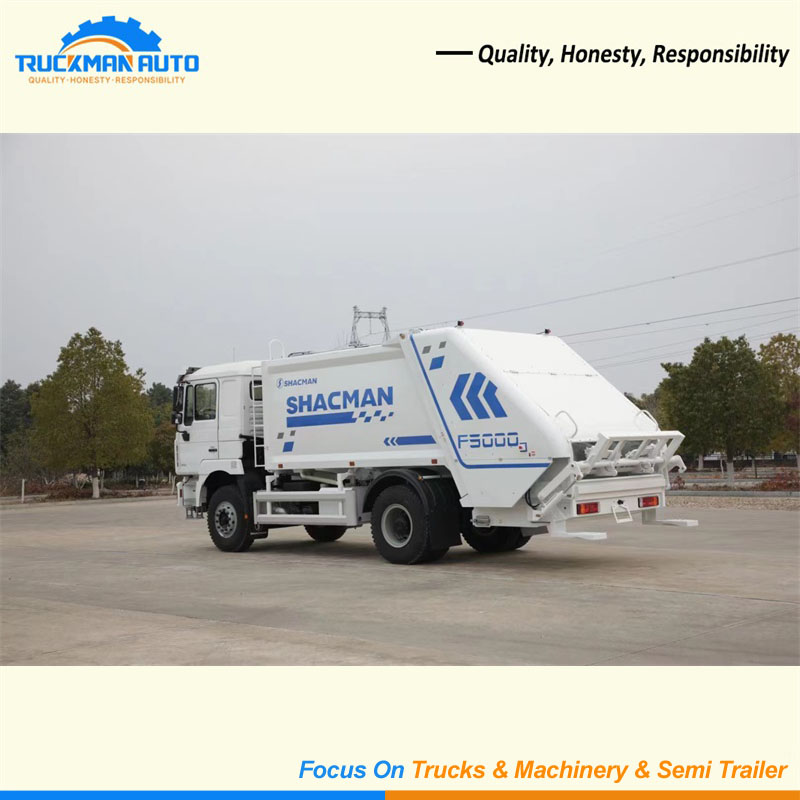

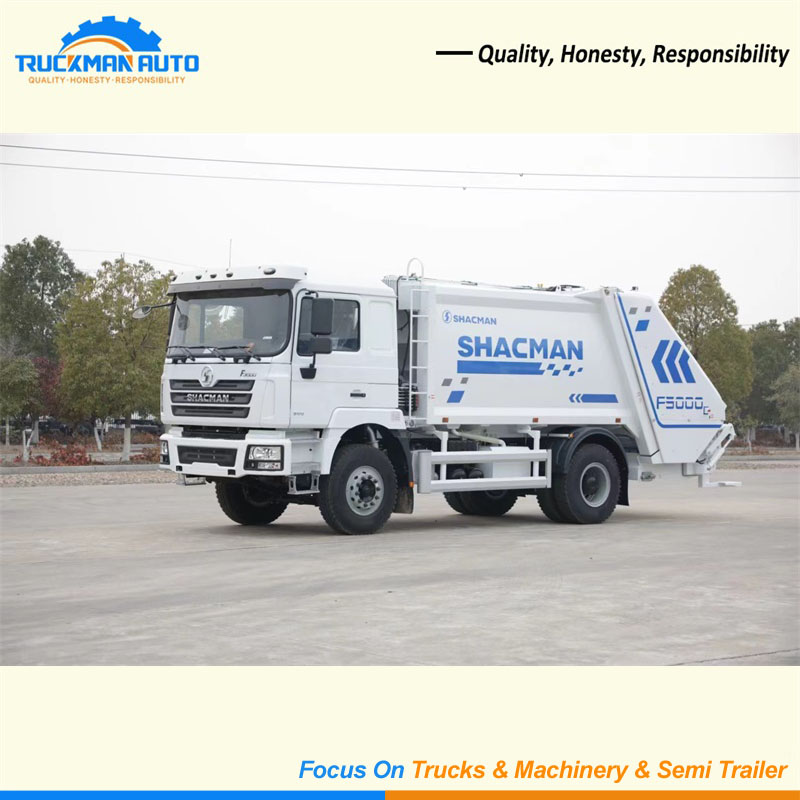

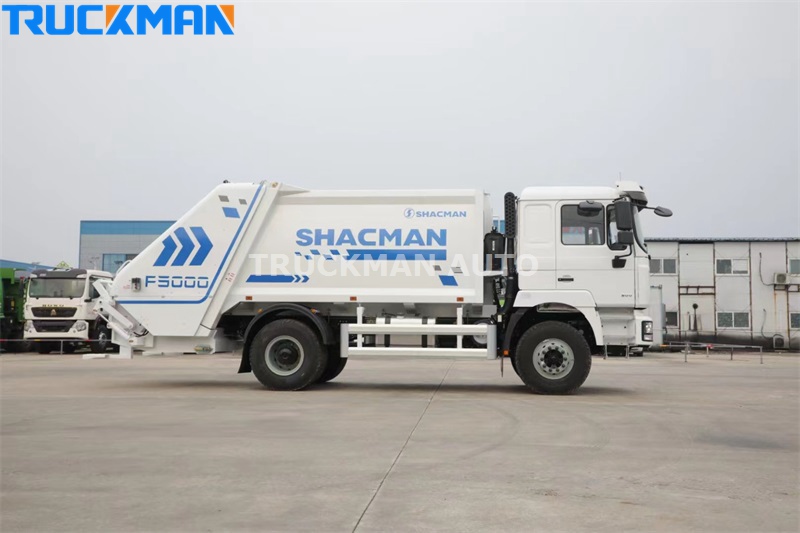

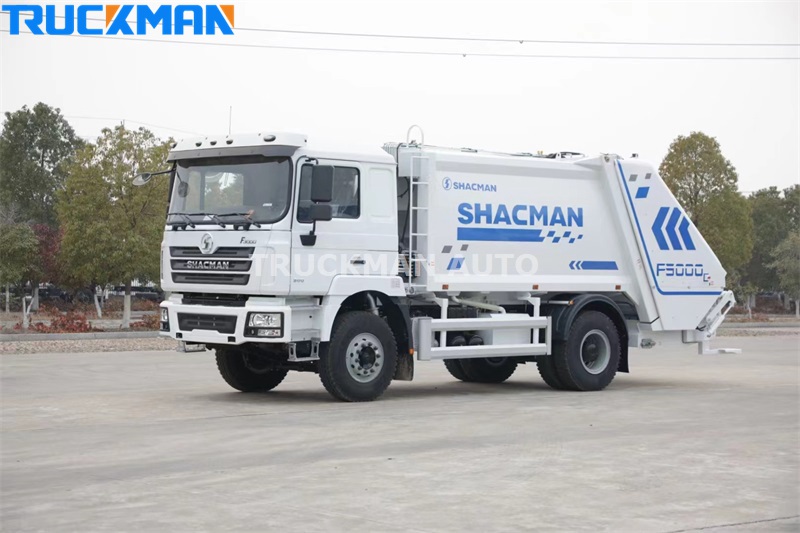

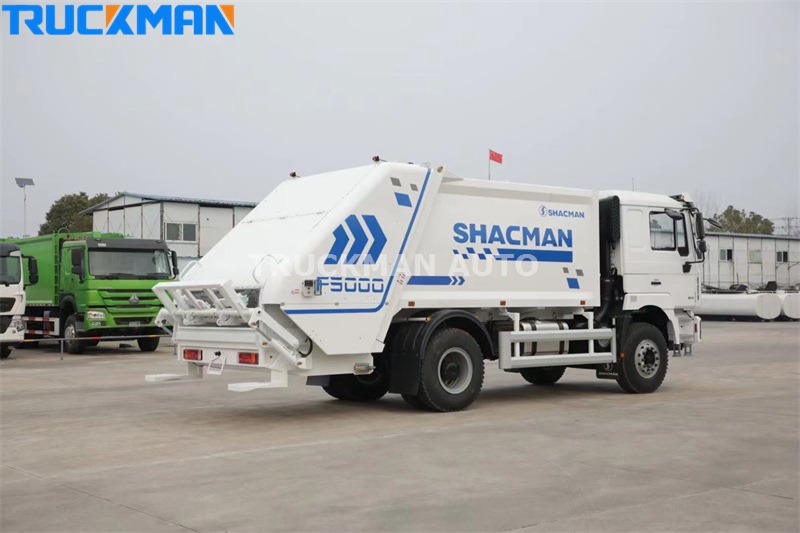

SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck Features
The box volume of the garbage truck is 10 cubic meters, made of high-strength steel plate, filler external skateboard cylinder structure, chute and scraping skateboard mechanism material thickening, used for loading domestic garbage, by the sealed garbage box, filler, push shovel, hydraulic transmission system and electrical control system. The weld seam of the box body adopts robot automatic welding process, no scraping dust, no leakage, the box body is beautiful in appearance, strong pressure bearing, no deformation.
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck |
|
Application |
Garbage Disposal |
|
Engine |
WP10.300E22,380HP,EURO II |
|
Cabin |
With one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 6+1 pcs |
|
Cargo Box |
10 Cubic Meters |
|
Fuel Tank |
300L |
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck specification only for your reference, we will recommend other Garbage Truck basic your request.
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck Sealing Design
The small cavity of the filler lifting cylinder of the compression garbage truck adopts the special three-position six-position electrical control valve core design of the neutral position, which can make the small cavity of the filler cylinder have high-pressure oil replenishment to the small cavity during the work of loading, sliding plate and scraping cylinder, and can ensure the sealing and pressure-retaining effect between the filler and the box, so as to make the sealing effect better. It adopts the whole continuous U-shaped structure sealing strip, waterproof on three sides; the lower part of the filler adopts double sealing design.
SHACMAN F3000 4X2 6 Wheels 10m³ Compression Garbage Truck Cargo Box
The panels of this SHACMAN garbage truck are made of high-strength weather-resistant steel plate with high strength and corrosion resistance. In order to ensure that the compartments have strong corrosion resistance, the box panels are first pre-treated with shot blasting and rust removal, and then cut and molded, and the small pieces of profiles are treated with acid pickling and phosphatization, and then the welded areas are subjected to secondary shot blasting and rust removal and surface treatment after the dumpster is assembled and molded to ensure that there are no traces of rust and corrosion.
