SINOTRUCK HOWO Waste Compactor Roll Off Garbage Truck
-1. HOWO Garbage Rubbish Compactor Truck Main Specification
-. Hook lift Case volume: 10CBM / 14CBM / 16CBM / 20CBM
-. Container lock system providing carriage security in the event of carriage
-. Secure side barriers
-. Telescopic boom movement security system
-. Load holding valve on pistons in the event of hose tear
-. Booms made of high resistant iron sheet
-. Suitable transport all kind of garbage
|
Engine |
||
|
Model |
WD615.47 |
|
|
Brand |
SINOTRUK |
|
|
Power |
371HP |
|
|
Emission |
EURO II |
|
|
Displacement(L) |
9.726 |
|
|
Type |
water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|
|
Kind of Fuel |
Diesel |
|
|
Axles |
||
|
Front Axle Model |
HF9 axle. Capacity: 9000kg |
|
|
Rear Axle |
HC16 axle. Capacity:2*16000kg |
|
|
Wheels & Tyres |
||
|
Type |
12.00R20 |
|
|
Material |
Steel tire |
|
|
Quantity |
10+1 spare |
|
|
Body |
||
|
Volume of body(m3) |
15 |
|
|
Volume of filler(m3) |
2.5 |
|
|
Time of one filling cycle(s) |
<25 |
|
|
Oil cylinder type |
Double acting piston |
|
|
Operating voltage |
24V |
|
|
Reversing valve |
Multiple directional control valve |
|
|
Cabin |
||
|
Model |
HW76, with one sleeper and A/C |
|

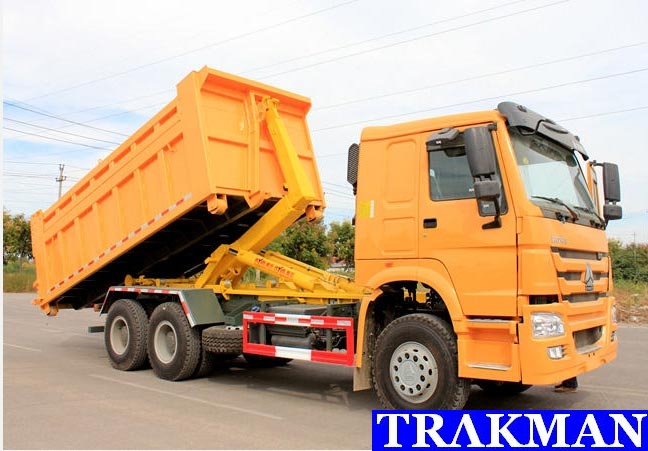

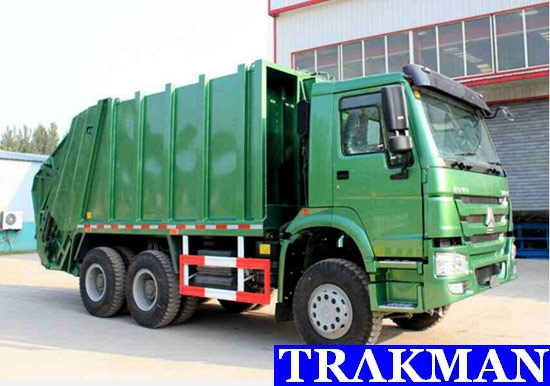

-2. Truck Picture For Reference.

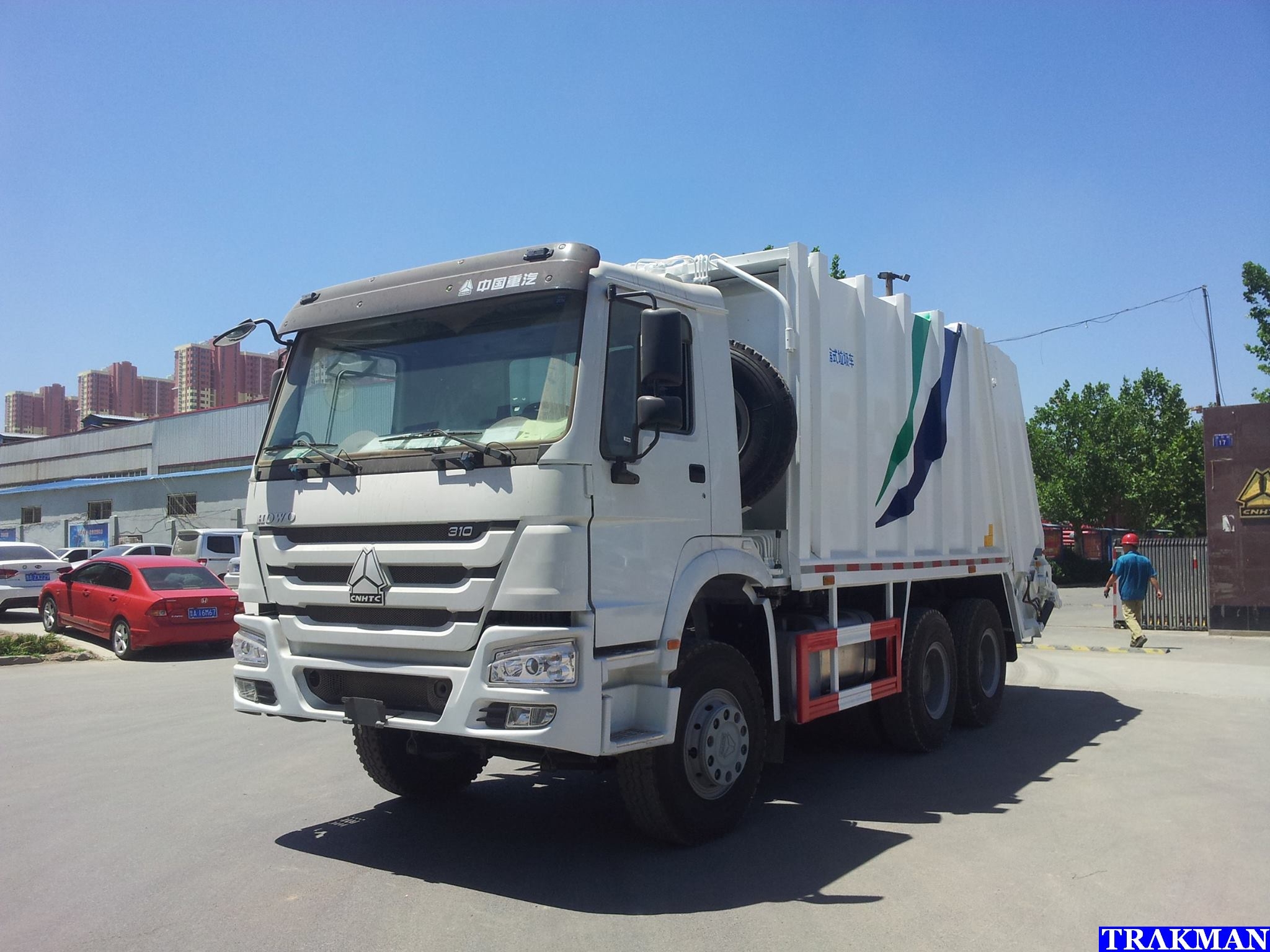

-3. Truck Detail Picture.

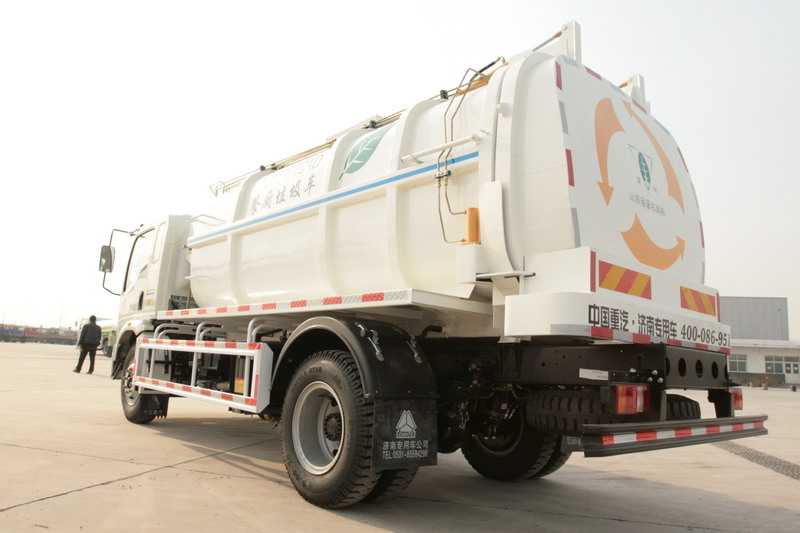

-4. Other Product.

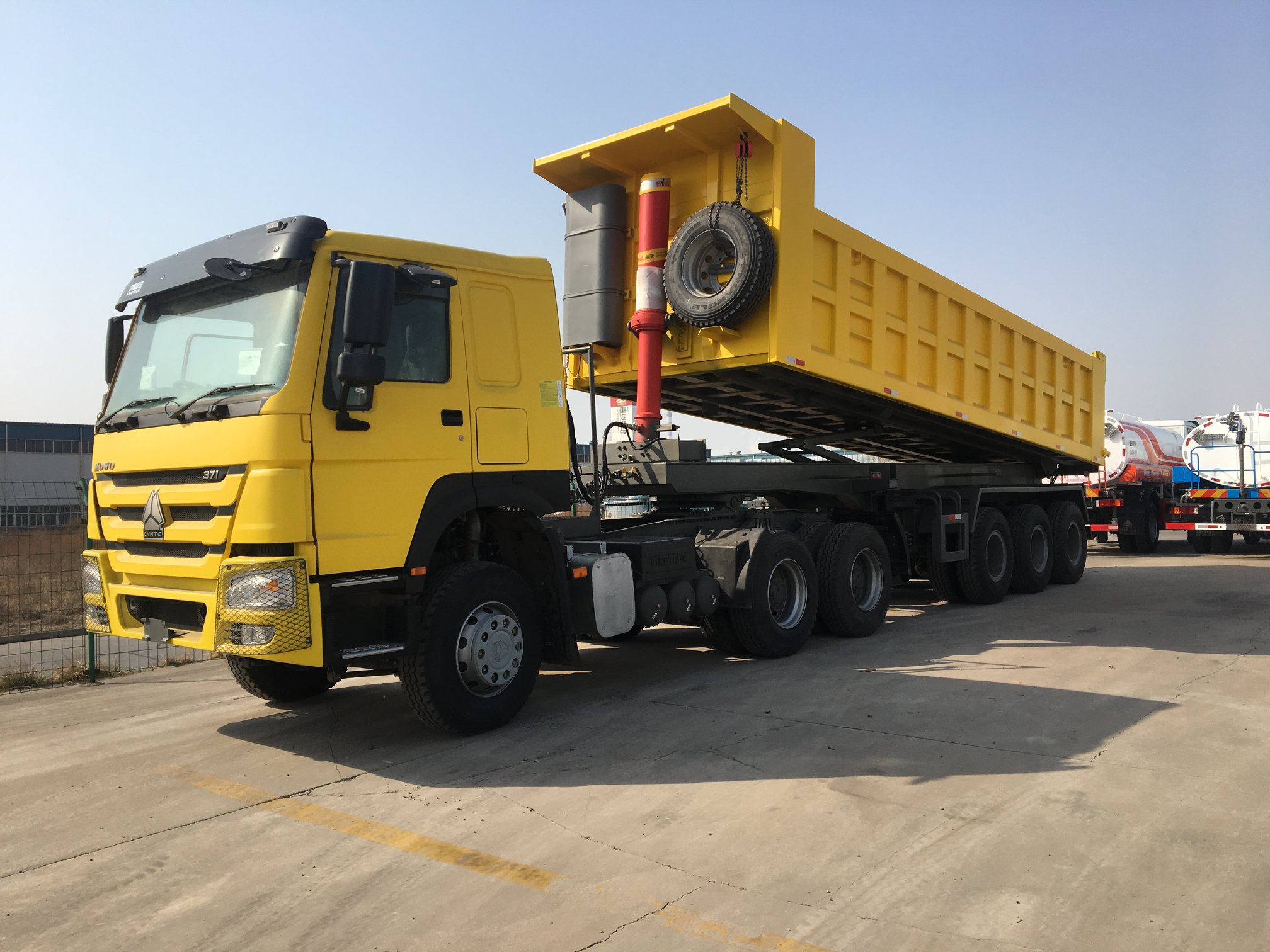

Now our company also deal with big loading capacity TIPPER TRAILER. It’s will help transport more garbage one time.
