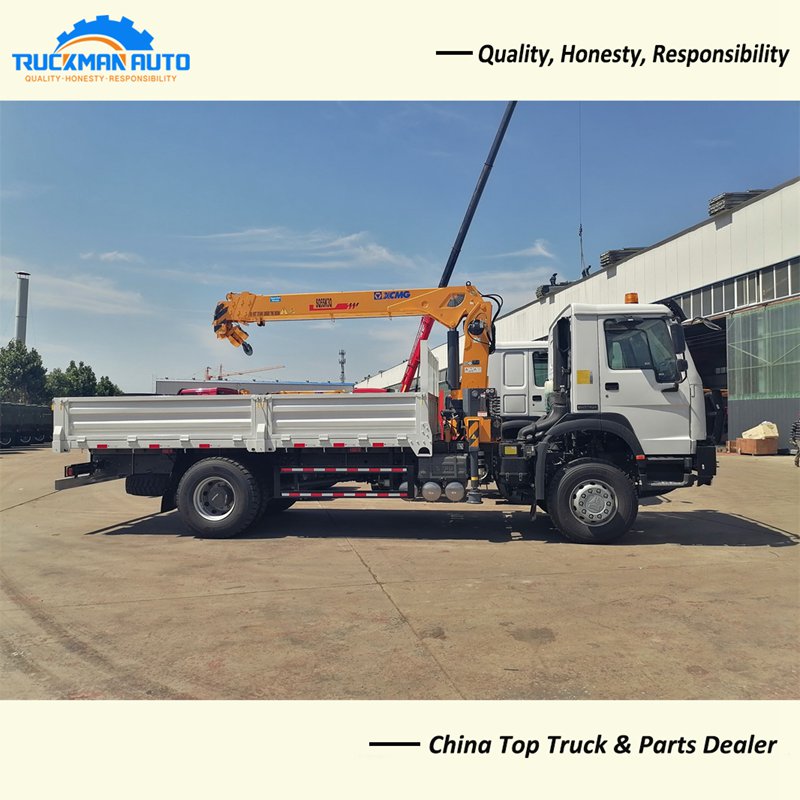

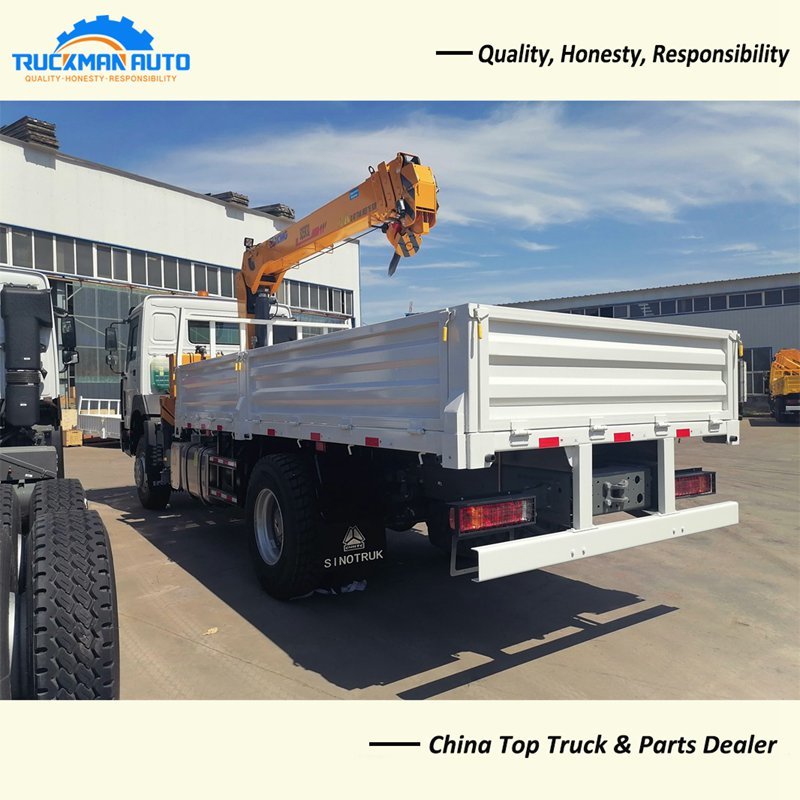

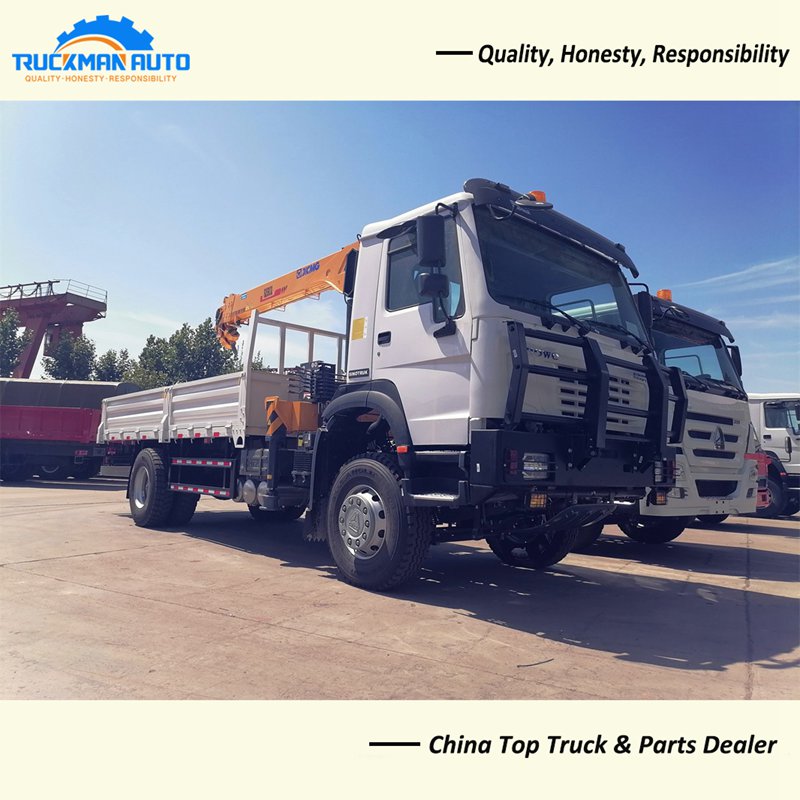

SINOTRUK HOWO 4x2 Mounted Crane Truck
SINOTRUK HOWO 4x2 Mounted Crane Truck Features
Mounted crane trucks, also known as crane-mounted trucks or crane trucks, are vehicles that are equipped with a crane on the rear end or bed of the truck. These cranes are used to lift and transport heavy loads, making them ideal for various industries such as construction, logistics, and transportation.
-. Mounted crane trucks come in various sizes and configurations, with different lifting capacities to suit different needs.
-. By eliminating the need for additional lifting equipment or hiring external crane services, mounted crane trucks can save time and reduce costs.
SINOTRUK HOWO 4x2 Mounted Crane Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 4x2 Mounted Crane Truck |
|
Application |
General cargoes haulage |
|
Engine |
WP10.380E22, 380HP, EURO 2 |
|
Gearbox |
10 forward and 2 reverse gear |
|
Cabin |
With one bed, A/C, metal bumper |
|
Lifting Capacity |
5000kg |
|
Driving Axle |
16 tons axle |
|
Cargo Body |
7800x2450x600mm |
|
Fuel Tank |
400L |
|
Tire |
12.00R20, 6+1 pcs |
The SINOTRUK HOWO 4x2 mounted crane truck specification only for your reference, we will recommend other model SINOTRUK HOWO mounted crane truck basic your request.

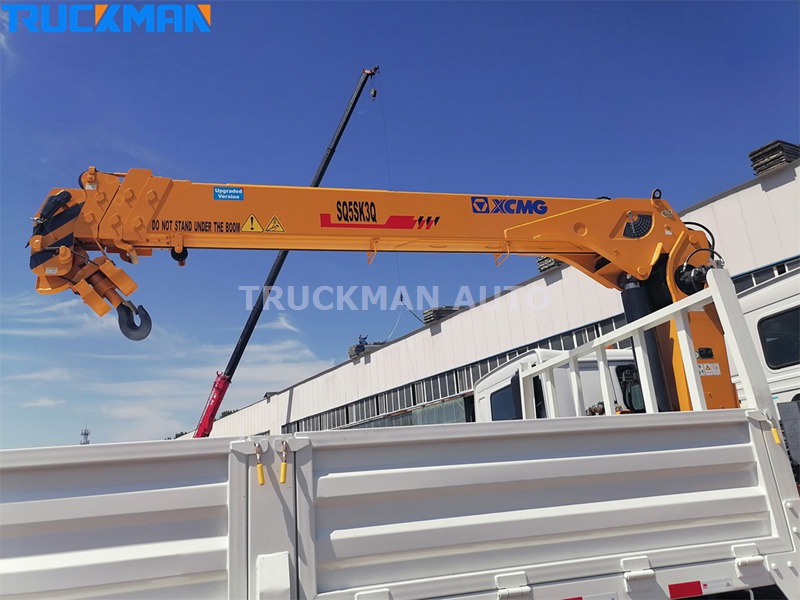

SINOTRUK HOWO 4x2 Mounted Crane Truck Crane
The SINOTRUK HOWO mounted crane truck crane model is SQ5SK3Q, 5 tons lifting capacity. The specification of crane as follow:
|
Description |
Parameter Value |
|
Max. Lifting Capacity |
5000kg |
|
Max. Lifting Moment |
12.5T.M |
|
Recommended Power |
18kw |
|
Maximum Flow Rate Of Hydraulic |
32L/min |
|
Rated Pressure Of Hydraulic |
20MPa |
|
Tank Volume |
90L |
|
Crane Weight |
2260kg |
|
Installation Space |
900mm |
|
Slewing Angle |
360° |
