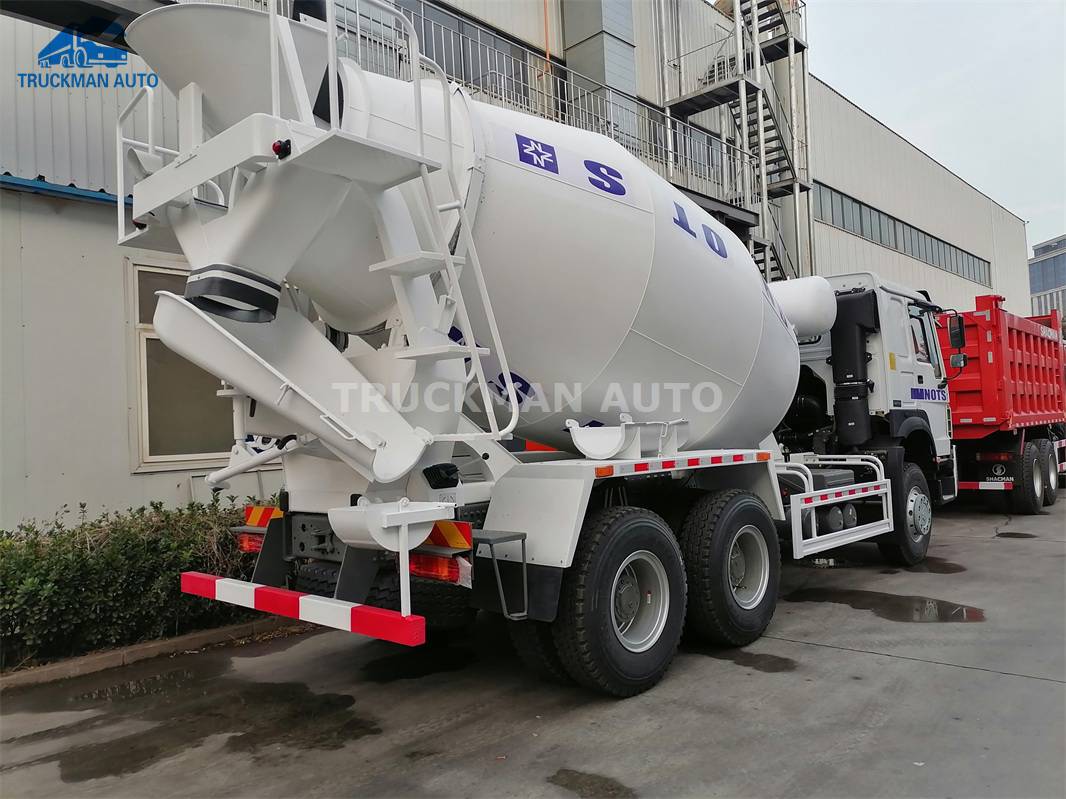

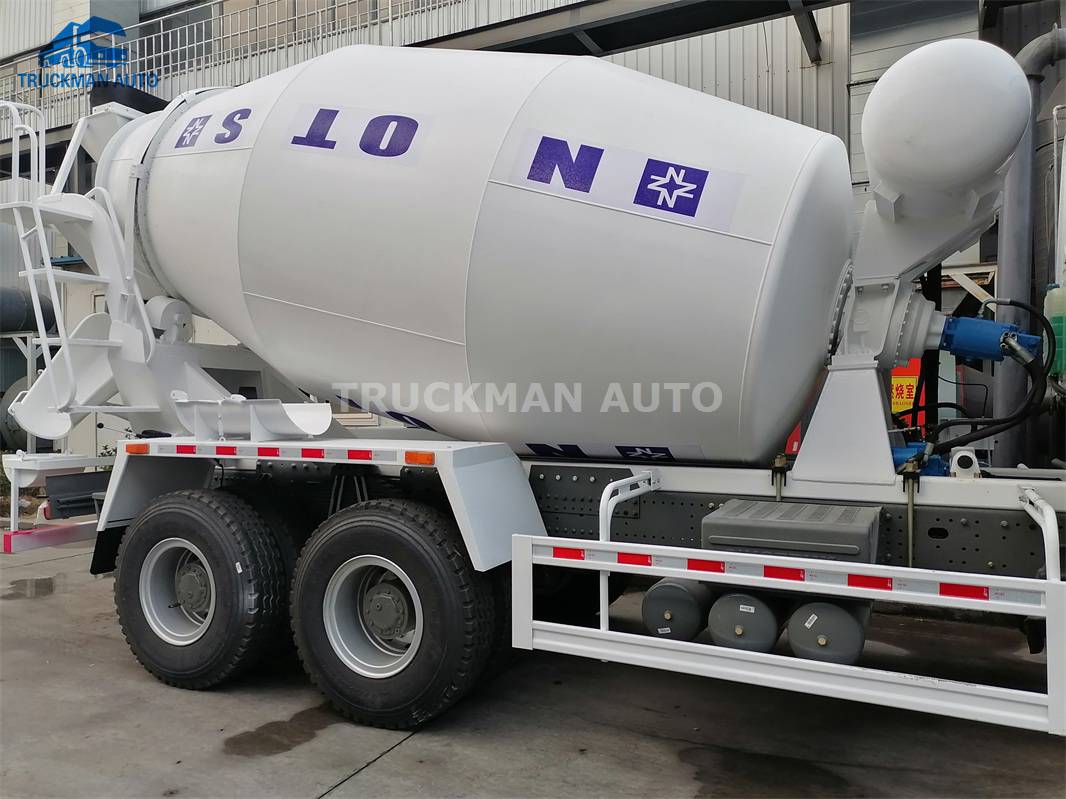

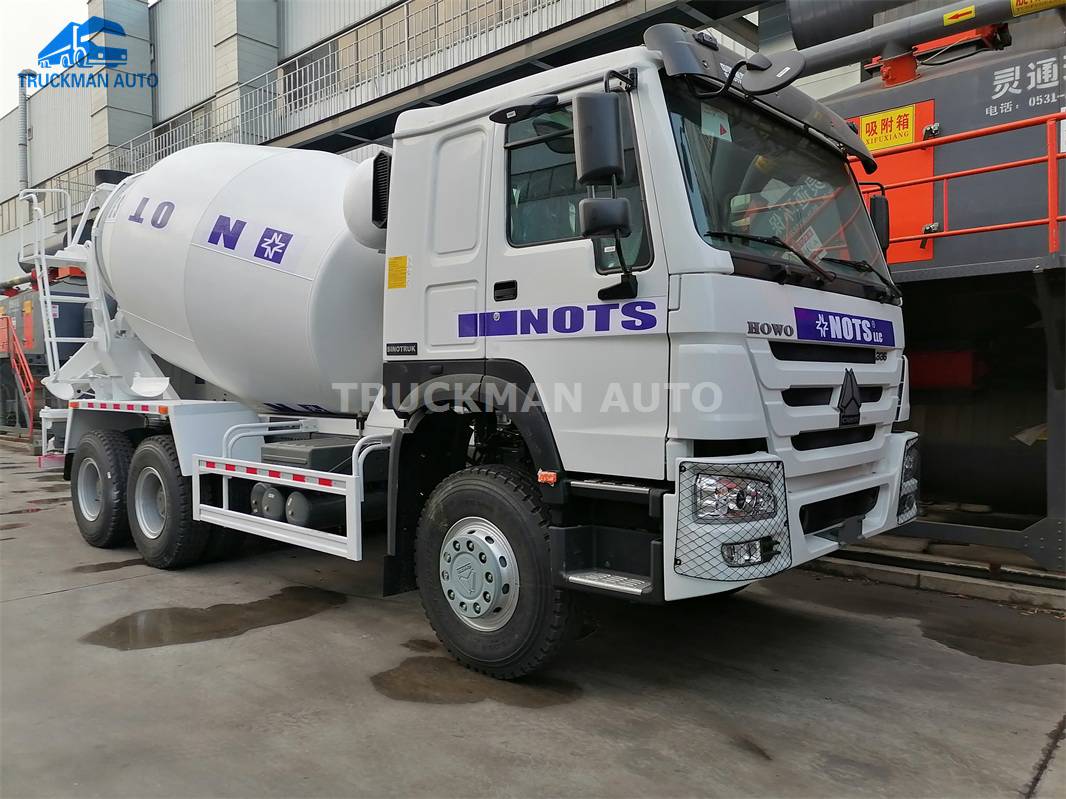

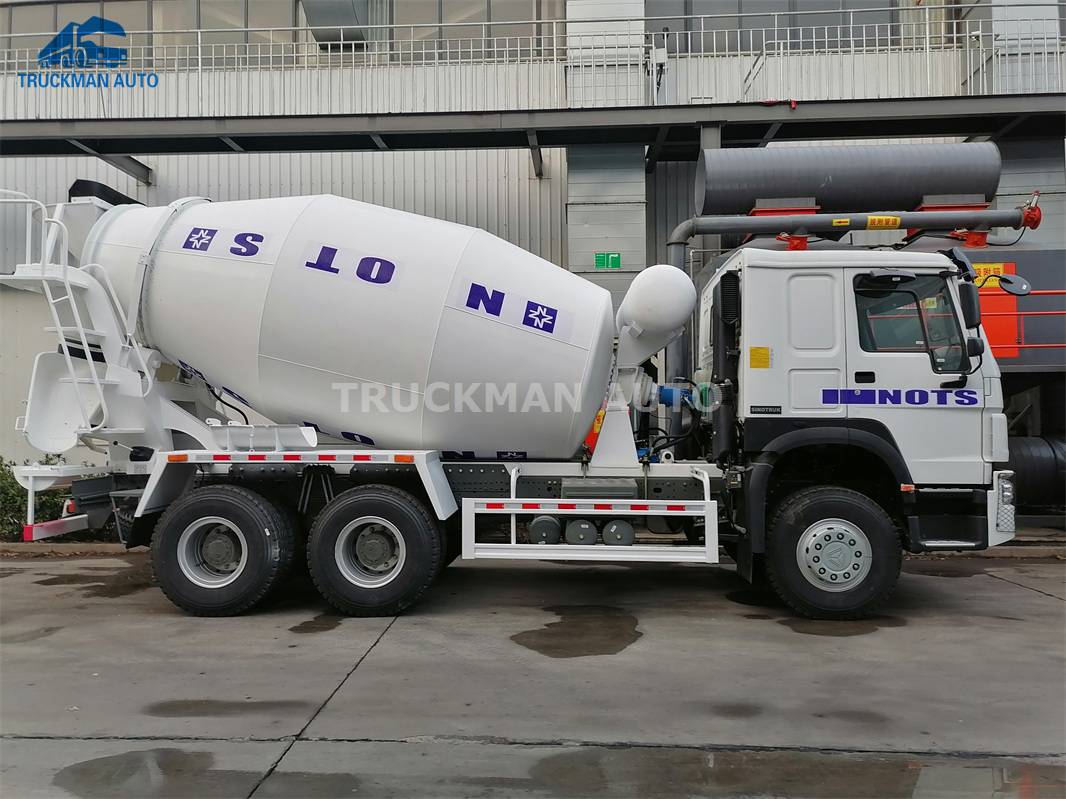

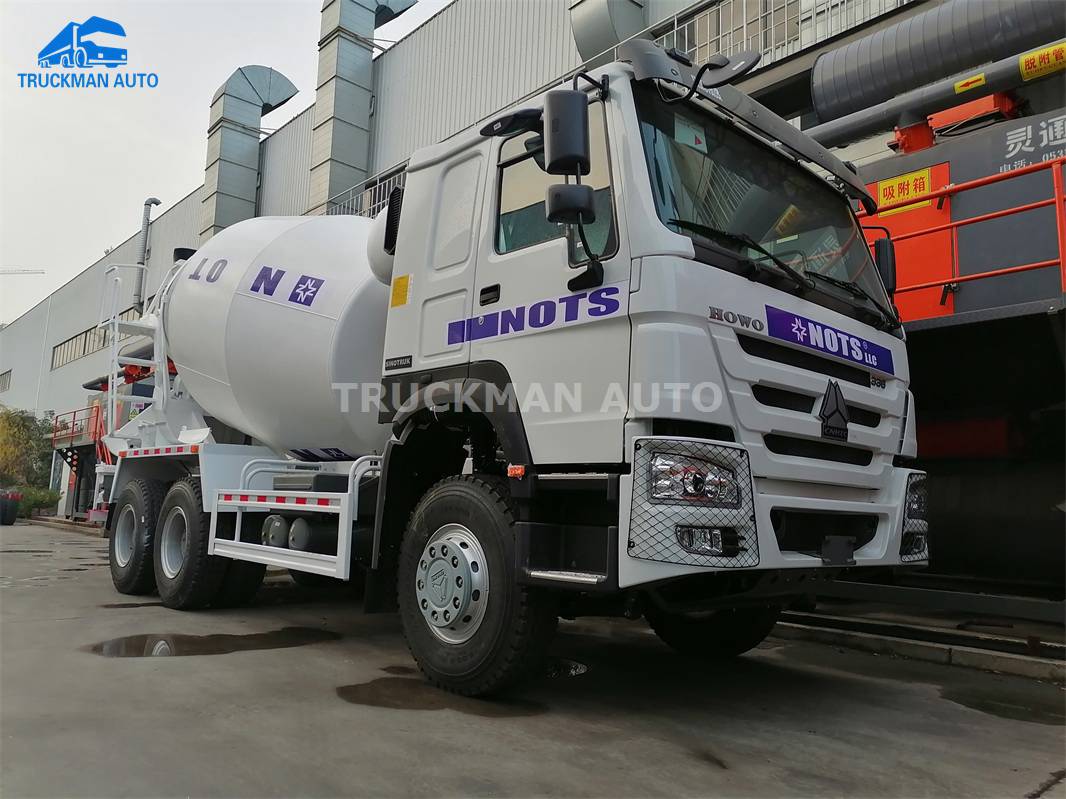

10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
-1. SINOTRUK HOWO 10m3 Concrete Mixer Truck Detail.
SINOTRUK HOWO 10m3 concrete mixer truck mostly used in the construction of commercial mixing stations and large-scale projects. The main purpose is to transport the concrete that has been mixed in the concrete mixer to the construction site.
-. Use the famous brand oil pump, motor, reducer. Like EATON.
-. Cabin can adopt the no bed, one bed. Driver seat can optional air suspension.
-2. SINOTRUK HOWO 10m3 Concrete Mixer Truck Specification.
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 10m3 Concrete Mixer Truck |
|
Application |
For transport concrete, etc |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76 cabin with one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Driving Axle |
16 tons, 2x16,000kg |
|
Tire |
12.00R20, 10+1 pcs, radial model tire |
|
Tank Body |
10 cubic meter |
|
Fuel Tank |
400L |
|
Loading Tons |
25-30 tons |
|
Max Speed |
75km/h |
|
Dimension |
9230x2600x3950mm |
The SINOTRUK HOWO 10m3 concrete mixer truck specification only for your reference, we will recommend other model SINOTRUK HOWO concrete mixer truck according to your request.
-3. SINOTRUK HOWO 10m3 Concrete Mixer Truck Detail.

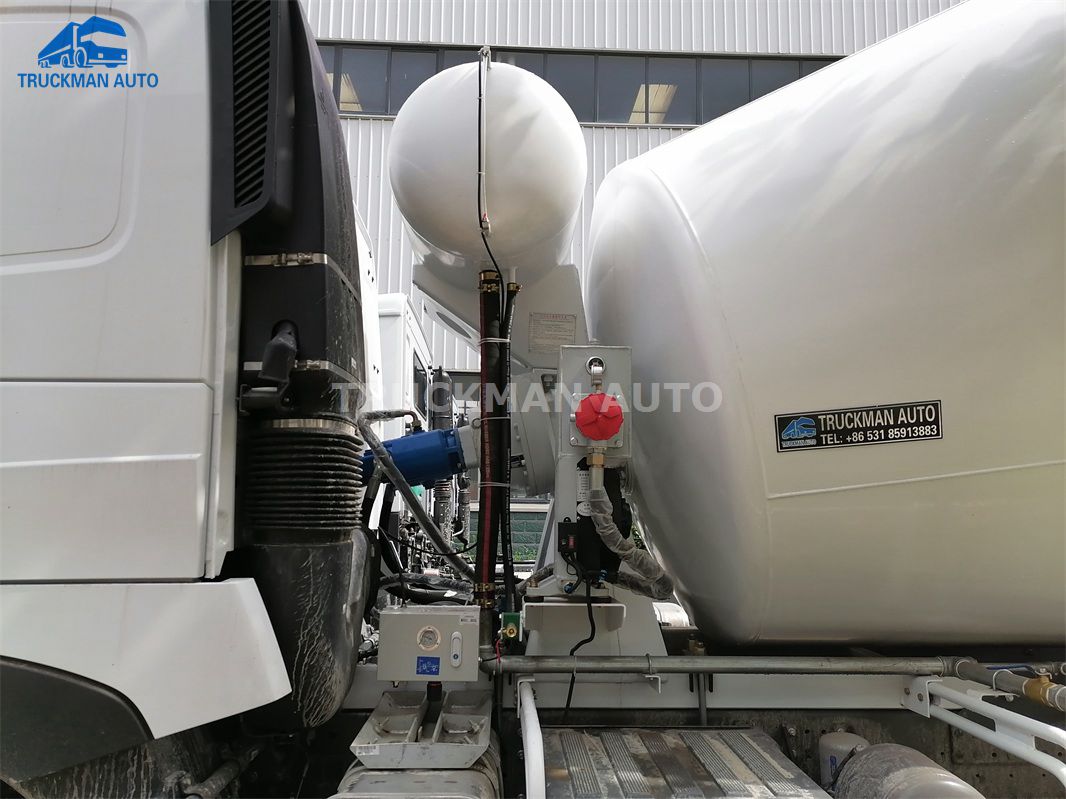

SINOTRUK HOWO concrete mixer truck is equipped with a 400L water tank. The main function is to rinse the hopper after loading and to rinse the mixing drum and discharge tank after discharging to prevent concrete from sticking. When the temperature is lower than zero degrees Celsius, after flushing, the water in the water tank and pipe should be drained to prevent freezing.
