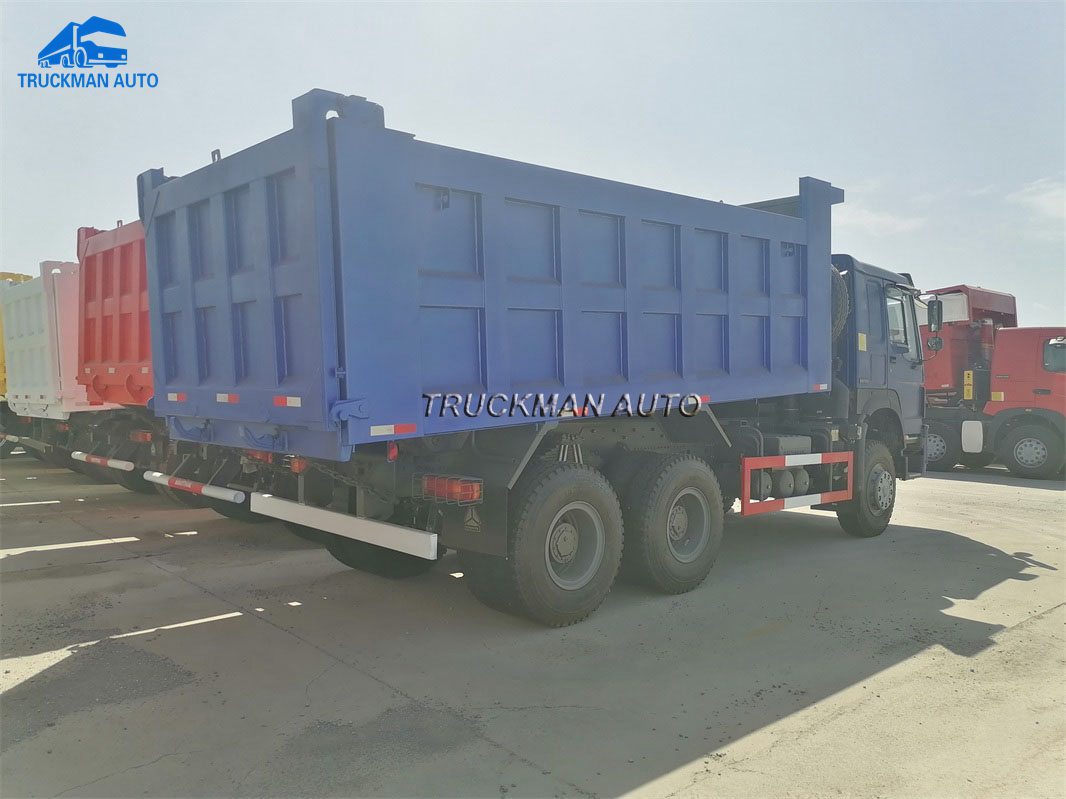

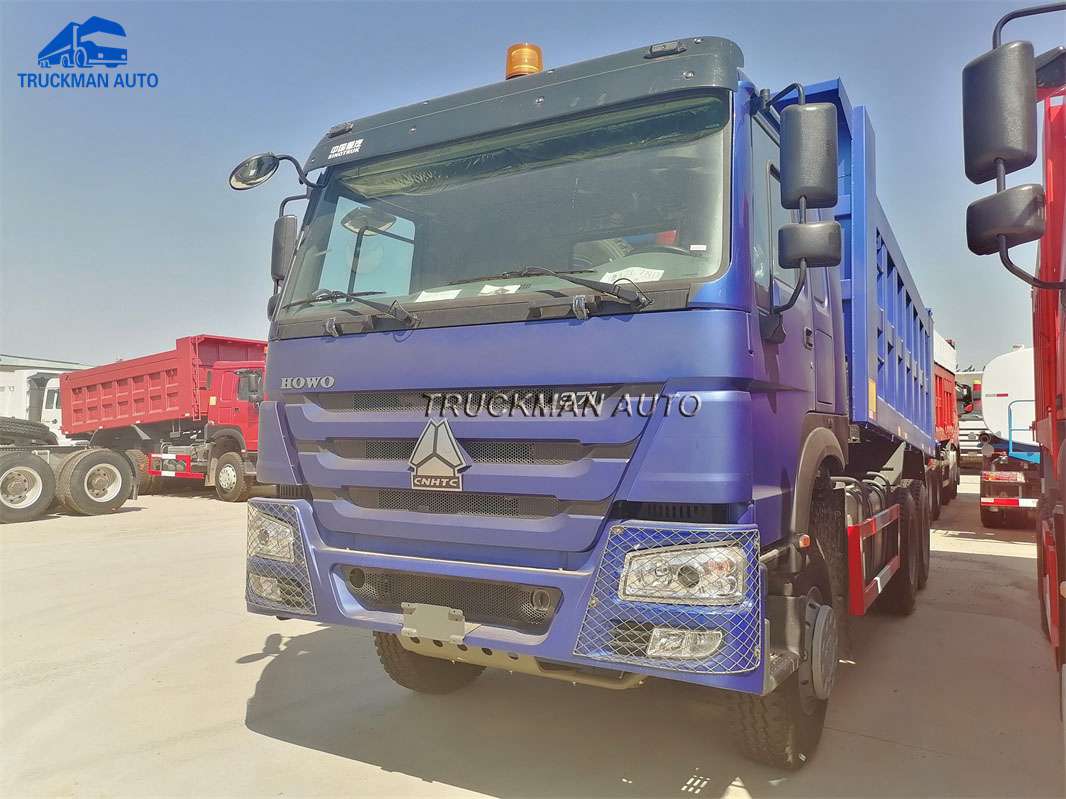

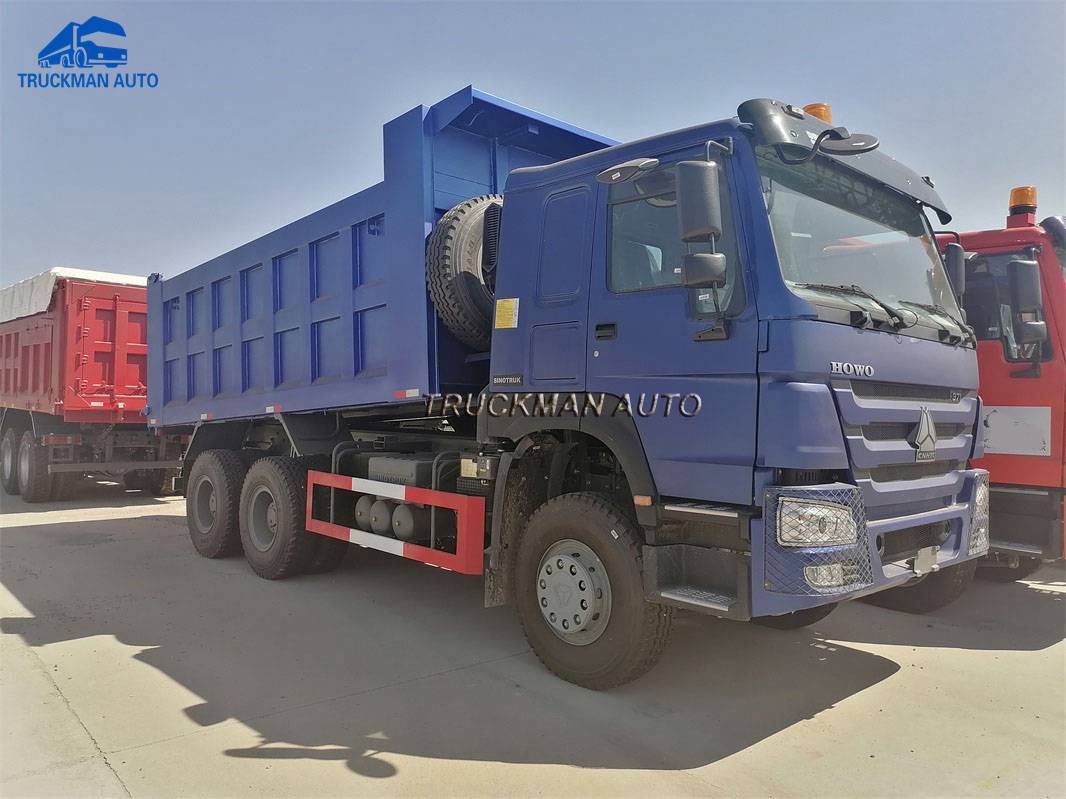

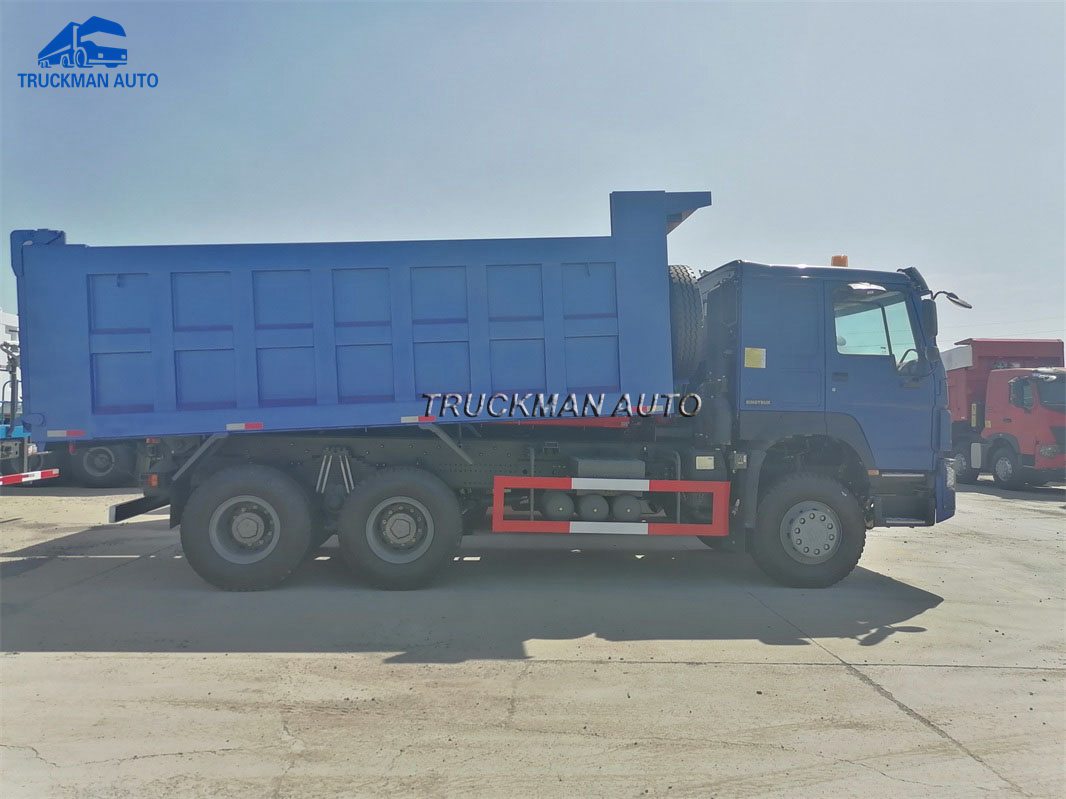

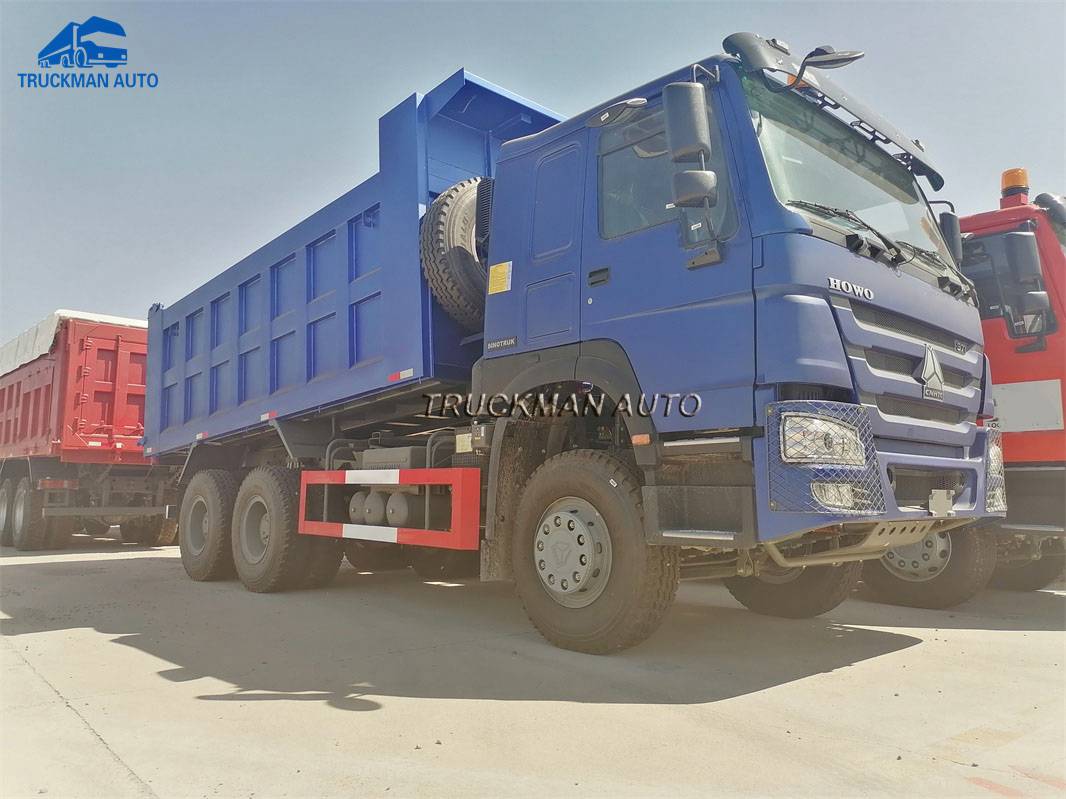

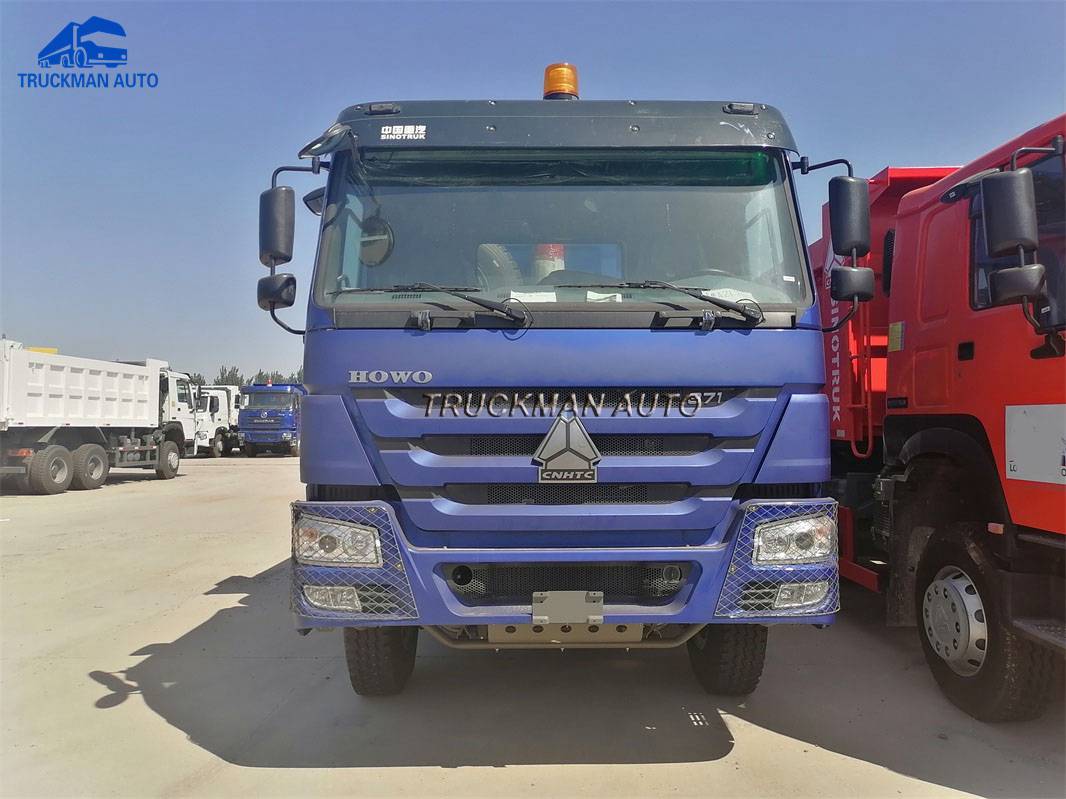

10 Wheel SINOTRUK HOWO 20m3 Tipper Truck For Sale
-1. SINOTRUK HOWO 20m3 Tipper Truck Detail.
SINOTRUK HOWO 20m3 tipper truck can haulage the gravel, asphalt, feldspar, limestone, bauxite, chippings and other material. Suitable for short distance transport, like 0-50km.
-2. SINOTRUK HOWO 20m3 Tipper Truck Main Specification.
|
Description |
Parameter value |
|
Product Name |
SINOTRUK HOWO 20m3 Tipper Truck |
|
Application |
For construction work only |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76 model, with one bed, A/C |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Front Axle |
1x9,000kg |
|
Driving Axle |
2x16,000kg |
|
Tire |
315/80R22.5, 10+1 pcs, TRIANGLE brand |
|
Bucket |
5600x2300x1500mm, bottom 8mm, side 6mm |
|
Fuel Tank |
300L (400L fuel tank optional) |
|
Loading Tons |
25-30 tons |
|
Other |
Intercooler protect cover, reverse buzzer optional |
|
Dimension |
8400x2580x3350mm |
The SINOTRUK HOWO 20m3 tipper truck specification is only for reference, we could recommend the other model SINOTRUK HOWO tipper truck according to your request.
-3. SINOTRUK HOWO 20m3 Tipper Truck Cabin Picture.

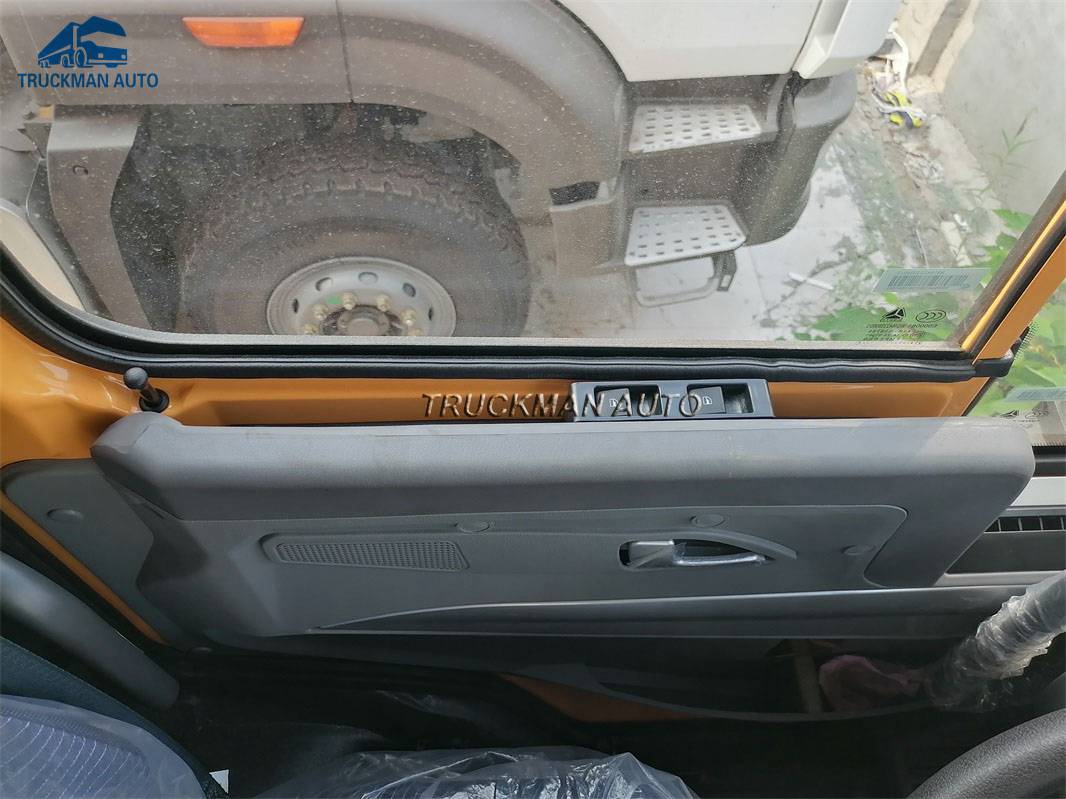

Our SINOTRUK HOWO 20m3 tipper truck cabin with one bed and A/C, if need long distance haulage, suggest choose two bed cabin. And the cabin now make new update, like adopt the electric doors and windows replace the manual operation, which is more convenient and faster.

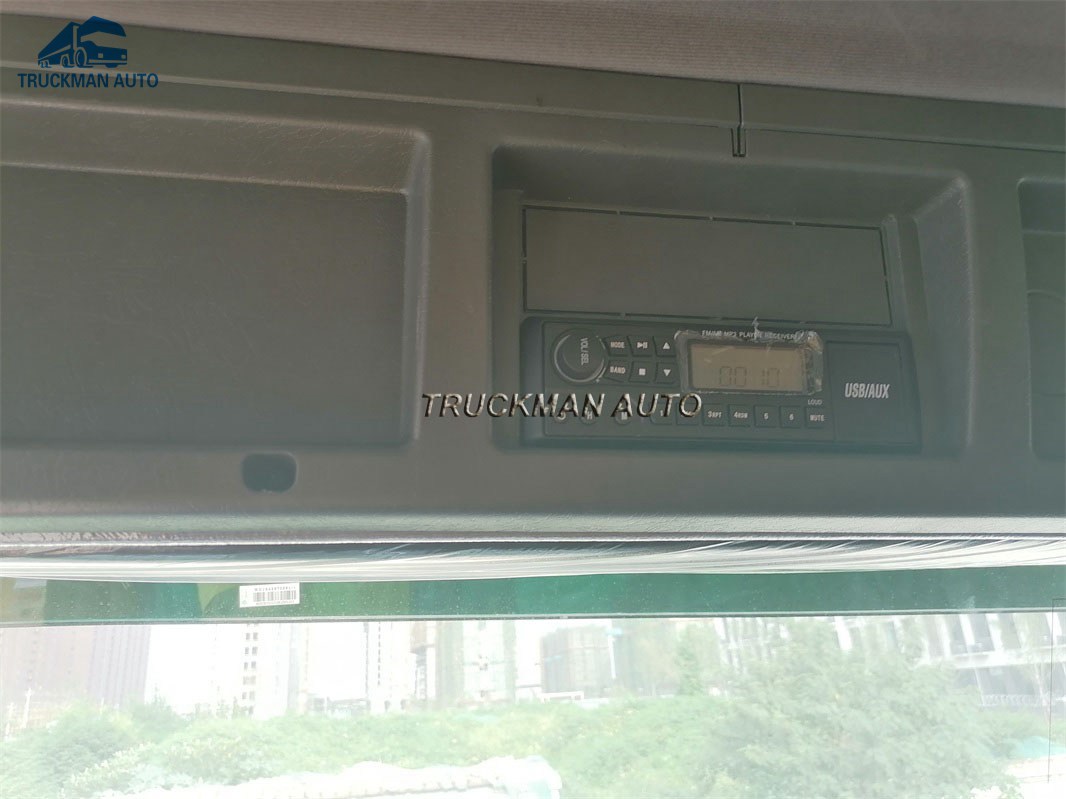

The second is position of the radio console is placed above the driver's head, reducing the driver's operation on the radio and effectively avoiding the driver's distraction. And the remaining space makes the layout of each operation button more reasonable
