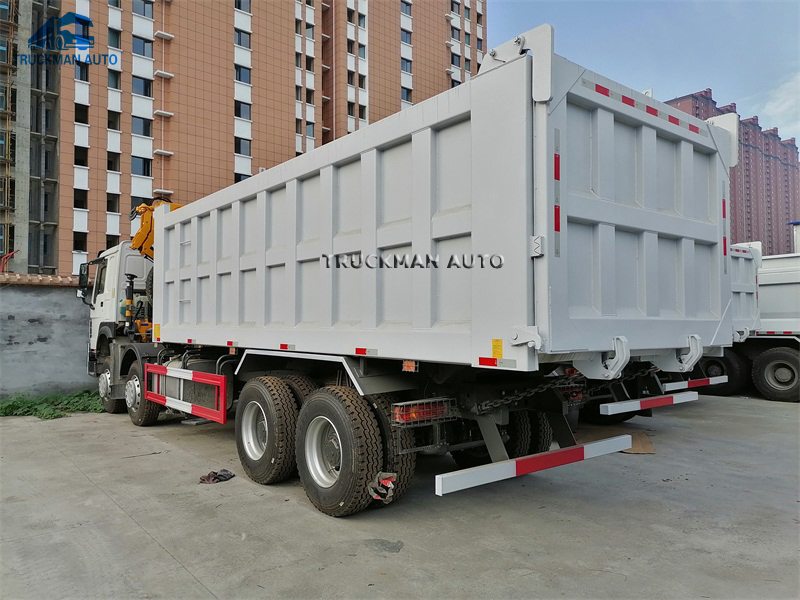

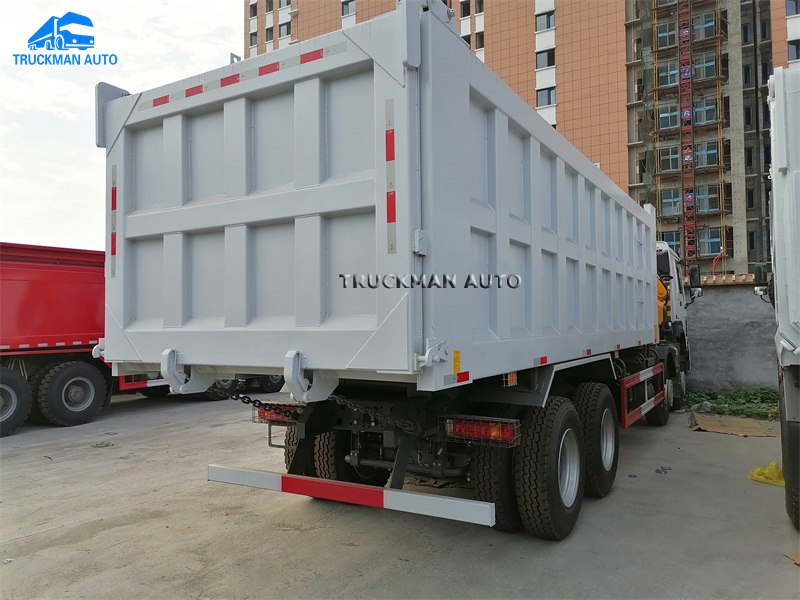

12 Wheel 371HP SINOTRUK Dump Truck With Crane
-1. SINOTRUK Dump Truck With Crane Main Detail.
The SINOTRUK dump truck with crane is suitable for no crane work place, such as the warehouse, some bulk cargo port etc. The crane with 3-10 tons loading capacity, very easier operating and could save the rental crane cost.
-2. Main Specification For SINOTRUK Dump Truck With Crane.
|
Model |
SINOTRUK Dump Truck With Crane |
|
Engine |
WD615.47. 371HP |
|
Cabin |
HW76 cabin, one bed, A/C. |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10 spare tire. TRIANGLE brand |
|
Cargo Box |
6800x2300x1500mm, 23.5m3 |
|
Crane Loading Tons |
10 Tons, with 5 arm |
|
Loading Tons |
40-50 Tons |
|
Fuel Tank Capacity |
400L |
|
Max Speed |
75km/h |
-3. SINOTRUK Dump Truck With Crane Information.

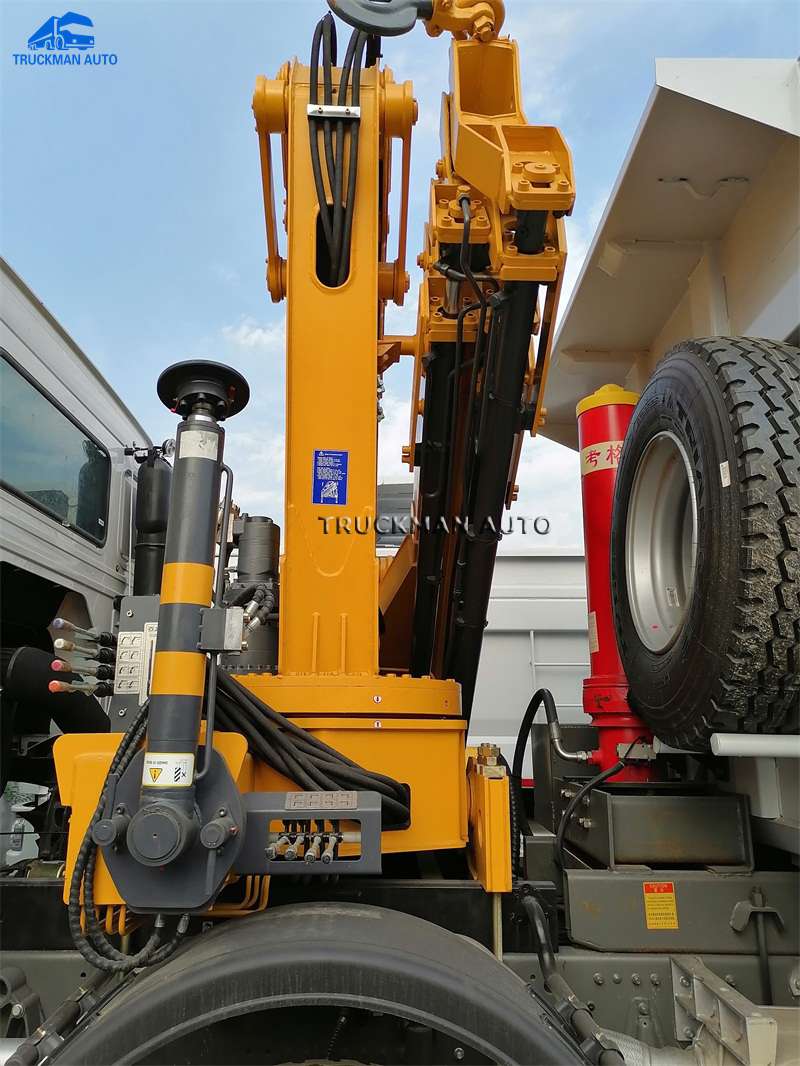

10 Tons Crane Detail.
|
Max Lifting Moment Of Force |
200kN•m |
|
Maximum Lifting Weight |
10000kg |
|
Maximum Working Range |
9.755m |
|
Maximum Lifting Height |
12.2m |
|
Rotation Range |
360° |
|
Support Leg Distance |
5210mm |
|
Crane Weight |
3477kg |
SINOTRUK Dump Truck With Crane Advantage
-. It can adapt to operation in a narrow environment. Compared with a straight boom crane, the boom is flexible and has advantages in indoor operation;
-. Four-bar system, stronger lifting capacity, flange type telescopic boom link technology, lifting more stable and safer;
-. Hexagonal boom technology, good neutrality, strong section bending resistance;
-. The unique floating three-point bridge structure design effectively reduces the additional stress on the chassis frame when the vehicle is running.
