12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck

12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
Product Name : 12 Wheel 50 Tons SINOTRUK HOWO 8x4 Tipper Truck
Product ID : ZZ3317N3567W
Loading Tons : 50000kg
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse gear
Cabin : HW76, with one bed, A/C
Tire : 12.00R20, 12+1 pcs
Directions

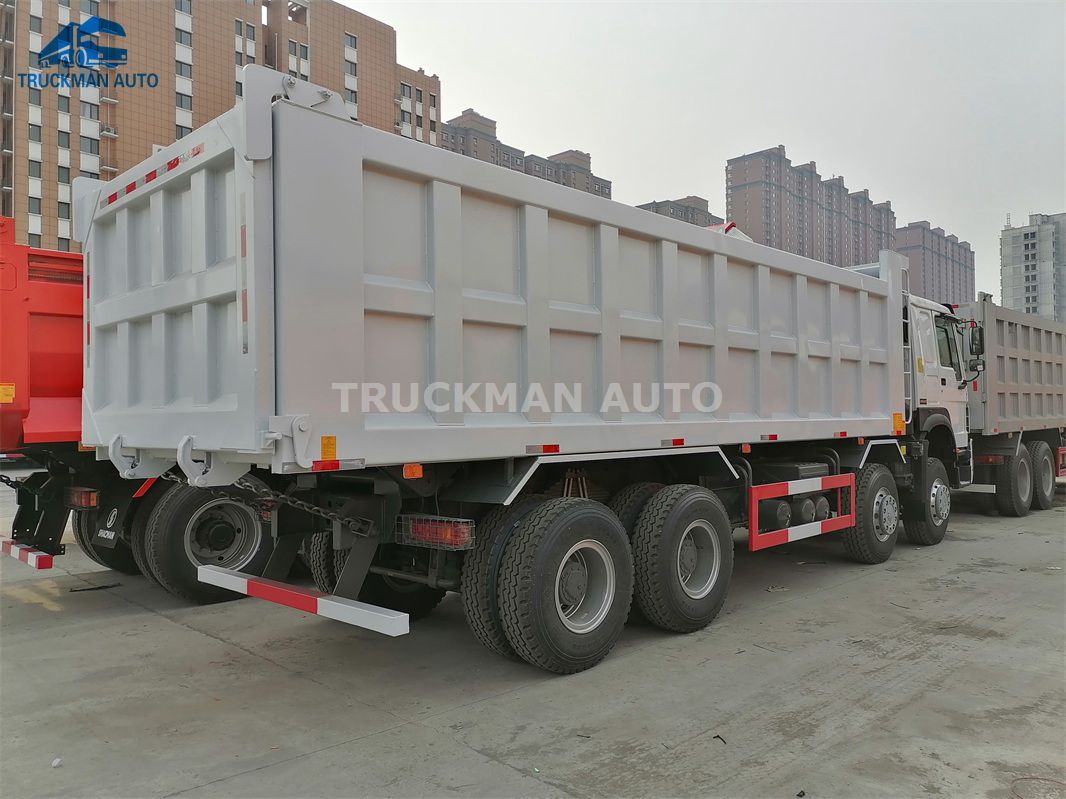

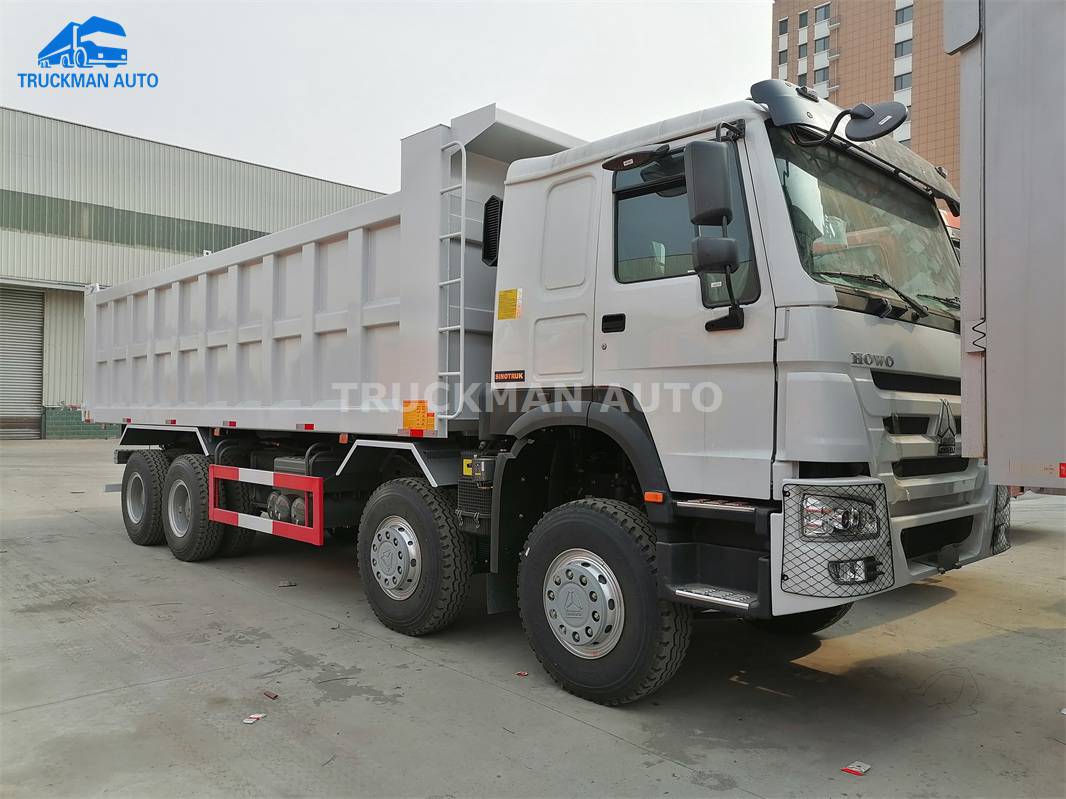

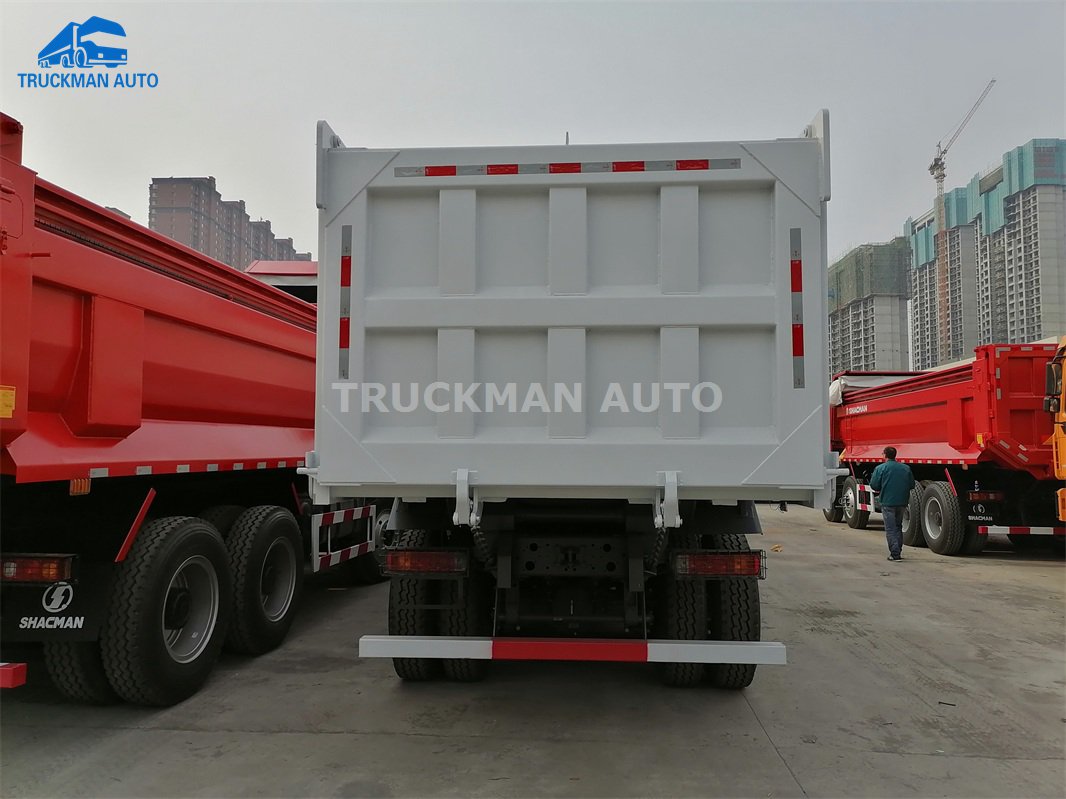

-1. SINOTRUK HOWO 8x4 Tipper Truck Detail.



SINOTRUK HOWO 8x4 Tipper Truck with 2 pcs compartment, mainly used for transport the fuel etc chemical liquid. The trailer hooks adopt the Italy tech, can connect with fuel tank truck well.



-. Adopt the BPW brand axle, with long service time.



-. Each compartment with the subsea valve, manhole and discharge pipe.



-2. SINOTRUK HOWO 8x4 Tipper Truck Specification.



Description

Parameter Value

Product Name

SINOTRUK HOWO 8x4 Tipper Truck

Application

For sand stone transport

Engine

WD615.47, 371HP

Gearbox

HW19710, 10 forward, 12 forward optional

Cabin

With one bed, A/C

Tire

12.00R20, 12+1 pcs

Bucket

7300x2300x1500mm, bottom 8mm, side 6mm

Material

Q355, high strength steel

Loading Capacity

50000kg

Dimension

10300x2500x3450mm





The SINOTRUK HOWO 8x4 tipper truck specification only for your reference, we will recommend other model tipper truck according to your request.

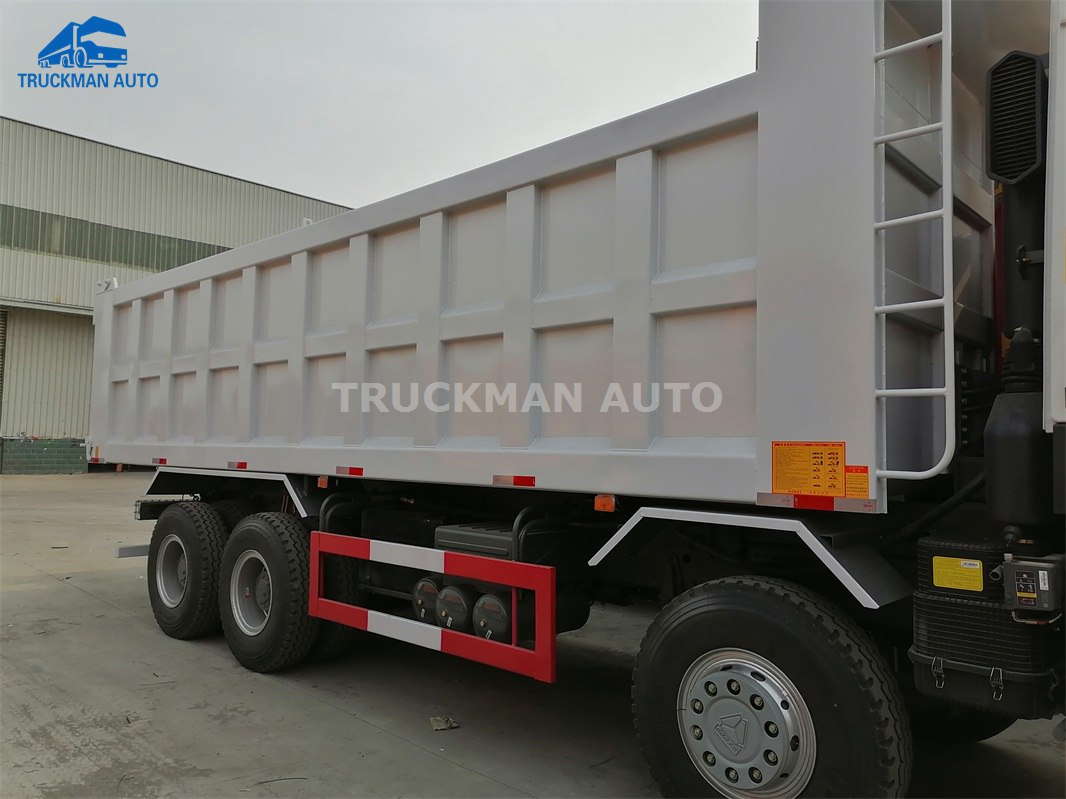

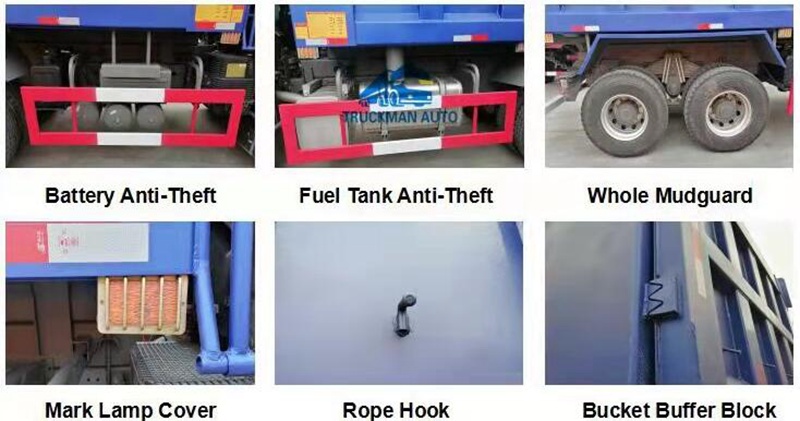

-3. SINOTRUK HOWO 8x4 Tipper Truck Bucket Detail.



The SINOTRUK HOWO 8x4 tipper truck bucket adopt the high strength steel Q355 material, adopt the robotic automatic welding tech. Bottom is 8mm and side is 6mm thickness, with 4 pcs beam, triangle reinforcement etc. Here is the detail picture for your reference.
