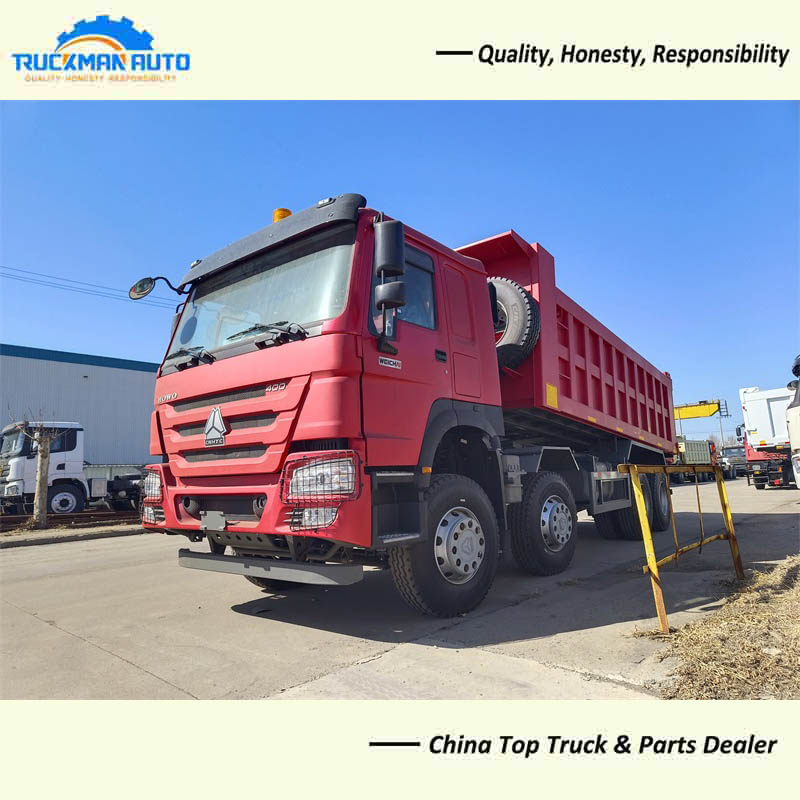

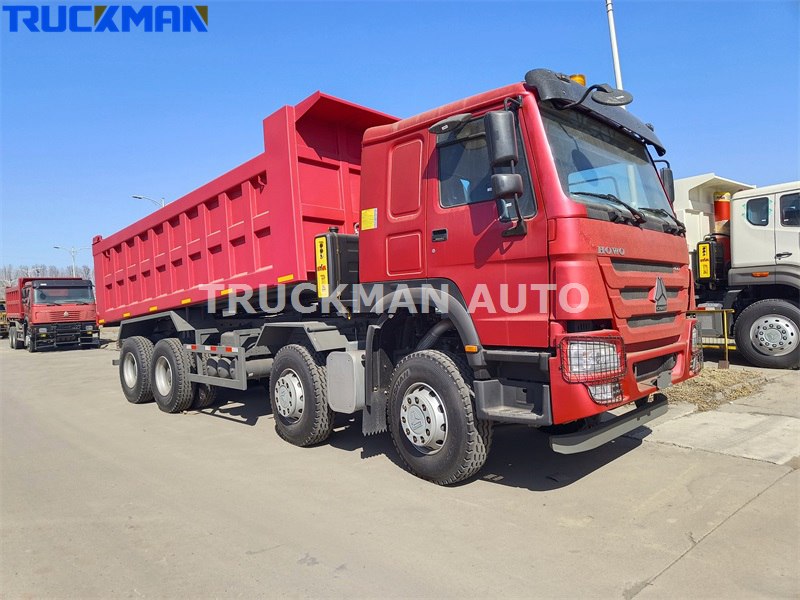

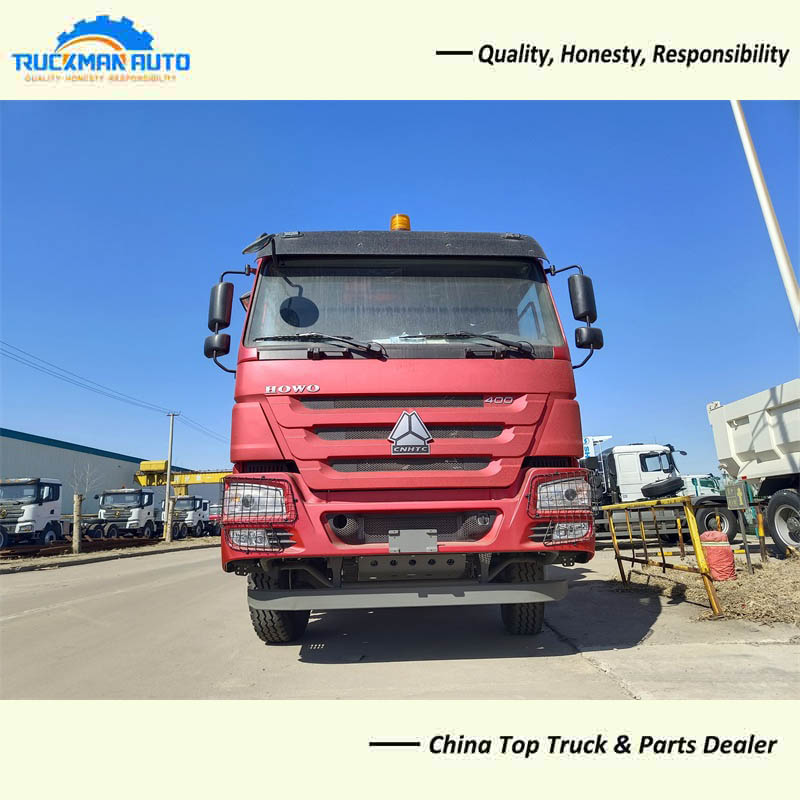

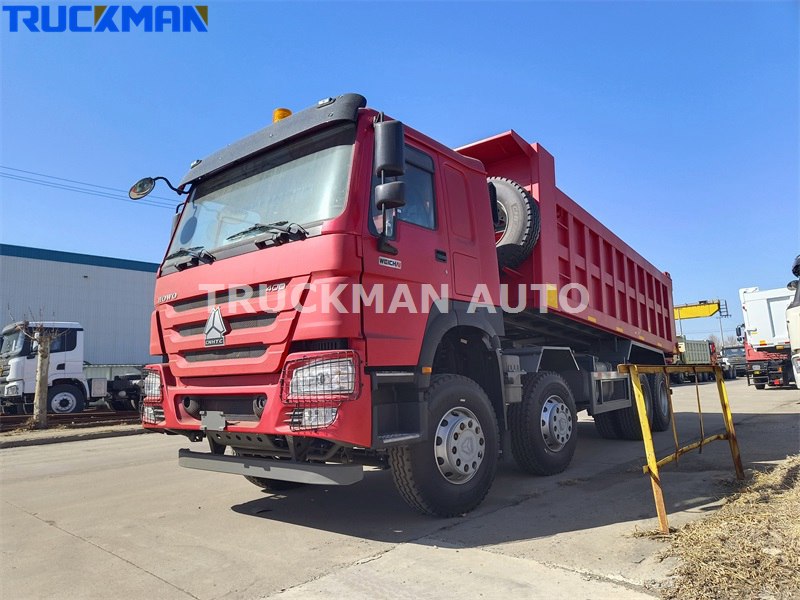

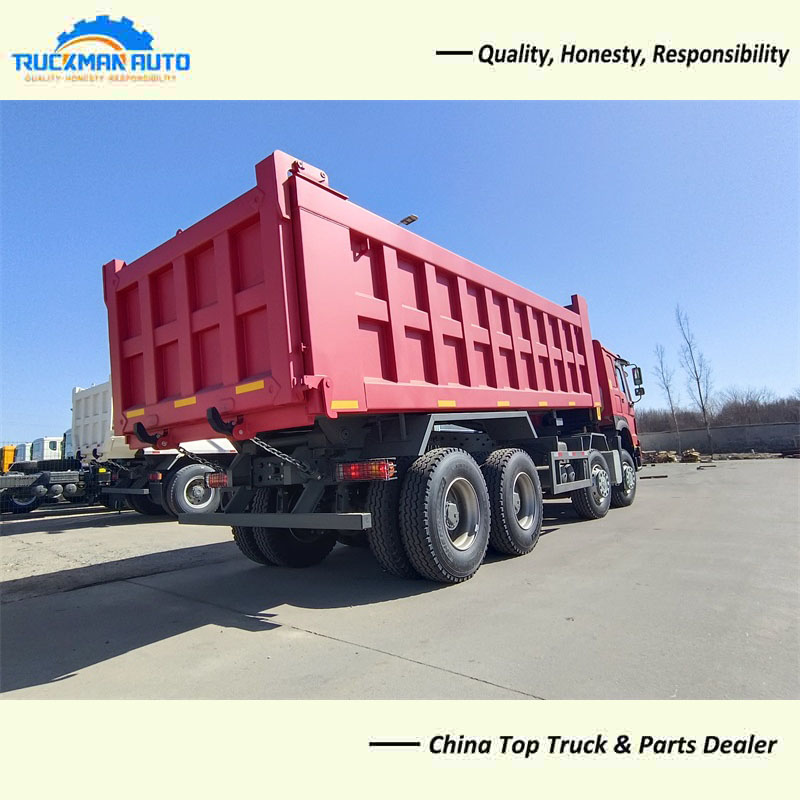

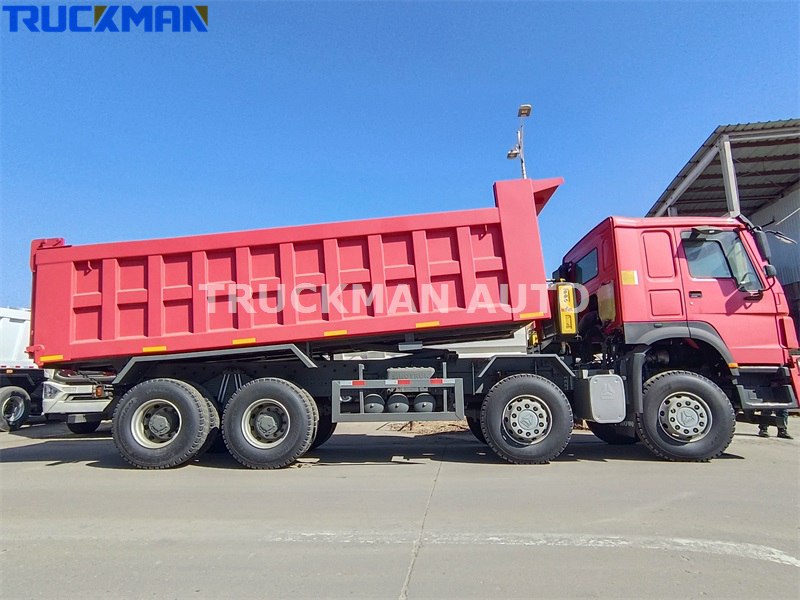

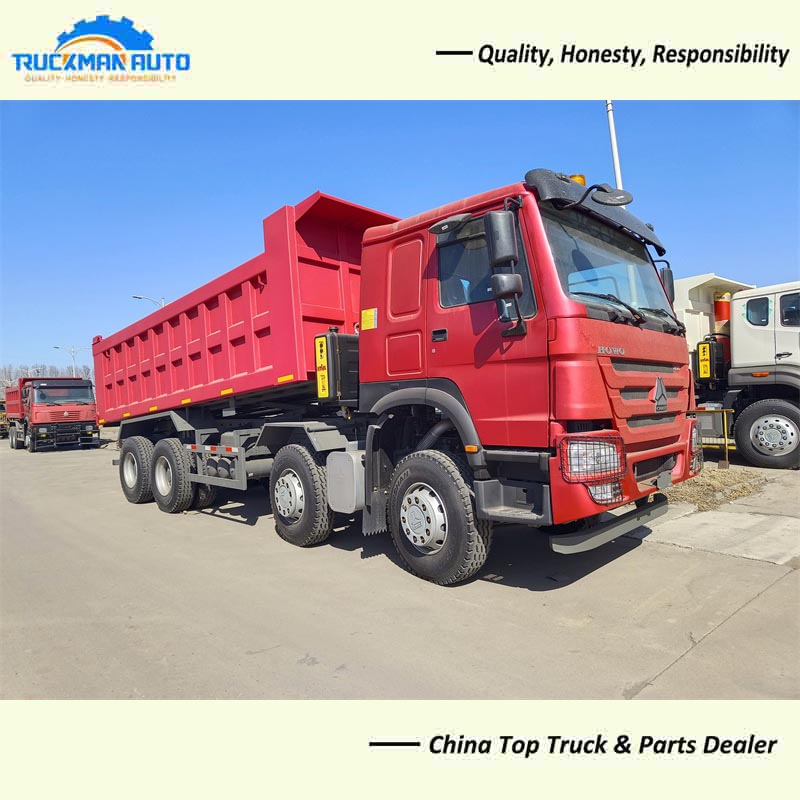

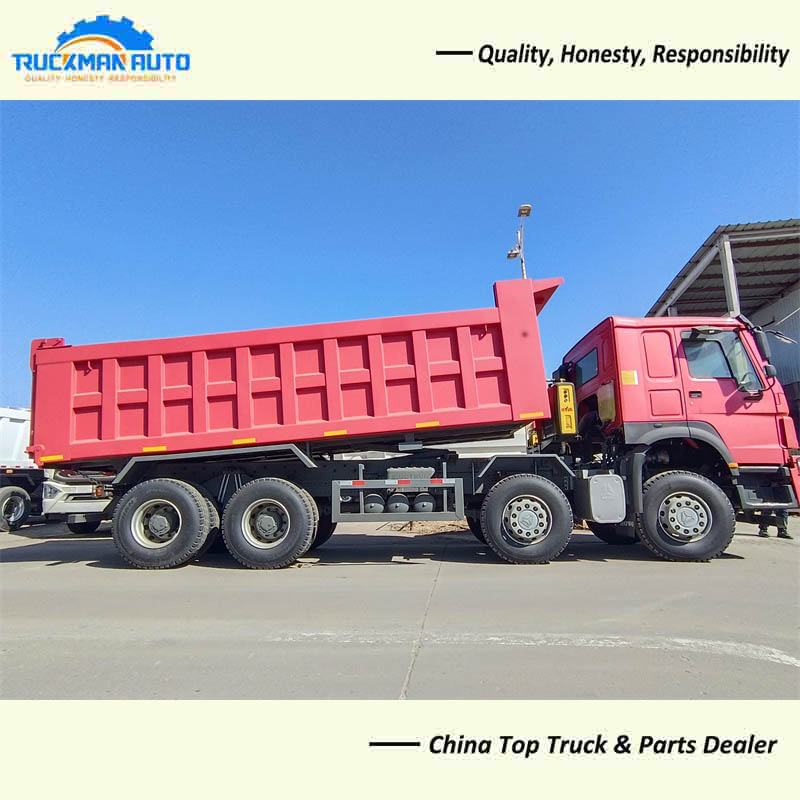

12 Wheels 400HP SINOTRUCK Tipping Truck
12 Wheels 400HP SINOTRUCK Tipping Truck Features
The appearance of the SINOTRUCK HOWO tipping truck is a beautiful sight on urban roads. The HOWO tipping truck uses a WEICHAI engine. The WEICHAI engine is more adaptable, with a maximum power of 400 and a maximum torque of 1900N.m. Matching this engine is the SINOTRUK HW19710 transmission.Even if It can drive smoothly on muddy roads and slippery roads.
12 Wheels 400HP SINOTRUCK Tipping Truck Specification
|
Description |
Parameter Value |
|
Product Name |
12 Wheels 400HP SINOTRUCK Tipping Truck |
|
Application |
Mining work |
|
Engine |
WP12.400E201, 400HP, EURO II |
|
Cabin |
HW76,With one bed, A/C |
|
Gearbox |
HW19710,10 forward and 2 reverse gear |
|
Tire |
13R22.5, 12+1 pcs |
|
Cargo Body Material |
Q355,manganese plate |
|
Fuel Tank |
300L |
|
Color |
Optional |
12 wheels 400HP SINOTRUCK tipping truck specification only for your reference, we will recommend other model SINOTRUCK tractor basic your request.
12 Wheels 400HP SINOTRUCK Tipping Truck Cabin
The cab of the SINOTRUCK HOWO tipping truck is comfortable and the operating console is simple and convenient. The sleeper in the back can relieve the driver's fatigue during driving when he is parked and resting. There is also ample reserved space under the sleeper for the driver to place the tools that come with the vehicle. The cab seats can be optionally equipped with air suspension, which makes the driving experience more comfortable and reduces back discomfort caused by long term driving.
12 Wheels 400HP SINOTRUCK Tipping Truck Lifting Cylinder
For tipping trucks, the lifting cylinder is as important as the saddle in dump and pull transportation. It can greatly improve the transportation efficiency of the vehicle. There are three main lifting methods commonly used in dump trucks, center-mounted twin-cylinder lifting cylinders, double-sided rollover lifting cylinders, and front-top lifting structures. The front-type lift cylinder is a commonly used lifting method for dump trucks due to its simple structure and good stability. ANWEEL front-top lift cylinders are widely used in SINOTRUK factories. We can also use other brands of lift cylinders according to customer choices. For example HYVA.
