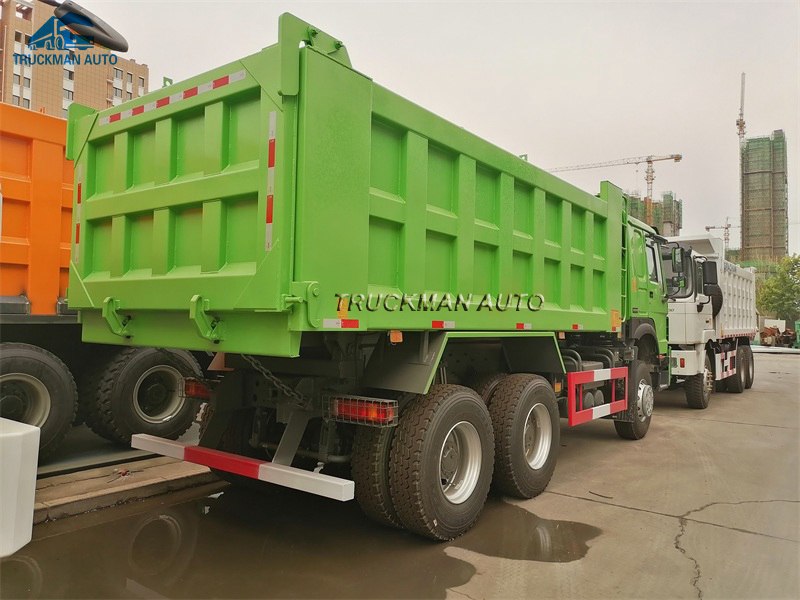

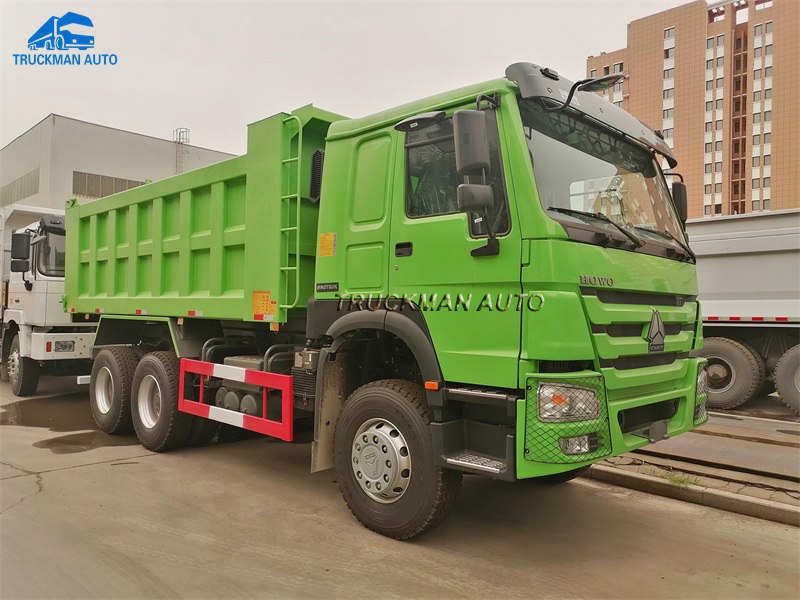

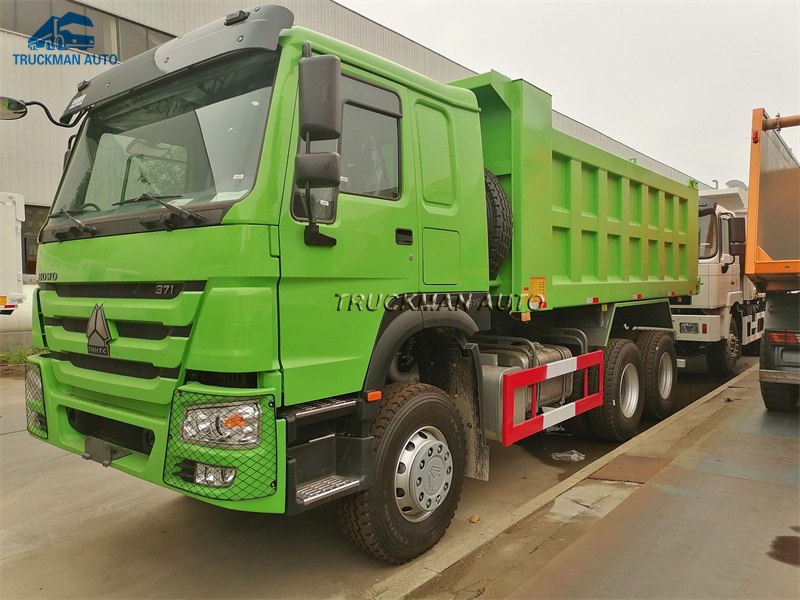

18 Cubic Meter SINOTRUK HOWO 371HP 6x4 Tipper Truck
-1. 18 Cubic Meter SINOTRUK HOWO 6x4 Tipper Truck Detail.
SINOTRUK HOWO 6x4 tipper truck can used for the construction and mining material transport, the cargo box of tipper truck material adopt the high strength steel, the thickness of cargo box depend on the cargo type, like transport big stone, we will suggest the thickness of cargo box is bottom 12mm, side 10mm etc.
-2. 18 Cubic Meter SINOTRUK HOWO 6x4 Tipper Truck Main Specification.
|
Description |
Parameter value |
|
Product Name |
18 Cubic Meter SINOTRUK HOWO 6x4 Tipper Truck |
|
Application |
For civil engineering and mining sanitation |
|
Engine |
WD615.47, 371HP, EURO 2 |
|
Cabin |
HW76, with one bed, A/C |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Cargo Box |
5400x2300x1450mm, 18 cubic meters |
|
Tire |
12.00R20, 10+1 pcs, TRIANGLE brand |
|
Front Axle |
HF9, 9 tons axle, 9000kg |
|
Drive Axle |
HC16, 16 tons axle, 2x16000kg |
|
Oil Tank |
300L |
|
Max Speed |
75km/h |
|
Dimension |
8350x2560x3450mm |
The 18 cubic meter SINOTRUK HOWO 6x4 tipper truck specification is only for reference, we could recommend the other model SINOTRUK HOWO 6x4 tipper truck according to your request.
-3. 18 Cubic Meter SINOTRUK HOWO 6x4 Tipper Truck Driving Axle.
Our SINOTRUK HOWO 6x4 tipper truck driving axle have two model, the common axle model is HC16, this axle loading tons reach to 16000kg. There are also another model axle AC16, design for the bad working condition, improve the truck chassis pass ability. Such as truck will work at mine site, AC16 driving axle will be good choice. The picture of two model axle as follow:

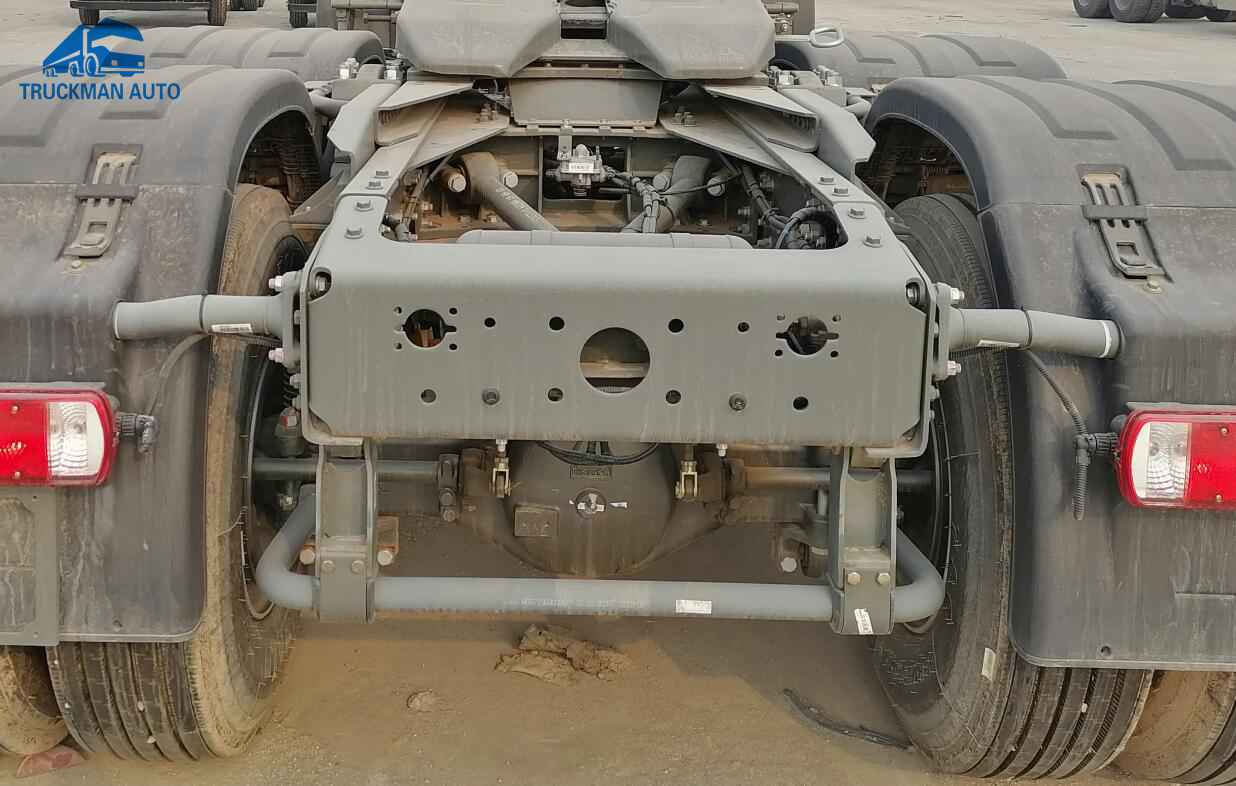

HC16 driving axle
AC16 driving axle
