25 Ton SINOTRUCK Dump Truck For Liberia

25 Ton SINOTRUCK Dump Truck For Liberia
25 Ton SINOTRUCK Dump Truck For Liberia
25 Ton SINOTRUCK Dump Truck For Liberia
25 Ton SINOTRUCK Dump Truck For Liberia
25 Ton SINOTRUCK Dump Truck For Liberia
25 Ton SINOTRUCK Dump Truck For Liberia
Product Name : 25 Ton SINOTRUCK Dump Truck For Liberia
Product ID : ZZ3257N3647B1
Engine : WD615.47, 371HP
Cabin : With one bed, A/C
Gearbox : 10 forward and 2 reverse
Tire : 13R22.5, 10+1 pcs
Driving Type : 6x4
Directions

25 Ton SINOTRUCK Dump Truck Features



SINOTRUCK dump truck loading capacity from 0 to 50 tons, 6x4 dump truck can loading 25-30 tons cargoes, 8x4 dump truck max loading tons reach to 50 tons. And the bucket length, width and height of dump truck can made according to your request.



-. Manganese plate of dump truck bucket, and chassis is made by high strength steel.

-. The front axle loading capacity is 9.5 tons and rear axle loading capacity is 16 tons.





25 Ton SINOTRUCK Dump Truck Specification



Description

Parameter Value

Product Name

25 Ton SINOTRUCK Dump Truck

Application

Transport sand and gravel

Loading Capacity

25,000kg

Engine

WD615.47, 371HP, EURO II

Cabin

HW76, with one bed, A/C, left hand drive

Gearbox

10 forward and 2 reverse gear

Tire

13R22.5, 10+1 pcs, tubeless model

Bucket

5400x2300x1450mm

Front Axle

VGD95, 1x9500kg

Driving Axle

HC16, 2x16000kg

Fuel Tank

300L

Dimension

8300x2560x3400mm



The 25 ton SINOTRUCK dump truck specification only for your reference, we will recommend other model SINOTRUCK dump truck basic your request.

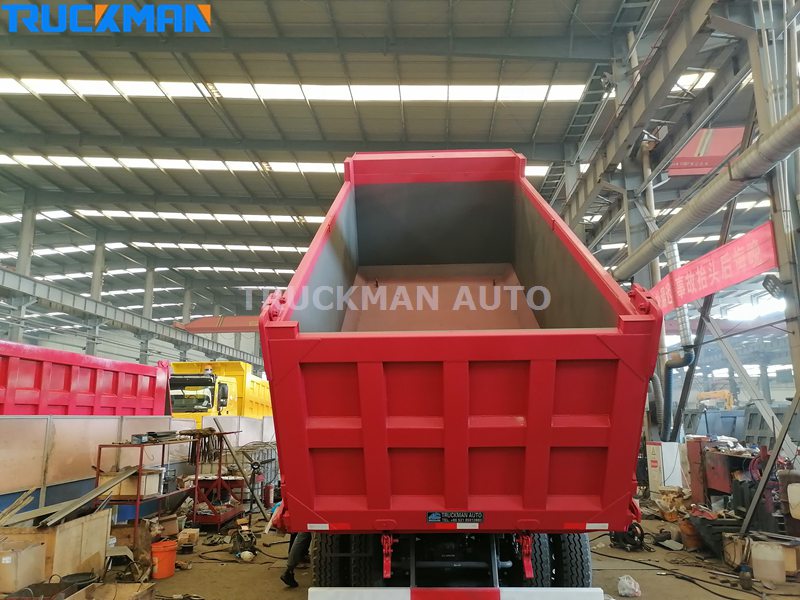

25 Ton SINOTRUCK Dump Truck Bucket Detail



SINOTRUCK dump truck bucket adopt the manganese plate, suitable for all kind of cargoes transport. Transport the sand and gravel the thickness of bottom plate 8mm, side wall 6mm is enough, if transport the big stone, need more thicker bucket, such as the bottom 14mm, side 12mm and with 4 pcs support beam.
