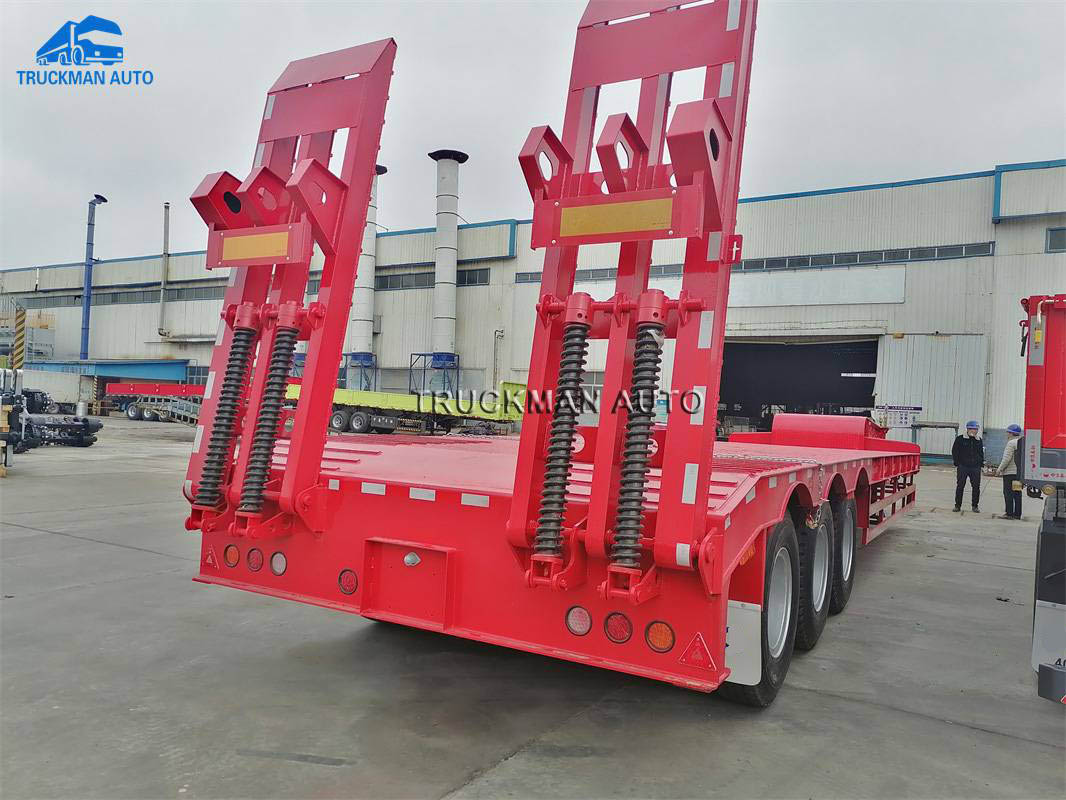

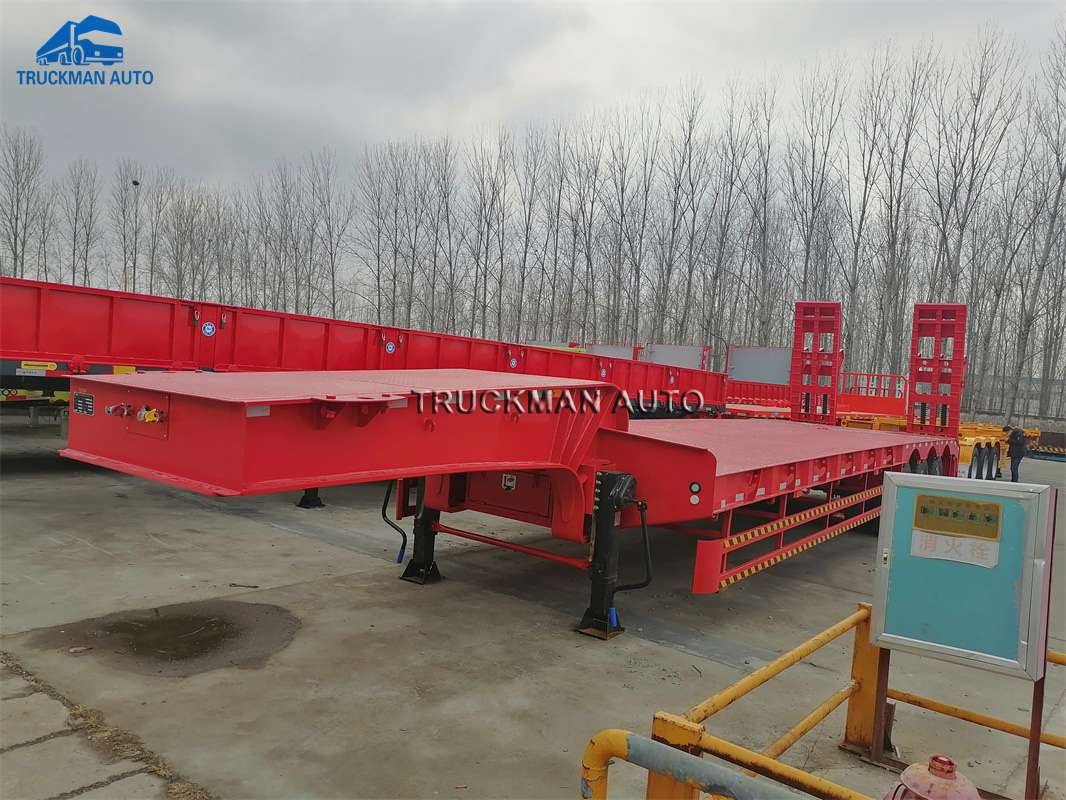

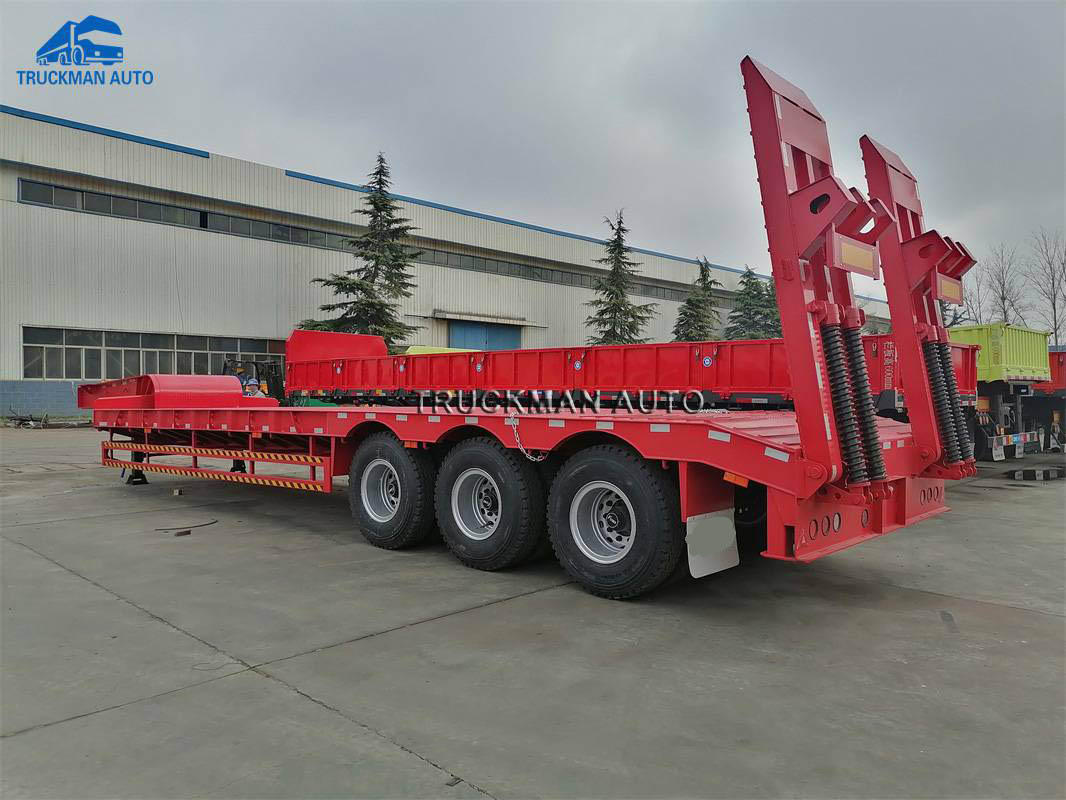

3 Axle 70 Tons Low Bed Semi Trailer With 1 Year Warranty
-1. 3 Axle 70 Tons Low Bed Semi Trailer Main Detail.
-. The trailer width reach to 3000mm, and additional 200mm extend plate. Meet all model machinery transport.
-. Main structure material adopt the automatic welding and use high strength steel plate.

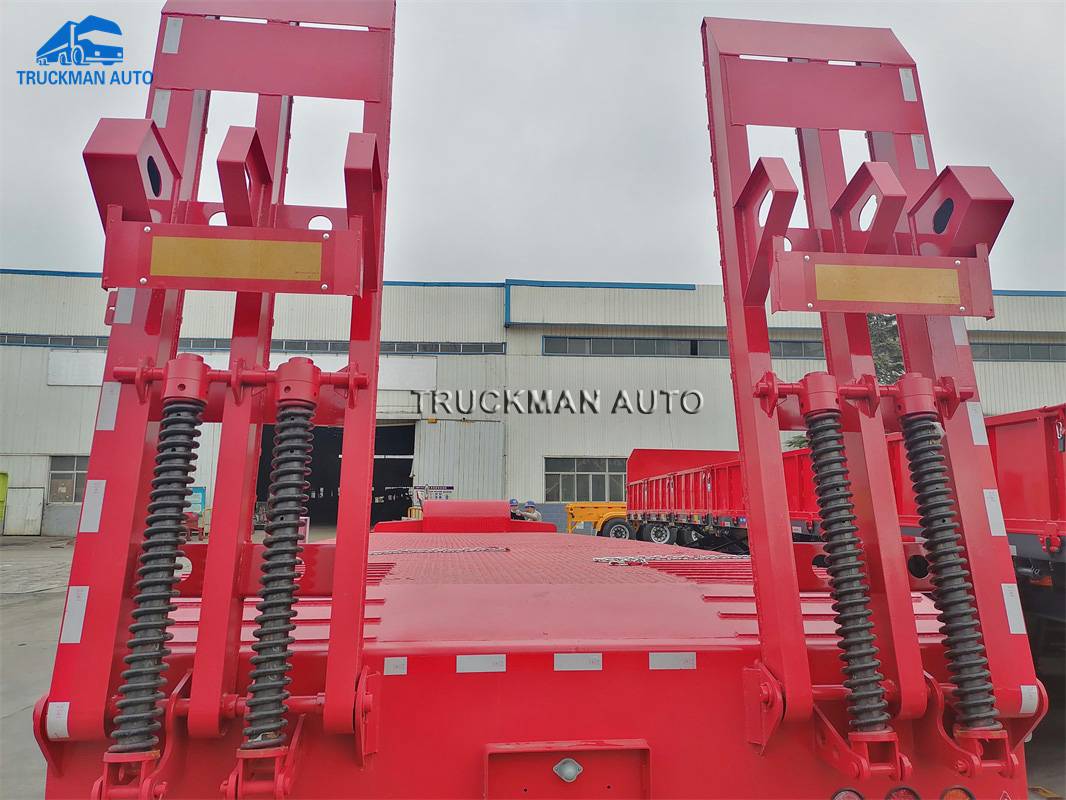

-. Ladder also use 800mm, manual type or hydraulic type could optional.
-. Famous spare parts optional, like FUWA, BPW, WABCO parts.
-2. 3 Axle 70 Tons Low Bed Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 Axle 70 Tons Low Bed Semi Trailer |
|
Loading Weight |
70,000kg |
|
Tare Weight |
11,000kg |
|

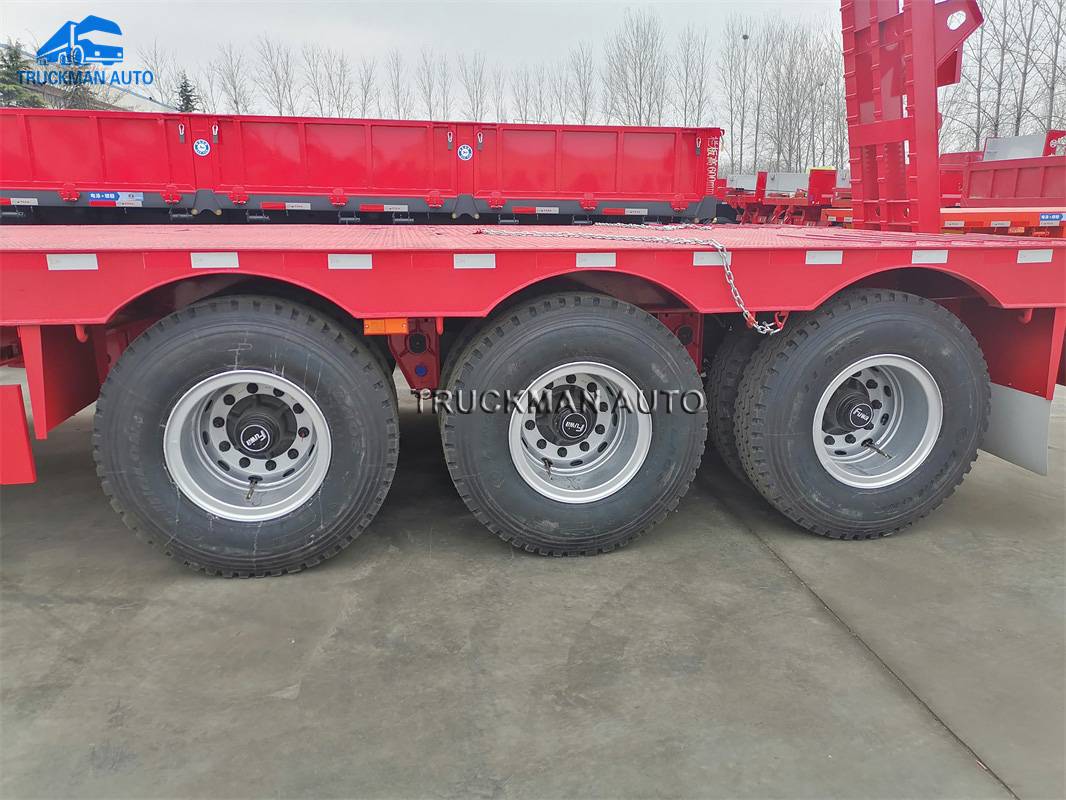

Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 8 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
13000x3000x1200mm |
The specification is only for reference, we could design the 3 axle 70 tons low bed semi trailer according to your request.
-3. Other Model Low Bed Semi Trailer Picture.
4 line 8 axle 100 tons low bed semi trailer

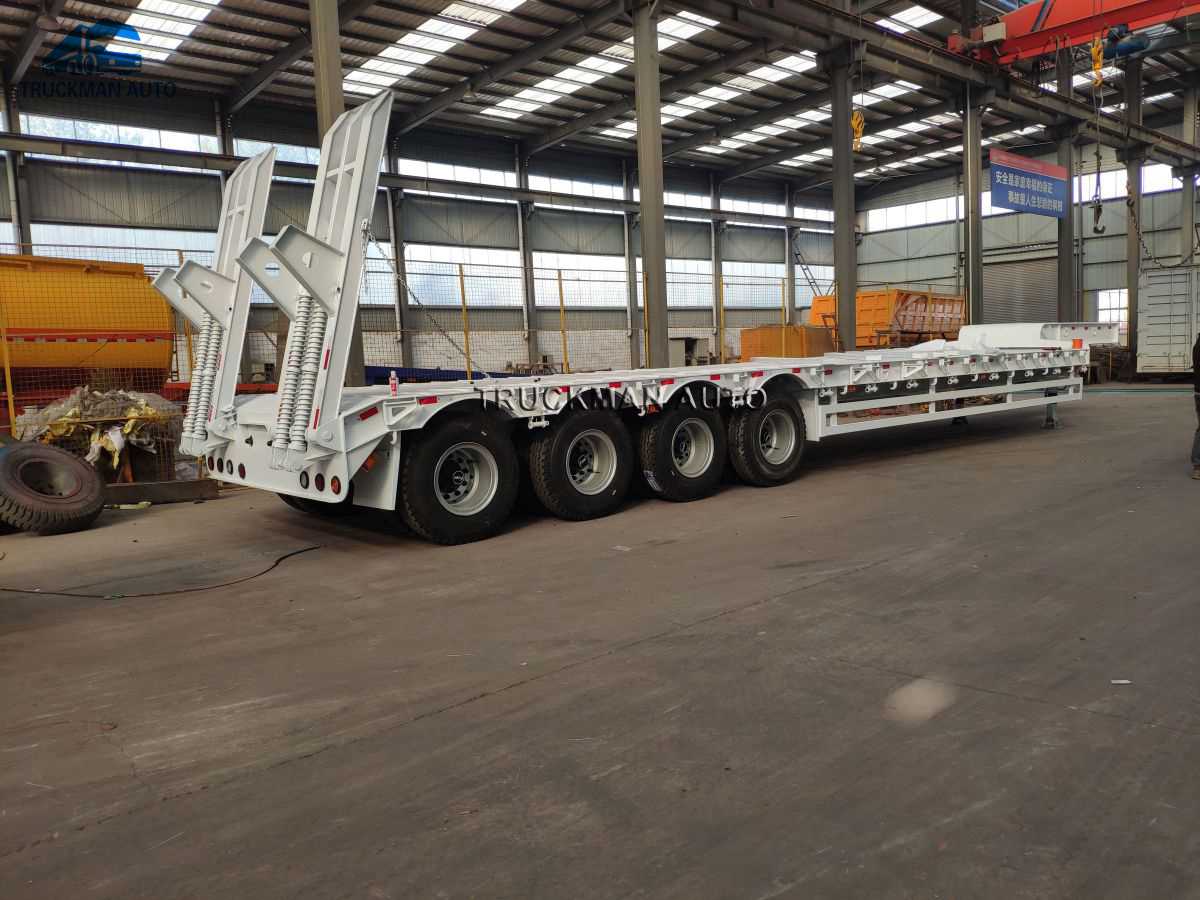

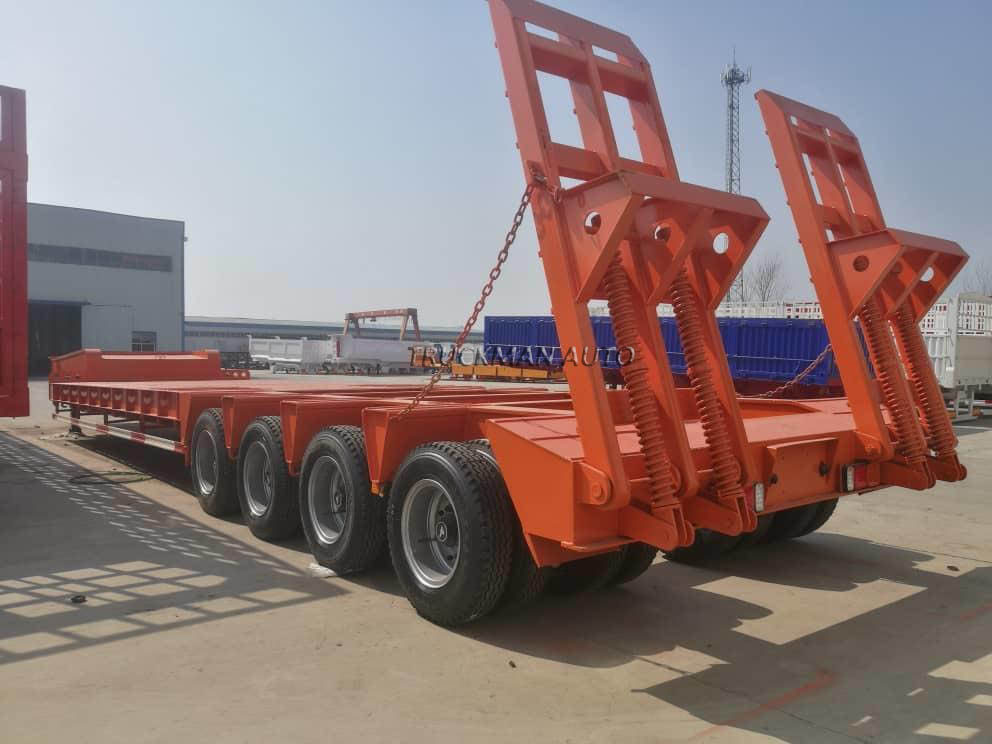

4 axle 80 tons low bed semi trailer.
