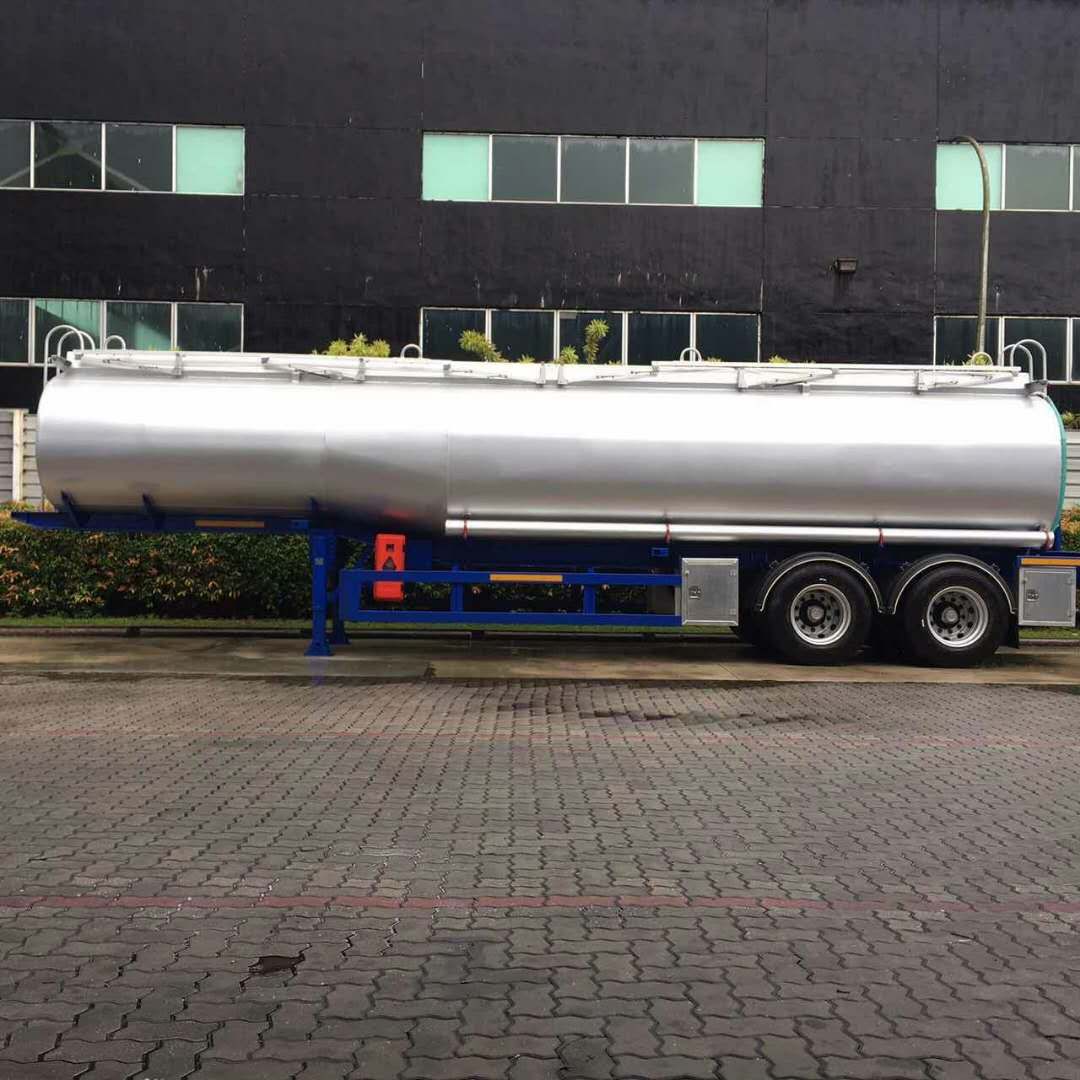

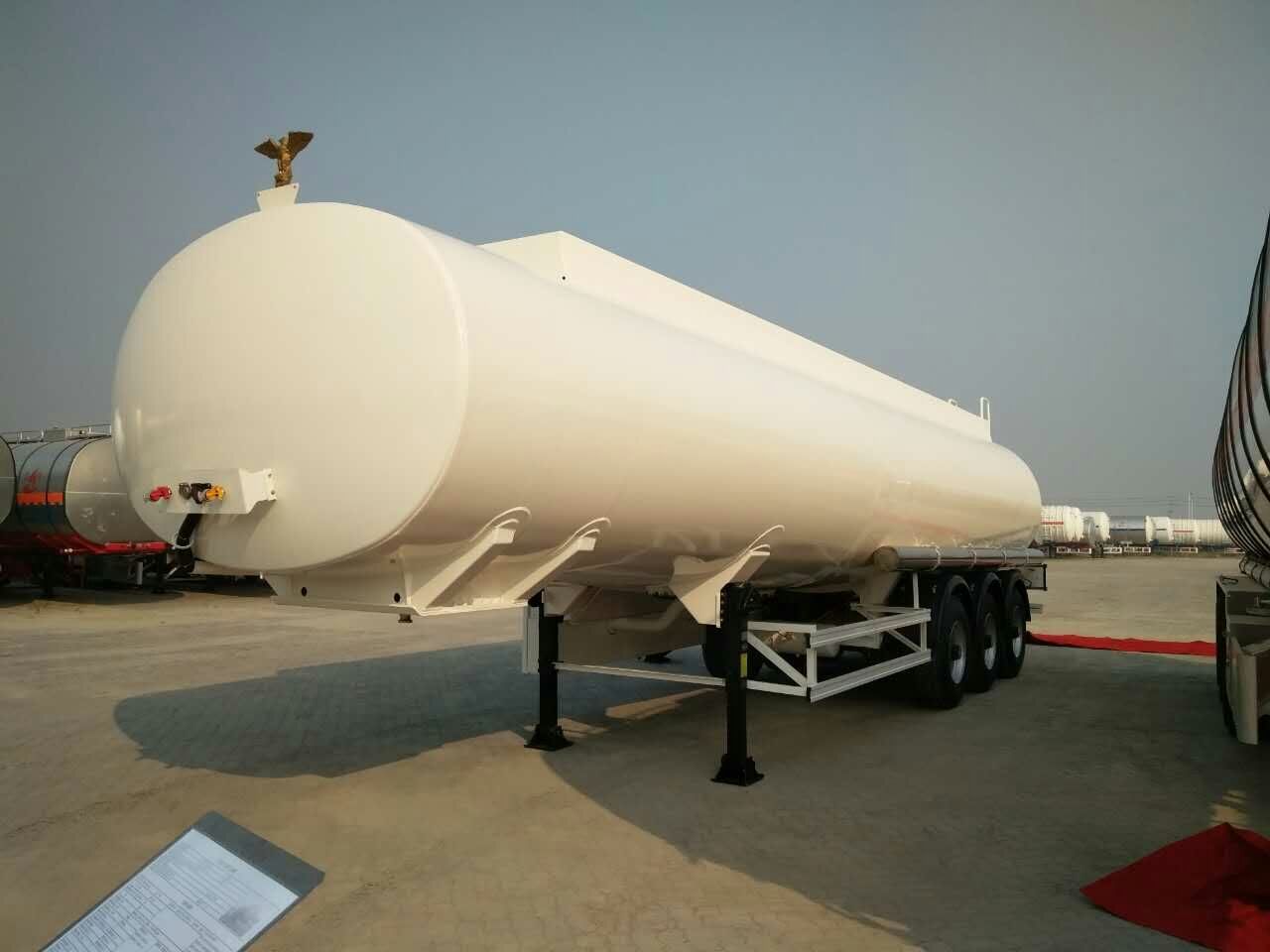

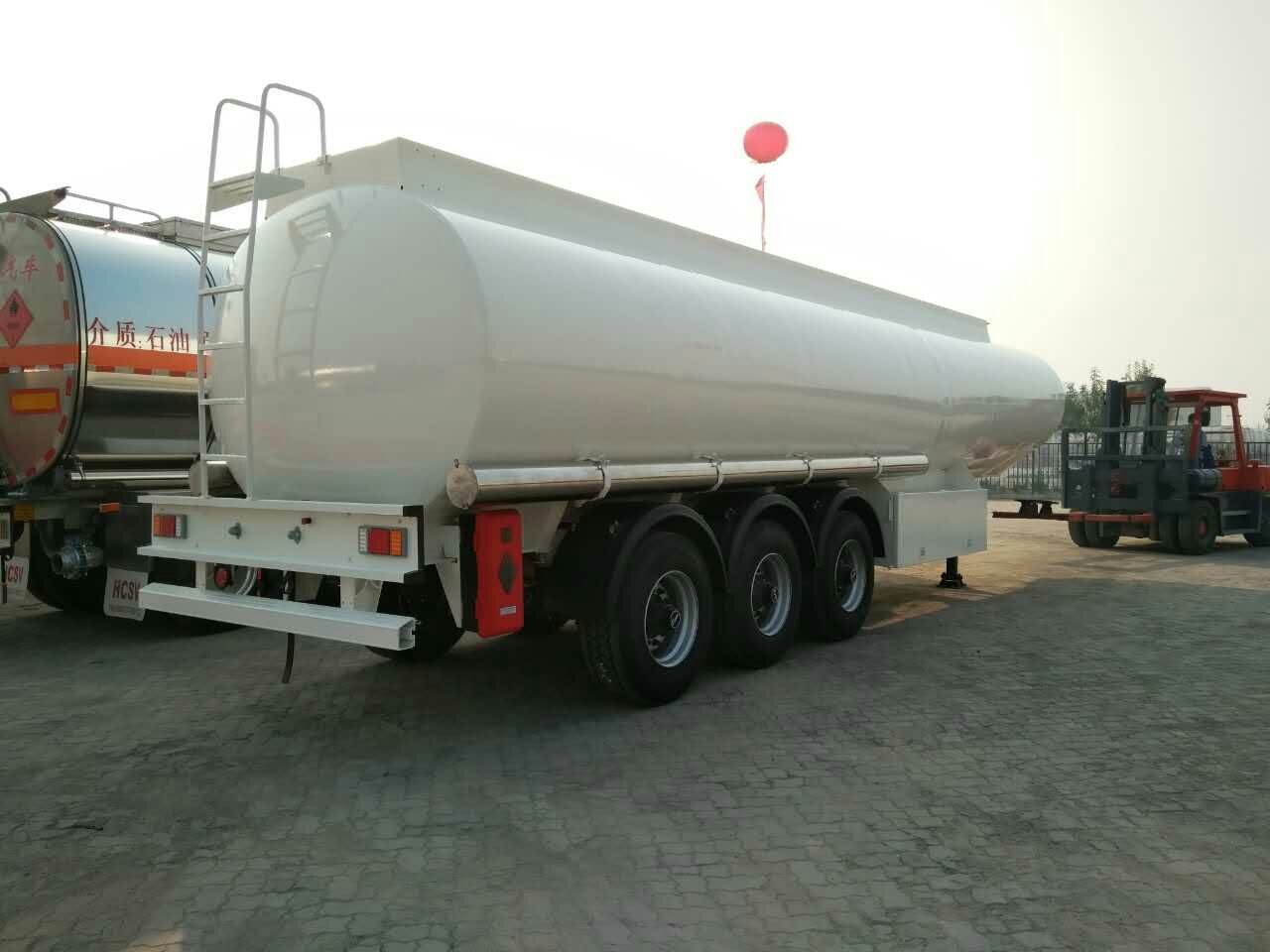

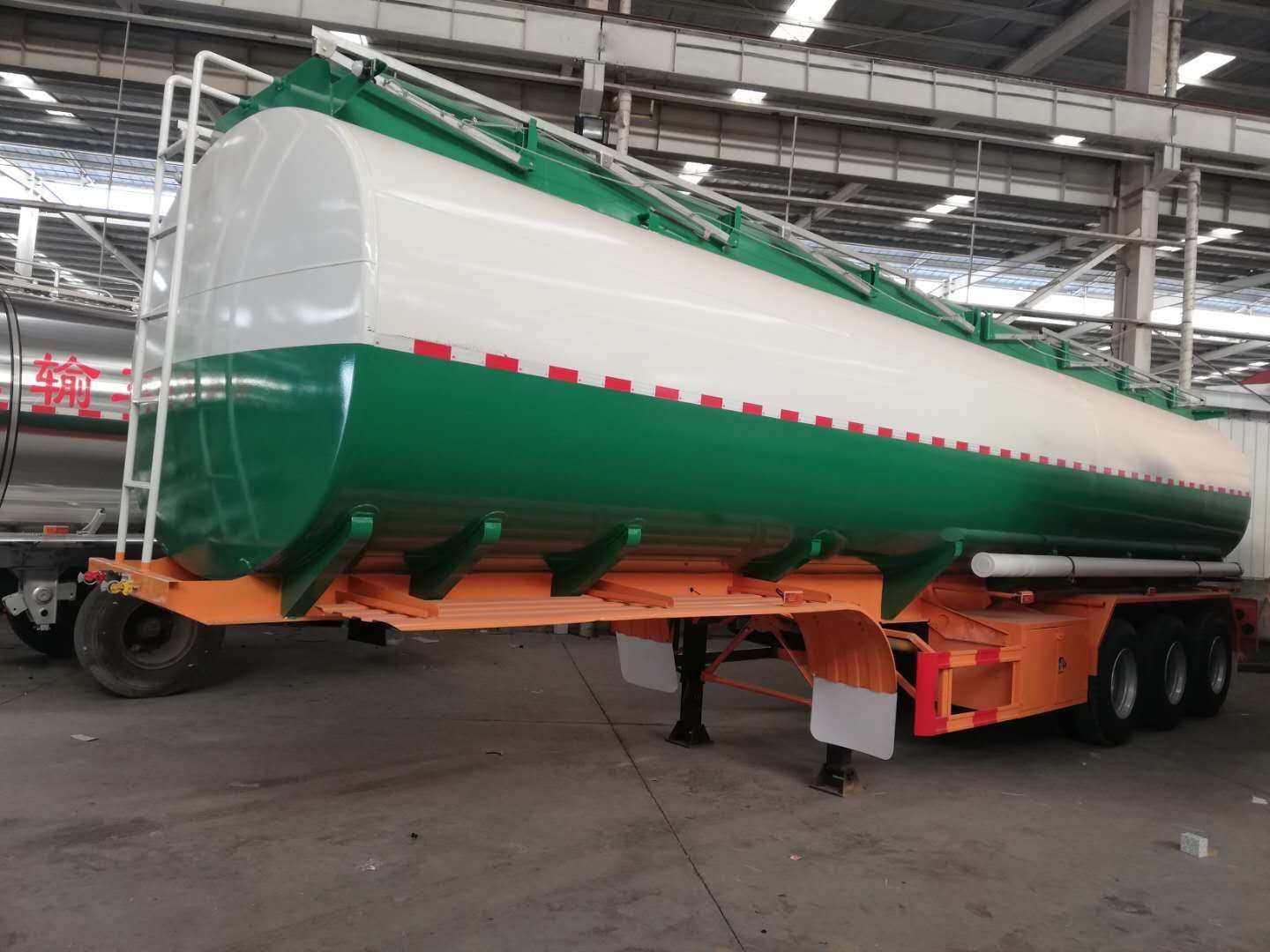

30000-45000L Truckman Water transport semi trailer
|
Weight Rating（kgs） |
Curb Weight |
9,500kg (approx) |
|
|
|
Payload |
30,000kg |
|
|
|
Total Weight |
39,500kg |
|
|
Dimension (mm) |
Trailer |
Overall Length |
11000mm |
|
|
|
Overall Width |
2500mm |
|
|
|
Overall Height |
3500mm |
|
|
Wheel base |
1310mm/ |
|
|
Shape |
Square Round goose neck style |
|
|
30m3 +5% |
||
|
Valid Volume (m3) |
30m3 1 ｃｏｍｐａｒｔｍｅｎｔ |
|
|
Material |
Tank shell |
Q235B/5mm |
|
|
Dish end |
Q235B/6mm |
|
|
Baffle |
Q235B/4mm |
|
Spoil box |
Standard |
|
|
Manhole |
20 inch manhole |
|
|
Manhole cover |
2 units of aluminium manhole cover
|
|
|
Bottom Valve
|
1 units of 4” aluminium bottom Valve
|
|
|
Piping system |
1 set of 4” steel pipes under tank body
|
|
|
Discharge valve |
2 units of 4” aluminum ball valve |
|
|
Vapor recover system |
Without |
|
|
Main beam |
Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged-Arc processes
|
|
Landing Gear |
JOST A400 one side Operation
|
|
King Pin |
One unit of 90# standard bolt type king pin JOST brand
|
|
Suspension |
BPW/ Pneumatic suspension BPW |
|
Axle |
3 sets of BPW/ 12T axles |
|
Wheel rim |
9.0x12 units |
