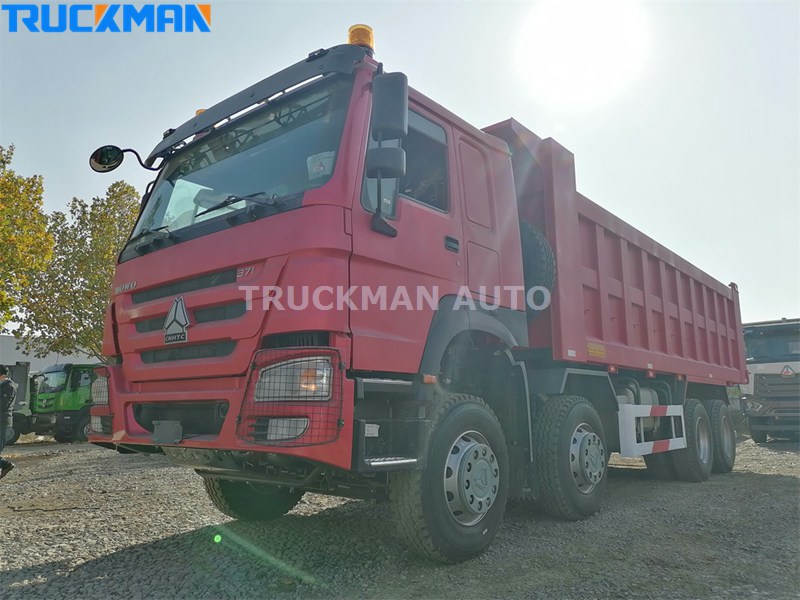

50 Ton SINOTRUCK 8x4 Dump Truck For Liberia

50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
Product Name : 50 Ton SINOTRUCK 8x4 Dump Truck For Liberia
Product ID : ZZ3317N3567W
Loading Tons : 50,000kg
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse gear
Driving Axle : HC16, 2x16000kg
Tire : 13R22.5, 12+1 pcs
Directions

50 Ton SINOTRUCK 8x4 Dump Truck Features



SINOTRUCK 8x4 dump truck mainly for all kind of cargoes short and medium haul transportation. The loading capacity reach to 50 tons, cargo box volume reach to 25-30m3. With front hydraulic lifting system, HYVA brand.



-. With one bed cabin, A/C and mp3 player, driver seat have mechanical and air suspension.

-. The fuel tank capacity is 300L and 400L, material is aluminum alloy.





50 Ton SINOTRUCK 8x4 Dump Truck Specification



Description

Parameter Value

Product Name

50 Ton SINOTRUCK 8x4 Dump Truck

Application

Transport sand and gravel

Loading Capacity

50,000kg

Engine

WD615.47, 371HP, EURO II

Cabin

HW76, with one bed, A/C, left hand drive

Gearbox

10 forward and 2 reverse gear

Tire

13R22.5, 12+1 pcs, tubeless model

Bucket

7300x2300x1500mm

Front Axle

VGD95, 2x9500kg

Driving Axle

HC16, 2x16000kg

Fuel Tank

300L

Dimension

10000x2560x3400mm



The 50 ton SINOTRUCK 8x4 dump truck specification only for your reference, we will recommend other model SINOTRUCK 8x4 dump truck basic your request.



50 Ton SINOTRUCK 8x4 Dump Truck Detail Picture

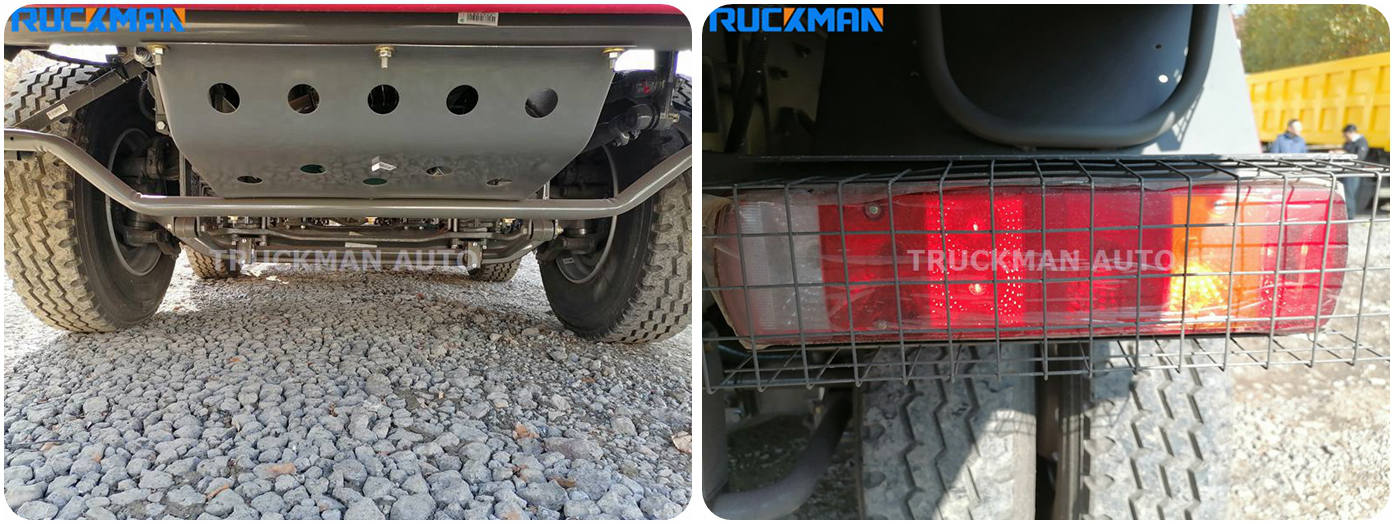

The SINOTRUCK dump truck have some easy damage parts, such as intercooler, oil pan, lamp and bumper etc, so the protect cover is very necessary. We have designed some reasonable parts to protect these parts, its will help avoid unnecessary loss.、
