SINOTRUK HOWO Truck Head Tractor Detail.
Chinese brand SINOTRUK HOWO truck head tractor can tractor all kind of semi trailer, with strong engine power. Optional the heavy duty model fifth wheel and truck chassis to meet the heavy duty loading request. And the tire adopt the famous brand like LINGLONG, TRIANGLE etc, can suitable for different road driving condition.
SINOTRUK HOWO Truck Head Tractor Specification.
Description |
Parameter Value |
Product Name |
SINOTRUK HOWO Truck Head Tractor |
Application |
Bulk cargo and container haul |
Loading Tons |
70,000kg |
Engine |
WD615.47, 371HP, EURO II |
Gearbox |
10 forward and 2 reverse gear |
Cabin |
HW76, with one bed, A/C |
Tire |
12R22.5, 315/80R22.5, 10+1 pcs, tubeless model |
Fuel Tank |
600L |
Tractor Pin |
90#, 3.5 inch. Heavy duty model |
Dimension |
6920x2560x3150mm |
The SINOTRUK HOWO truck head tractor specification only for your reference, we will recommend other model SINOTRUK HOWO truck head tractor basic your request.
SINOTRUK HOWO Truck Head Tractor Model.
SINOTRUK HOWO truck head tractor have two model, light duty and heavy duty. The light duty max loading weight not over 50 tons, the heavy duty model truck head tractor max loading weight can reach to 80 tons. Here is different between of these two model tractor.
Item |
Light Duty Truck Head |
Heavy Duty Truck Head |
Front Axle |
HF7, 7 tons axle |
HF9, 9 tons axle |
Rear Axle |
ST16, 2x16 tons axle |
HC16, 2x16 tons axle |
Leaf Spring |
Front 3 pcs, rear 12 pcs |
Front 9 pcs, rear 12 pcs |
Truck Chassis |
8+5mm thickness |
8+8+8mm thickness |

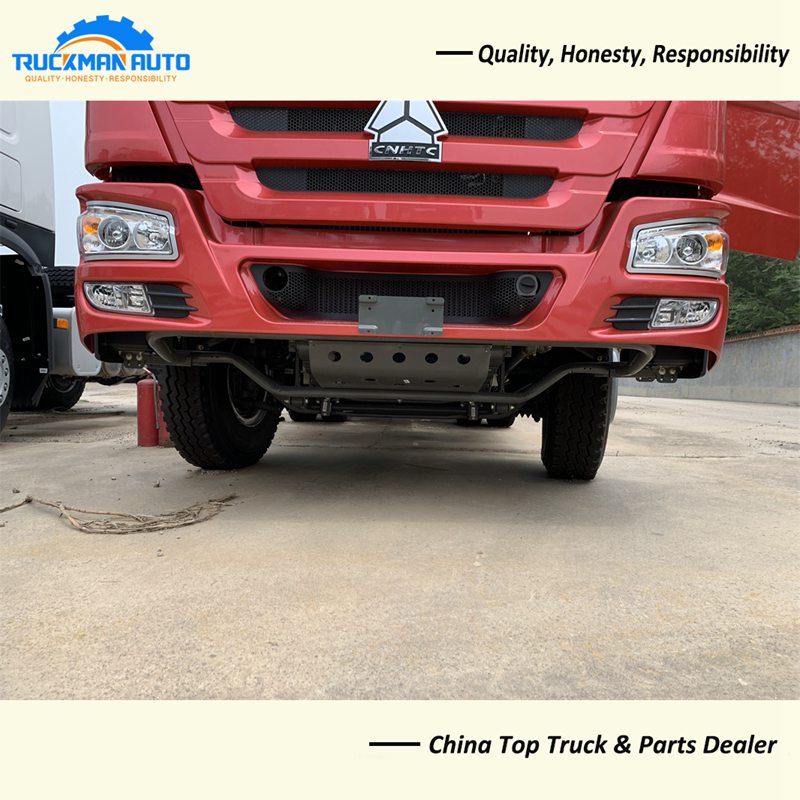

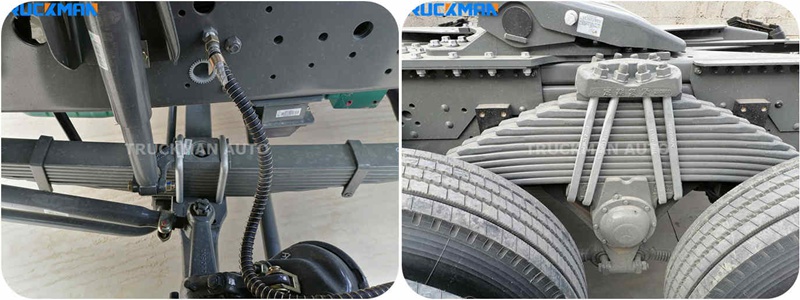

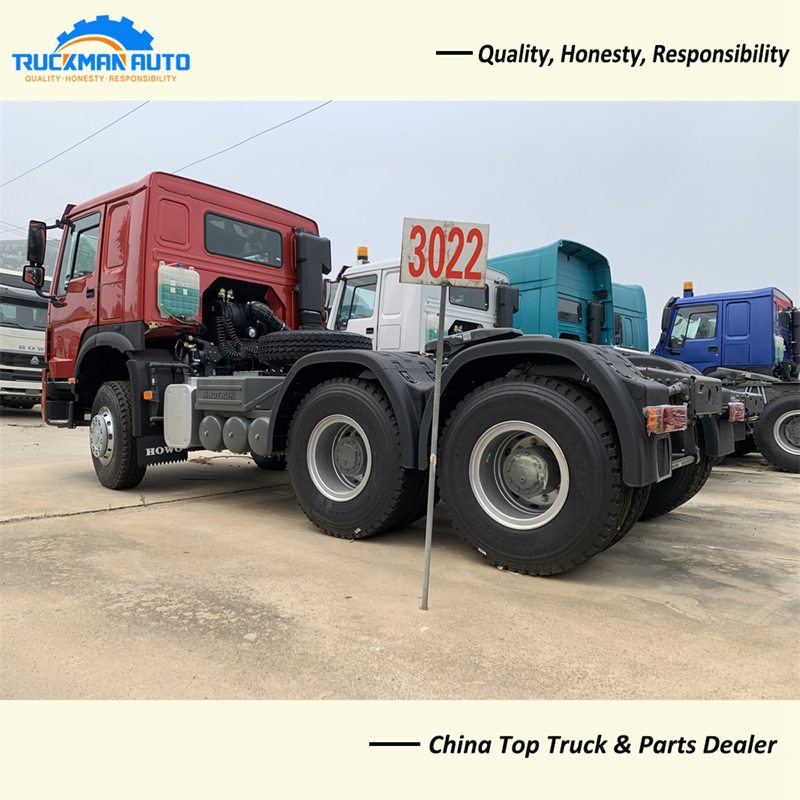

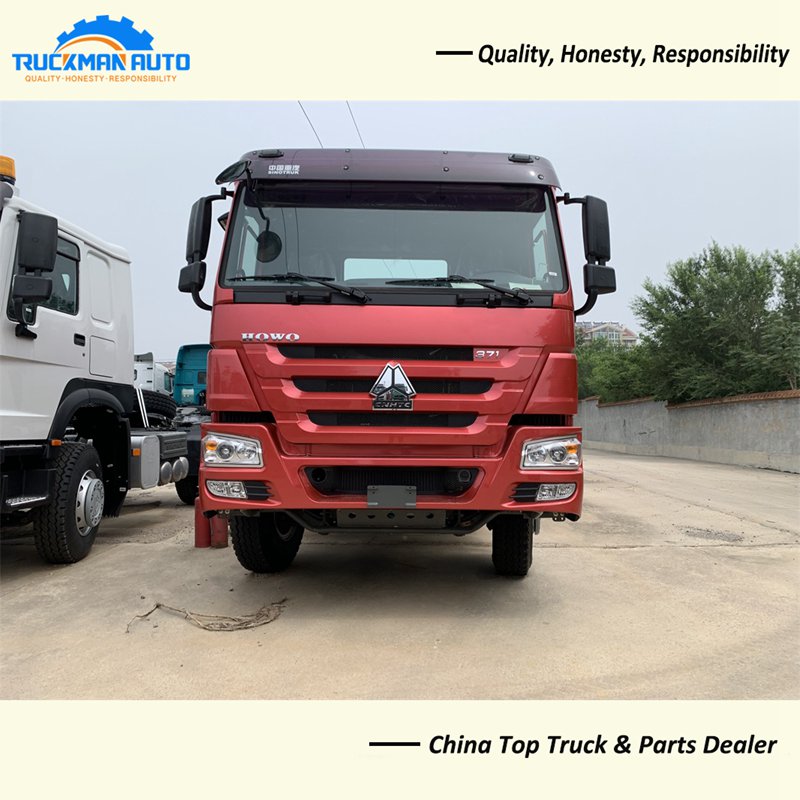

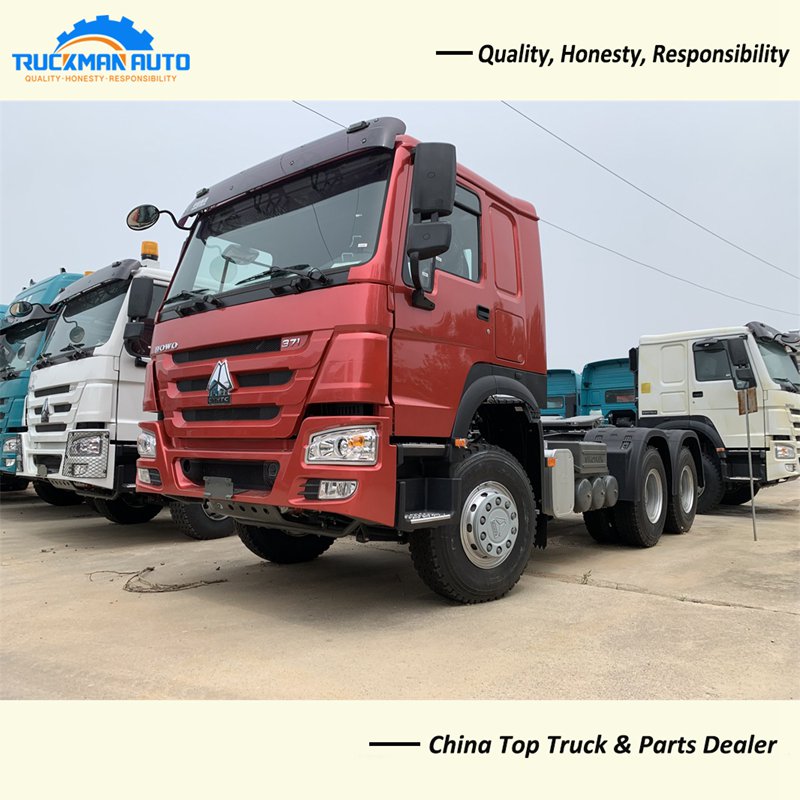

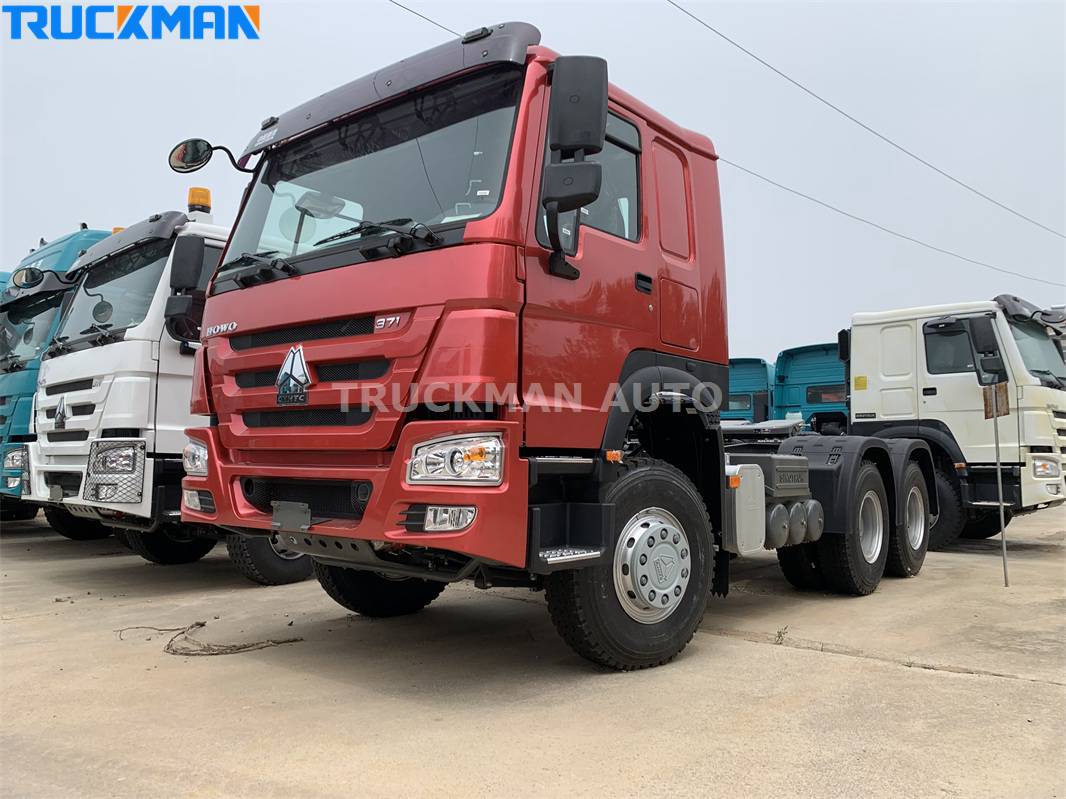

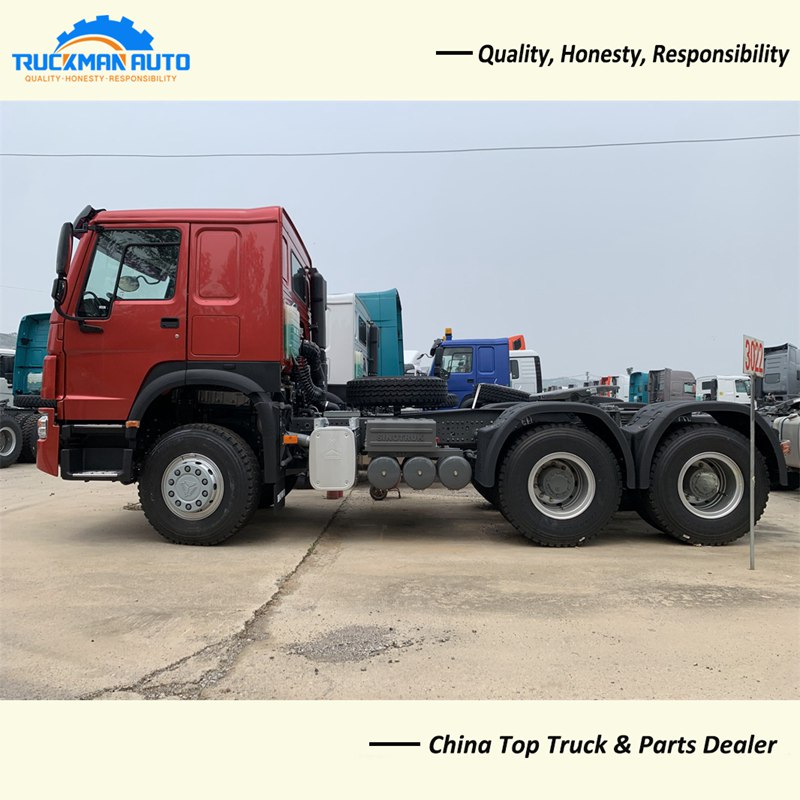

Heavy Duty Model Truck Head Tractor Detail Picture
