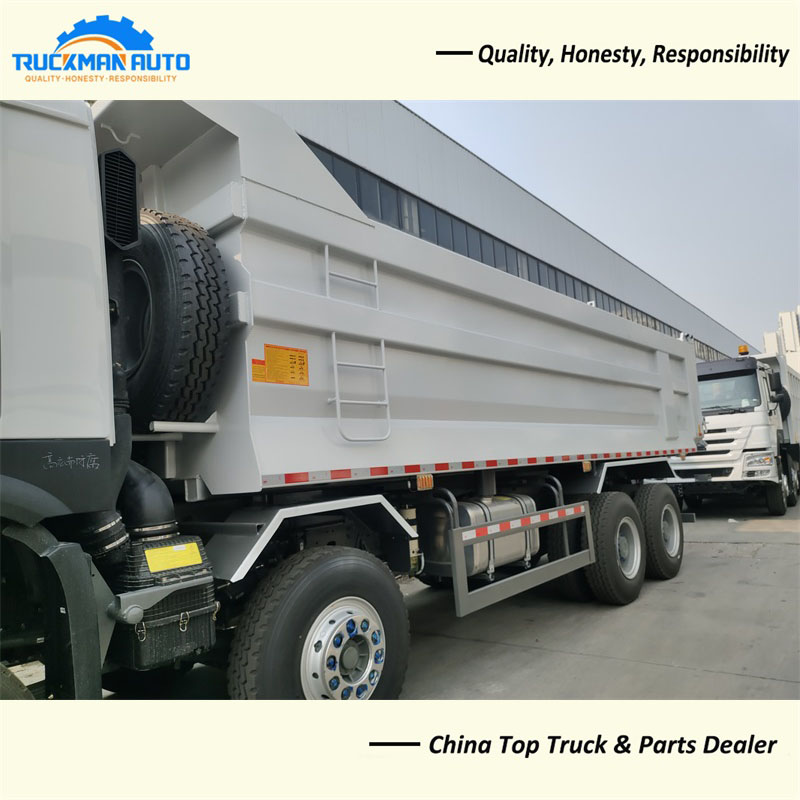

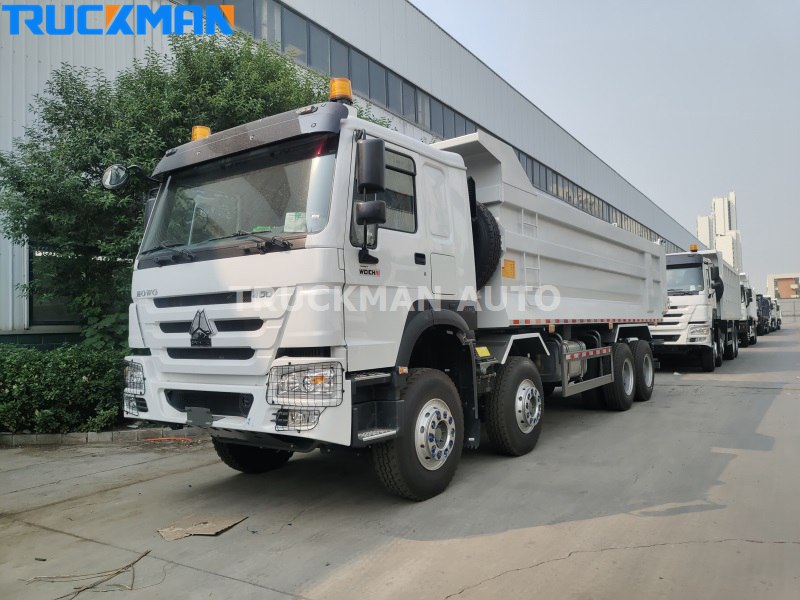

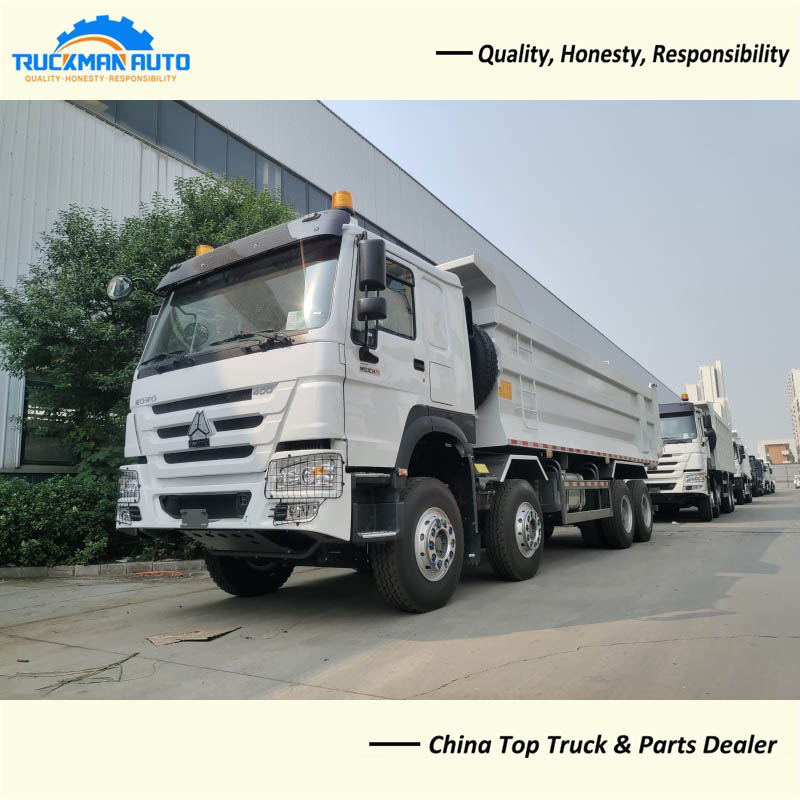

8X4 SINOTRUK HOWO 400HP Dumper Truck For Guinea
8X4 SINOTRUK HOWO 400HP Dumper Truck Features
The SINOTRUK dumper truck is equipped with 400 horsepower WEICHAI engine, which has the advantages of low fuel consumption, high reliability, long service life and high torque. The lamps are installed with protective net to prevent the splashing stones from damaging the lamps and improve the service life. Two warning lights are installed above the cab to improve the safety of traveling. The cargo box adopts the form of U-shaped bucket, with low center of gravity, which makes it safer to drive on the road.
8X4 SINOTRUK HOWO 400HP Dumper Truck Specification
|
Description |
Parameter Value |
|
Product Name |
8X4 SINOTRUK HOWO 400HP Dumper Truck |
|
Application |
Construction work |
|
Engine |
WP12.400E201, 400HP,EURO 2 |
|
Gearbox |
10 forward and 2 reverse gear |
|
Cabin |
With one bed, A/C |
|
Tire |
12.00R20, 12+1 pcs |
|
Cargo Box |
7600x2300x1500mm |
|
Fuel Tank |
300L |
8X4 SINOTRUK HOWO 400HP Dumper Truck specification only for your reference, we will recommend other model Dumper Truck basic your request.

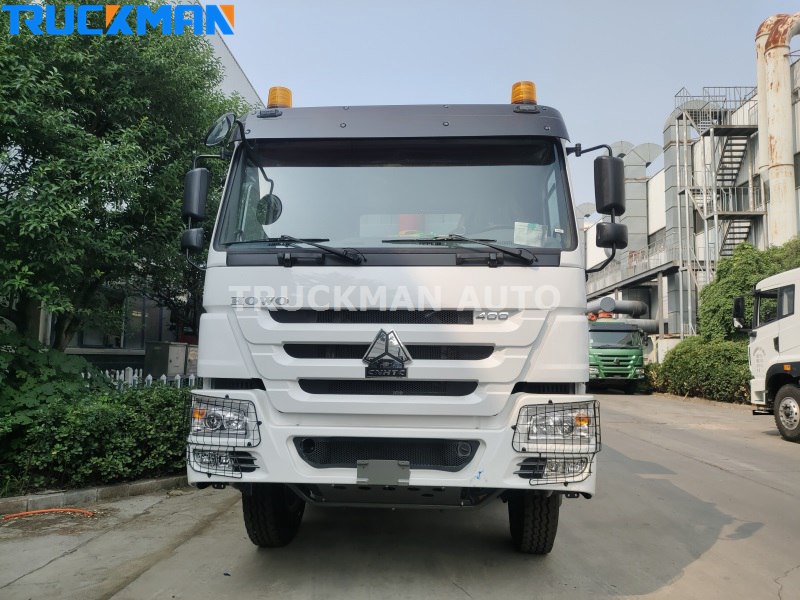

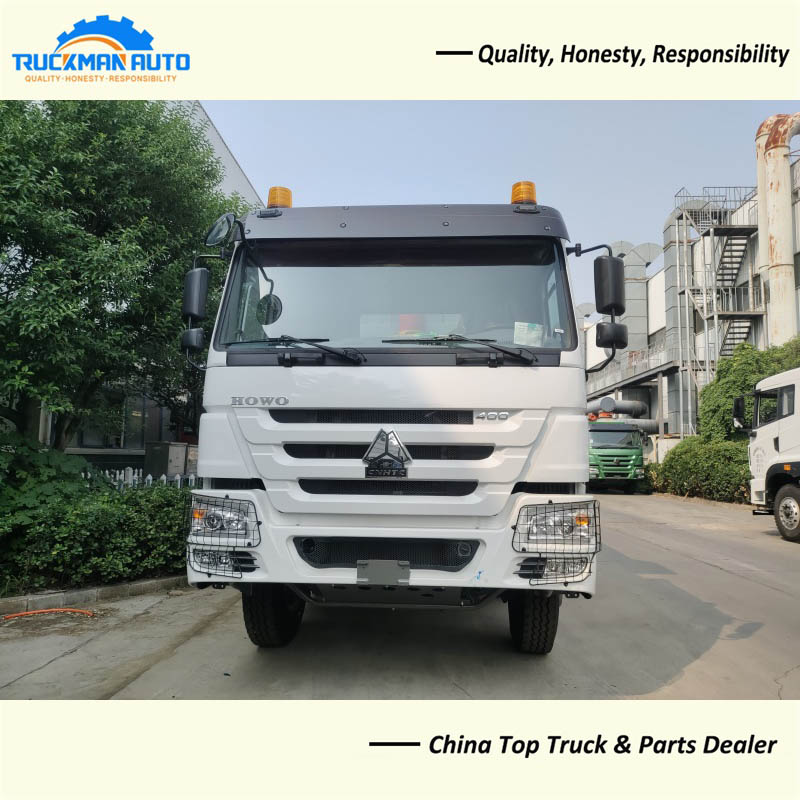

8X4 SINOTRUK HOWO 400HP Dumper Truck Cab
The cab body of this 8X4 HOWO dump truck is a monolithic steel frame structure, solid, firm, with strong resistance to impact and external pressure, built-in front anti-collision drilling protection device and four-way bit image. The thick and heavy lines highlight the modern, dynamic and simple design concept, and the overall shape is very dynamic and powerful. The driver's seat can be equipped with optional airbag seat,automatic air conditioning. Surrounding instrument panel with electric glass lifter driver operation is more convenient.

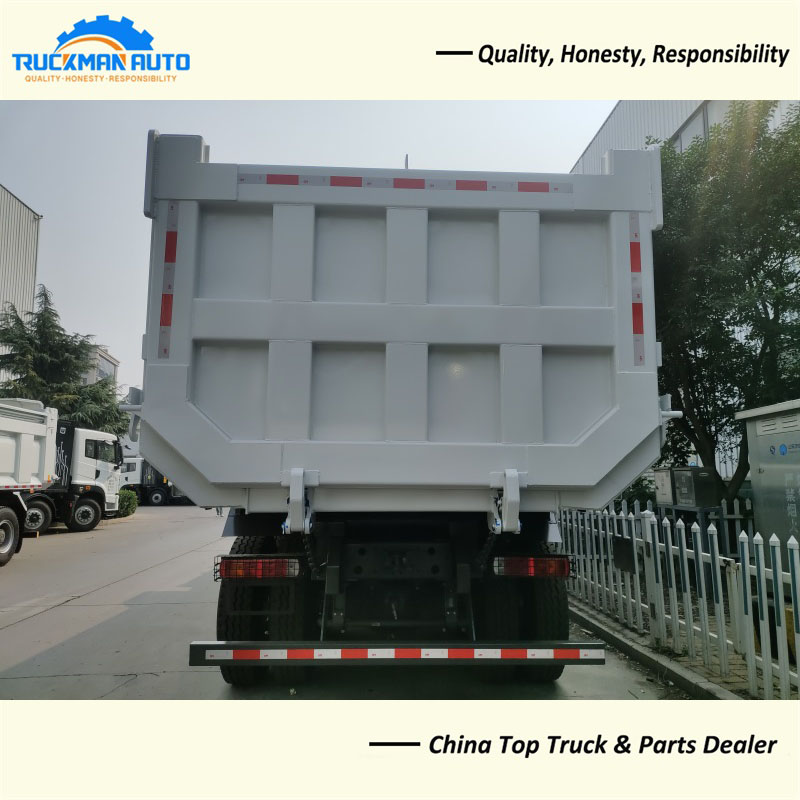

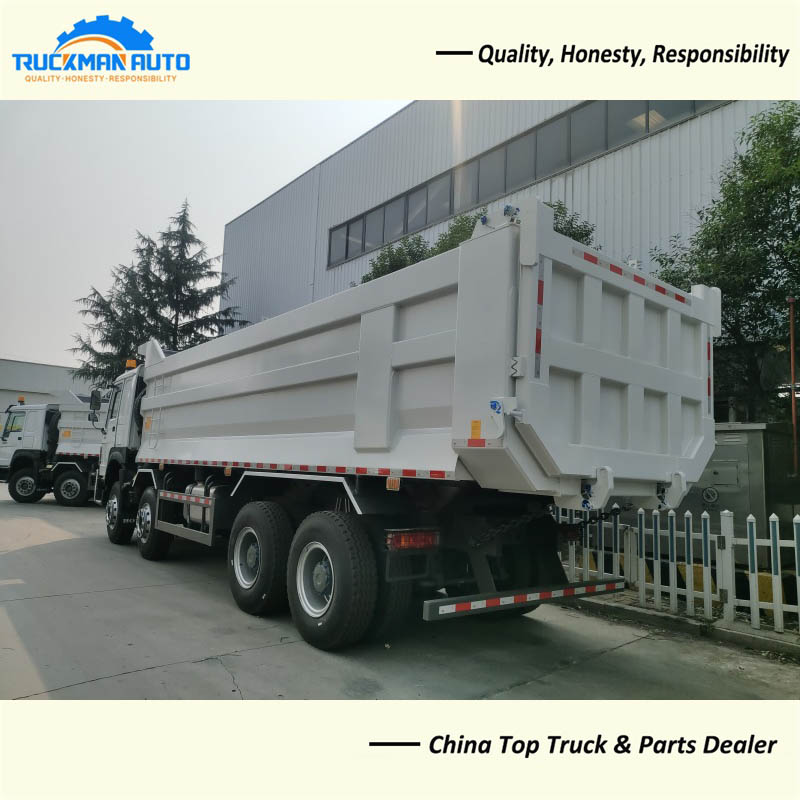

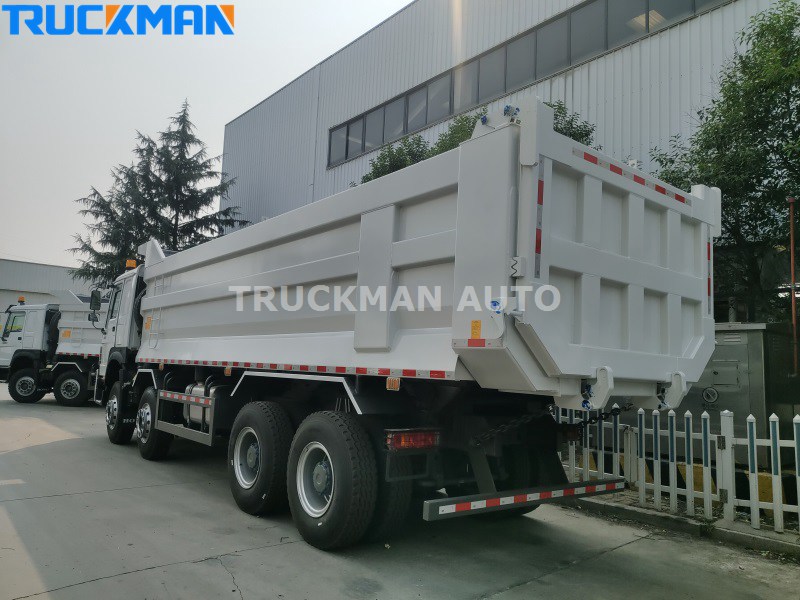

What Are The Advantages Of A Dumper Truck U Shape Bucket ?
Clean And Unload
As the corners of the U-shaped cargo box are curved transition, there is no dead space, it is not easy to stick the box when unloading, and the unloading is much cleaner, which is very suitable for the transportation of clay.
Lightweight
U-type cargo box not only ensures the strength of the compartment, but also reduces the weight through structural optimization. The thickness of the plate is reduced by about 20%, and through the integrated processing, the reinforcement is greatly reduced, so the deadweight is greatly reduced.
Low Center Of Gravity
The bottom of the U-shaped structure is curved, the bottom longitudinal beam is canceled, and the sub-frame is lower than that of the rectangular box, so the center of gravity of the whole vehicle is greatly reduced compared with that of the rectangular bucket, and the road driving is very stable.
