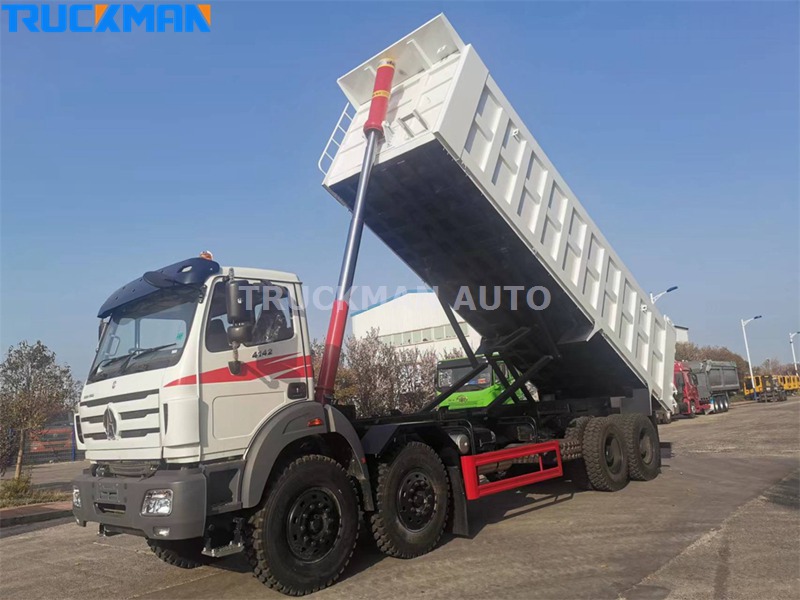

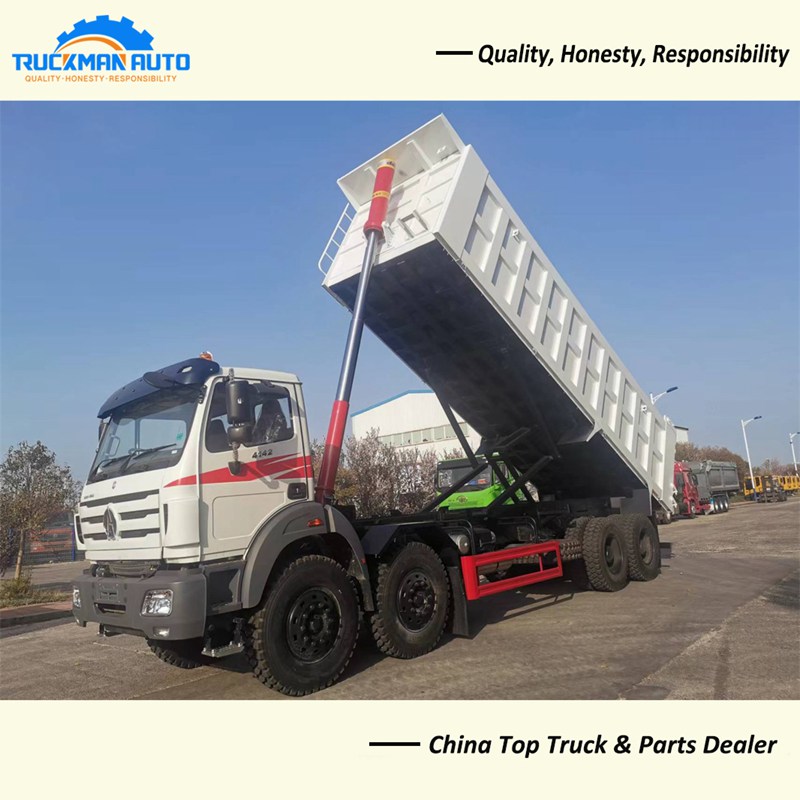

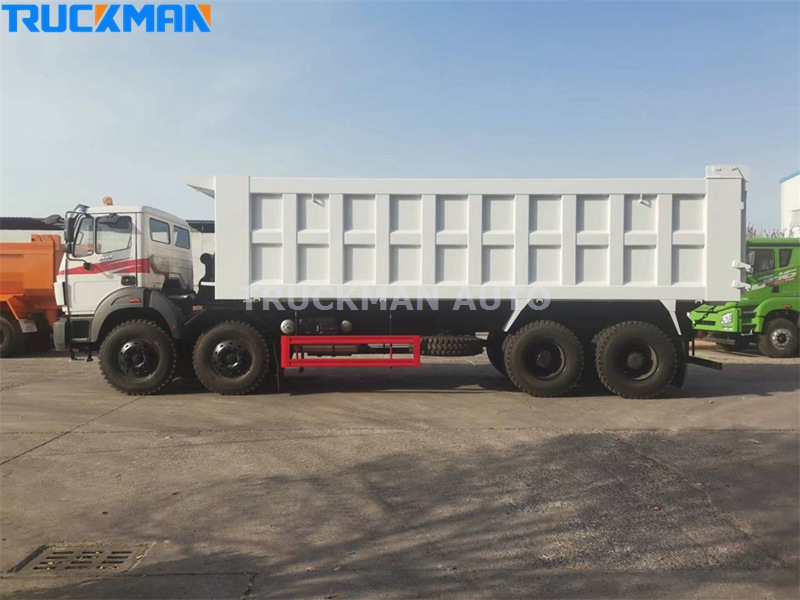

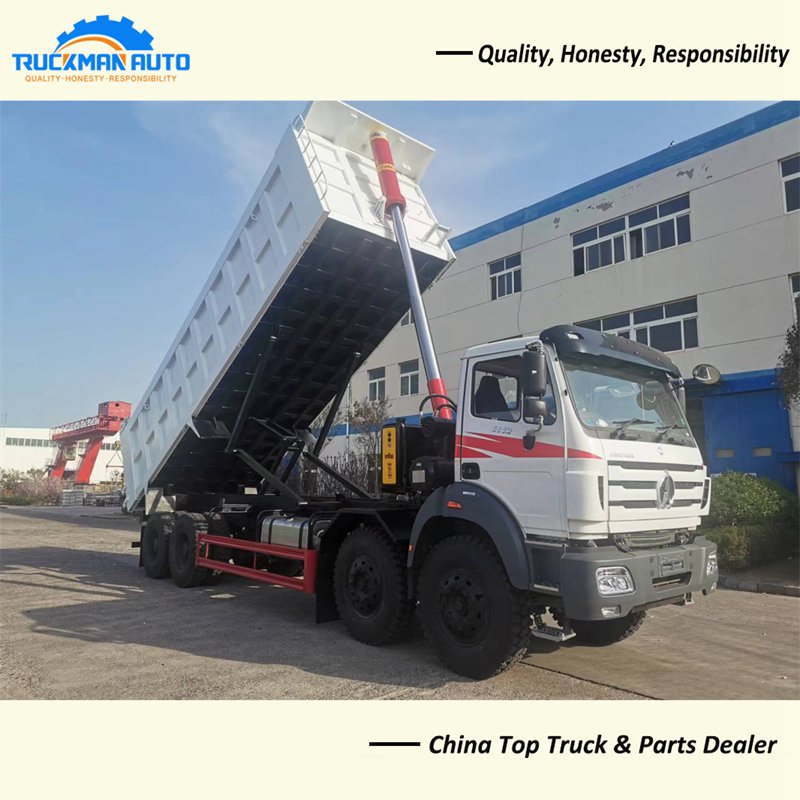

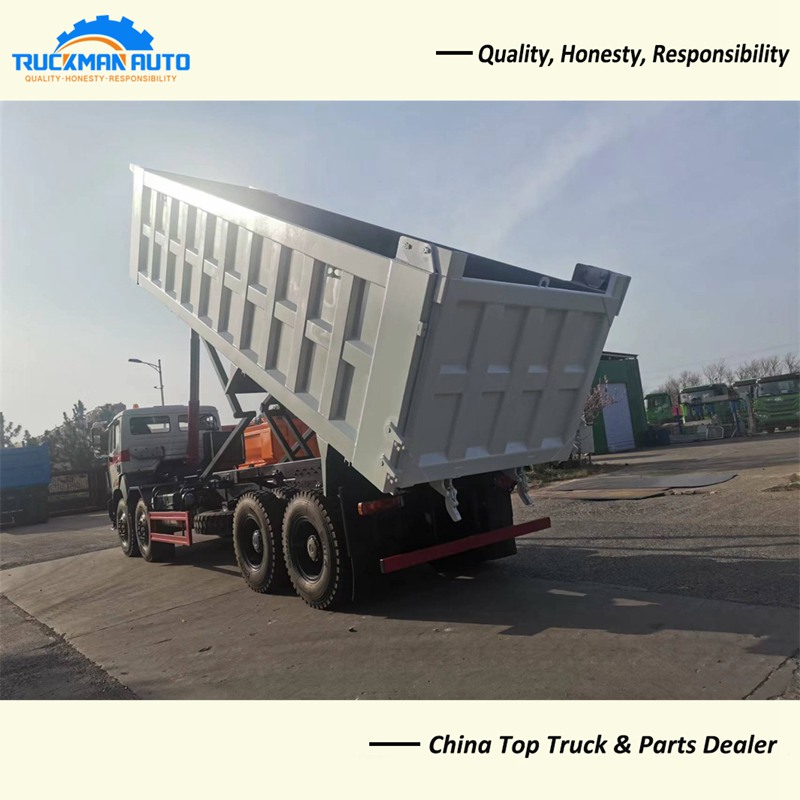

BEIBEN 12 Wheel 4142 Dump Truck
BEIBEN 12 Wheel 4142 Dump Truck Features
BEIBEN 4142 dump truck highly efficient transmission and auxiliary systems, 3° small power line angle design, improved transmission efficiency, scientific and rational arrangement, reduced fuel consumption.
-. Max torque figure of 1800 with a top speed of 90km/h.
-. High-strength triple-layer frame with proven extra heavy-duty capacity.
BEIBEN 12 Wheel 4142 Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
BEIBEN 12 Wheel 4142 Dump Truck |
|
Application |
Transport mining material etc |
|
Loading Capacity |
50,000kg |
|
Engine |
WP12.420E32, 420HP, EURO II |
|
Cabin |
NG80B, with one bed, A/C, right hand drive |
|
Gearbox |
12JS200T, 12 forward and 2 reverse gear |
|
Tire |
12.00R20, 12+1 pcs, radial model |
|
Steering |
ZF8098, hydraulic boosting |
|
Front Axle |
7.5 ton, 2x7500kg |
|
Driving Axle |
13 ton, 2x13000kg |
|
Fuel Tank |
400L |
|
Dimension |
10400x2560x3450mm |
The BEIBEN 12 wheel dump truck specification only for your reference, we will recommend other model BEIBEN dump truck basic your request.
BEIBEN 12 Wheel 4142 Dump Truck Chassis
The BEIBEN 4142 dump truck has been fully weight optimised from every linkage and suspension to the overall frame to achieve optimum weight while maintaining load carrying capacity and reliability. Lightweighting of the whole vehicle is achieved through the aluminium alloy casing gearbox, lightweight tyres, load bearing system, gas storage tank and gas cylinder support.
