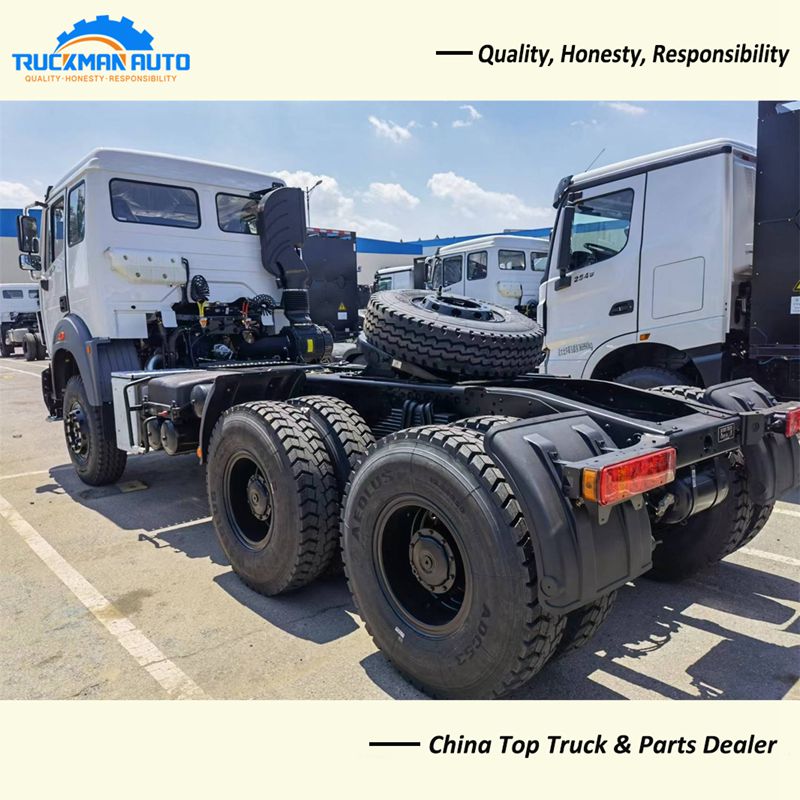

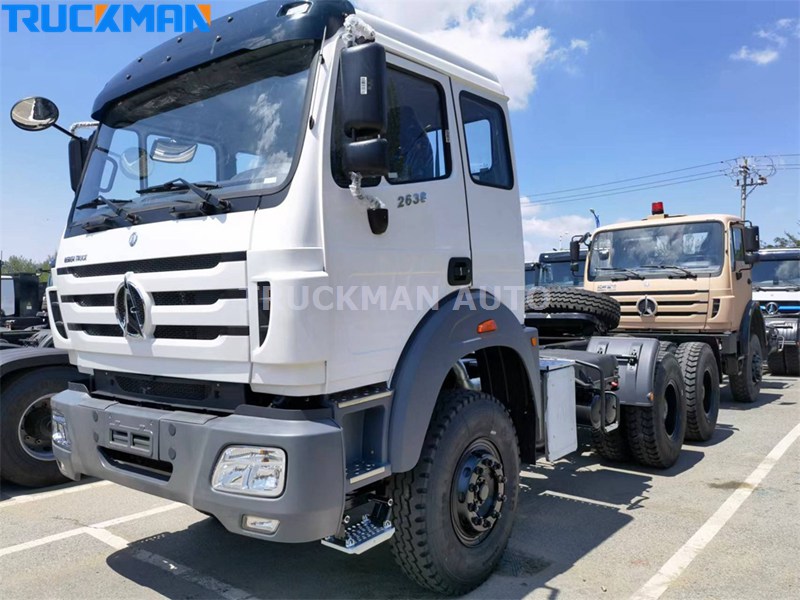

BEIBEN 2638SZ 6x4 Tractor Truck For Congo

BEIBEN 2638SZ 6x4 Tractor Truck For Congo
BEIBEN 2638SZ 6x4 Tractor Truck For Congo
BEIBEN 2638SZ 6x4 Tractor Truck For Congo
BEIBEN 2638SZ 6x4 Tractor Truck For Congo
BEIBEN 2638SZ 6x4 Tractor Truck For Congo
BEIBEN 2638SZ 6x4 Tractor Truck For Congo
Product Name : BEIBEN 2638SZ 6x4 Tractor Truck For Congo
Product ID : 2638SZ
Loading Tons : 80,000kg
Engine : 380HP, EURO II
Cabin : NG80B model, with one bed, A/C
Gearbox : 12 forward and 2 reverse gear
Tire : 12.00R20, 10+1 pcs
Directions

BEIBEN 2638SZ 6x4 Tractor Truck Features



BEIBEN 6x4 tractor truck adopt the WEICHAI brand 380HP engine, with WEVB engine brake system. Increase the braking efficiency of the whole vehicle by 55%, which greatly improves driving safety



-. Brake system including the: Service brake, assistant brake, park brake.

-. Truck chassis adopt the Benz Technology, fish belly shape, variable width, variable sections.





BEIBEN 2638SZ 6x4 Tractor Truck Specification



Description

Parameter Value

Product Name

BEIBEN 2638SZ 6x4 Tractor Truck

Application

Transport all kind of cargoes

Loading Capacity

80,000kg

Engine

WP10.380E32, 380HP, EURO II

Cabin

NG80B, with one bed, A/C, left hand drive

Gearbox

12JS200T, 12 forward and 2 reverse gear

Tire

12.00R20, 10+1 pcs, radial model

Tractor Pin

3.5 inch, JOST brand

Front Axle

7.5 ton, 1x7500kg

Driving Axle

13 ton, 2x13000kg

Fuel Tank

400L

Dimension

6800x2560x3400mm



The BEIBEN 2638SZ 6x4 tractor truck specification only for your reference, we will recommend other model BEIBEN tractor truck basic your request.

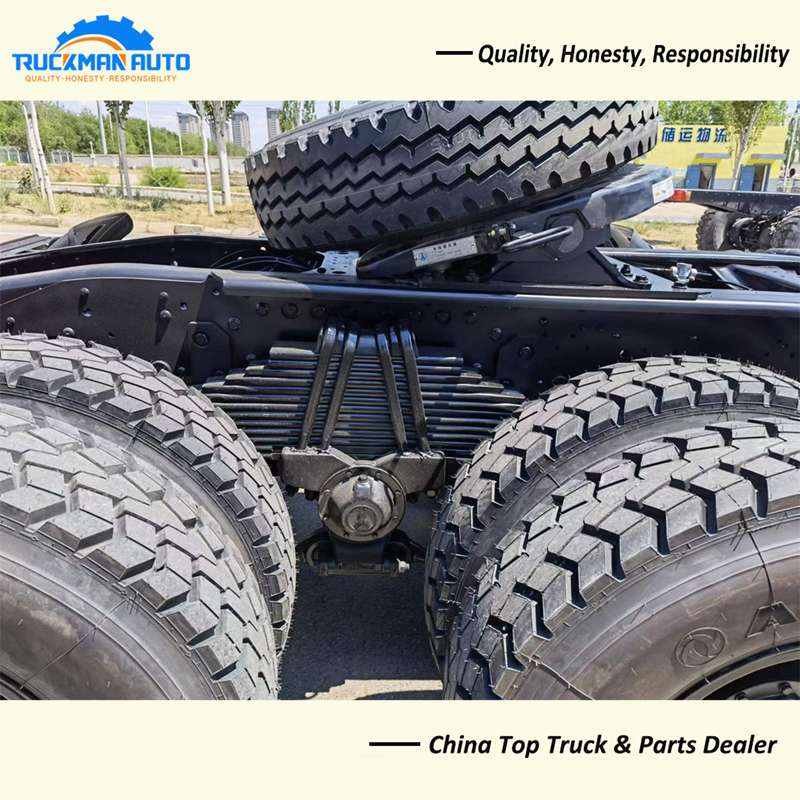

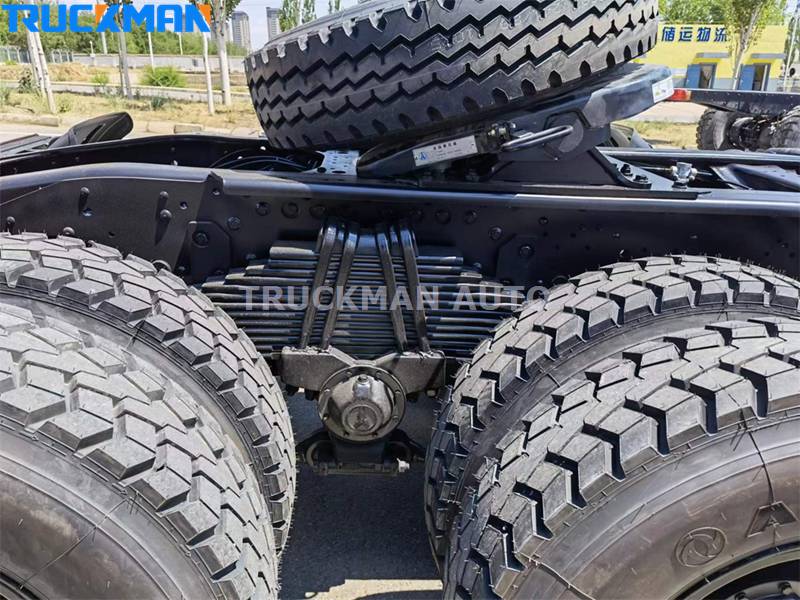

BEIBEN 2638SZ 6x4 Tractor Truck Suspension



The BEIBEN tractor truck suspension is mechanical type. Front suspension is non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension, 13pcs springs. Rear suspension is non-free standing stabilization spring, stabilization suspension, 13pcs springs.
