BEIBEN 6x4 70 Tons Trailer Truck

BEIBEN North Benz Brand Prime Mover
BEIBEN North Benz Brand Prime Mover
BEIBEN North Benz Brand Prime Mover
Product Name : BEIBEN 6x4 70 Tons Trailer Truck
Product ID : ND4258B34J
Engine : WEICHAI brand, 380HP
Gearbox : FAST brand, 12F & 2R
Cabin : With one sleeper, A/C
Loading Capacity : 40-100 tons
Brand : BEIBEN or NORTH BENZ
Directions

-1. BEIBEN North Benz Brand Truck Head Main Specification



-. Oil saving, safety, driving comfort, reliability, low application cost

-. Engine: 340HP-380HP, WEICHAI technology

-. Heavy-duty load capacity: 40 to 100 tons

-. FAST brand gear box, easily shift gear



Wheel base

3450+1450

Dimension

7050×2495×3260mm

Curb weight

8800kg

Front overhang/rear overhang

1410/740mm

Approach angle/Departure angle

26/64

Max Speed

≥85

Engine

Model

WP10.340E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Fuel type

Diesel

Emission

EUROIII

Rated Power / rotating

250Kw/2200rpm (340HP)

Displacement(ml)

9726

Fuel tanker capacity (L)

400L

Clutch

Model

#430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS160T

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

TAS85

Front axle

7.5 tons no-driving steering axle

Rear axle

13 tons double reduction driving axle, speed ratio5.263

Tire

12.00R20  radial tire

Cabin

NG80B Long cab with one sleeper

Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C.

Fifth wheel

#50 single direction (JOST)

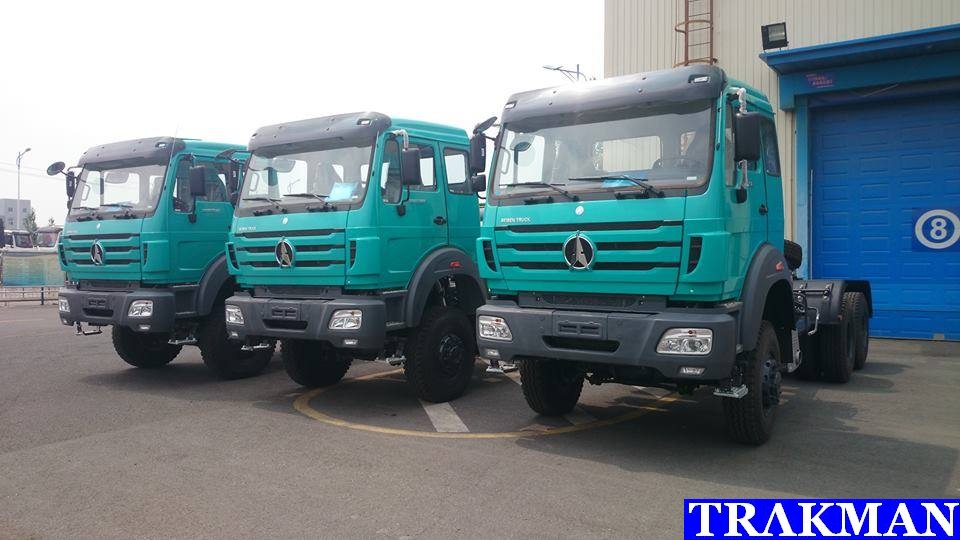

-2. Truck Picture For Reference.

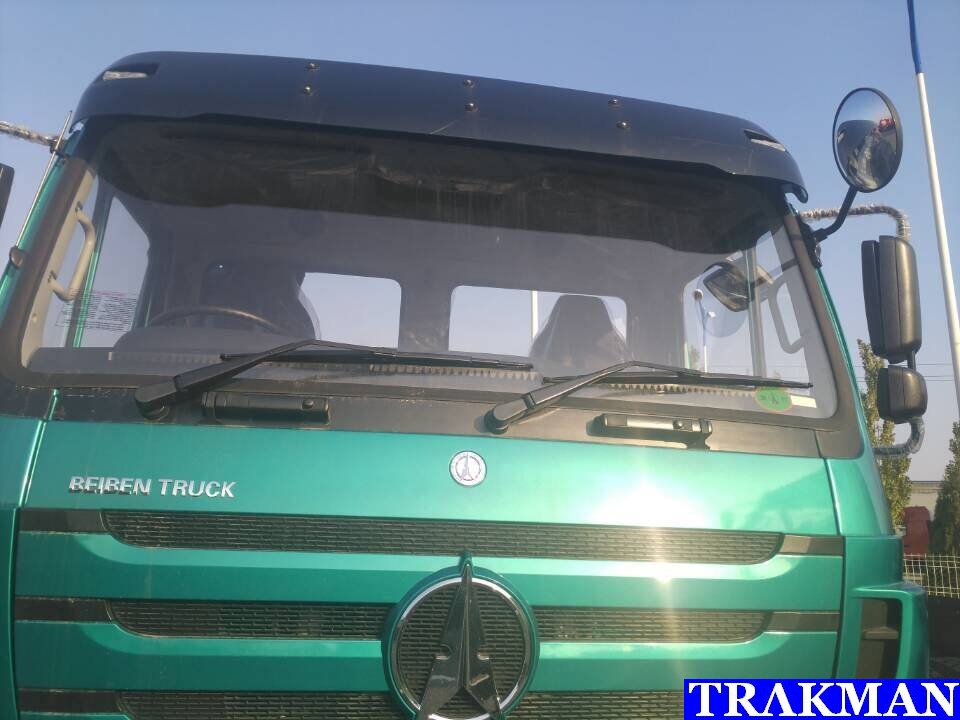

-3. Truck Detail Picture.

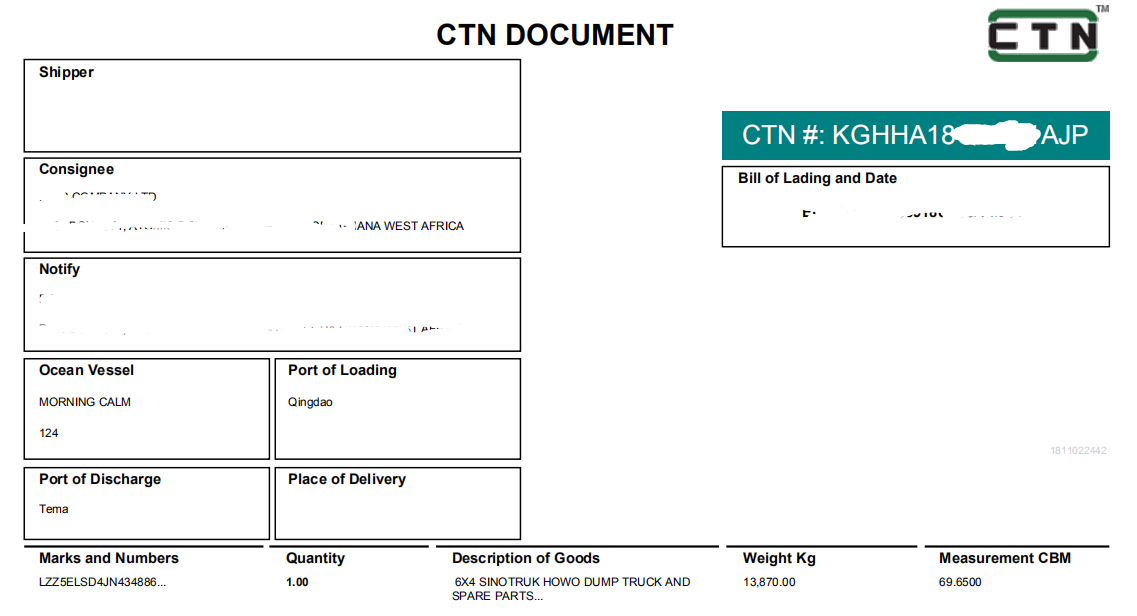

-4. Certificate For Truck.





Our truck now can meet the SGS, BV, FORM E, SONCAP, CTN, CO, ADR, CIQ, GCC certificate, we also can help you handle it.
