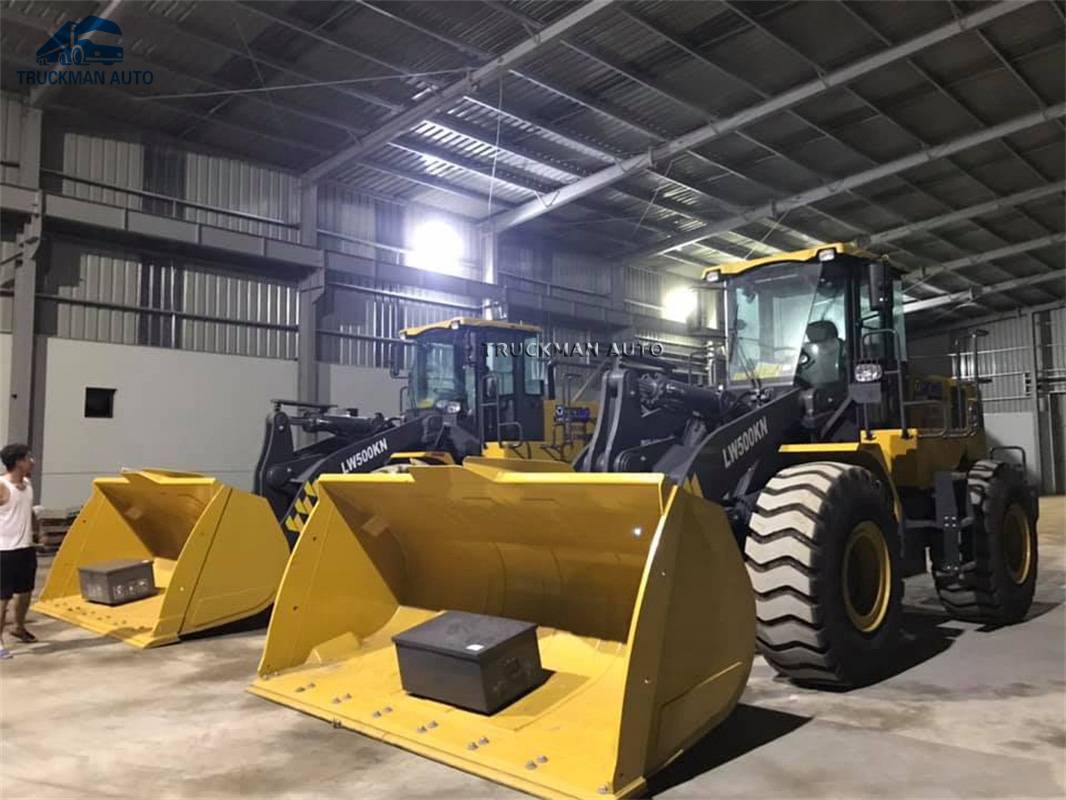

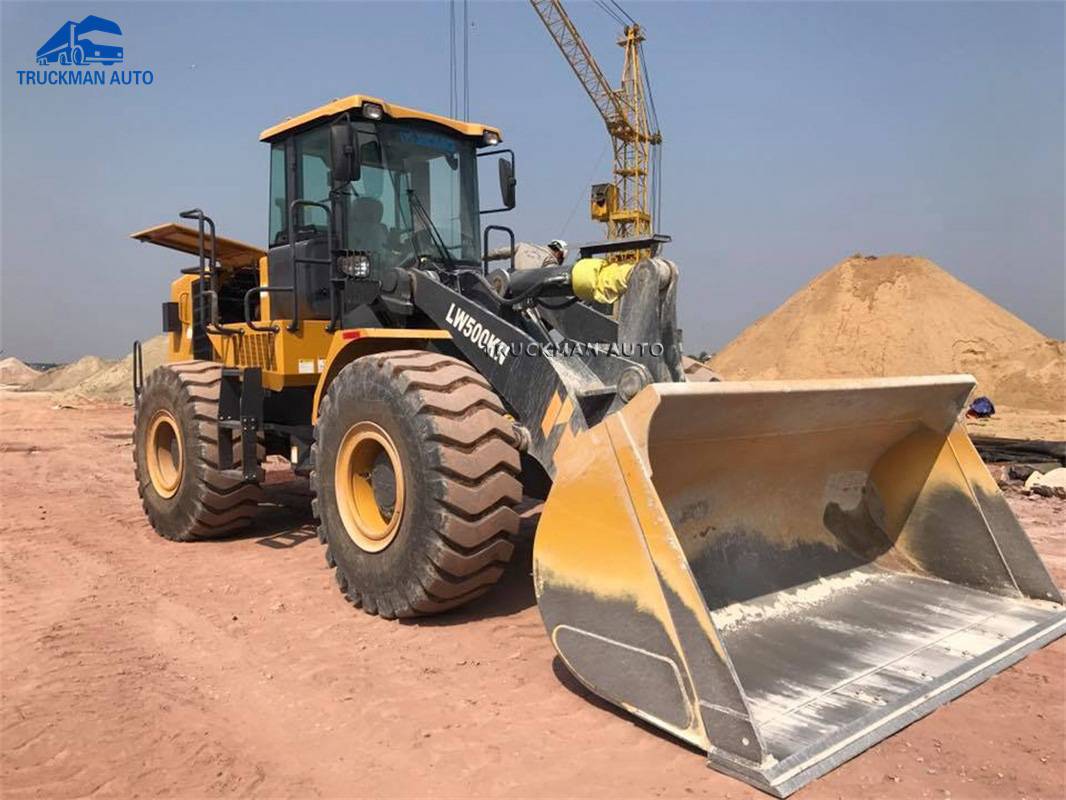

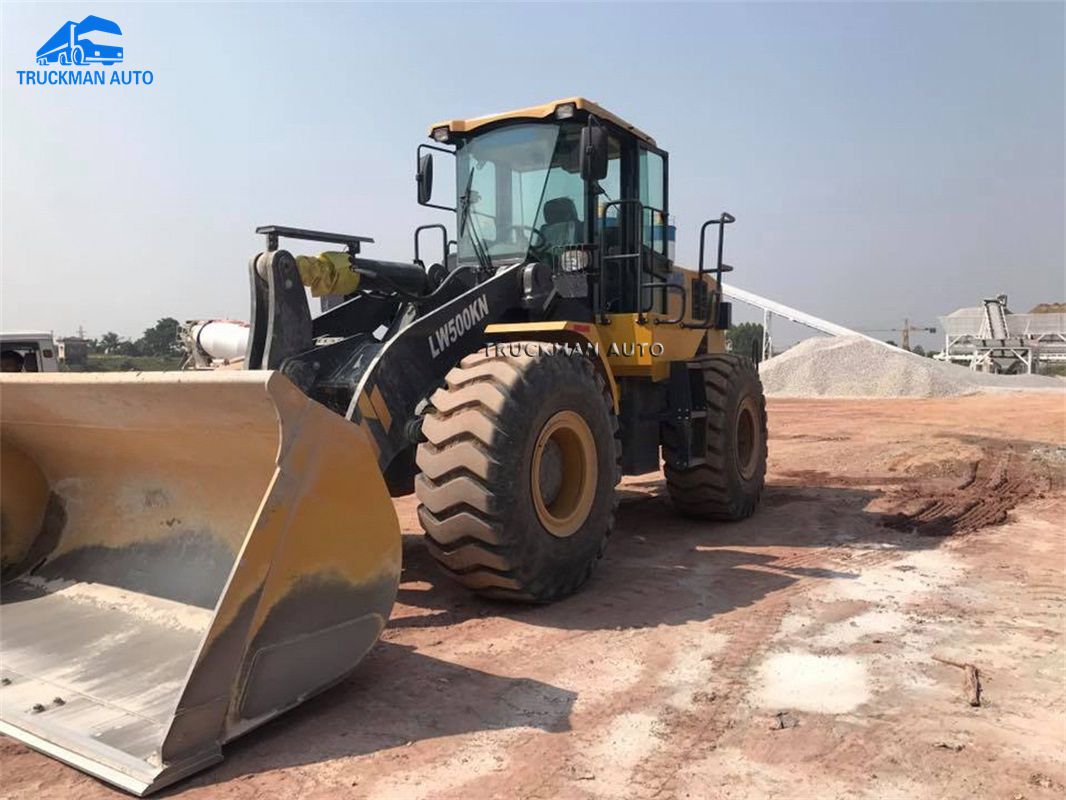

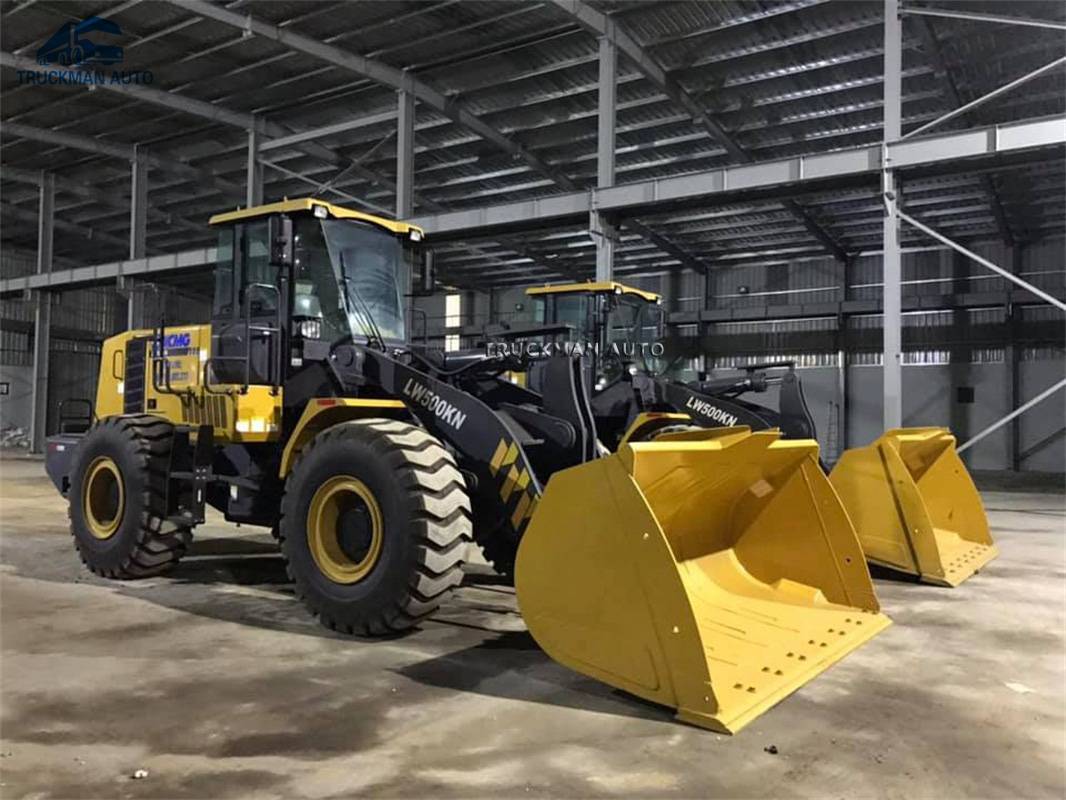

Heavy Construction Machinery XCMG LW500KN Wheel Loader
-1. XCMG LW500KN Wheel Loader Main Detail.
XCMG LW500KN wheel loader machinery total working weight could reach to 17,200kg. The rated loading weight is 5,000kg could fully meet the sand, gravel, coal, stone etc transit work. The engine air filter is oil bath filter, it’s will help extend to service time. And reduce the maintenance cost also.
|
Description |
Unit |
LW500KN |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.7~4.5 |
|
Machine weight |
kg |
17200 |
|
Dump clearance at maximum lift |
mm |
3150~3560 |
|
Reach at maximum lift |
mm |
1100~1190 |
|
Wheel base |
mm |
3300 |
|
Tread |
mm |
2250 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5407 |
|
Max.breakout force |
kN |
170 |
|
Hydraulic cycle time-raise |
s |
≤6.5 s |
|
Total hydraulic cycle time |
s |
≤11 s |
|
Min. turning radius over tyres |
mm |
5925 mm |
|
Articulation angle |
° |
30 º |
|
Gradeability |
° |
45 º |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8870*3000*3350 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |

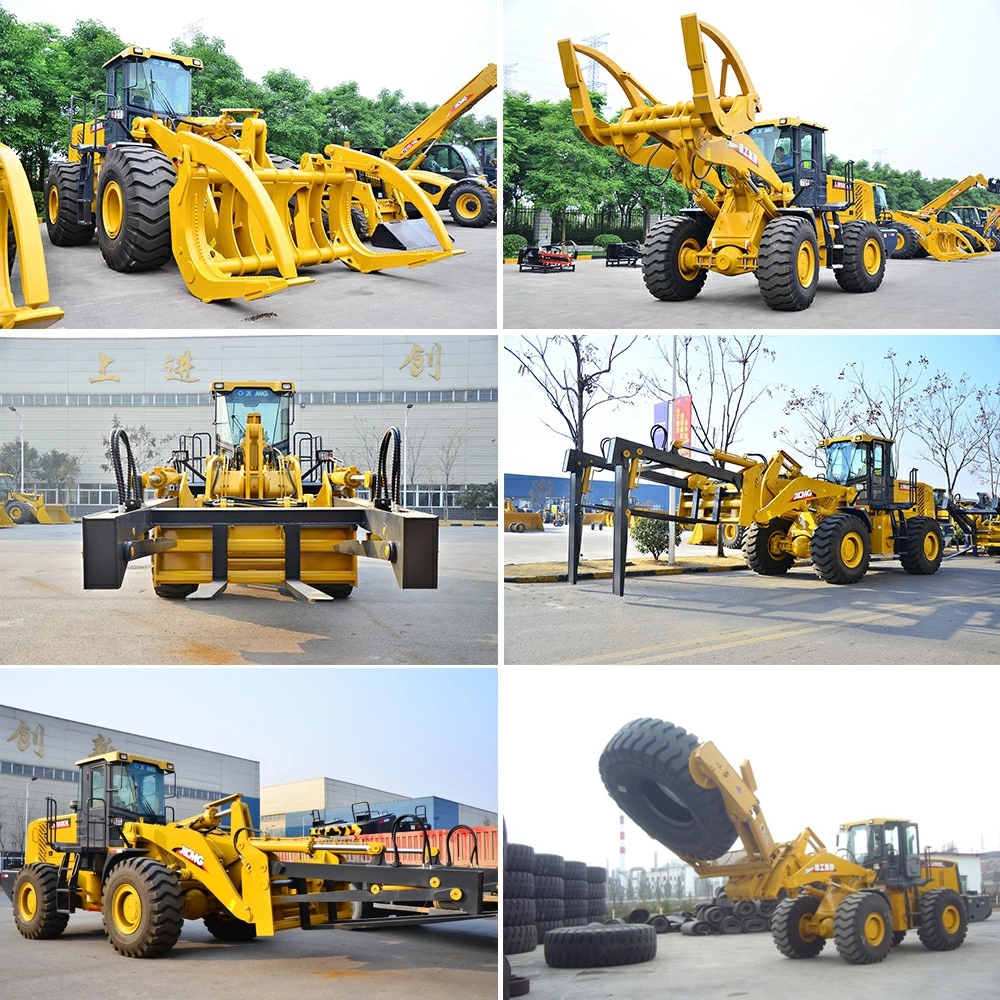

-2. XCMG LW500KN Wheel Loader Different Bucket Work.
Standard Bucket: Standard 3.0m3 bucket the dumping height could reach to 3500mm
Clamp: For grab and transport of various woods and tubing
Bale Grabber: It’s used for the grabbing and handing of light materials such as straws and paper boards
Snow Plough: For snow removing in roads and urban streets
Rock Bucket: It’s dedicated for handling of hard materials such as rock, featuring good resistance against wear and impact
