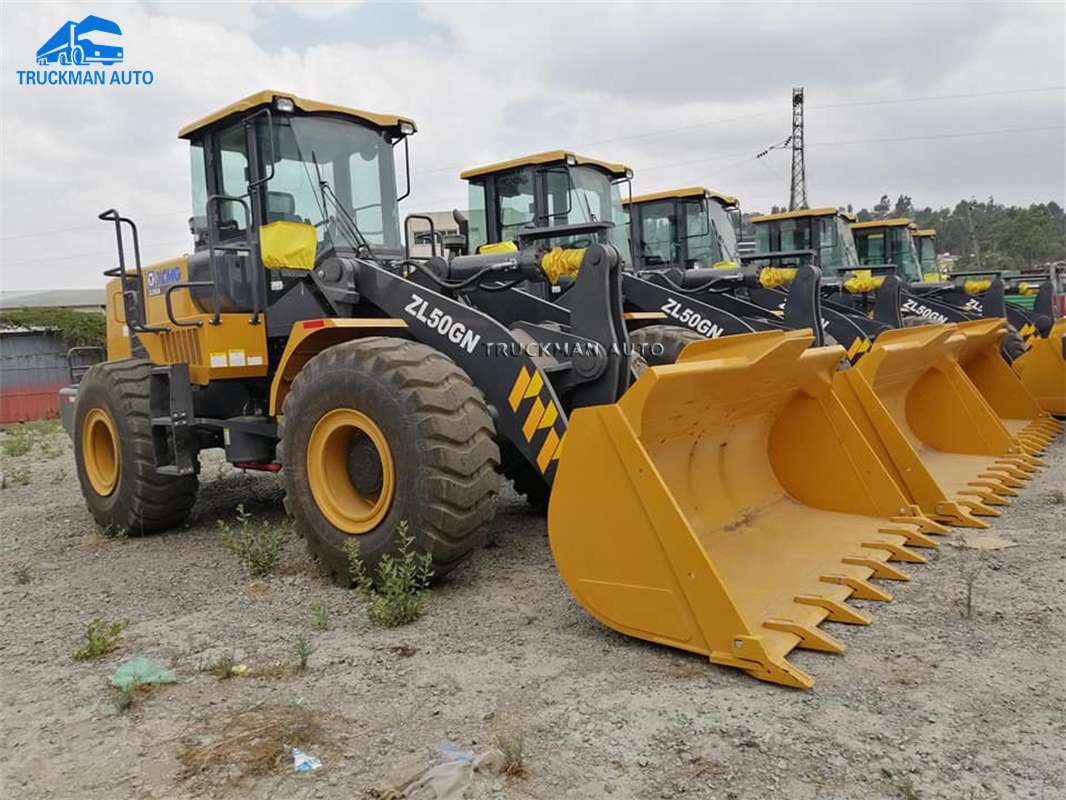

Hot Sale ! XCMG ZL50GN Wheel Loader In Big Promotion
-1. XCMG ZL50GN Wheel Loader Information.

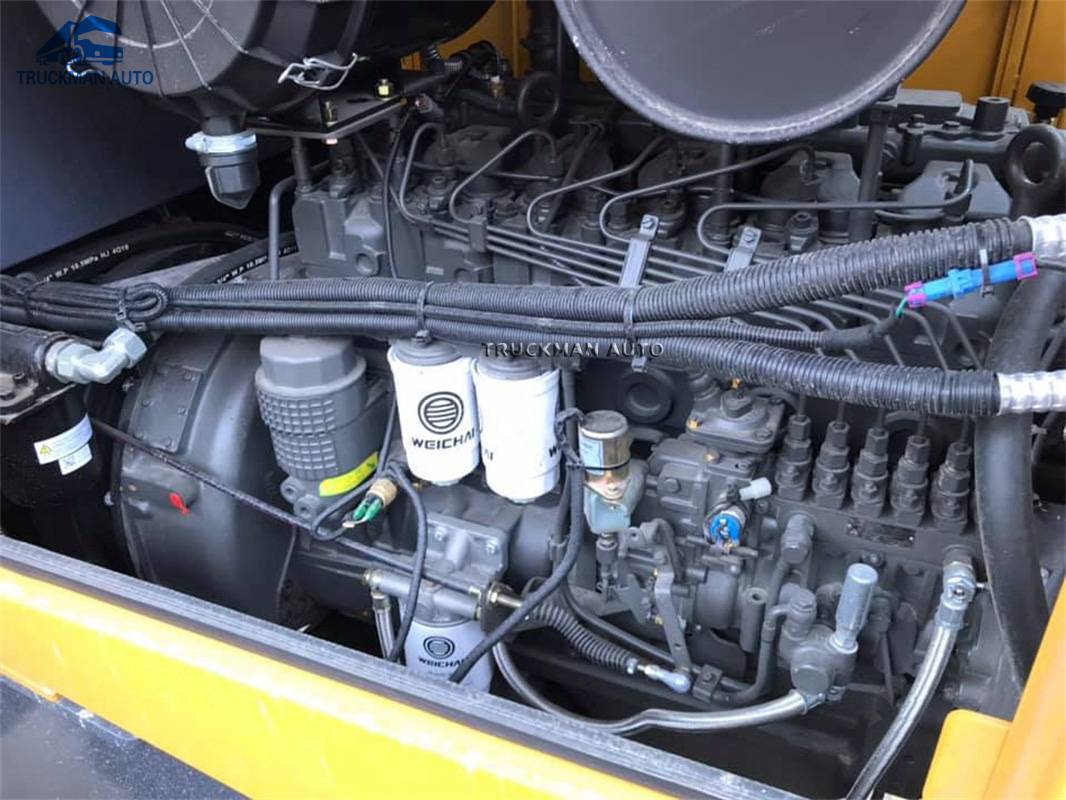

The XCMG ZL50GN wheel loader could match SINOTRUK HOWO 371HP dump truck, used for the mining, quarry, construction etc site working. And the XCMG ZL50GN wheel loader add the air conditioner for Africa hot work weather, the engine have SHANGCHAI and WEICHAI for optional. With all durable quality and low maintenance cost.
|
Item |
ZL50GN |
|
Bucket capacity |
3.0M³ |
|
Rated load |
5000kg |
|
Rated time |
6 secretary |
|
Total cycling time |
11secretary |
|
Max.drawing force |
145Kn |
|
Max.breakout force |
170Kn |
|
Articulation angle |
35. |
|
Min.turn radius |
6400mm |
|
Climb ability |
28. |
|
Wheel base |
3300mm |
|
Tread |
2200mm |
|
Dumping clearance |
3090mm |
|
Dumping reach |
1130mm |
|
L×W×H |
8110×3000×3508mm |
|
Operating weight |
18t |
|
Clamp type |
|
|
Dumping clearance |
3230mm |
|
Dumping reach |
1845mm |
|
L×W×H |
8414×2800×3460mm |
|
Operating weight |
18t |
-2. XCMG ZL50GN Wheel Loader Main Advantage.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.

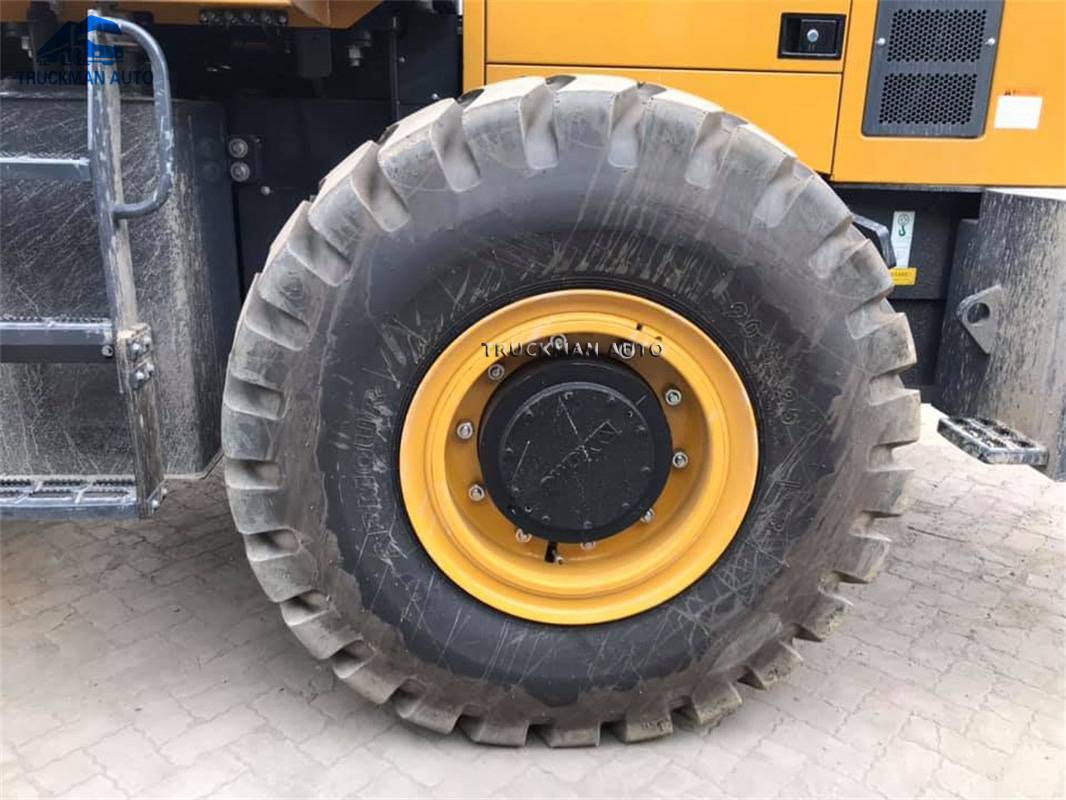

Quick action: the total time of three devices is only 10.3s, and the speed is 11.5 km/hour during the operation. Strong adaptation to the work site: centered design, small turning raidus. No speed difference between front and rear wheels. The tyre is not easily worn.
