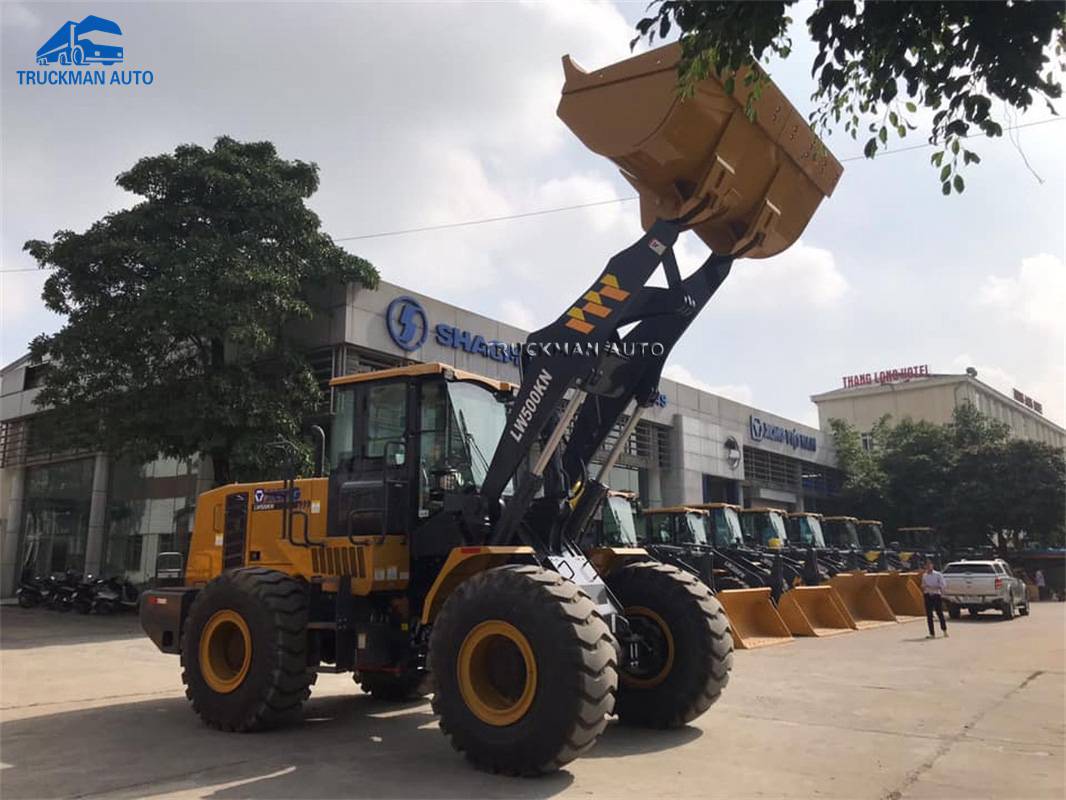

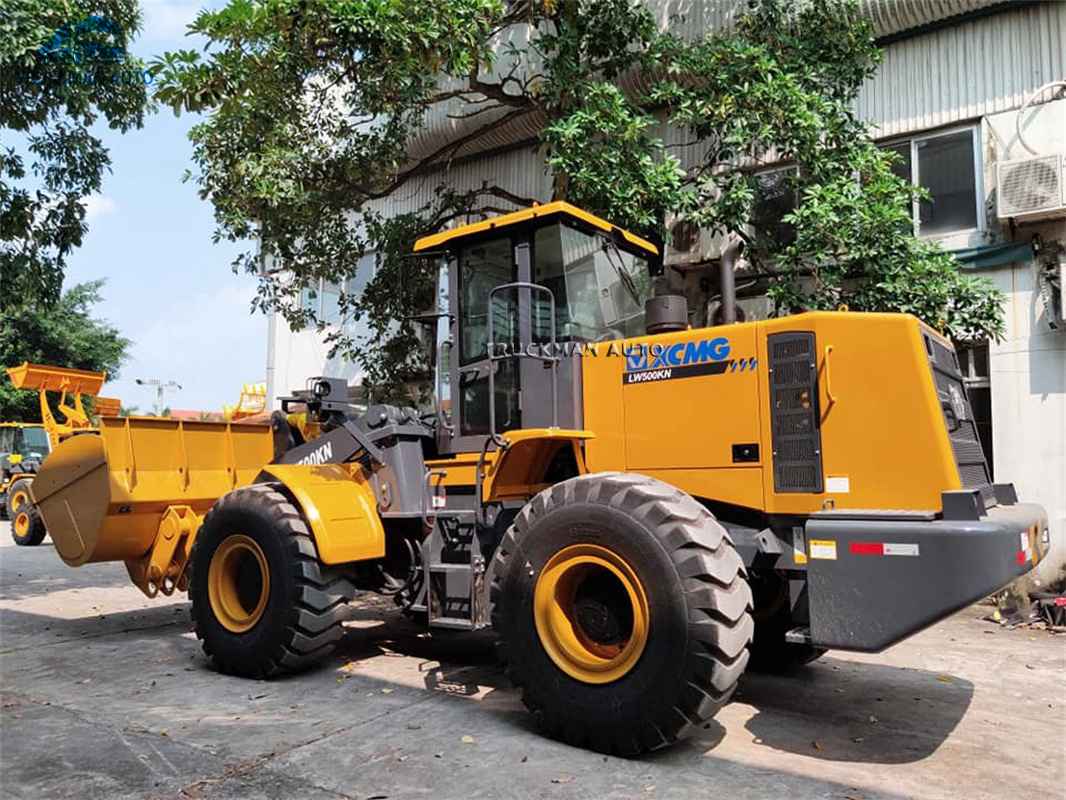

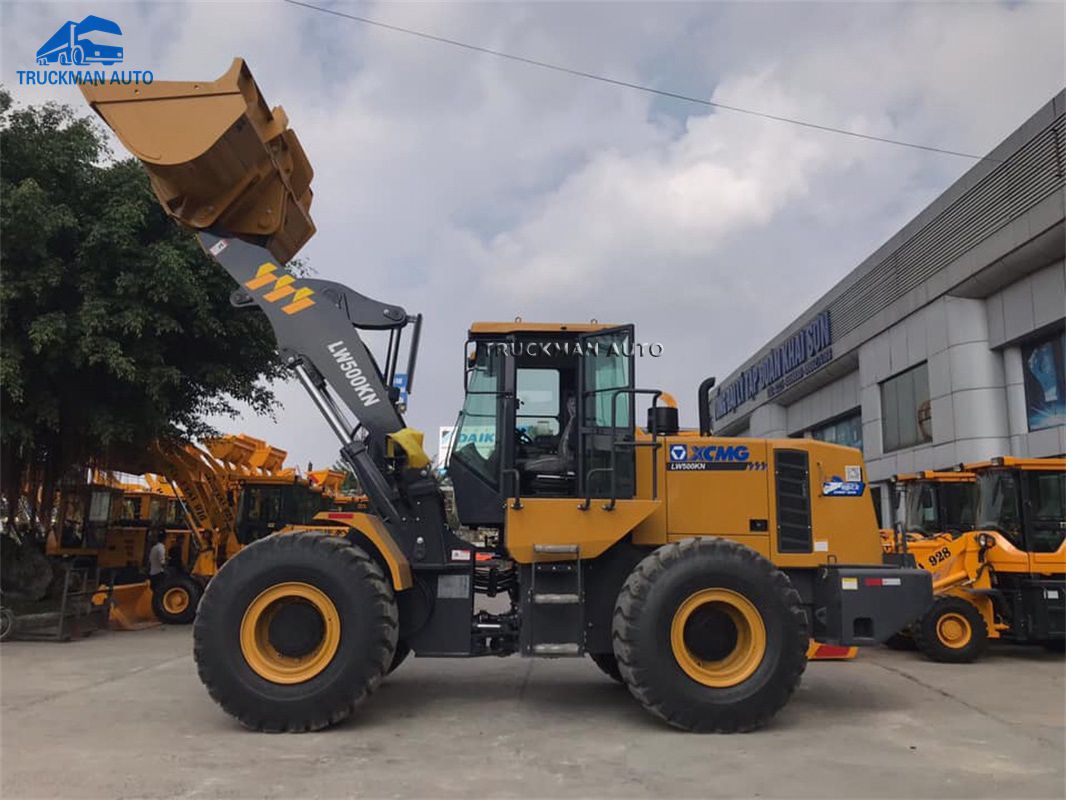

LW500KN XCMG 5 Ton Wheel Loader For Rental Business
-1. XCMG 5 Ton Wheel Loader Information.
XCMG 5 ton wheel loader popular model is ZL50GN, LW500FN, LW500KN etc. LW500KN is upgrade model for LW500FN, the main advantage is heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
|
Description |
Unit |
LW500KN |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.7~4.5 |
|
Machine weight |
kg |
17200 |
|
Dump clearance at maximum lift |
mm |
3150~3560 |
|
Reach at maximum lift |
mm |
1100~1190 |
|
Wheel base |
mm |
3300 |
|
Tread |
mm |
2250 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5407 |
|
Max.breakout force |
kN |
170 |
|
Hydraulic cycle time-raise |
s |
≤6.5 s |
|
Total hydraulic cycle time |
s |
≤11 s |
|
Min. turning radius over tyres |
mm |
5925 mm |
|
Articulation angle |
° |
30 º |
|
Gradeability |
° |
45 º |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8870*3000*3350 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |
-2. XCMG 5 Ton Wheel Loader Main Advantage.

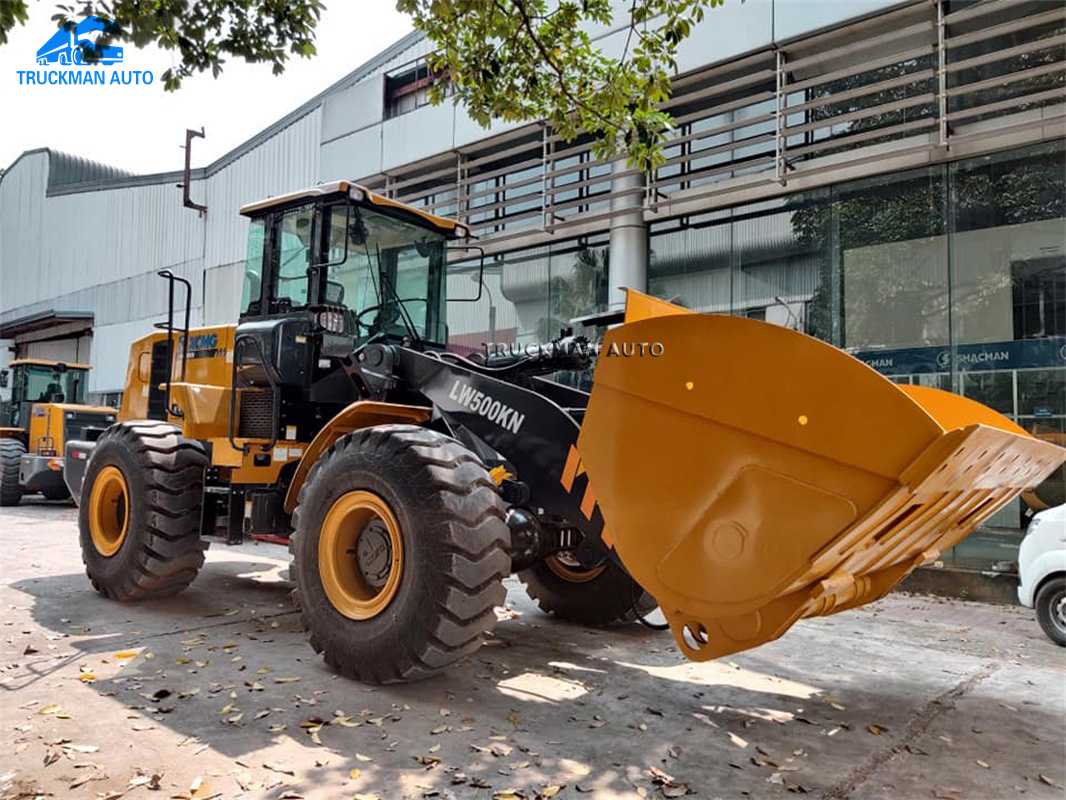

The LW500KN wheel loader with large rock bucket with capacity of 3.0M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The LW500KN wheel loader thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
