North Benz Beiben 25 Tons Tipper Truck
-1. NORTH BENZ Dump Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine: 340HP-380HP, WEICHAI technology
-. T- or F-type, middle or front lifting type
-. Tipper body: square or U-shaped
-. Tipper body: 15 to 20cbm
-. Heavy-duty load capacity: 30 to 40 tons
-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use
-. Hydraulic system: HY-VA brand or Chinese famous brand
-. Military industry truck chassis, very strong and durable
|
Model |
ND3252B38J |
|
|
Traction type |
LHD/RHD |
|
|
Drive System |
6×4 |
|
|
Cabin |
NG80 flat cabin, air conditioner, one sleeper |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.380E32 |
|
|
Rated power |
380hp |
|
|
Engine displacement |
9.726 liters |
|
|
Gearbox |
12JS160T |
|
|
Clutch |
430 Diaphragm type |
|
|
Steering |
ZJ120D |
|
|
Axle |
Front |
BEIBEN 7.5T |
|
Rear |
BEIBEN 13T, double reduction axle, ratio:5.921 |
|
|
Maxrunning speed (km/h) |
85 |
|
|
Tire |
12.00R20 |
|
|
Spring |
10/13 |
|
|
Fuel tank |
300L |
|
|
Kerb weight (kg) |
12400 |
|
|
Total mass (kg) |
25000 |
|
|
Wheel base (mm) |
3800+1450 |
|
|
Overhang (mm) (front/rear) |
1410/1870,1410/1687,1410/1630 |
|
|
Track (mm) (front/rear) |
1995/1800 |
|
|
Approach / departure angle(°) |
26/32 |
|
|
Overall Dimensions(L*W*H)(mm) |
8530×2500×3310 |
|
|
Box dimensions |
5600x2300x1500 |
|

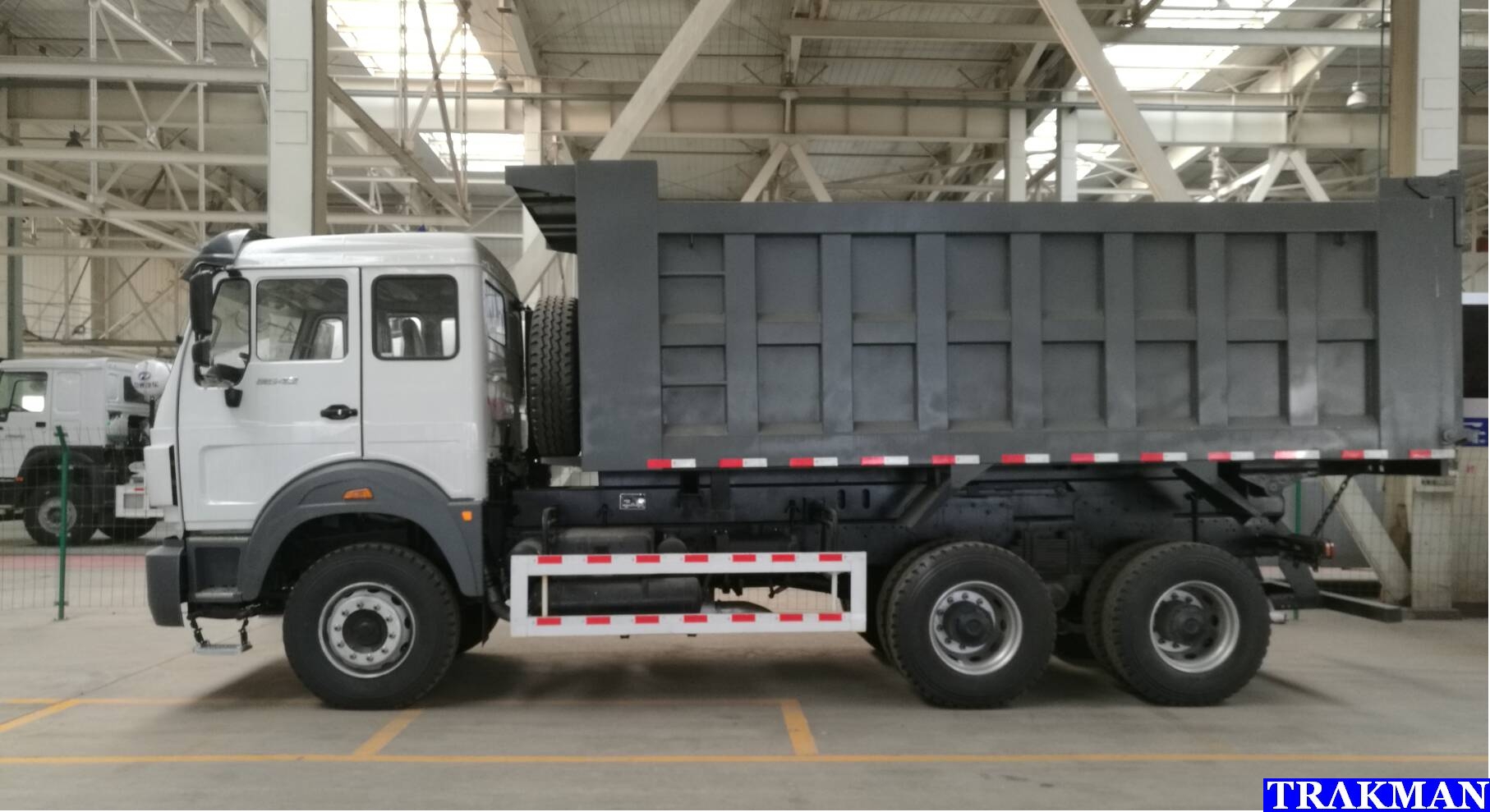

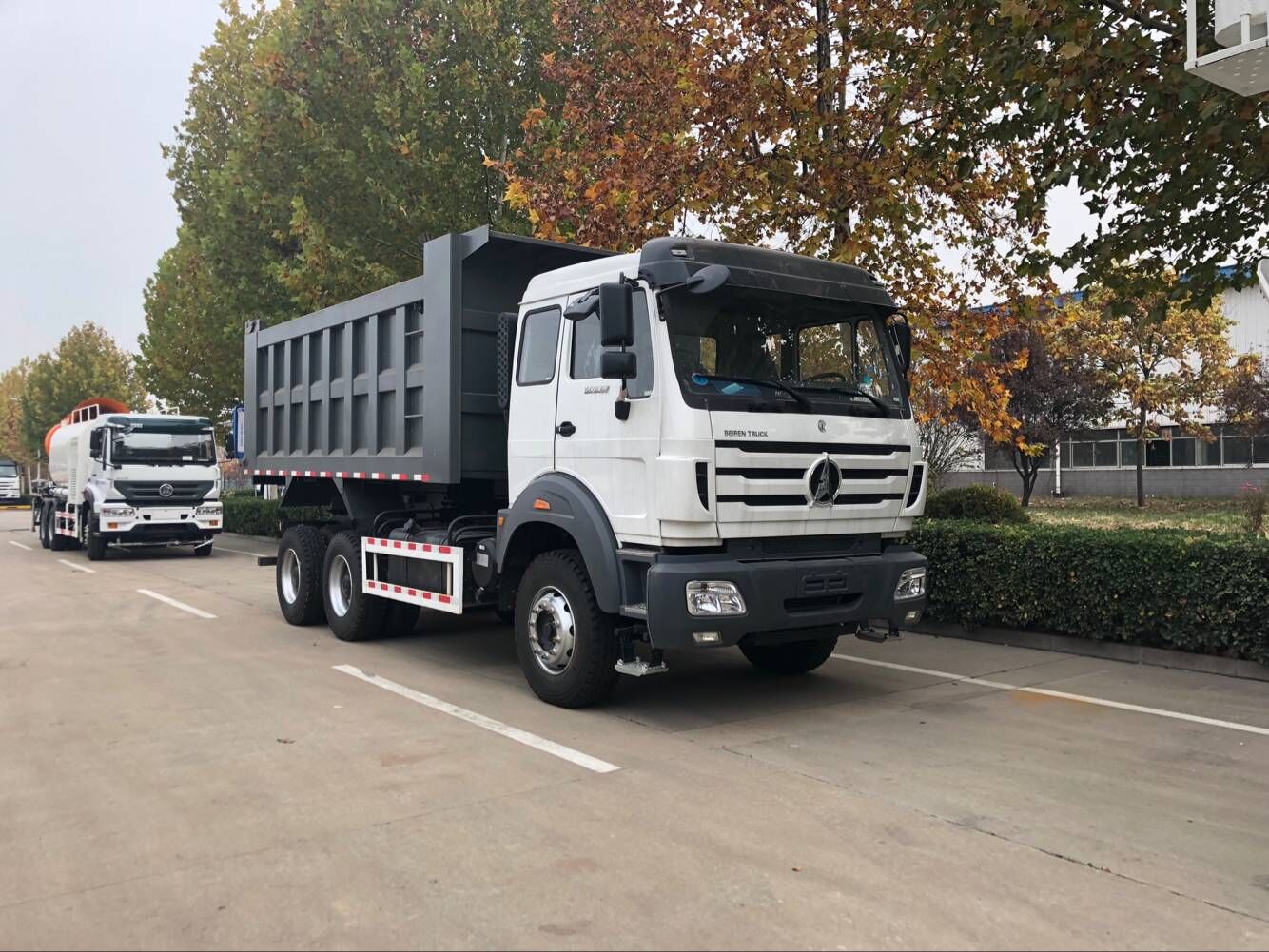

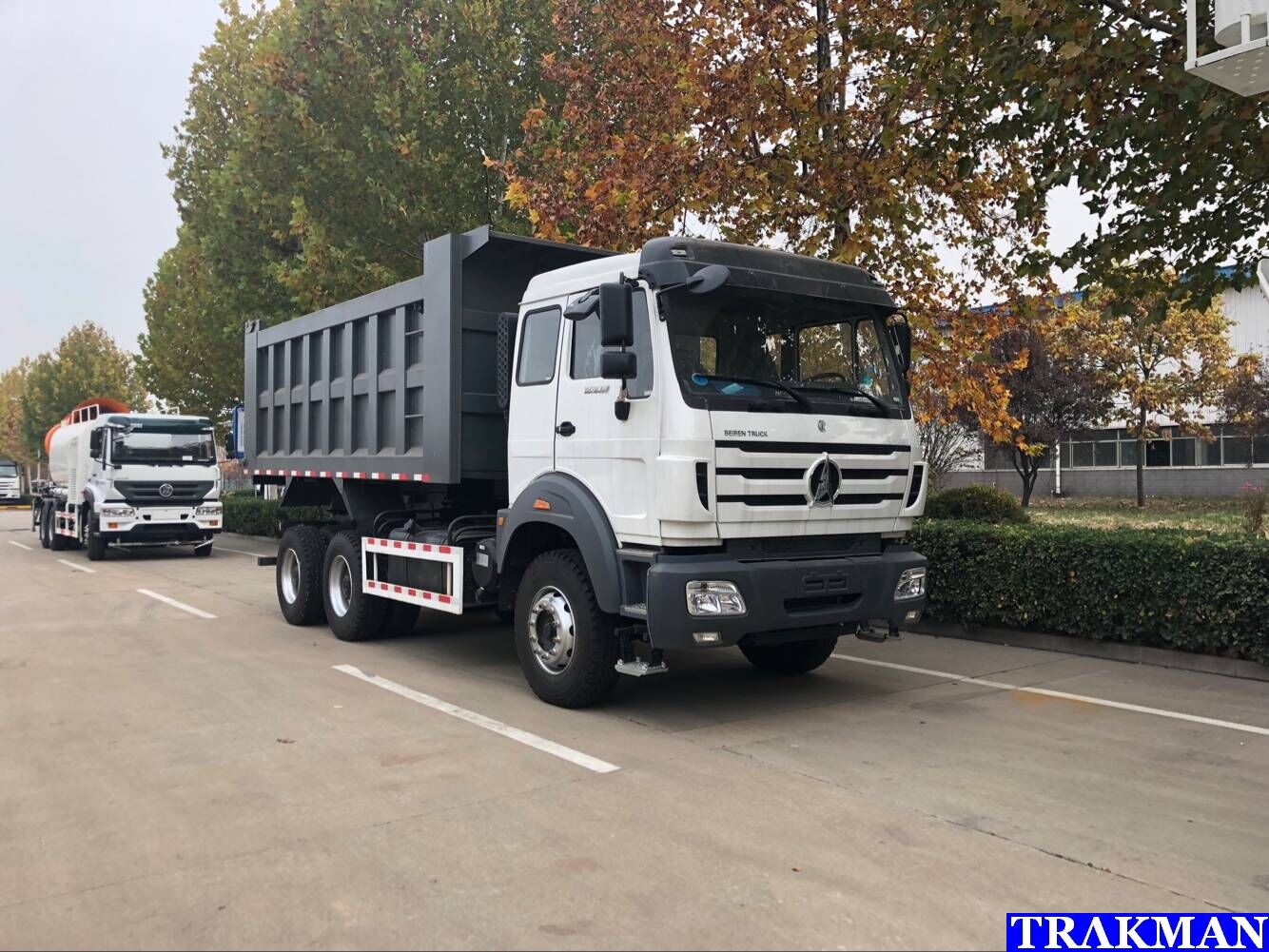

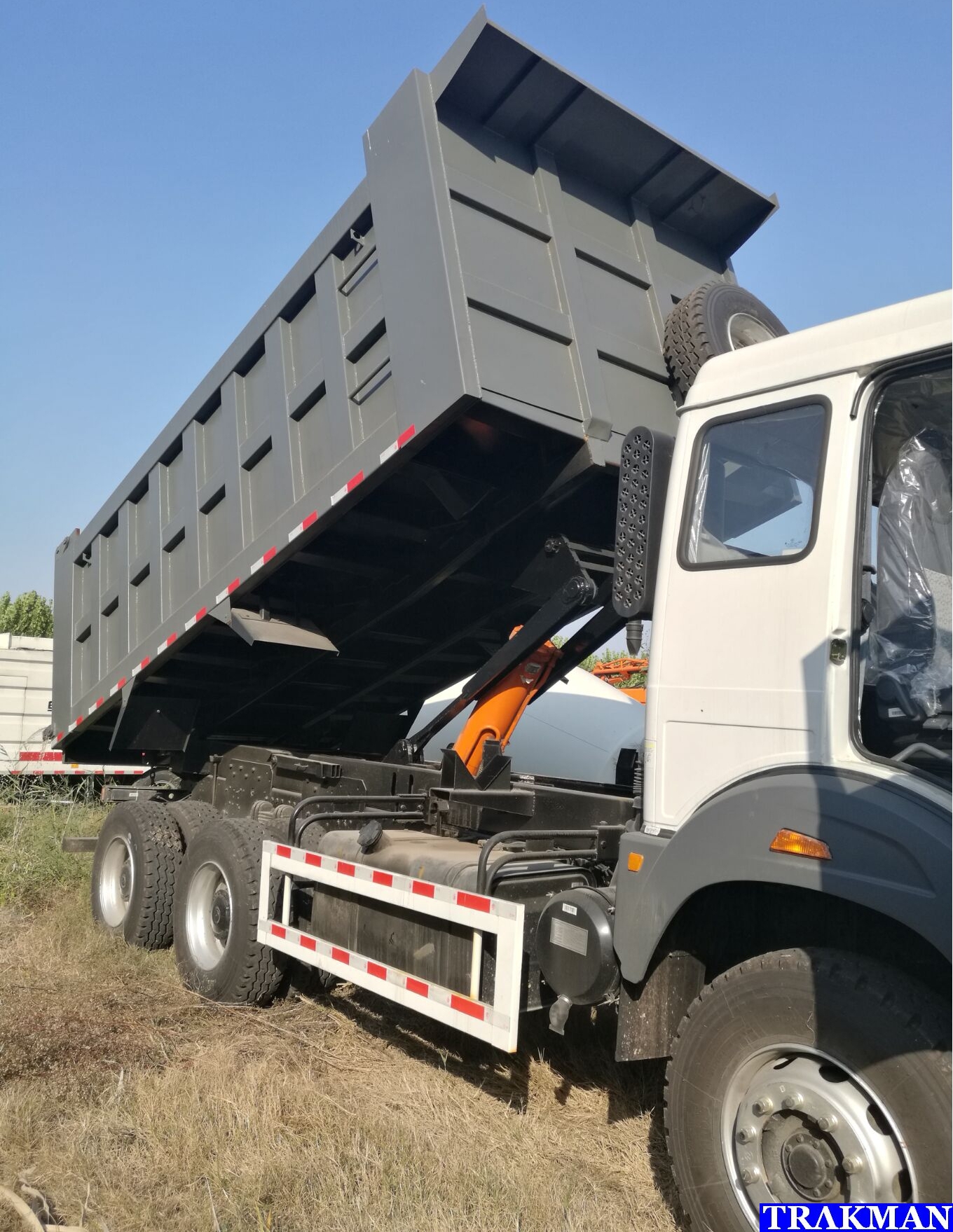

-2. Truck Picture For Reference.
-3. Shipment Picture.
Now our SHACMAN trucks could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's trucks, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
