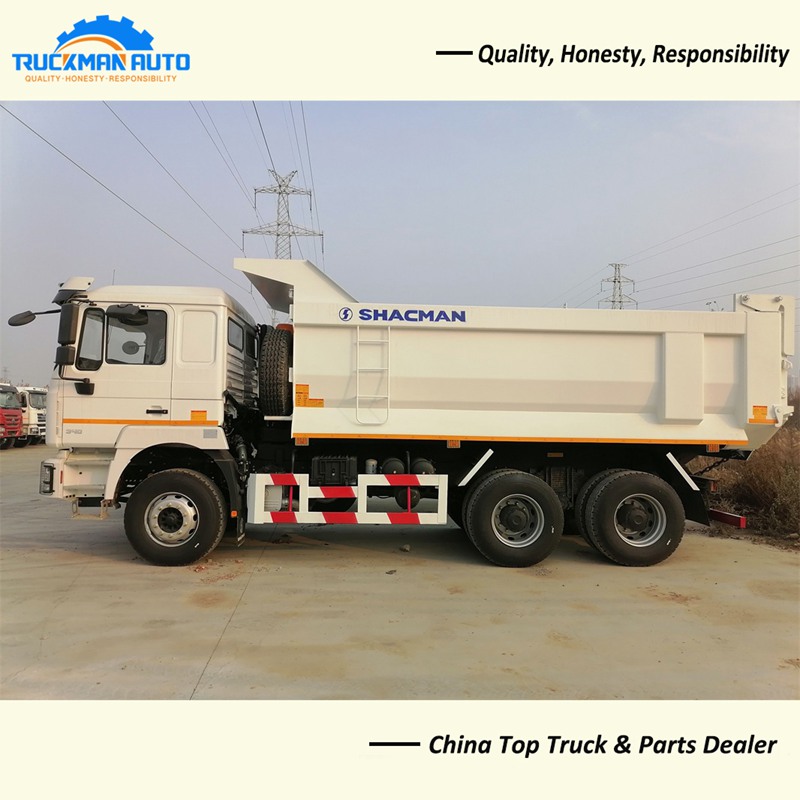

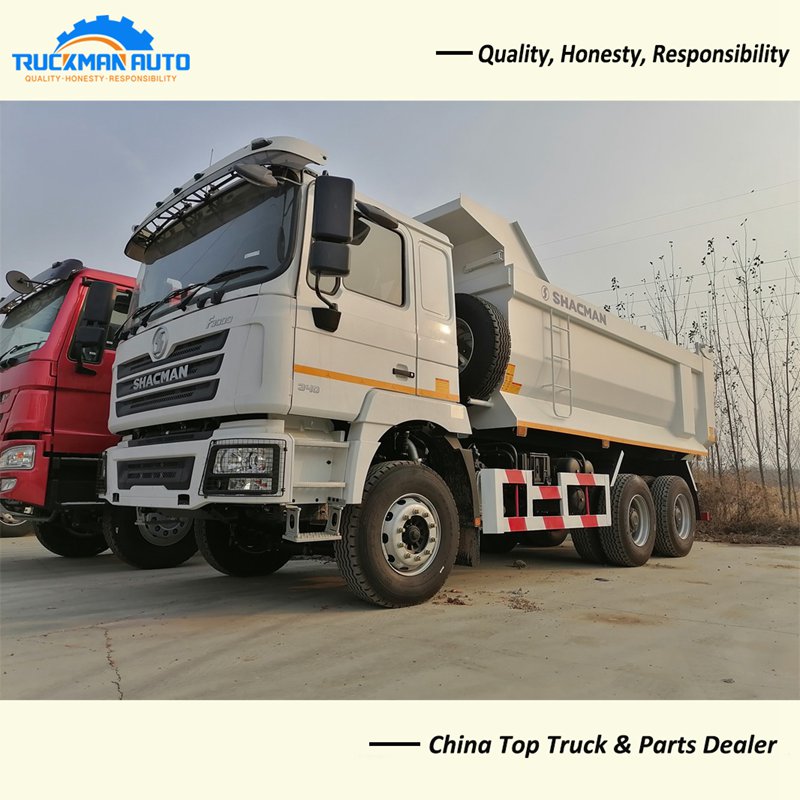

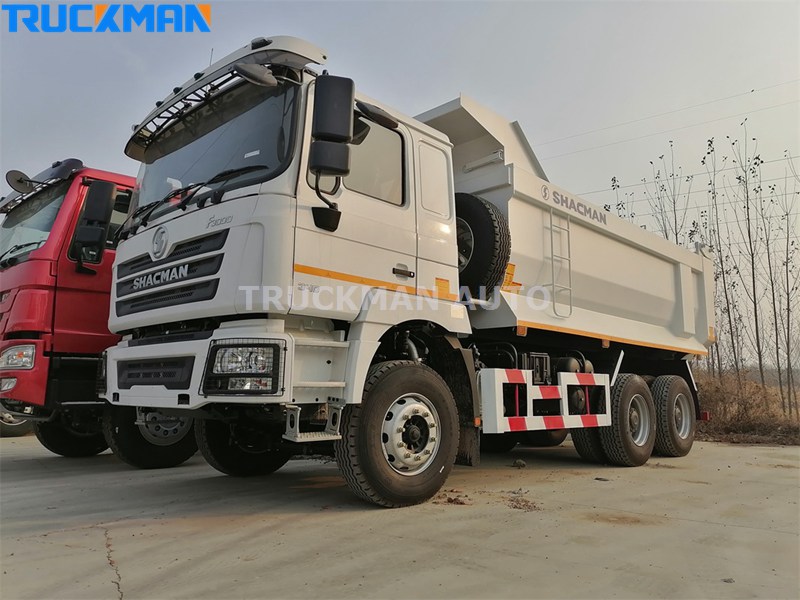

SHACMAN F3000 340HP Dump Truck For Uganda
SHACMAN F3000 340HP Dump Truck Features
SHACMAN F3000 dump truck is very popular in Uganda, the dump truck loading capacity reach to 25 tons. With radial wear resistant model 12.00R20 tire.
-. Luxury cabin, with A/C and 4 point air suspension.
-. Adopt the heavy duty model 9.5 tons and 16 tons axle, super loading capacity
SHACMAN F3000 340HP Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SHACMAN F3000 340HP Dump Truck |
|
Application |
Transport mining material etc |
|
Loading Capacity |
25,000kg |
|
Engine |
WP10.340E22, 340HP, EURO II |
|
Cabin |
F3000, with one bed, A/C, right hand drive |
|
Gearbox |
10JSD140, 10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 pcs, radial model |
|

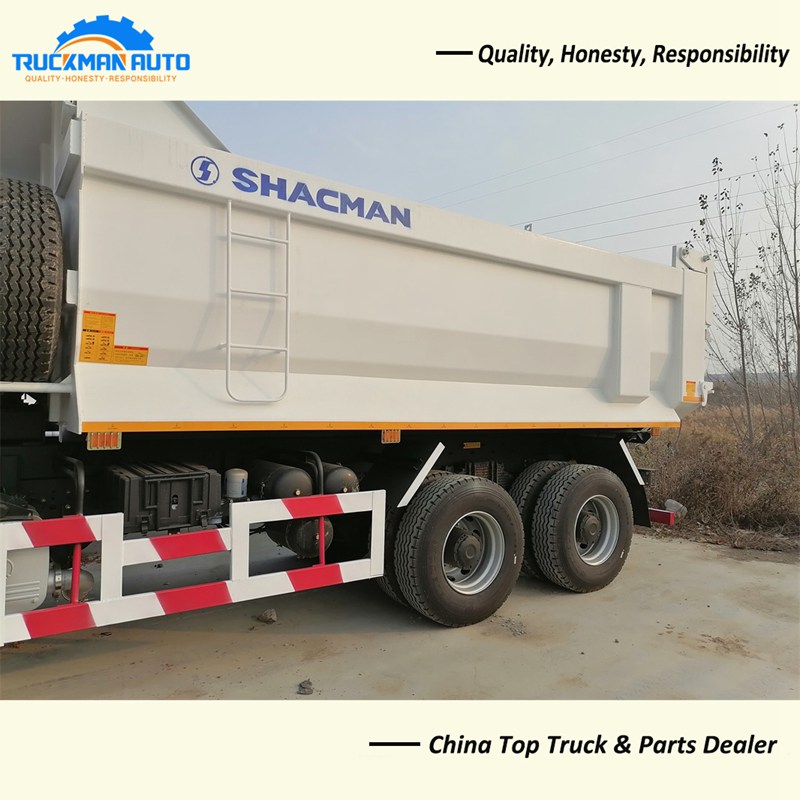

Cargo Box |
5400x2300x1500mm, bottom 8mm, side 6mm |
|

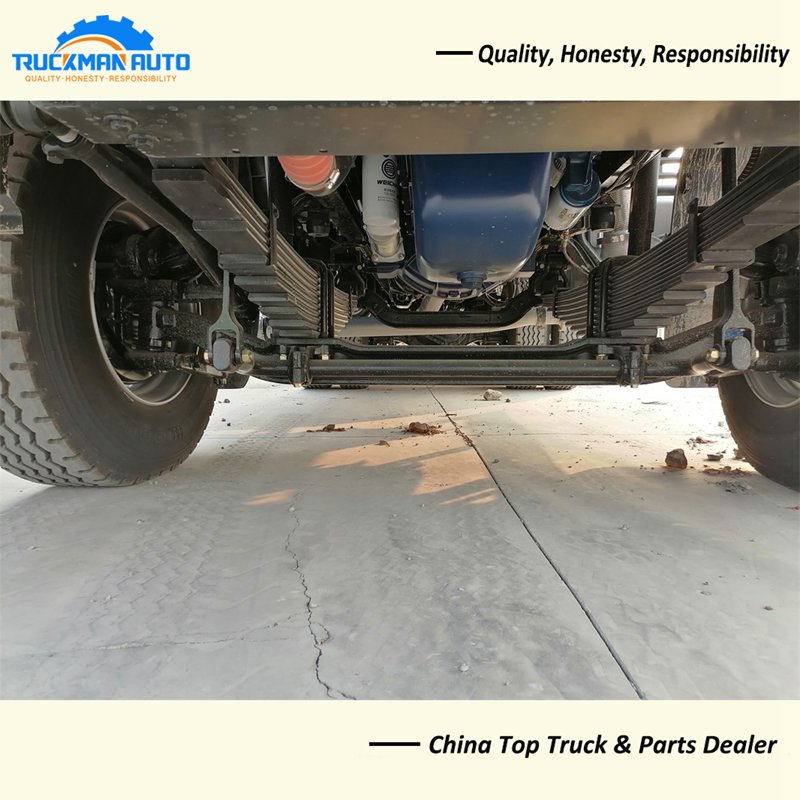

Front Axle |
9.5 ton, 1x9500kg |
|
Driving Axle |
16 ton, 2x16000kg |
|
Fuel Tank |
400L |
|
Dimension |
8400x2560x3450mm |
The SHACMAN F3000 dump truck specification only for your reference, we will recommend other model SHACMAN dump truck basic your request.

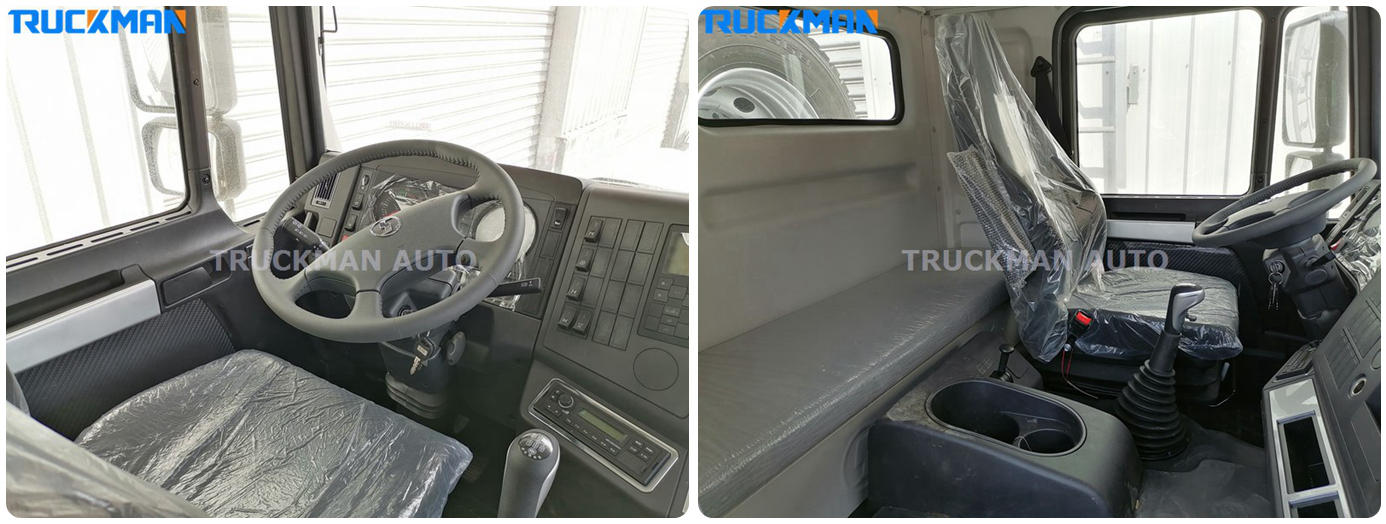

SHACMAN F3000 340HP Dump Truck Cabin
The SHACMAN dump truck cabin adopt the hydraulic main seat, four point hydraulic suspension cab, ordinary rear-view mirror, electronically controlled automatic thermostatic air conditioner, electric window lifter, manual turnover, oil bath air filter, metal bumper, two-stage pedal, water tank protection grid, headlamp grille, rear tail lamp protection grid, reversing buzzer.
