SINOTRUK HOWO 336HP Right Hand Drive Dump Truck
-1. SINOTRUK HOWO 336HP Right Hand Drive Dump Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine, Sinotruk WD615.47, 371HP or 290/336HP, German men technology
-. T- or F-type, middle or front lifting type
-. Tipper body: square or U-shaped
-. Tipper body: 15 to 20cbm
-. Heavy-duty load capacity: 30 to 40 tons
-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use
-. Hydraulic system: HY-VA brand or Chinese famous brand
|
Model No. |
ZZ3257N3647A |
|
Engine Detail |
WD615.69, 336HP |
|
Gearbox Detail |
HW19710, 10F & 2R |
|
Cabin |
HW76, With one sleeper, A/C, Right Hand Drive |
|
Drive Axle |
HC16, 2x16000kg |
|
Steering |
ZF brand, ZF8118 |
|
Tyre |
12.00R20, 10+1 pcs, TRIANGLE brand |
|
Cargo Box |
5600x2300x1500mm, bottom 8mm, side 6mm |
|
Loading Capacity |
25-30 Ton |
|
Fuel Tank |
300 or 400L |

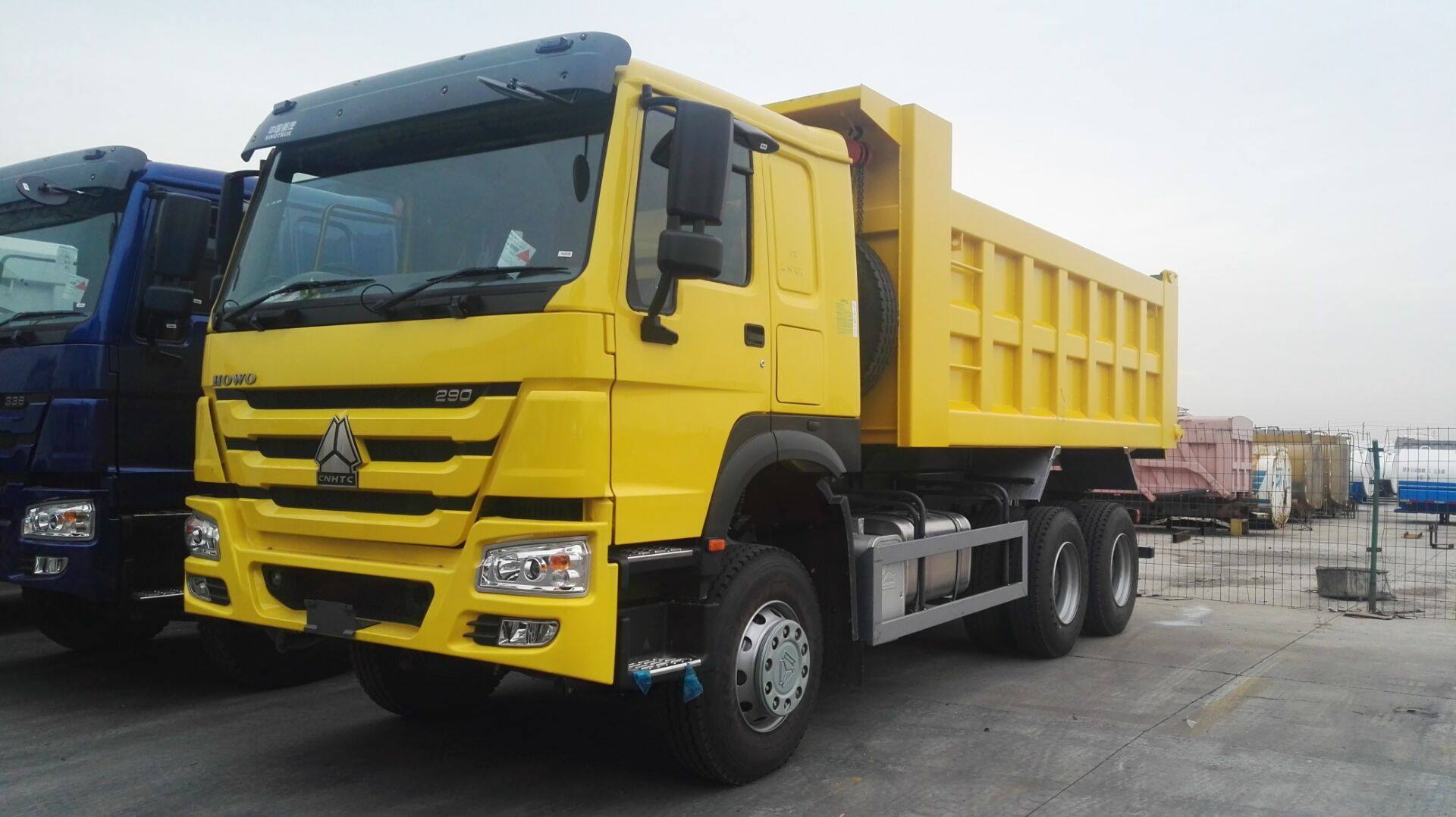

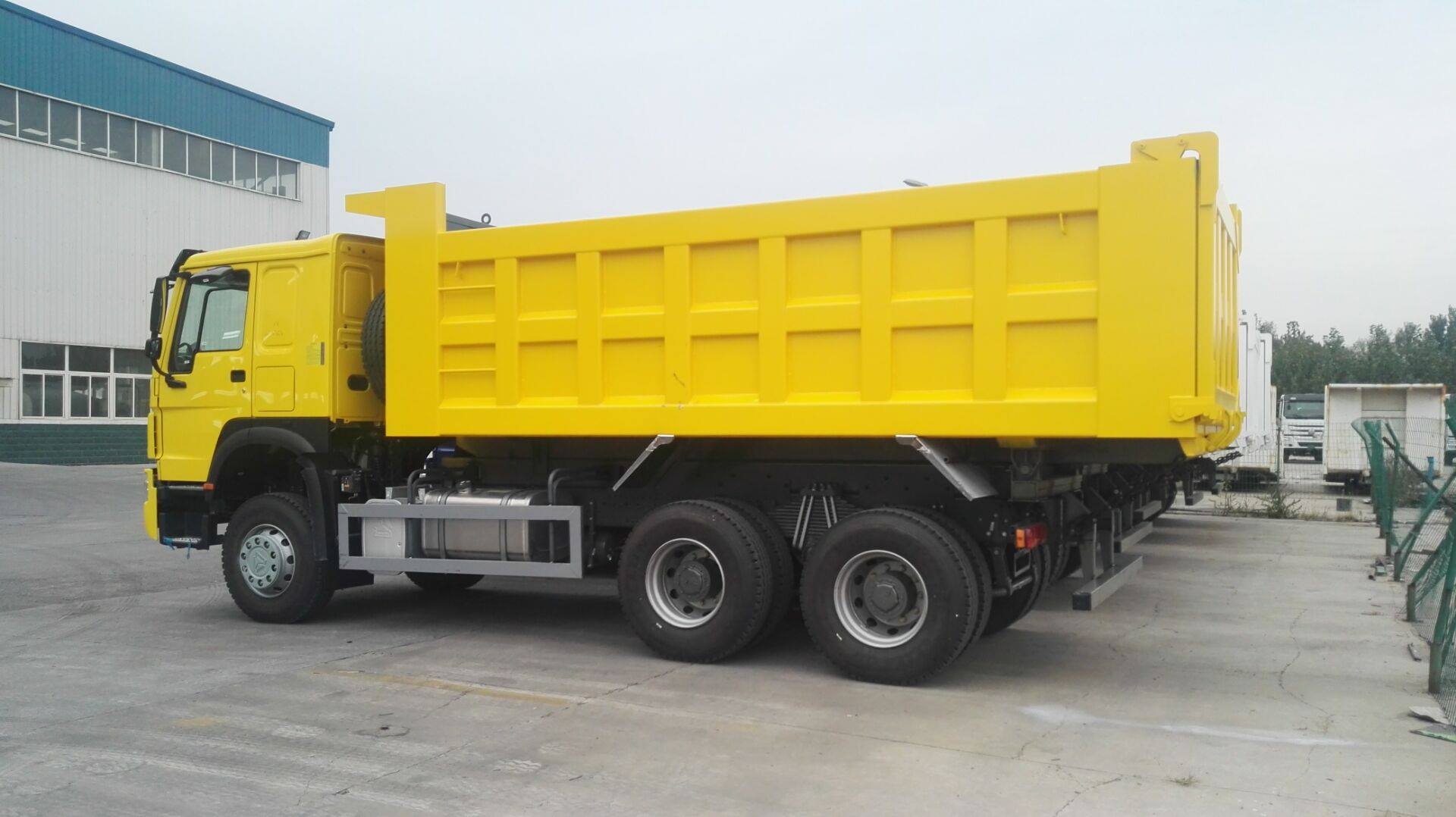

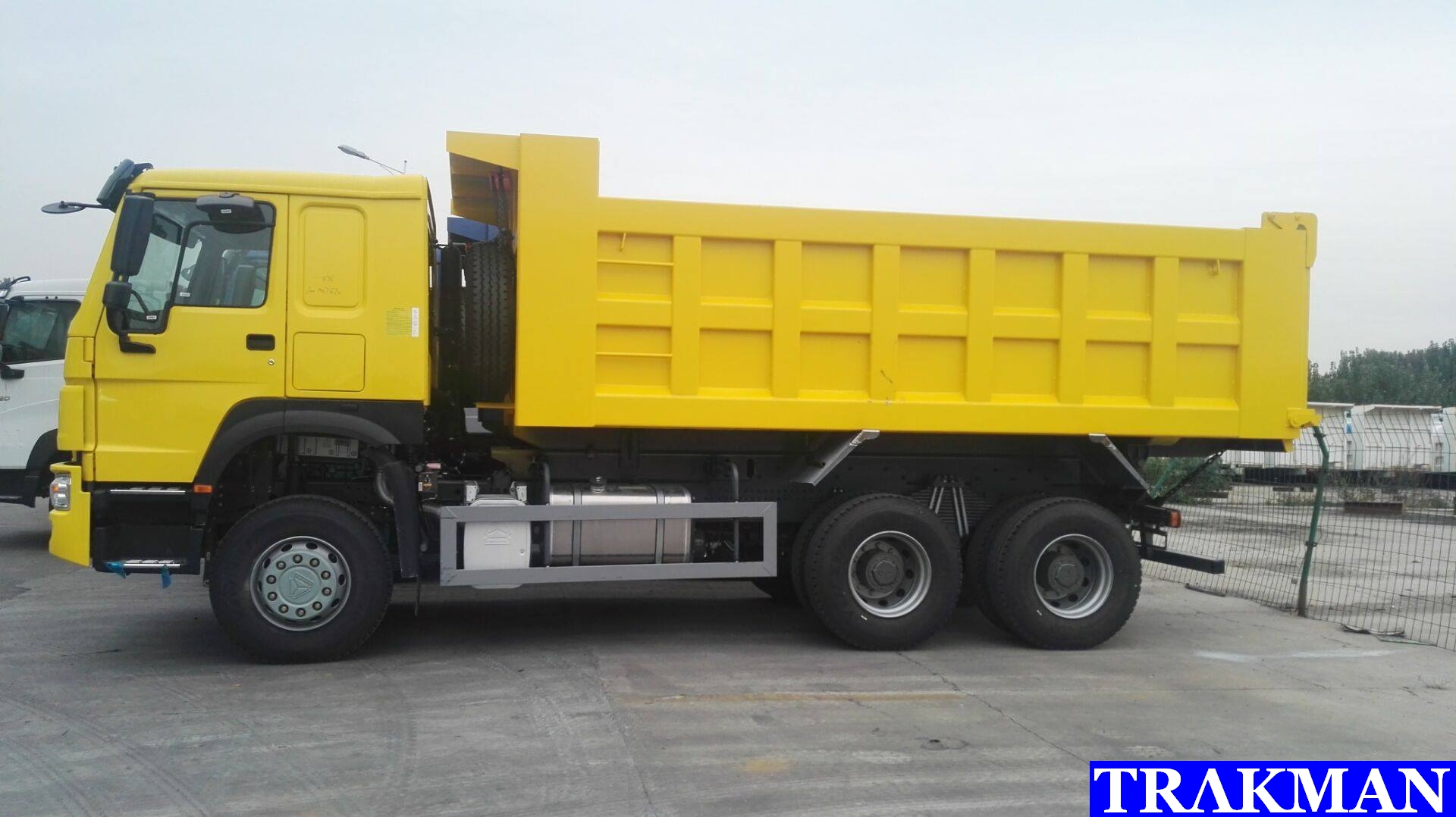

-2. Truck Picture For Reference.

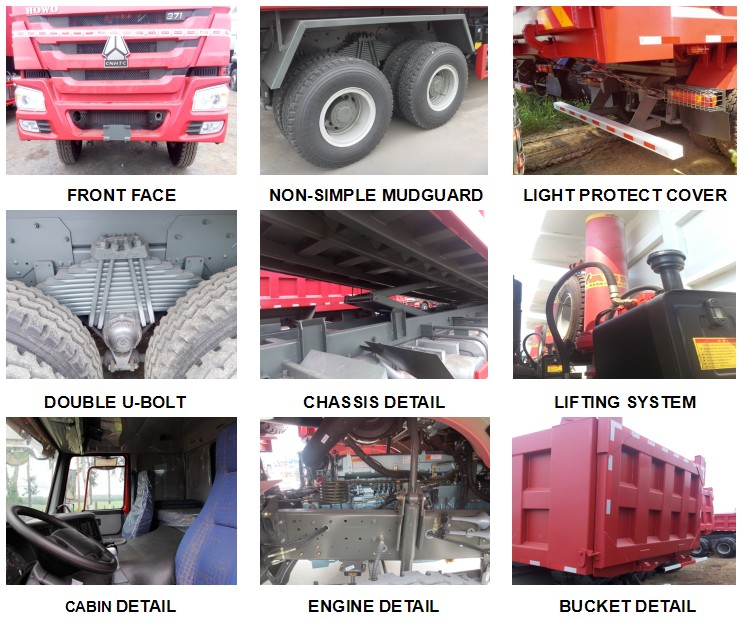

-3. Truck Detail Picture.

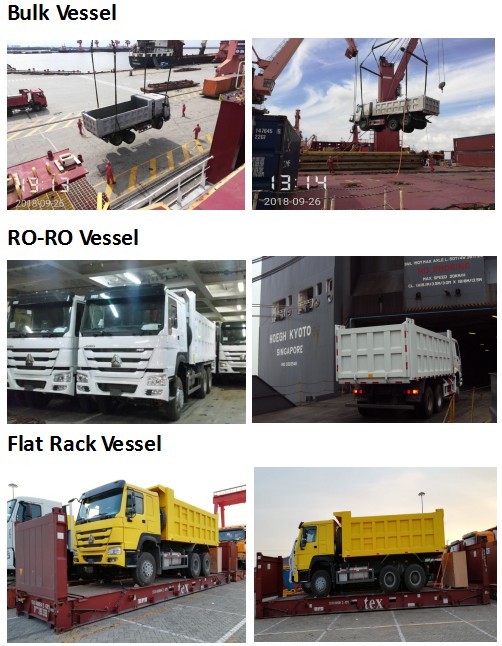

-4. Shipment Picture.
Now our SINOTRUK trucks could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
