-1. SINOTRUK HOWO All Drive Dump Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine, Sinotruk WD615.47, 371HP or 290/336HP, German men technology
-. T- or F-type, middle or front lifting type
-. Tipper body: square or U-shaped
-. Tipper body: 15 to 20cbm
-. Heavy-duty load capacity: 30 to 40 tons
-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use
-. Hydraulic system: HY-VA brand or Chinese famous brand
Model |
ZZ3257N3857 HOWO 6*6 DUMP TRUCK driving type : 6*6 |
Loading capacity (kg) |
30-40T,depend on the density of the material that to be load |
Kerb weight ( kg) |
17110 |
Engine |
WD615.47, 371HP ,Euro II emission standard |
Engine displacement (L) |
9.726 |
Cab |
HW76 long cab with one sleeper, with air conditioner , with metal bumper, With engine protector |
Transmission |
HW19710, SINOTRUK ten speed gear-box |
Steering |
ZF8118, German hydraulic steering with power assistance |
Driving axle |
ST16 double drive axle Rated loading capacity:16T Standard ratio:5.73 for bad road conditions |
Front axle |
steel front steering drive axle with planetary wheel reduction |
Fuel tank capacity (L) |
400 |
Wheel base (mm) |
4300+1350 |
Tire | 15.5R20 radial tire, 10 pcs,with one spare tire |
Maximum speed(km/h) |
76 |
Van dimension (mm) |
5600*2300*1200, front hydraulic lift Thickness: floor 8mm /side 6mm |
Overall sizes (mm) |
8500×2496×3700 |

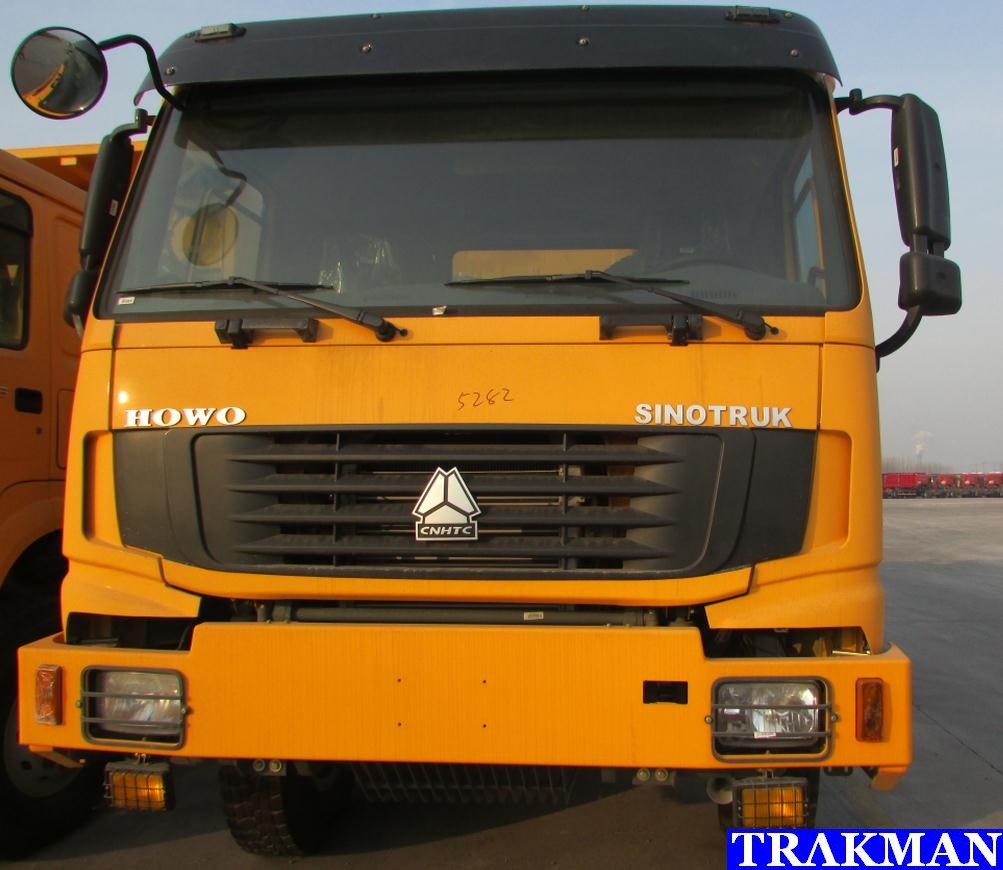

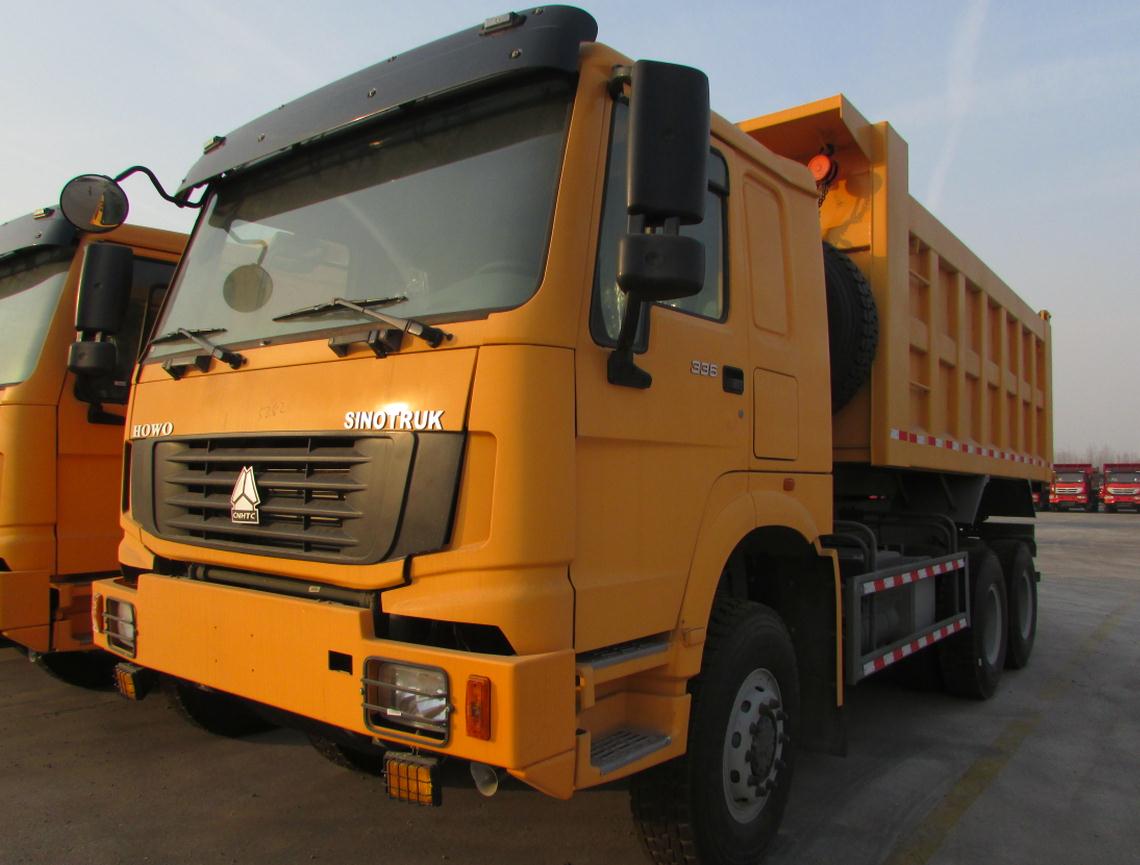

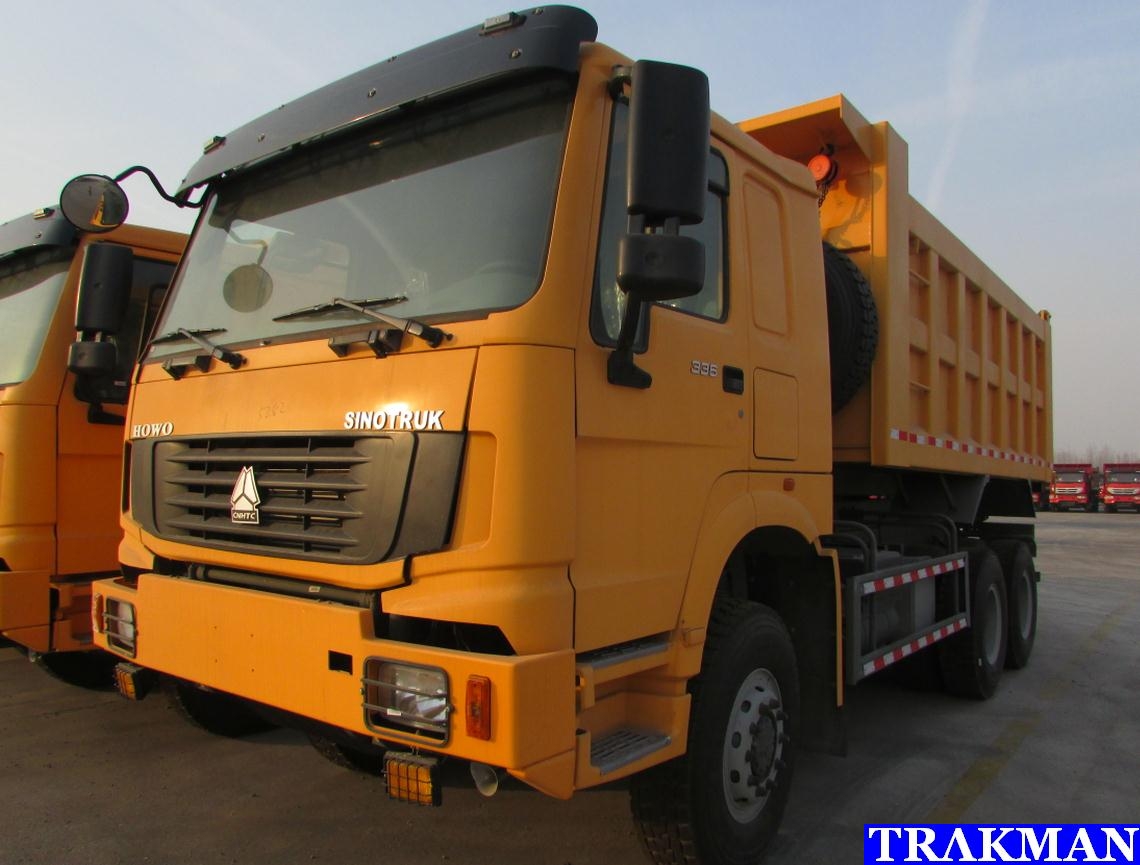

-2. Truck Picture For Reference.

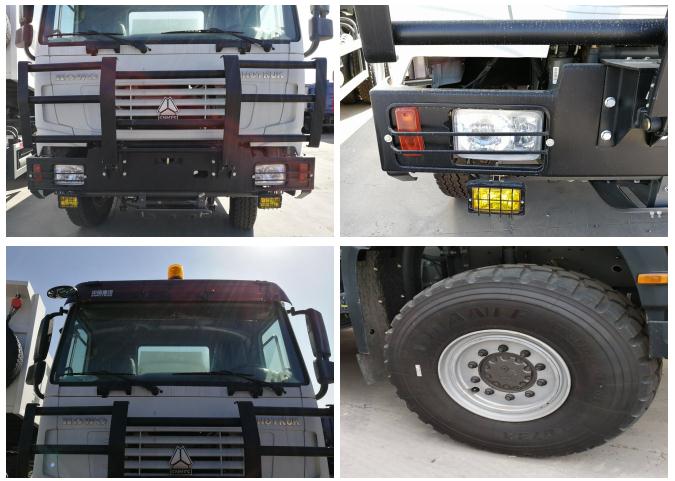

-3. Truck Detail Picture.

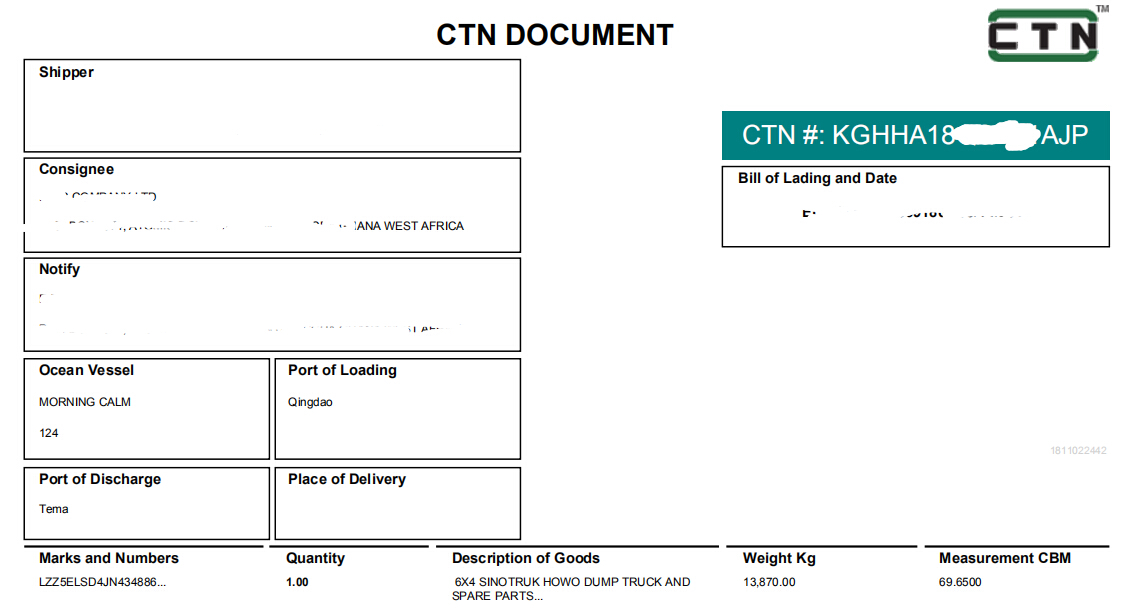

-4. Certificate For Truck.
Our truck now can meet the SGS, BV, FORM E, SONCAP, CTN, CO, ADR, CIQ, GCC certificate, we also can help you handle it.
