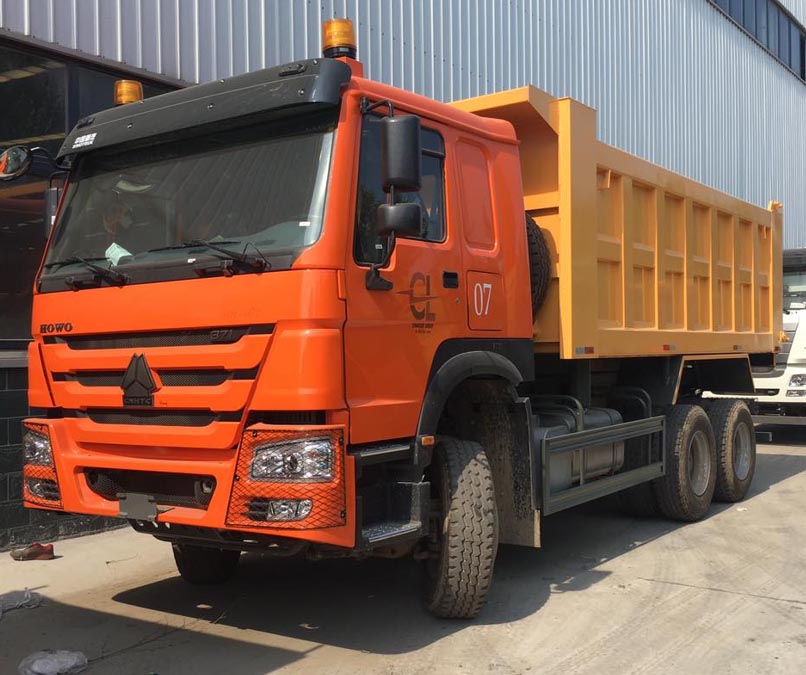

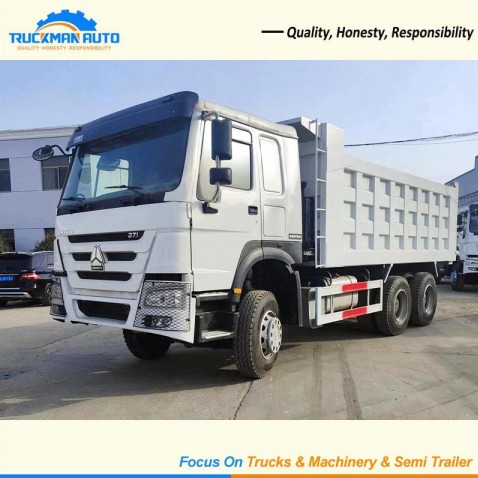

SINOTRUK HOWO 6x4 371HP Dump Truck Tipper Truck
Low Fuel consumption Heavy duty Sinotruck Howo 6x4 dump truck in Affordable Price
Its Made in Jinan China,Mainly working for Construction places,Mining area,Logistics,Transportation.
1. Mainly Specs As Follows:
|
Specifications |
Tipper Driving Type 6x4 |
GVW 32000kg |
|
Model |
ZZ3257N3647A |
|
|
Engine |
Make: Sinotruk |
|
|
Clutch |
Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance |
|
|
Transmission |
HW transmission, model HW19710, 10 forward & 2 reverse |
|
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
|
Front Axle |
Steering with double T-cross section beam |
|
|
Rear Axles |
Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels |
|
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members |
|
|
Steering |
ZF8098, hydraulic steering with power assistance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Wheels & Tyres |
Rims: 8.5-20, 10 hole-steel |
|
|
Driver's Cab |
Standard cab, all-steel forward control, 70°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated |
|
|
Electrics |
Operating voltage: 24 V, negative grounded |
|
|
Instrument Panel |
Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air |
|
|
Dimensions in mm |
Wheel base |
3650 + 1350 |
|
Weight in kg |
Permissible loading capacity |
20000 |
|
Performance |
Maximum driving speed (km/h) |
75 |
2. Advantages:

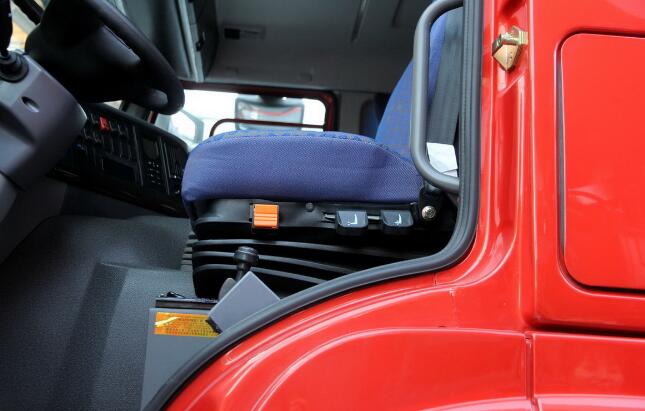

* Comfortable HW76 Cabin
It contains one bed inside,which is very suitable to do Middle and Long Distance And Time Transportation on Mining,Constrcution,Lositics Issues.HW76 Cabin Follws World Trucks development trend,it not only took Western Trucks Luxry Apprance But Also got Eastern People's Tast.
In the Front,The Bumper And the Front face is same color,It looks one Unit with Beauty,The Wind galss is curved,that makes Driver a better view to ensure drive safety.Once the Wind Glass is dirty,you can find a step in the Front Cover to clear it easily.
The Head lights of Howo Takes world popular design and Crystal material,Its Projective when its near light,the beam is right suitable and the permeability is strong that offer drivers more safety environment.morever,its movable and adjustable to do maintenance.
Its confortable when drive it,the mainly cause is the four point floating design,Spiral springs absorbers are used in the Front two porints and Rear ones are Air absorbers.Most important Horizontal stabilizers connected with the absorbers serives the driver a wonderful operation Environment No matter what kinds of Road condition you go.The drive wheel and drive seat both are adjustable to match different hieght and weight Drivers.
The instrument penal takes ergonomics design,every bottom the driver can easily touch,and the operation info the driver can clearly check on the screen.
Entertainment is available in cabin including MP3,VDO Germany Audio.
Automatic Cool and Warm A/C make sure that you have a nice temperature in cabin.

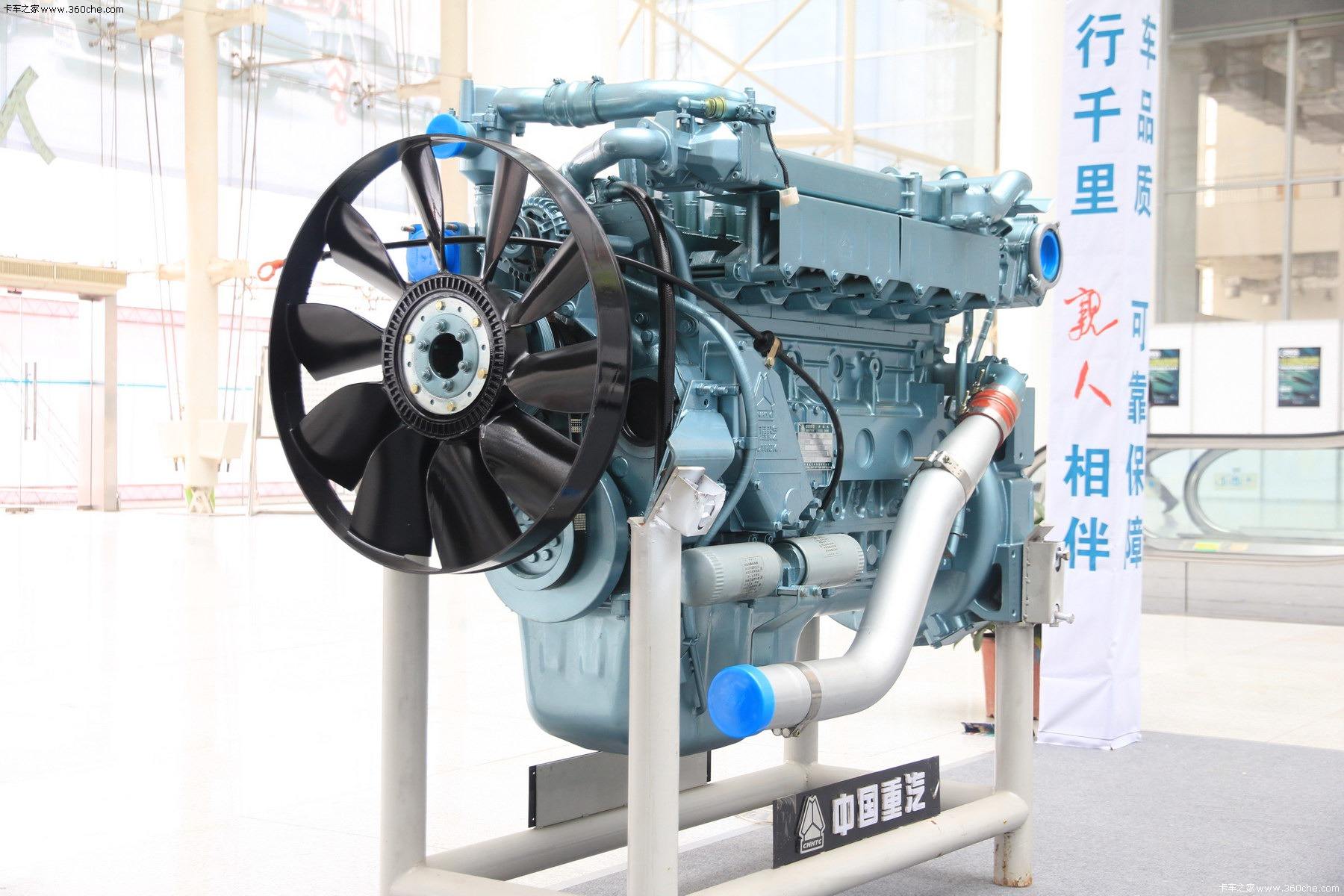

* Powerful WD615 Series Engine
"W"Means water,"D"Means disel,"6"Means No.of Cylinders,and "15" Means displacement of each cylinder.
Totally Engine displacement is 9.726L with Turbo.The basic Rotation speed is 2200r/min.The power range covers from 176kw till 280kw,the Min consumption is 194g/kw.h with characteristics of small size,light weight,high power,low consumption and noise.that is really good choice for mineral owners,Logistics company,construction enterprises to reduce cost and increase value.

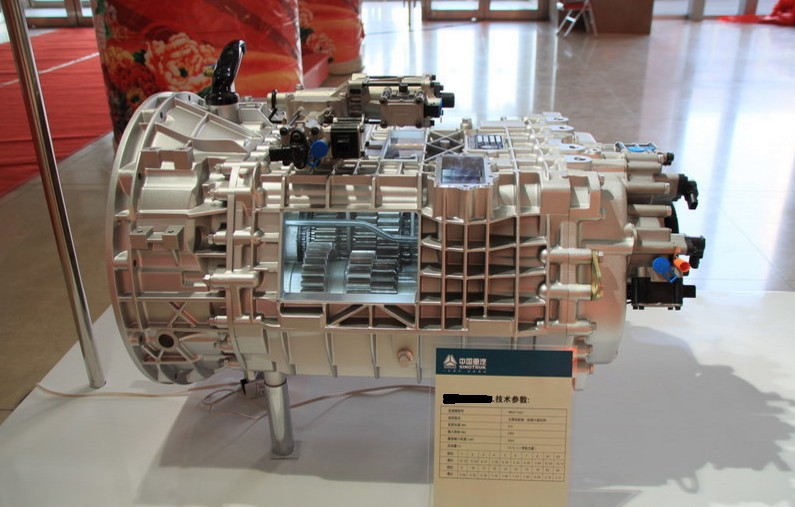

* Smoothly HW19710 Shifts Series Gearbox
"HW"Means HOWO Brand,"19"Means 1% Of Total Torque,"7"is Series No.and "10"Means No.of Front Gear shift.
Two Middle input shaft design that can get up the stability of Gearbox Assy and Enlarge its life.
"Vertical sectional structure"simply install and do maintenance.shift changes gets easily.
Small Cover assy design makes the Gearbox size smaller,and avoide wrongly operation.

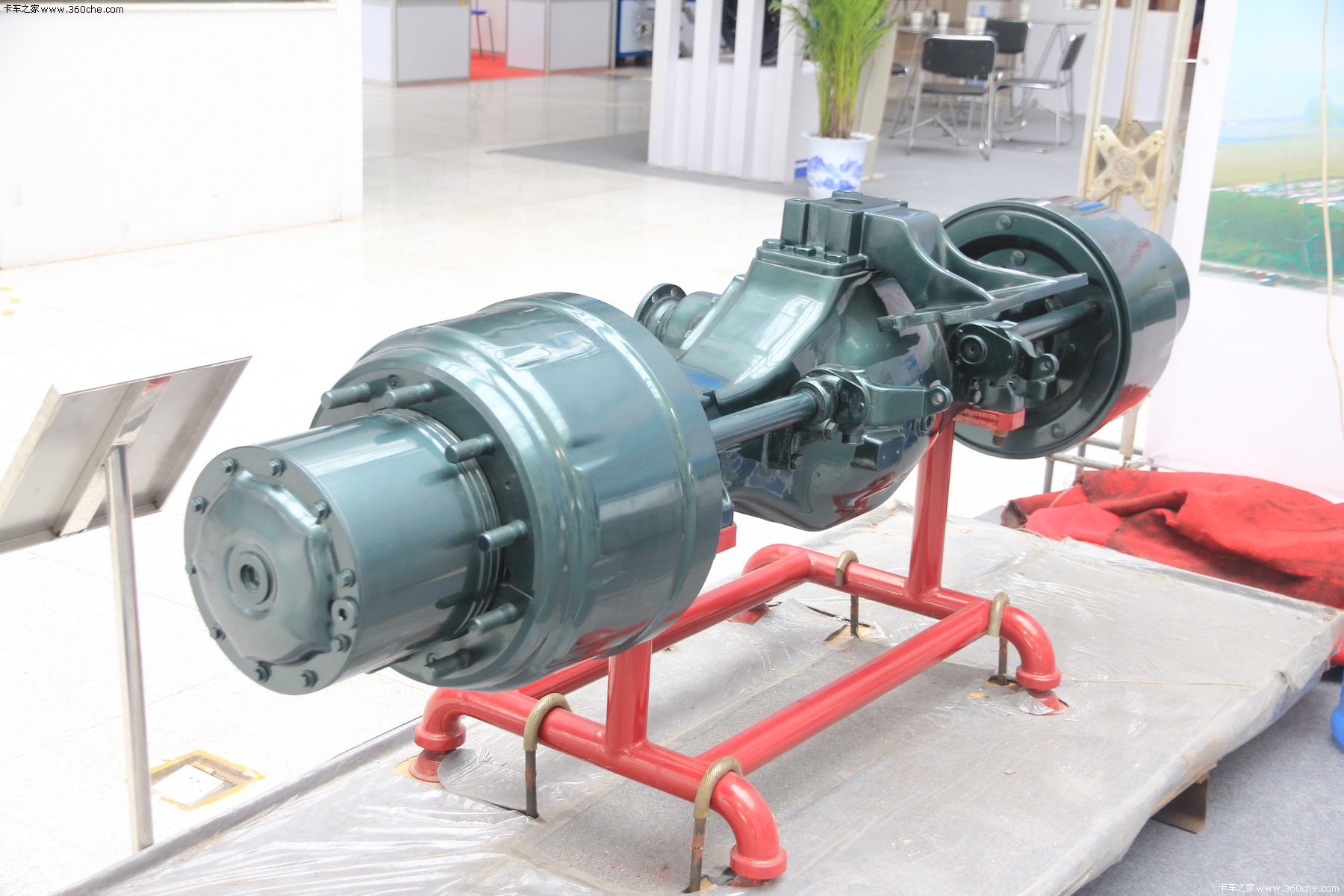

* HF9 Front Axles and HC16 Rear Axles
Higher Loading capacity
Pressure dispersed at average
Longer Usage life
Easy to do Maintenance
