SINOTRUK HOWO Heavy Duty 10 Wheeler Cargo Truck
Product Name : SINOTRUK HOWO Heavy Duty 10 Wheeler Cargo Truck
Engine : WD615.47. 371HP
Gearbox : HW19710, 10F & 2R
Cabin : HW76, with one sleeper, A/C
Drive Axle : HC16, 2x16000kg
Made Year : 2019
Directions
-1). SINOTRUK HOWO 6x4 Cargo Truck Specification
-1). Engine Detail: WD615.69, 336HP
-2). Gearbox: HW19710, 10F and 2R
-3). Cabin: HW76, with one sleeper, A/C
-4). Loading Capacity: 30-40 Ton
| Truck Model | ZZ1257N4341W | |||
| Steering type | Left hand drive or Right hand drive | |||
| Cargo body inner dimen (LxWxH) | 7100x2300x600 mm | |||
| Thickness of box (mm) | Deck:3mm;side:1.5mm | |||
| Overall dimensions (LxWxH) | 9800*2496*3100 mm | |||
| Approach angle/Departure angle(°) | 16/15 | |||
| front/rear suspension (mm) | 1500/2625 | |||
| Wheelbase (mm) | 4325+1350 | |||
| Max speed(km/h) | 90, 102 | |||
| Vehicle Curb weight(kg) | 11120 | |||
| Gross mass (kg) | 25000 | |||
| Engine | Model | SINOTRUK WD615.69 | ||
| 4-stroke direct injection diesel engine | ||||
| 6-cylinder in-line with water cooling | ||||
| turbo-charging and intercooling | ||||
| Power, max(kw/rpm) | 336 HP | |||
| Emission | Euro2 | |||
| Transmission/Gear box | Model | HW19710, 10 speeds forward ,2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | 8198,hydraulic steering with power assistance | ||
| Front axle | HF9, drum type | |||
| Driving axle | HC16 | |||
| Tire | 295/80R22.5 or 12R22.5,11pcs (one spare) | |||
| Clutch | φ430 diaphragm spring clutch,hydraulic control air power assisted | |||
| Cab | HW76,one bed,with A/C. | |||
| VOLVO technology ,comfortable cab. | ||||
| 4-point support floating suspension and shock absorbers, | ||||
| up/down and front/back adjustable steering wheel, | ||||
| VDO instrument and control module,safety belt , | ||||
| air horn,outer sun visor. | ||||
| Electric system | Battery | 2x12V/165Ah | ||
| Alternator | 28V-1500 KW | |||
| Starter | 7.5 Kw/24 V | |||
| Color | red,white,yellow. Optional as per customer’s requests. | |||

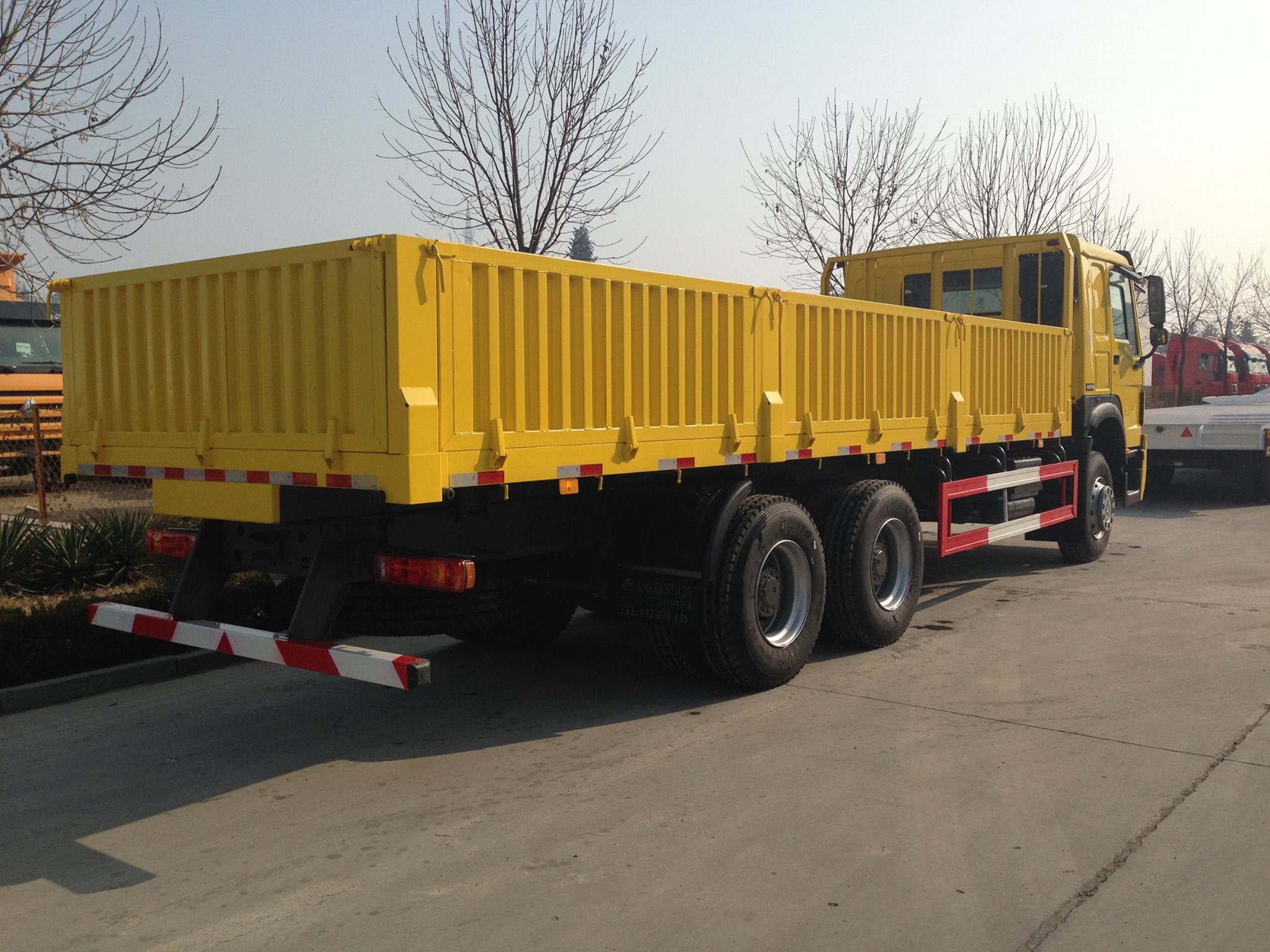

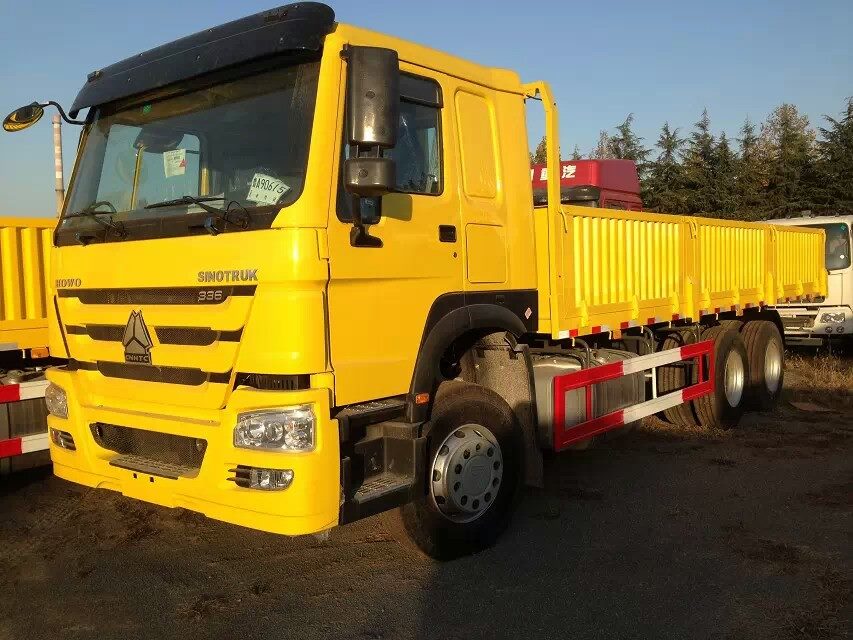

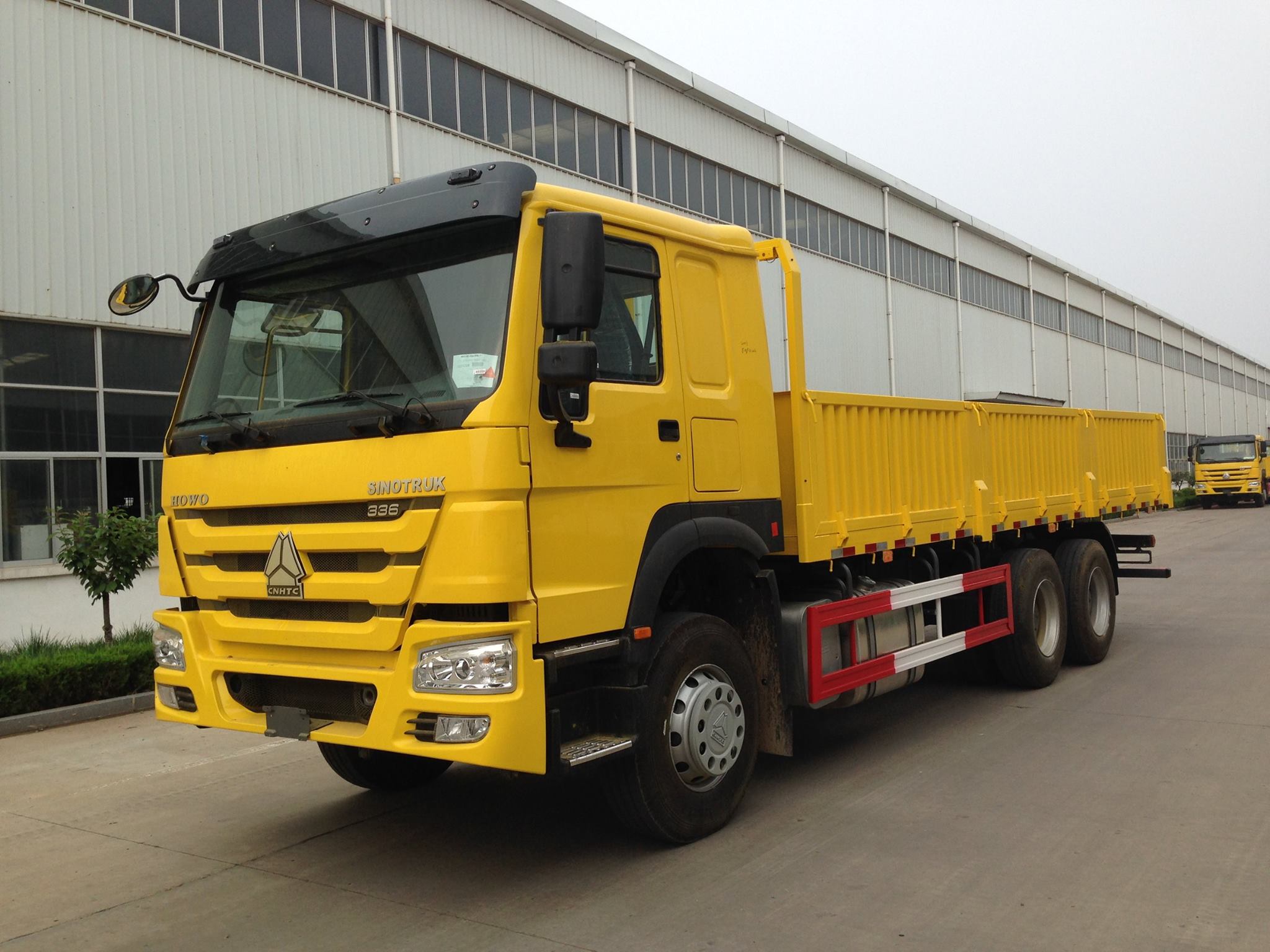

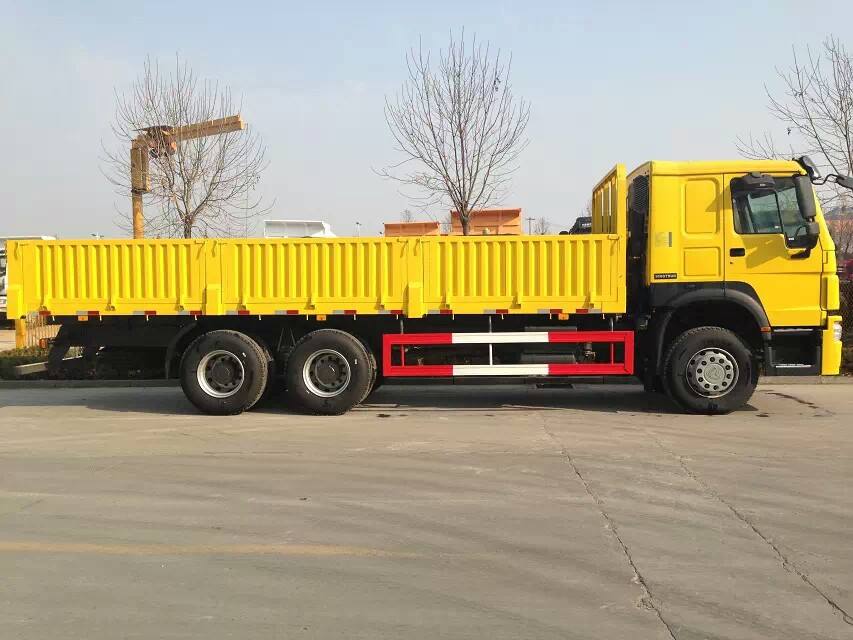

-2). Truck Picture
-3). After Sales Service.
Now Our company built one big spare parts warehouse for our customers trucks.
all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
