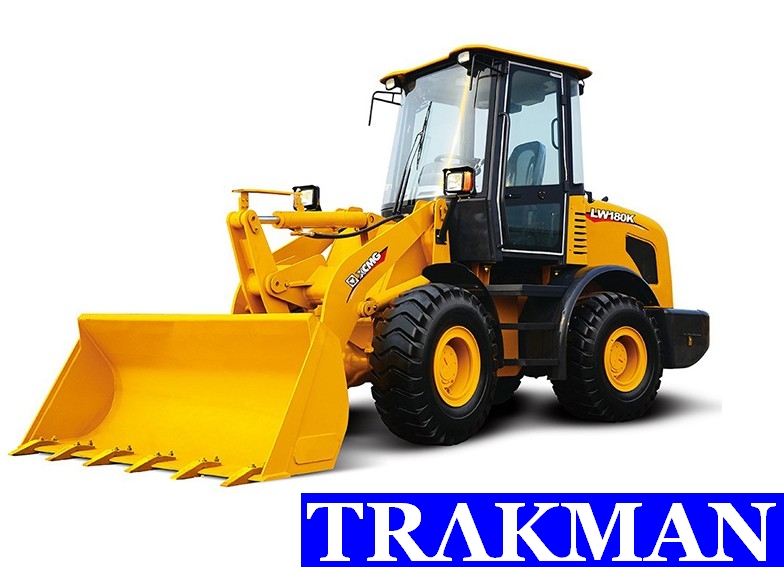

XCMG Front End LW180K 1.8 Ton Wheel Loader
-1. XCMG LW180K 1.8 Tons Wheel Loader
-. Simple structure in linear type ,easy in installation and maintenance.
-. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
-. It features high efficiency, energy-saving, and strong power.
-. Applicable to all kinds of working sites.
-. China-II emission compliance, high performance, and low fuel consumption.
-. The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.
-. The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
1800 |
|
Bucket capacity |
m³ |
0.9-1.1 |
|
Machine weight |
kg |
6200 |
|
Dump clearance at maximum lift |
mm |
2650~2970 |
|
Reach at maximum lift |
mm |
900-1000 |
|
Wheel base |
mm |
2300 |
|
Tread |
mm |
1550 |
|
Max.breakout force |
kN |
58 |
|
Hydraulic cycle time-raise |
s |
5 |
|
Total hydraulic cycle time |
s |
8.5 |
|
Min. turning radius over tire |
mm |
4470 |
|
Articulation angle |
° |
35 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
16/70-20 |
|
Overall machine dimension |
mm |
5980×2060×2950 |
|
Fuel Tank |
L |
100 |
|
Hydraulic Tank |
L |
50 |

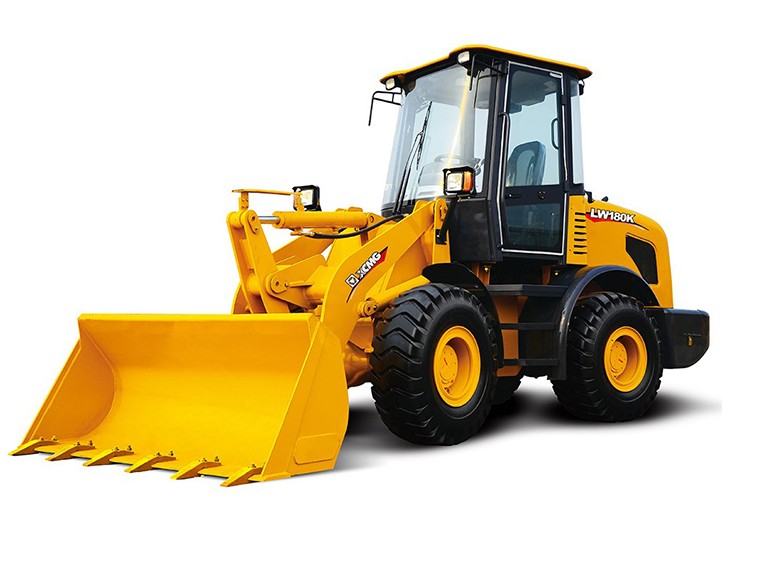

-2. Picture For Reference.

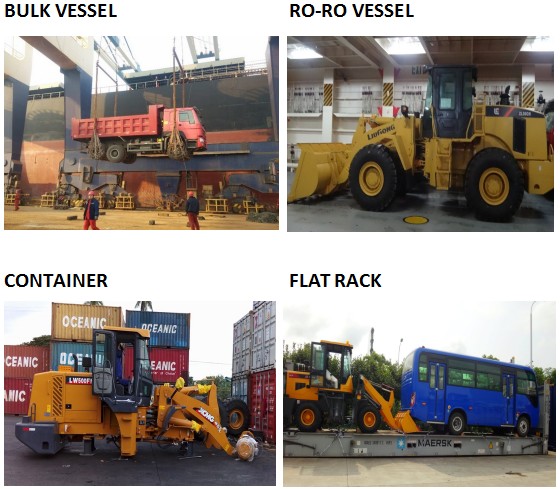

-3. Shipment Picture.
Now our wheel loader could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon.
In addition, we also could arrange the engineer for the maintenance.
