XCMG Front End LW300FN 3 Ton Wheel Loader
-1. XCMG LW300FN 3 Tons Wheel Loader
-. Simple structure in linear type ,easy in installation and maintenance.
-. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
-. It features high efficiency, energy-saving, and strong power.
-. Applicable to all kinds of working sites.
-. China-II emission compliance, high performance, and low fuel consumption.
-. The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.
-. The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
3000 |
|
Bucket capacity |
m³ |
1.5~2.5 |
|
Machine weight |
kg |
10600±200 |
|
Dump clearance at maximum lift |
mm |
2770~3260 |
|
Reach at maximum lift |
mm |
1010~1210 |
|
Wheel base |
mm |
2600 |
|
Tread |
mm |
1850 |
|
Height of hinge at maximum lift height |
mm |
3830 |
|
Working height(fully lifted) |
mm |
4870 |
|
Max.breakout force |
kN |
130 |
|
Max.horse power |
kN |
95 |
|
Hydraulic cycle time-raise |
s |
5.5 |
|
Total hydraulic cycle time |
s |
10 |
|
Min. turning radius over tire |
mm |
5165 |
|
Articulation angle |
° |
35±1 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
17.5-25-12PR |
|
Overall machine dimension |
mm |
7050×2482×3118 |
|
Fuel Tank |
L |
170 |
|
Hydraulic Tank |
L |
170 |

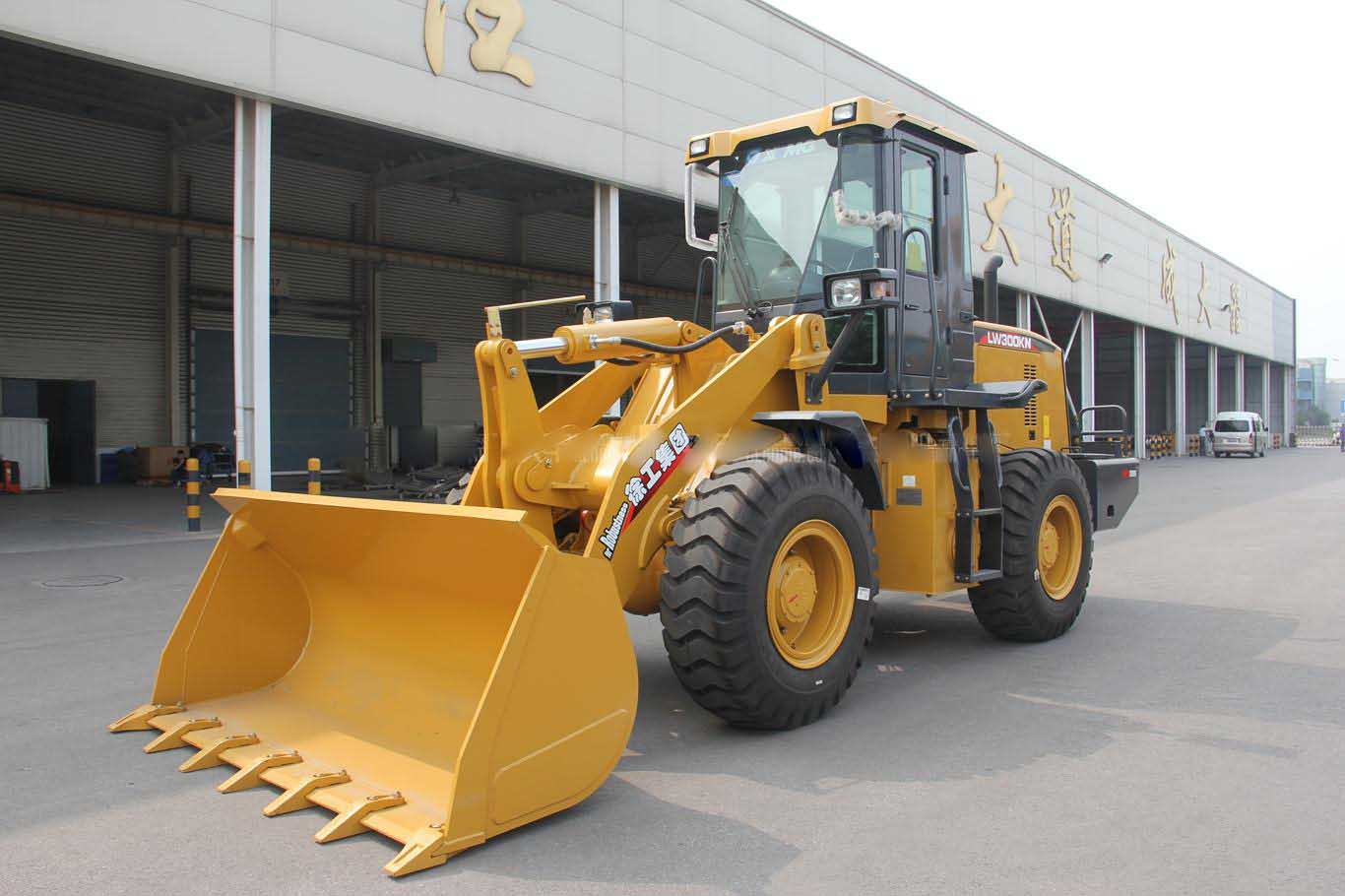

-2. Picture For Reference.
-3 Detail Picture.

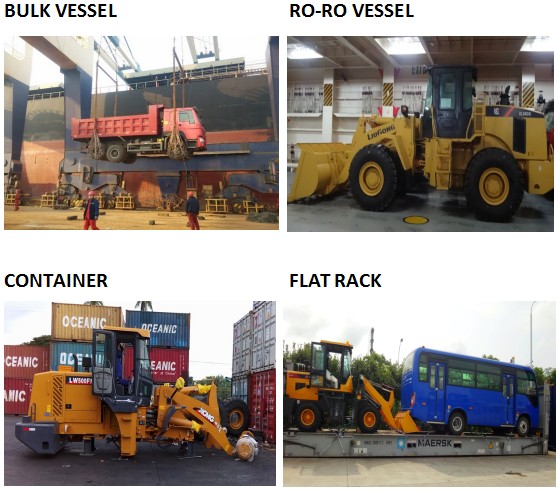

-4. Shipment Picture.
Now our wheel loader could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
