XCMG Front End LW500KN 5 Ton Wheel Loader
-1. XCMG LW500FN 5 Tons Wheel Loader
-. Simple structure in linear type ,easy in installation and maintenance.
-. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
-. It features high efficiency, energy-saving, and strong power.
-. Applicable to all kinds of working sites.
-. China-II emission compliance, high performance, and low fuel consumption.
-. The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.
-. The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.5-4.5 |
|
Machine weight |
kg |
16900 |
|
Dump clearance at maximum lift |
mm |
3150~3560 |
|
Reach at maximum lift |
mm |
1010~1190 |
|
Wheel base |
mm |
2960 |
|
Tread |
mm |
2250 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5510 |
|
Max.breakout force |
kN |
170 |
|
Max.horse power |
kN |
95 |
|
Hydraulic cycle time-raise |
s |
6 |
|
Total hydraulic cycle time |
s |
10.5 |
|
Min. turning radius over tire |
mm |
5950 |
|
Articulation angle |
° |
35±1 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension |
mm |
7910×3016×3518 |
|
Fuel Tank |
L |
250 |
|
Hydraulic Tank |
L |
210 |

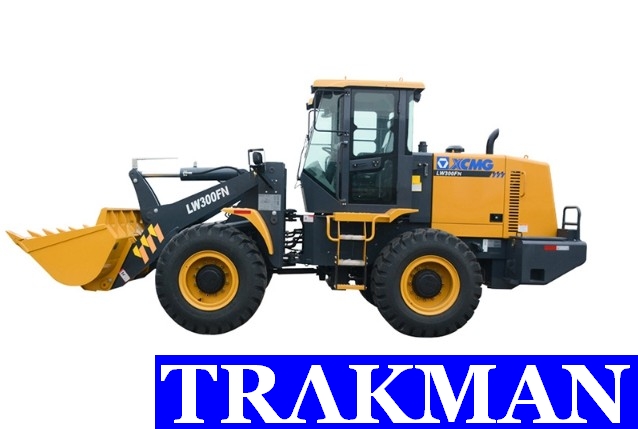

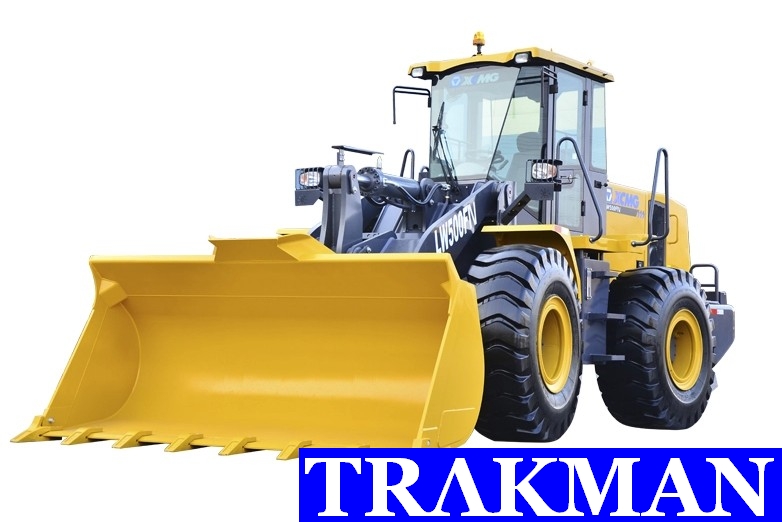

-2. Picture For Reference.

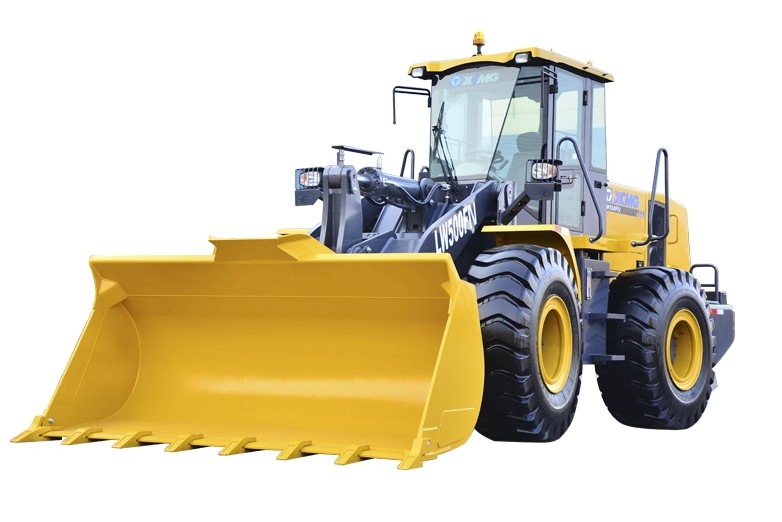

-3 Detail Picture.
-4. Customers Received Goods.
Our customers received machinerys last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
