XCMG Front End LW600KN 6 Ton Wheel Loader
-1. XCMG LW600KN 6 Tons Wheel Loader
-. Simple structure in linear type ,easy in installation and maintenance.
-. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
-. It features high efficiency, energy-saving, and strong power.
-. Applicable to all kinds of working sites.
-. China-II emission compliance, high performance, and low fuel consumption.
-. The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.
-. The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
6000 |
|
Bucket capacity |
m³ |
3.0-4.5 |
|
Machine weight |
kg |
20000 |
|
Dump clearance at maximum lift |
mm |
3170~3750 |
|
Reach at maximum lift |
mm |
1200~1360 |
|
Wheel base |
mm |
3350 |
|
Tread |
mm |
2265 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5510 |
|
Max.breakout force |
kN |
205 |
|
Max.horse power |
kN |
174 |
|
Hydraulic cycle time-raise |
s |
5.9 |
|
Total hydraulic cycle time |
s |
10.9 |
|
Min. turning radius over tire |
mm |
6005 |
|
Articulation angle |
° |
38 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
23.5-25 |
|
Overall machine dimension |
mm |
8505×3220×3515 |
|
Fuel Tank |
L |
250 |
|
Hydraulic Tank |
L |
210 |

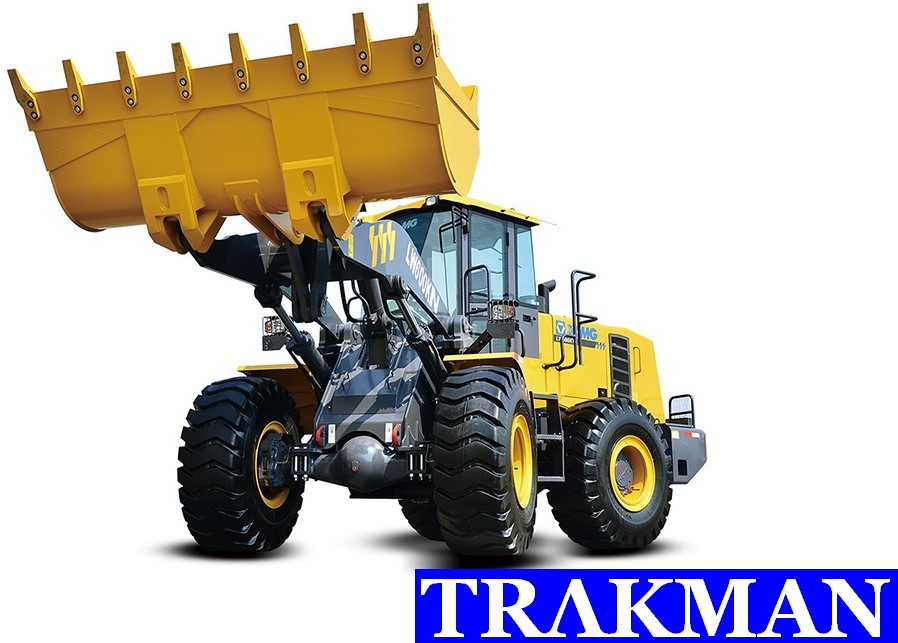

-2. Picture For Reference.

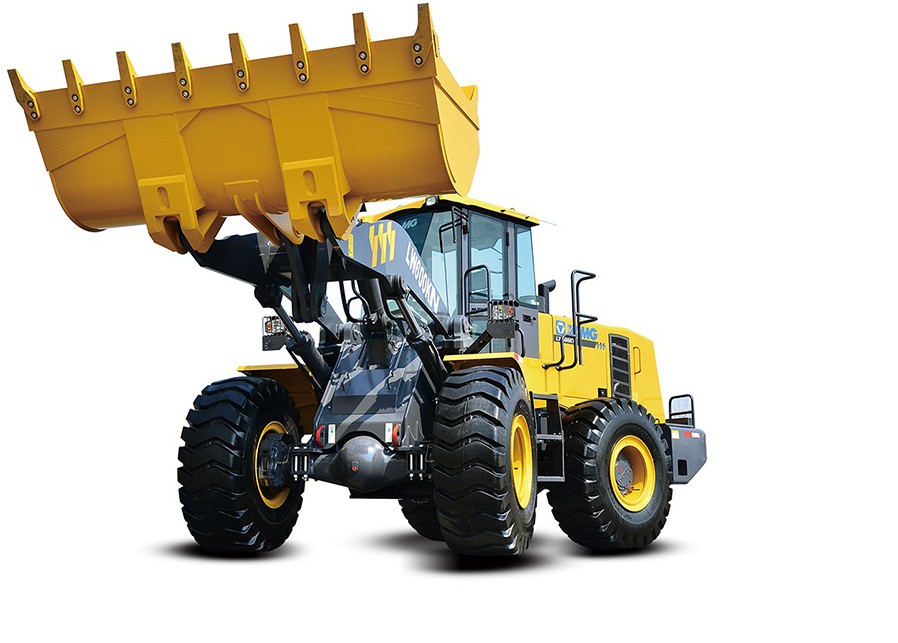

-3 Detail Picture.

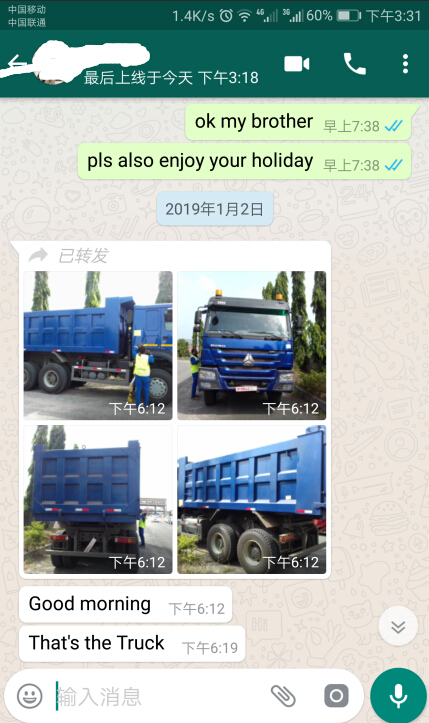

-4. Customer’s Feedback.
