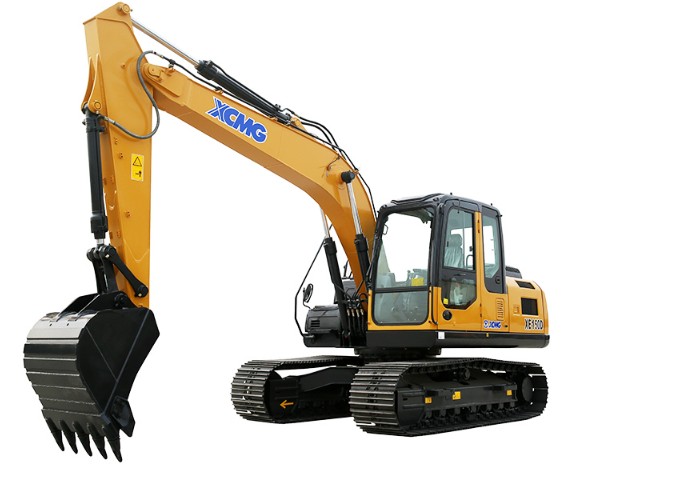

XCMG XE150D 15 Tons Crawler Excavator
-1. XCMG XE150D 15 Ton Crawler Excavator
-. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
-. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
-. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
-. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
14600 |
|
|
Bucket capacity |
m³ |
0.71 |
|
|
Main performance |
Travel speed(H/L) |
km/h |
5.3/3.2 |
|
Rotating speed |
r/min |
11.7 |
|
|
Gradeability |
° |
70 |
|
|
Ground pressure |
kPa |
37 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm crowd force |
kN |
73.4 |
|
|
Maximum traction |
kN |
57 |
|
|
Appearance size |
Dimension (LxWxH) |
mm |
7795x2525x2800 |
|
Width of platform |
mm |
2490 |
|
|
Length of crawler |
mm |
3648 |
|
|
Overall width of chassis |
mm |
2490 |
|
|
Width of crawler |
mm |
500 |
|
|
Crawler gauge |
mm |
1990 |
|
|
Clearance under counterweight |
mm |
931 |
|
|
Min. ground clearance |
mm |
466 |
|
|
Dozer blade width/height |
mm |
1920/340 |
|
|
Working scope |
Max. digging height |
mm |
8649 |
|
Max. dumping height |
mm |
6185 |
|
|
Max. digging depth |
mm |
8304 |
|
|
Max. vertical wall digging depth |
mm |
4697 |
|
|
Min. swing radius |
mm |
2445 |
|
|
Min. tail swing radius |
mm |
1800 |
|

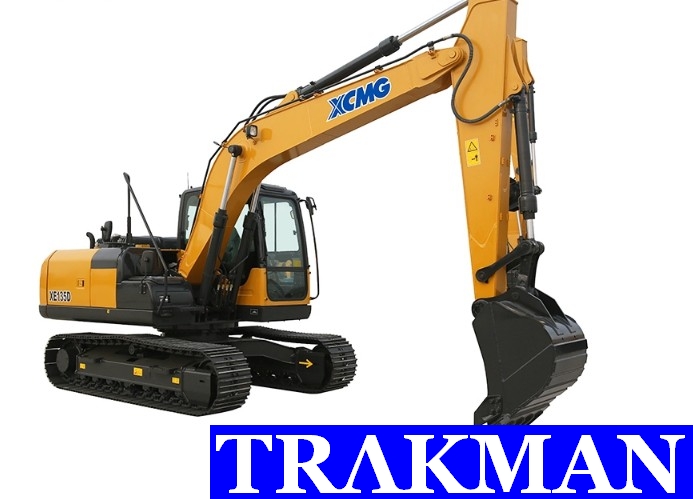

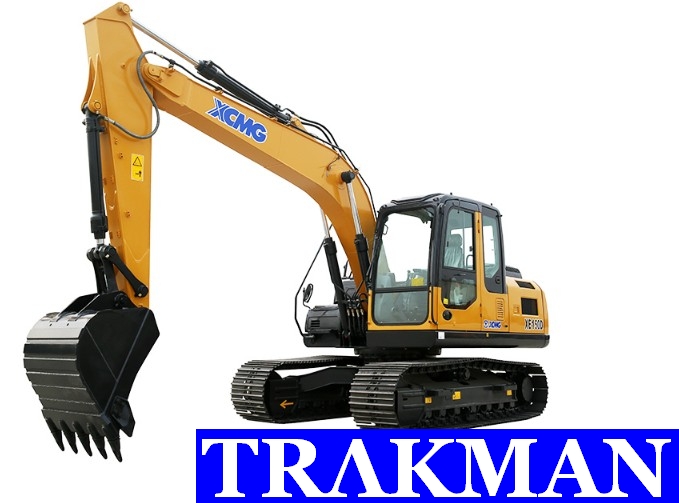

-2. Picture For Reference.
-3. Detail Picture.

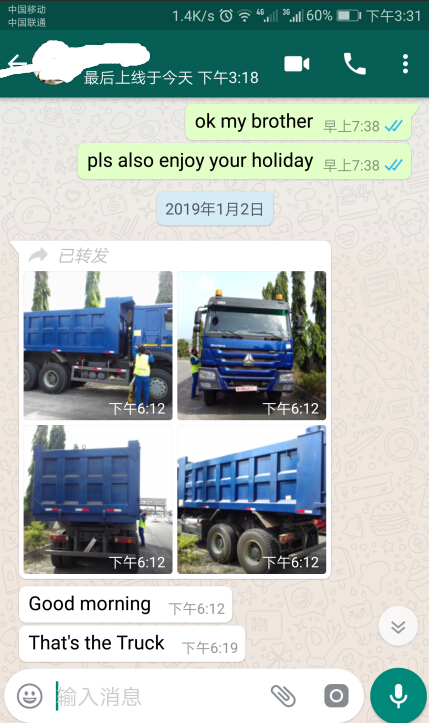

-4. Customer’s Feedback.
