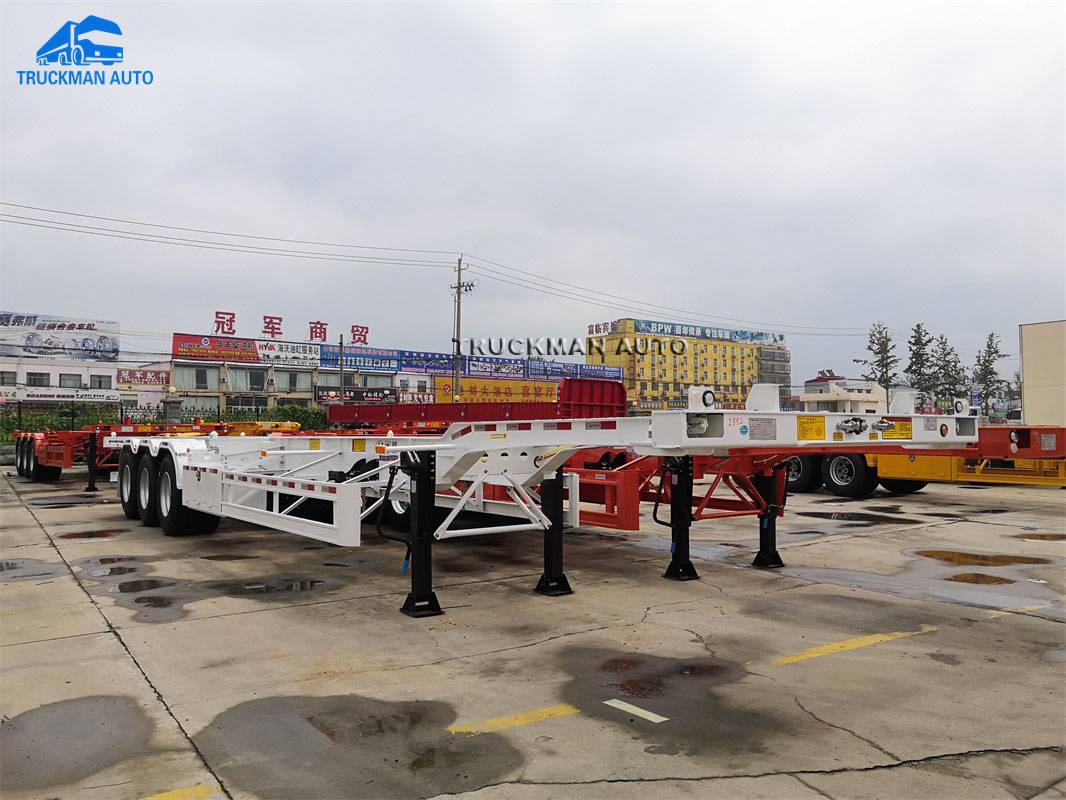

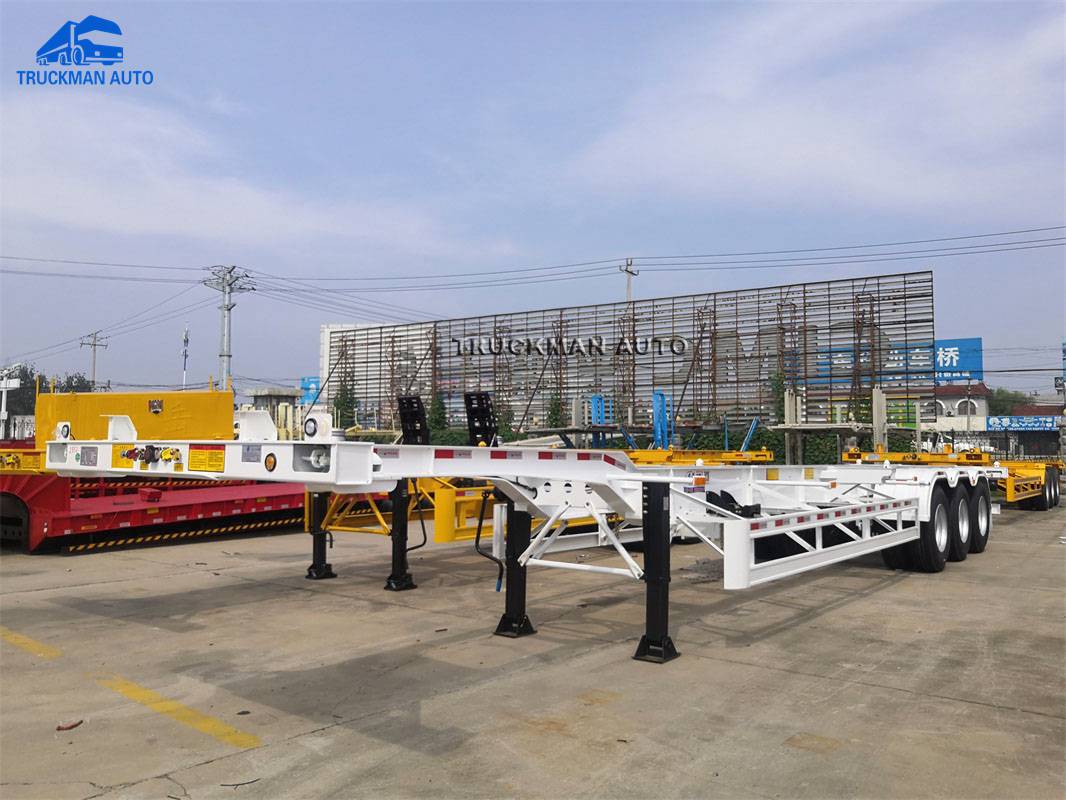

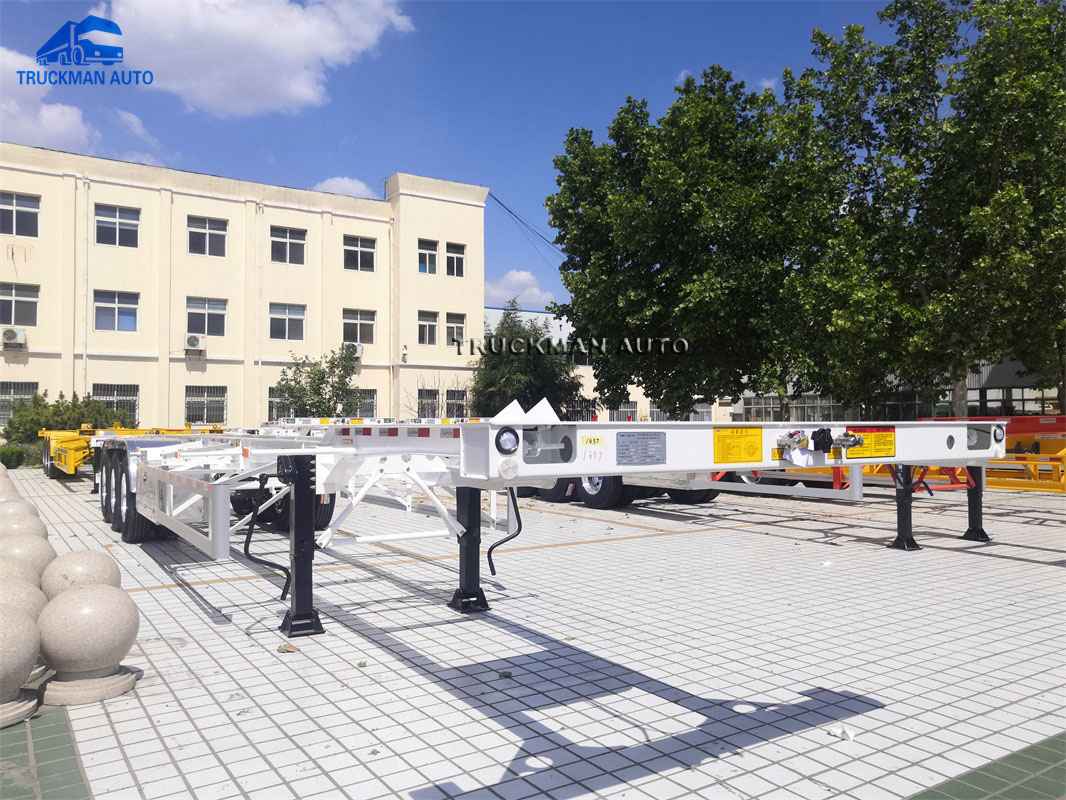

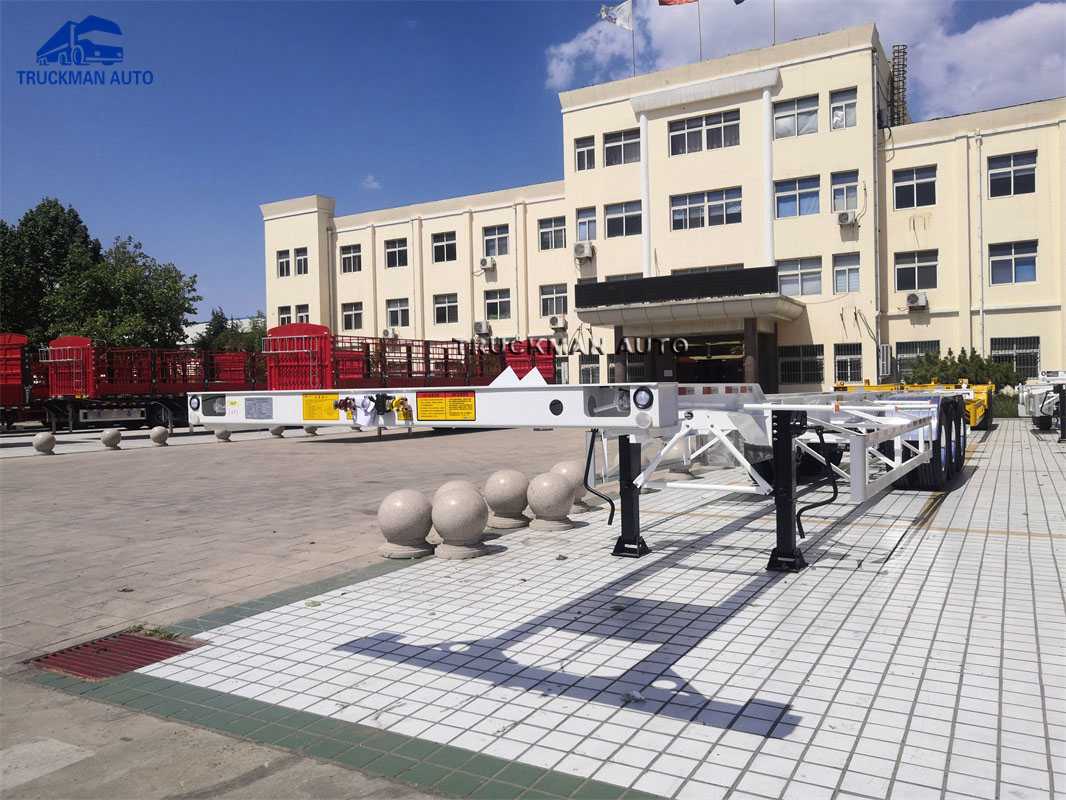

20 Feet and 40 Feet Container Chassis Trailer
-1. Container Chassis Trailer Main Detail.
-. 3x13000kg, 3 axle. Total loading 40 tons goods.
-. JOST 28 tons landing gear, with high speed operating.
-. The loading area is skeleton model, only used for transport container.
-. Adopt the 18 play rating 12R22.5 model tire, with resistant punctured advantage.
-2. Container Chassis Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Container Chassis Trailer |
|
Loading Weight |
40,000kg |
|
Tare Weight |
7,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x13mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 12mm, middle 8mm lower plate 14mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Dimension |
12500x2500x1400mm |
The specification is only for reference, we could design the Container Chassis Trailer according to your request.

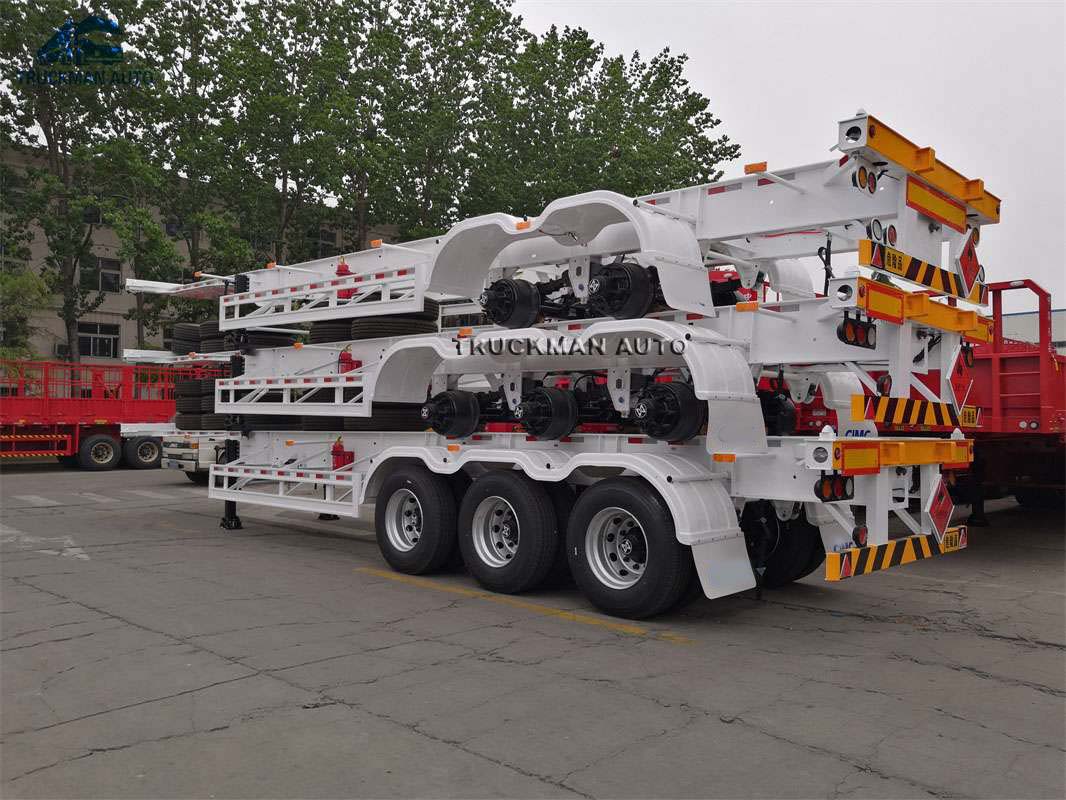

-3. Container Chassis Trailer Shipment Picture.
Now the bulk cargo, ro-ro and flat rack container freight cost increased a lot, consider help customers save the freight cost, we put two pcs or three pcs container chassis trailer make one group, reduce the total volume. And iron wire fix container chassis trailer.
