50 Tons SINOTRUK HOWO 8x4 Dump Truck With U Shape Bucket

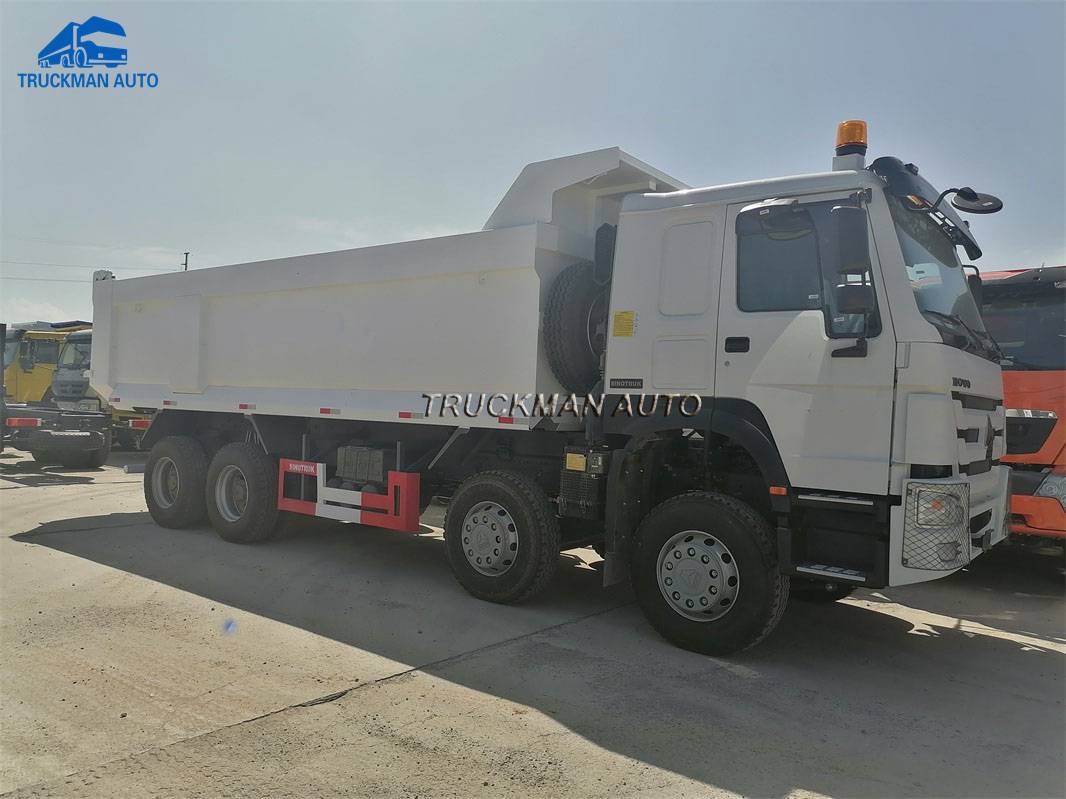

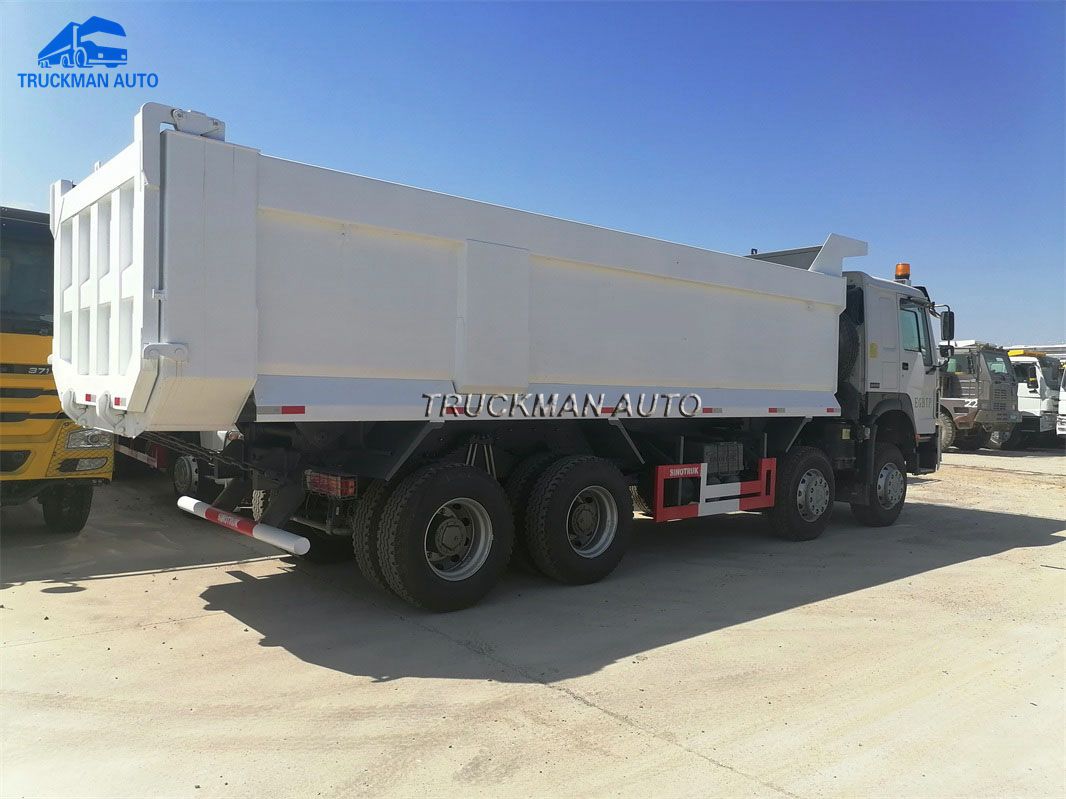

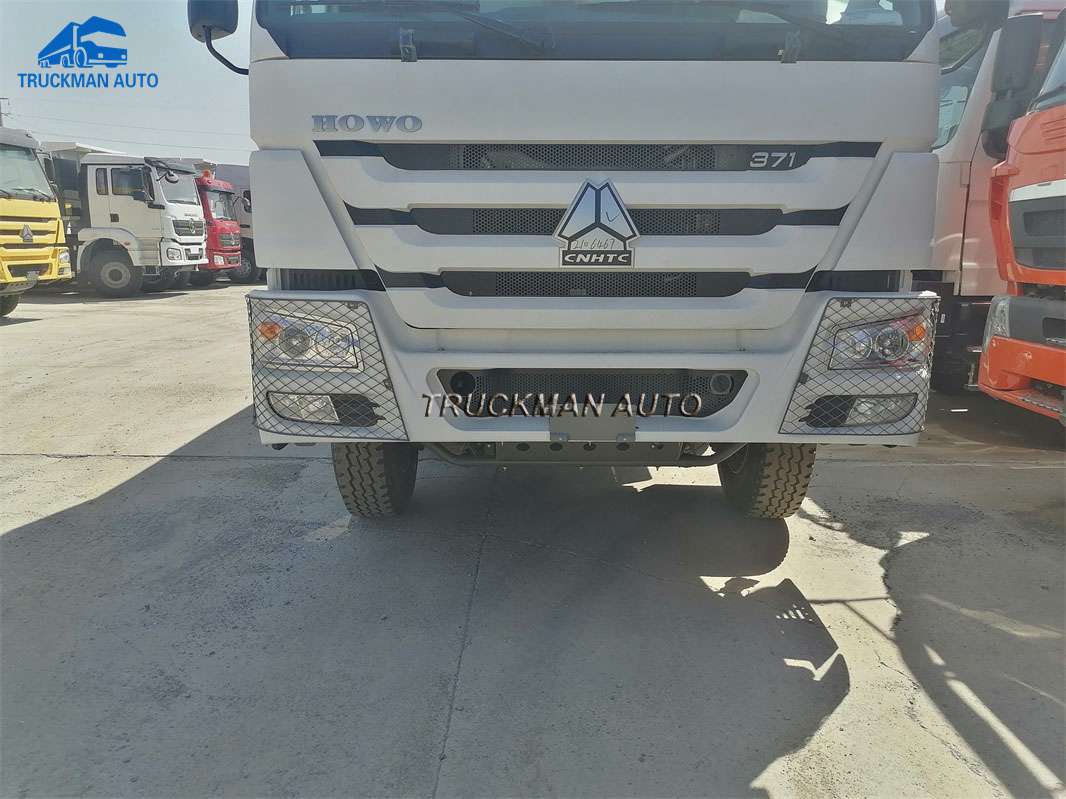

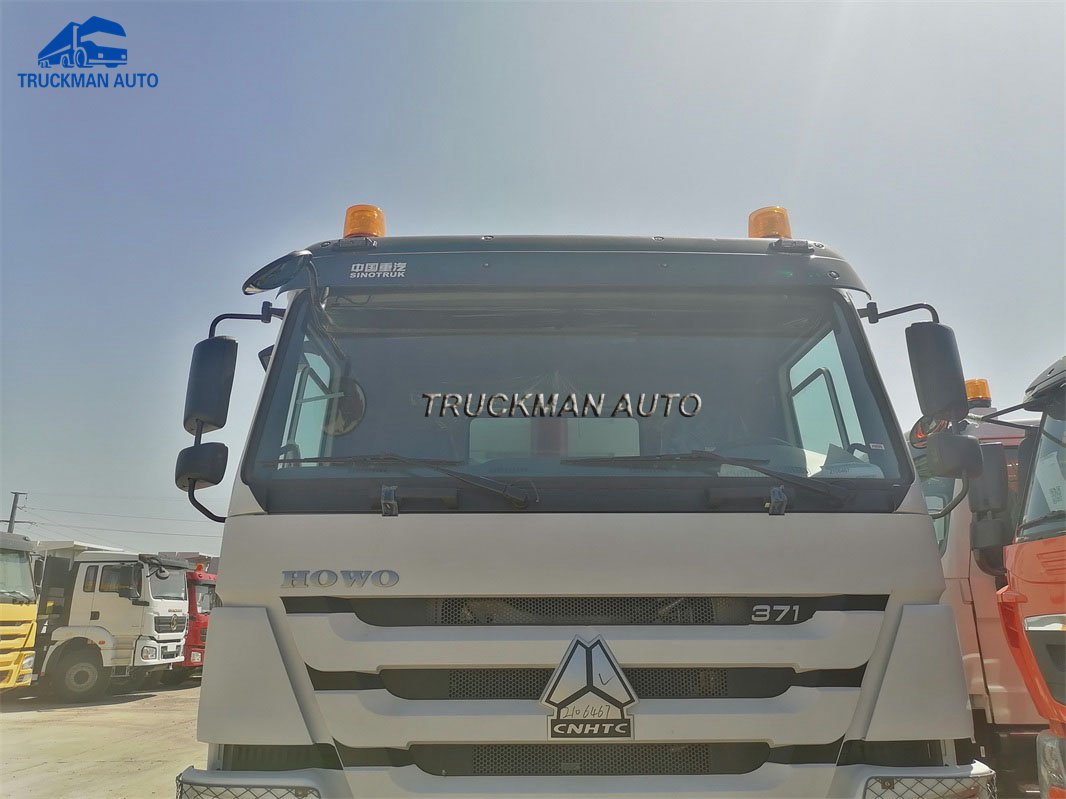

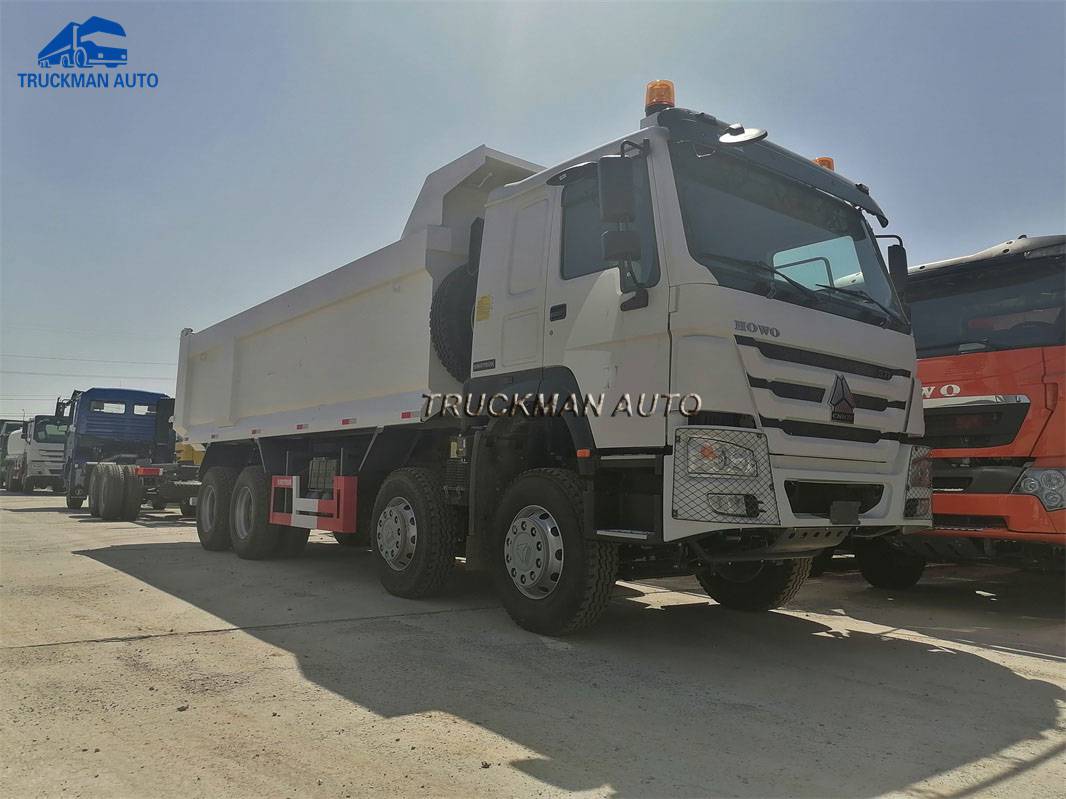

-1. SINOTRUK HOWO 8x4 Dump Truck Detail.
SINOTRUK HOWO 8x4 dump truck with U shape bucket mainly used for mining work, the dump truck carry mining material to site and warehouse for next step long distance transit work. Also the driver seat adopt air suspension, great helpful reduce the driving fatigue.
-2. SINOTRUK HOWO 8x4 Dump Truck Main Specification.
|
Description |
Parameter value |
|
Product Name |
SINOTRUK HOWO 8x4 Dump Truck |
|
Application |
For transport mining material |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76 model, with one bed, A/C |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Front Axle |
2x9,000kg |
|
Driving Axle |
2x16,000kg |
|
Bucket |
7000x2300x1500mm, U shape |
|
Tire |
12.00R20, 12+1 pcs, TRIANGLE brand |
|
Fuel Tank |
300L (400L fuel tank optional) |
|
Loading Tons |
40-50 tons |
|
Other |
Intercooler protect cover, reverse buzzer optional |
|
Dimension |
10200x2580x3450mm |
The SINOTRUK HOWO 8x4 dump truck specification is only for reference, we could recommend the other model SINOTRUK HOWO dump truck according to your request.

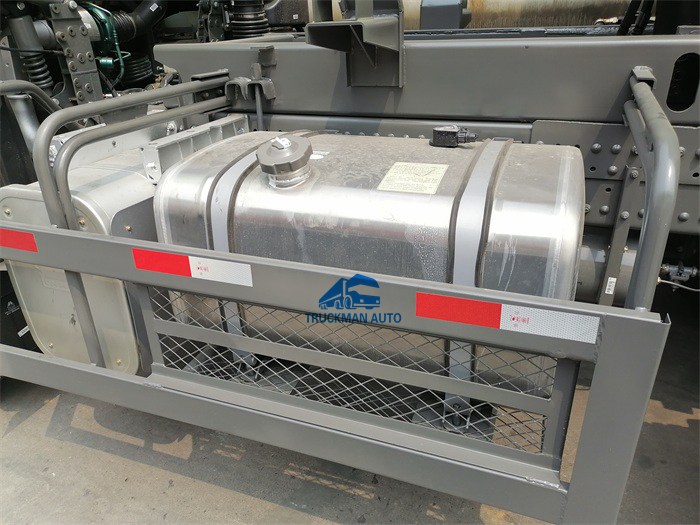

-3. SINOTRUK HOWO 8x4 Dump Truck Fuel Tank Detail.
The fuel tank has a direct effect on the transportation distance of the dump truck. The larger the fuel tank capacity, the farther the dump truck can run. Our dump trucks can be equipped with 300L and 400L fuel tanks, and due to the poor working conditions of the dump trucks, we separately added side protection devices to the fuel tanks.

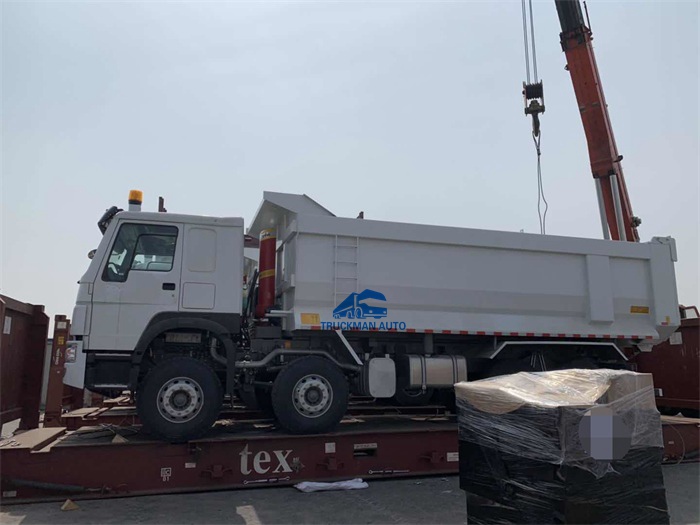

-4. SINOTRUK HOWO 8x4 Dump Truck Shipment By Flat Container Vessel.
The flat container vessel shipping time always on time, and with fast delivery time. Also the local port handle cost low, the picture as follow:
