North Benz Beiben 380HP Sand Tipper Truck
-1. NORTH BENZ Dump Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine: 340HP-380HP, WEICHAI technology
-. T- or F-type, middle or front lifting type
-. Tipper body: square or U-shaped
-. Tipper body: 15 to 20cbm
-. Heavy-duty load capacity: 30 to 40 tons
-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use
-. Hydraulic system: HY-VA brand or Chinese famous brand
-. Military industry truck chassis, very strong and durable
|
Model |
ND3252B38J |
|
|
Traction type |
LHD/RHD |
|
|
Drive System |
6×4 |
|
|
Cabin |
NG80 flat cabin, air conditioner, one sleeper |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.380E32 |
|
|
Rated power |
380hp |
|
|
Engine displacement |
9.726 liters |
|
|
Gearbox |
12JS160T |
|
|
Clutch |
430 Diaphragm type |
|
|
Steering |
ZJ120D |
|
|
Axle |
Front |
BEIBEN 7.5T |
|
Rear |
BEIBEN 13T, double reduction axle, ratio:5.921 |
|
|
Maxrunning speed (km/h) |
85 |
|
|
Tire |
12.00R20 |
|
|
Spring |
10/13 |
|
|
Fuel tank |
300L |
|
|
Kerb weight (kg) |
12400 |
|
|
Total mass (kg) |
25000 |
|
|
Wheel base (mm) |
3800+1450 |
|
|
Overhang (mm) (front/rear) |
1410/1870,1410/1687,1410/1630 |
|
|
Track (mm) (front/rear) |
1995/1800 |
|
|
Approach / departure angle(°) |
26/32 |
|
|
Overall Dimensions(L*W*H)(mm) |
8530×2500×3310 |
|
|
Box dimensions |
5600x2300x1500 |
|

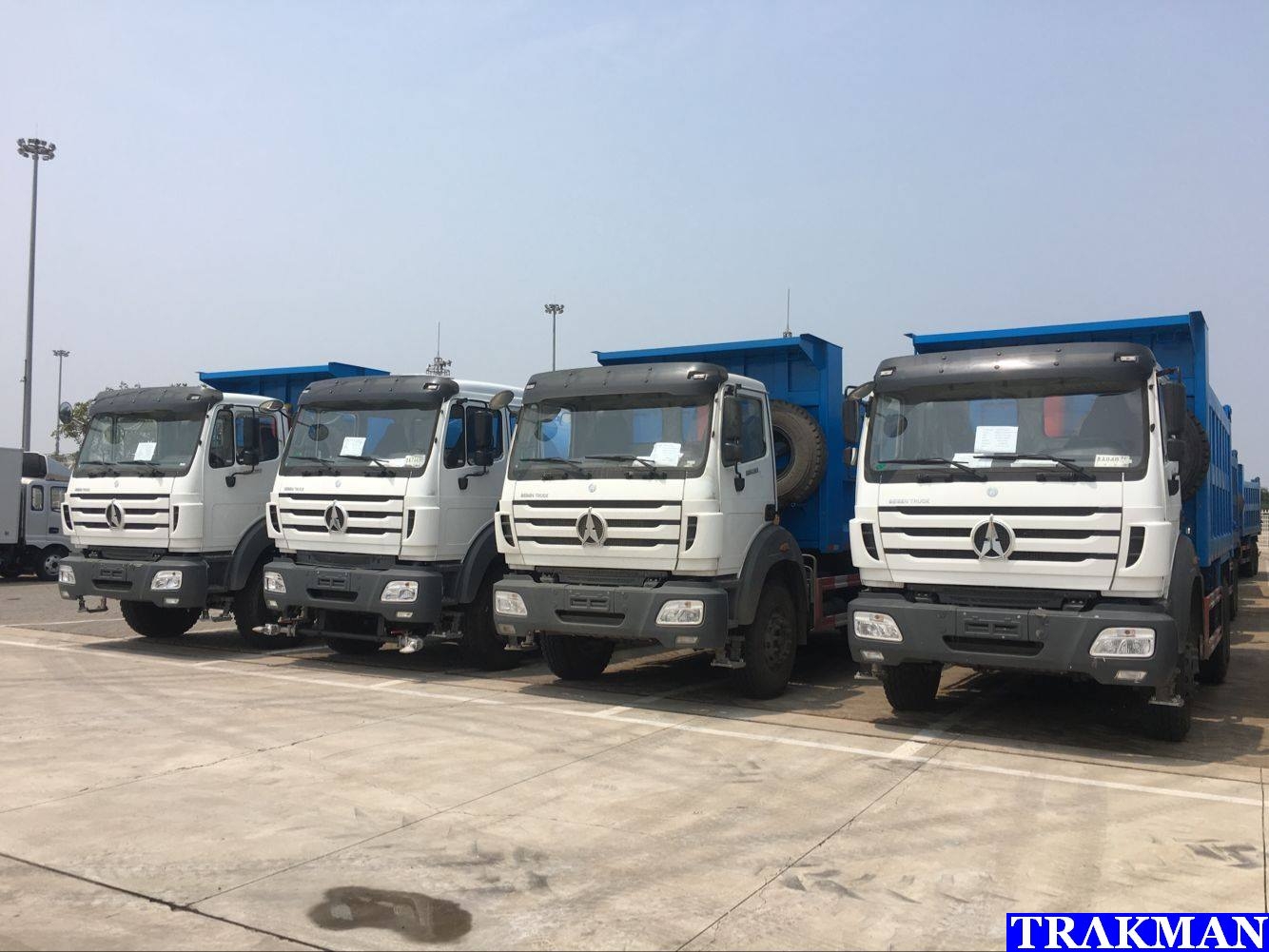

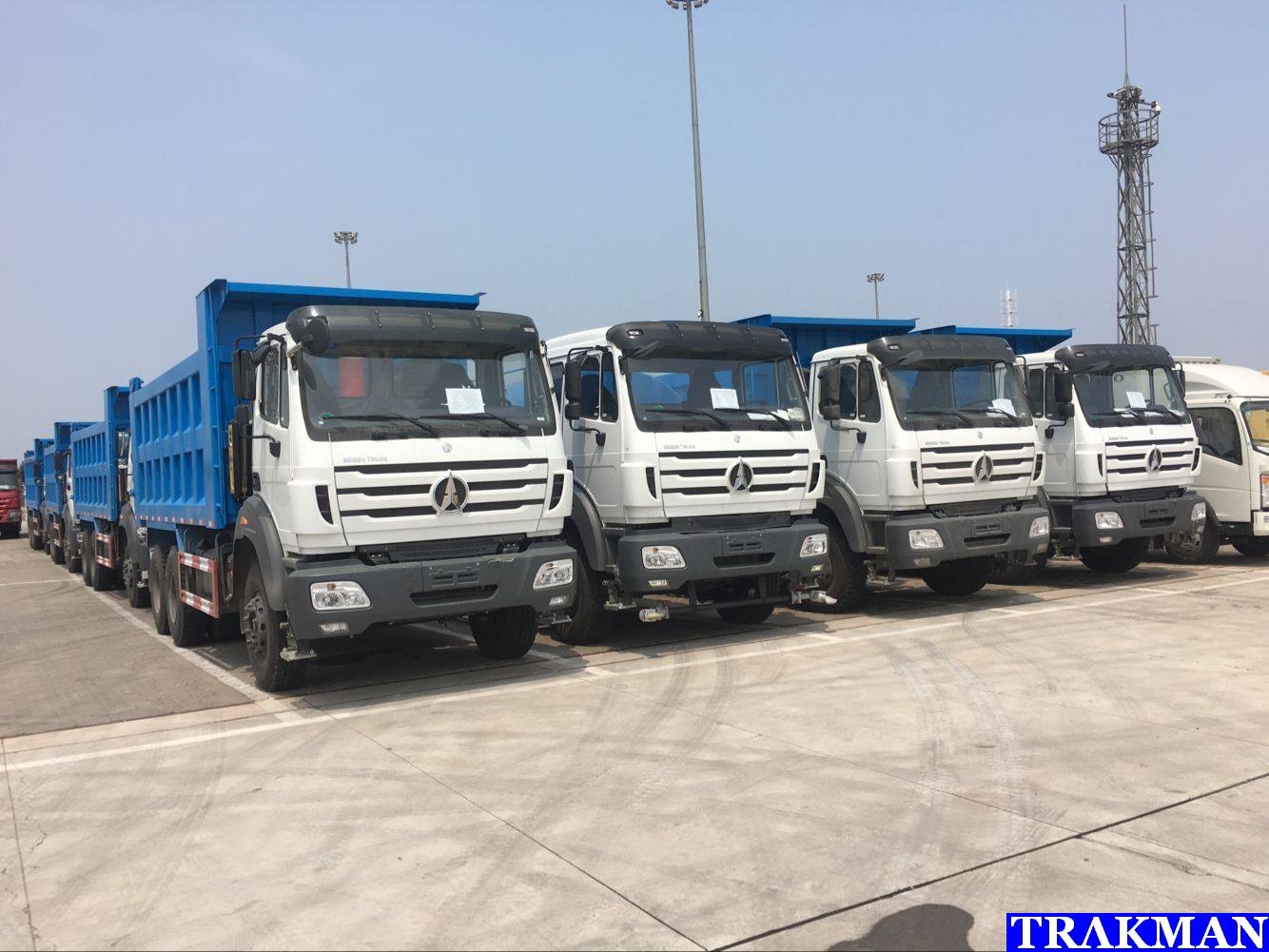

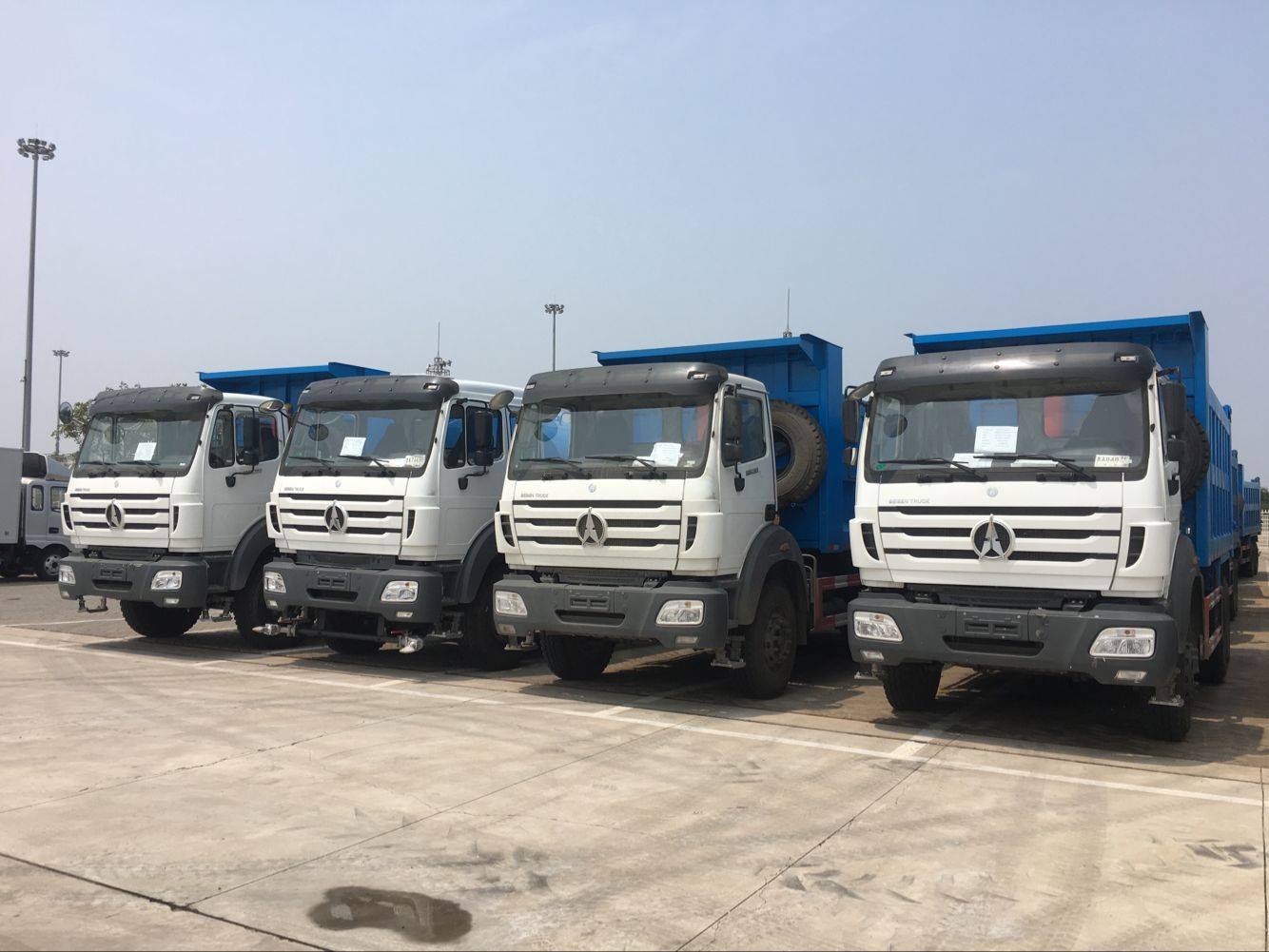

-2. Truck Picture For Reference.
-3. Truck Detail Picture.
-4. The Truck Working Picture.
All picture is our customers send us, different country, different customer, different work condition, but our truck can suitable for our customers all request.
