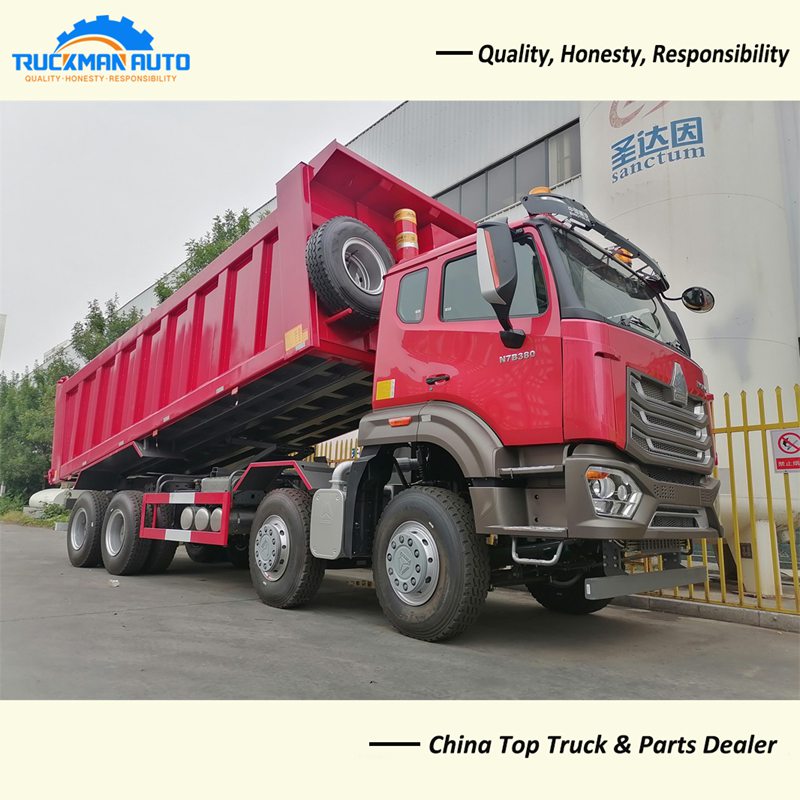

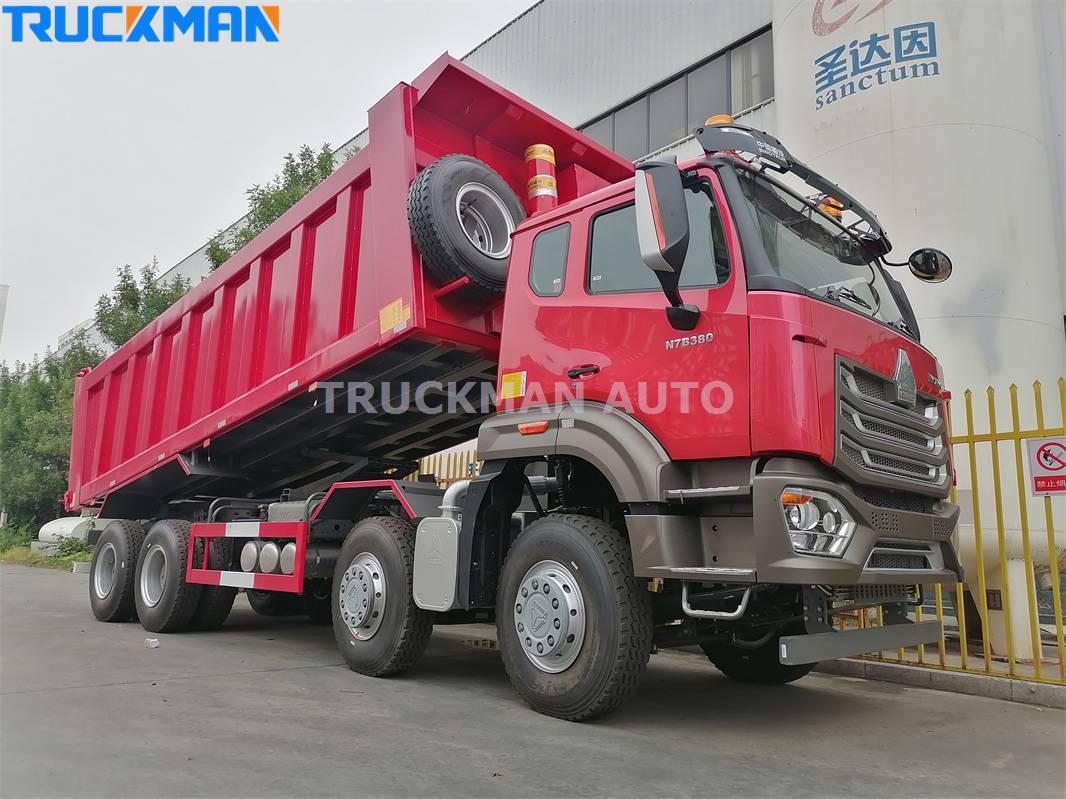

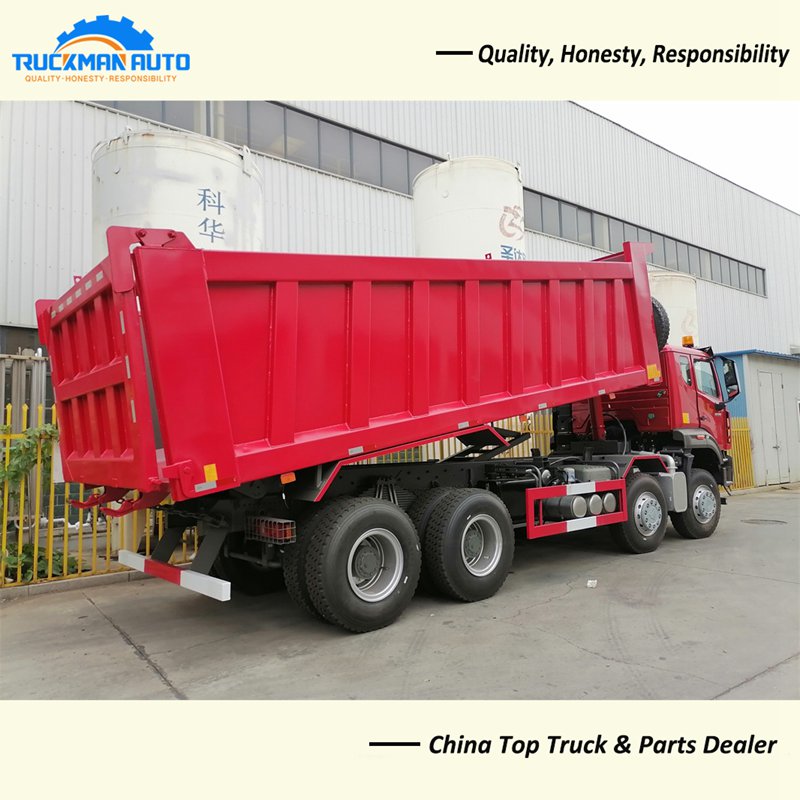

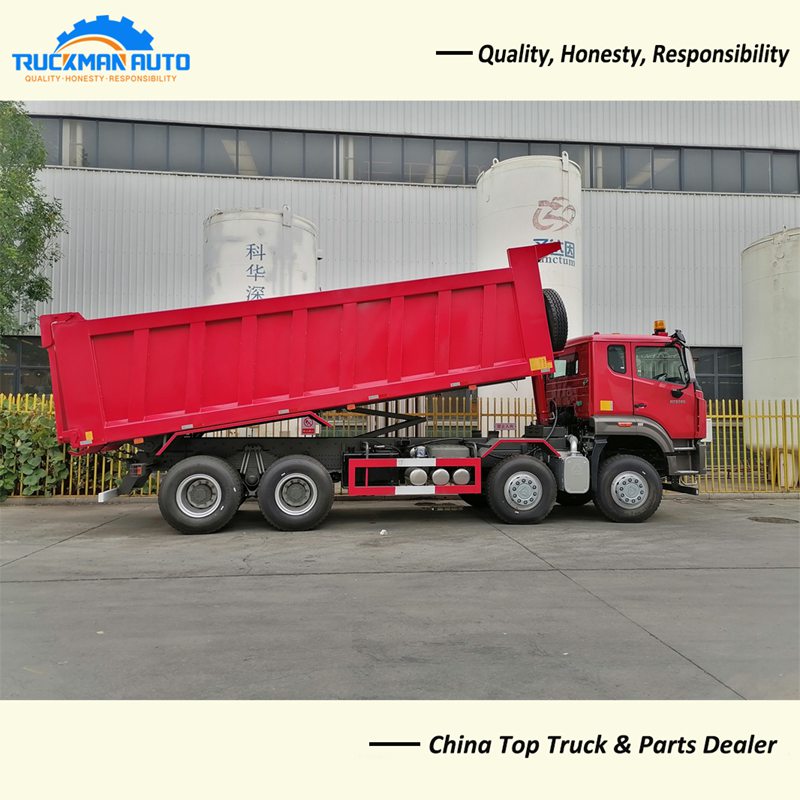

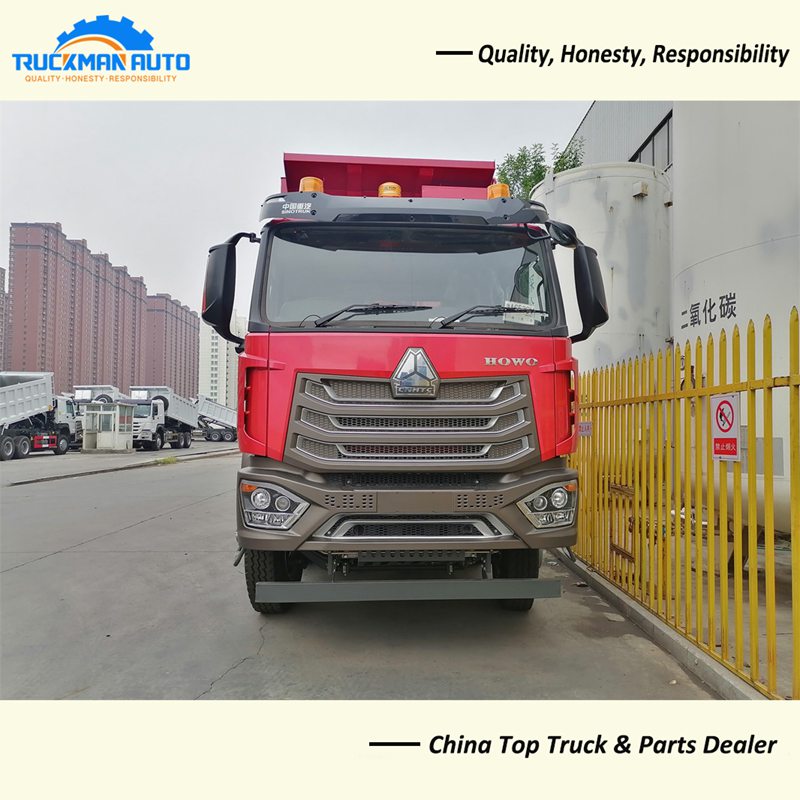

SINOTRUCK HOHAN 8x4 Dump Truck For Zambia
SINOTRUCK HOHAN 8x4 Dump Truck Information
HOHAN 8x4 dump truck is new series of SINOTRUCK, it is design for construction and mining work. The truck with water spray system is special design for brake drum, it can help reduce the brake drum temperature in short time, suitable some place which need constantly brake, such as mountain road.
-. Engine is WD615.47, 371HP, with 6 cylinder and 9.726L displacement.
-. Cargo box have rectangle and U shape is optional, material have manganese plate and wear-resistant plates.
SINOTRUCK HOHAN 8x4 Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUCK HOHAN 8x4 dump truck |
|
Application |
Transport bauxite, sand, gravel etc |
|
Loading Capacity |
50,000kg |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
H77L, with one bed, A/C, left hand drive |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 12+1 pcs, TRIANGLE brand |
|
Bucket |
7300x2300x1500mm, bottom 8mm, side 6mm |
|
Front Axle |
VGD95, 2x9500kg |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
400L |
|
Dimension |
9800x2560x3450mm |
The SINOTRUCK HOHAN 8x4 dump truck specification only for your reference, we will recommend other model HOHAN 8x4 dump truck basic your request.

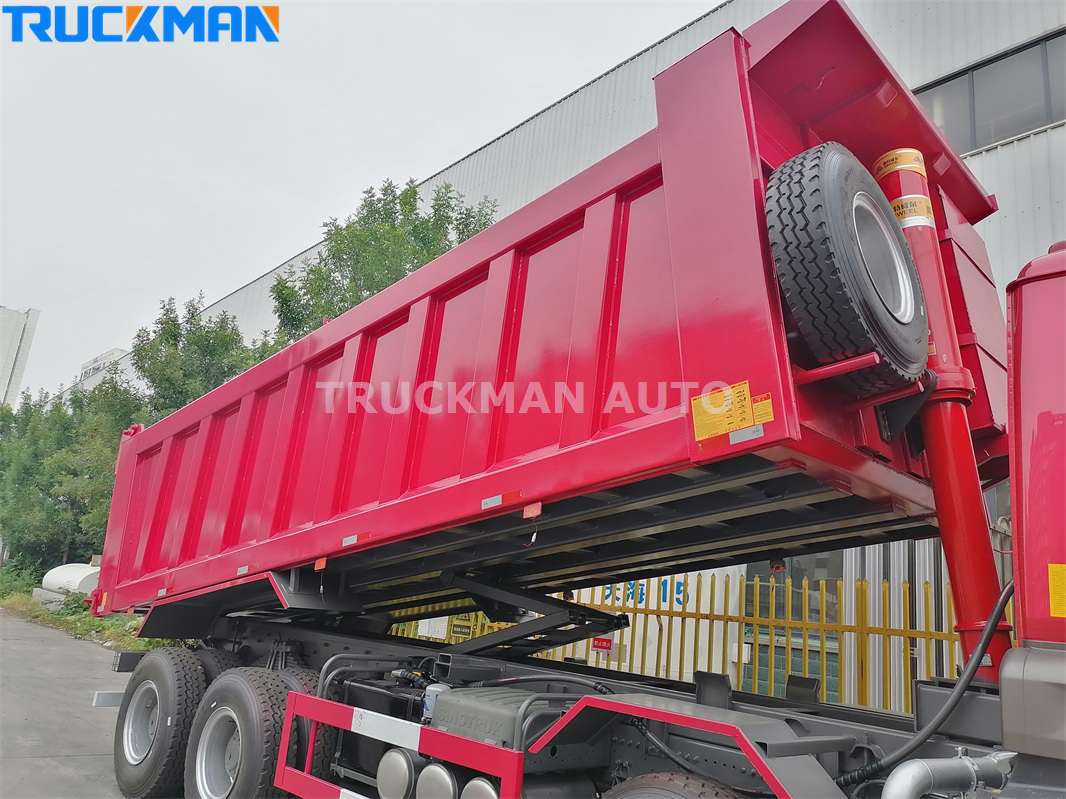

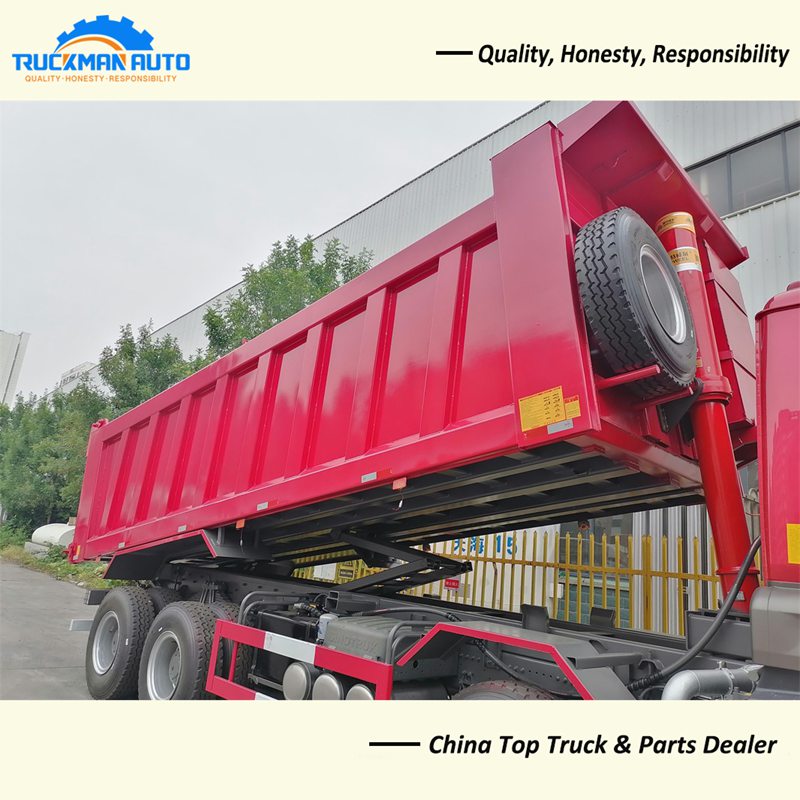

SINOTRUCK HOHAN 8x4 Dump Truck Cargo Box Lifting System
The type of lifting mechanism is common at present: F type lifting mechanism, T type lifting mechanism, front lifting, etc. F type is suitable for cargo box of length less than 5000mm, T type is suitable for cargo box of length less than 5800mm, front top lifting is suitable for cargo box of length more than 5800mm.
