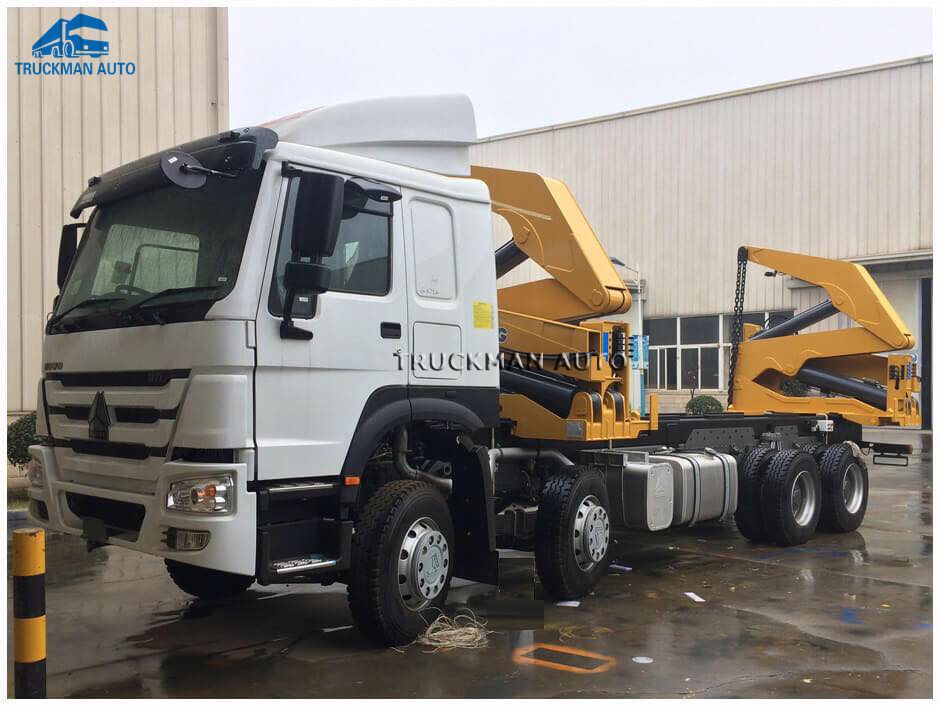

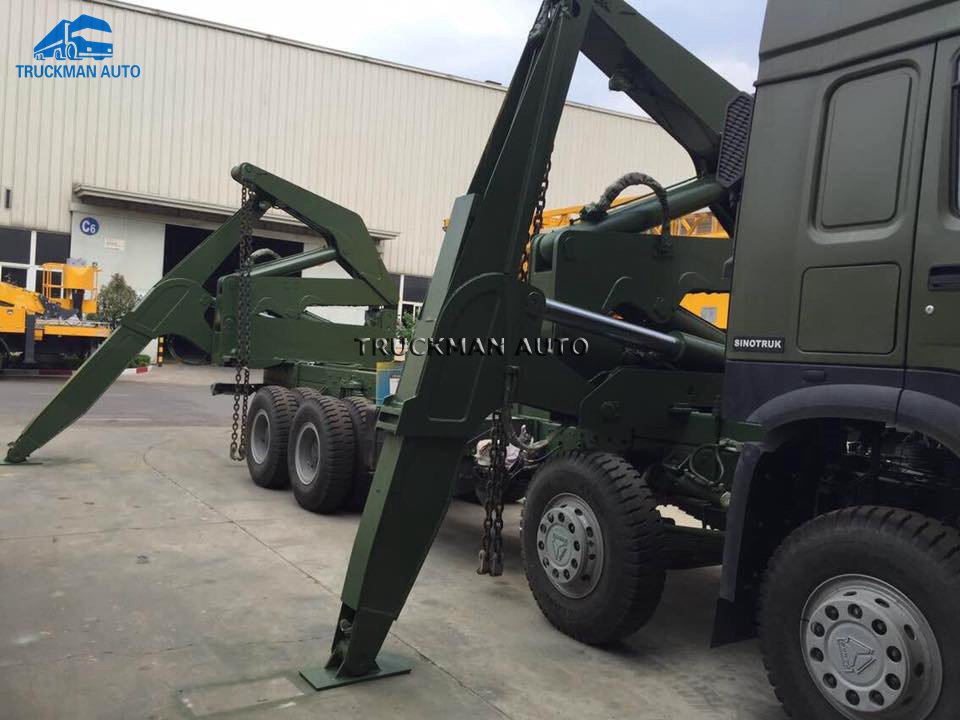

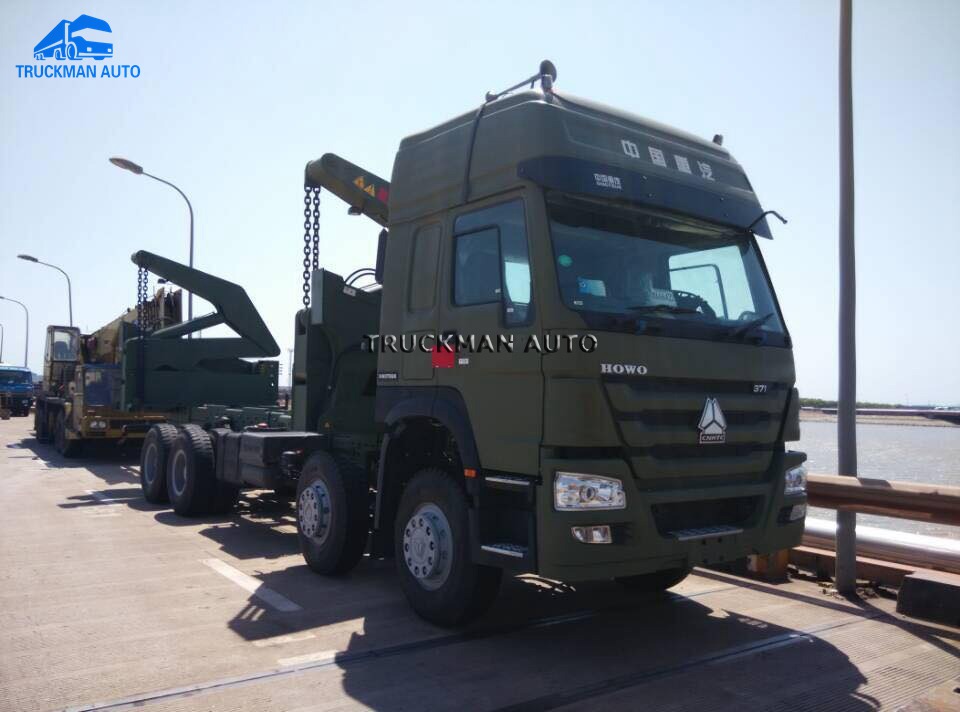

SINOTRUK HOWO 20 Foot Container Side Loading Truck For Sale
-1. SINOTRUK HOWO 20 Foot Container Side Loading Truck Detail.
The container side loading truck is very suitable for the Tanzania, Papua New Guinea, Zambia, Kenya etc. It’s could work at the no loading capacity port, warehouse, deck etc. Only 45s could loading one container, operating very easier. And the side loading crane is 37 tons x 2 pcs, XCMG brand, adopt the Europe mature tech.
-2. Main Specification For SINOTRUK HOWO Container Side Loading Truck.
|
Model |
Container Side Loading Truck |
|
Engine |
WD615.47. 371HP |
|
Cabin |
HW76 cabin, one bed, A/C. LHD or RHD |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Drive Axle |
HC16, 2x16000kg |
|
Tire |
12R22.5, 12+1 spare tire. TRIANGLE brand |
|
Crane Loading Tons |
37 Tons |
|
Fuel Tank Capacity |
400L |
|
Max Speed |
75km/h |
-3. SINOTRUK HOWO Container Side Loading Truck Crane Information.
|
Item |
Unit |
MQH37A |
|
Max. Lifting Capacity |
kg |
37000 |
|
Max. Stabiliser Outreach |
mm |
3200 |
|
Max. Working Range |
mm |
4000 |
|
Overal Height |
mm |
2490 |
|
Overal Width |
mm |
2500 |
|
Overal Length |
mm |
1020 |
|
Max. Pressure Of Hydraulic System |
Mpa |
28 |
|
Tare Weight |
kg |
7000 |
