XCMG ZL50GN 5 Tons Wheel Loader For Construction

XCMG ZL50GN 5 Tons Wheel Loader For Construction
XCMG ZL50GN 5 Tons Wheel Loader For Construction
XCMG ZL50GN 5 Tons Wheel Loader For Construction
XCMG ZL50GN 5 Tons Wheel Loader For Construction
Product Name : XCMG ZL50GN 5 Tons Wheel Loader For Construction
Product ID : ZL50GN
Engine : WEICHAI brand, WD10G220E21
Operating Weight : 5 Ton
Bucket Capacity : 3m3
Reach At Maximum Lift : 1100mm
Dump Clearance At Maximum Lift : 3450mm
Directions

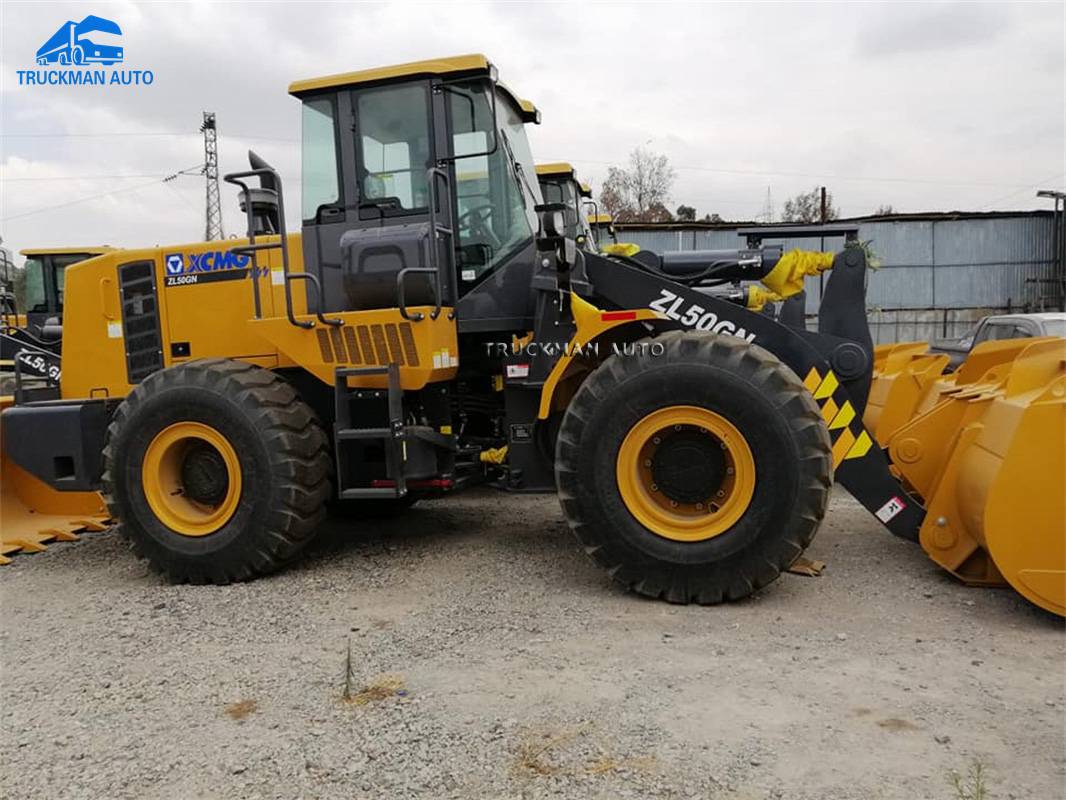

-1. XCMG ZL50GN 5 Ton Wheel Loader Introduction



ZL50GN 5 ton wheel loader is the latest cross-generation product developed ,the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.

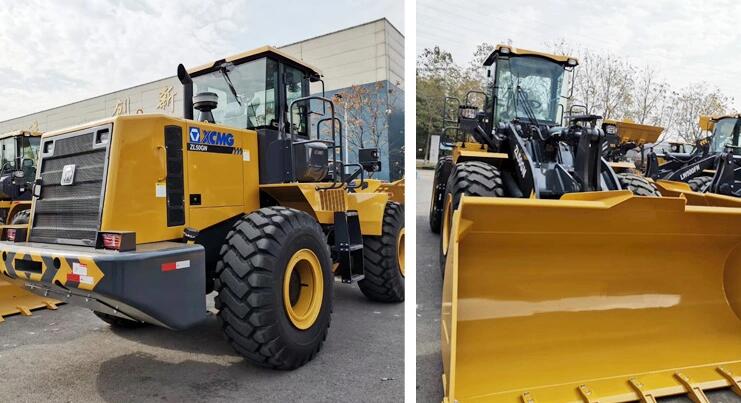

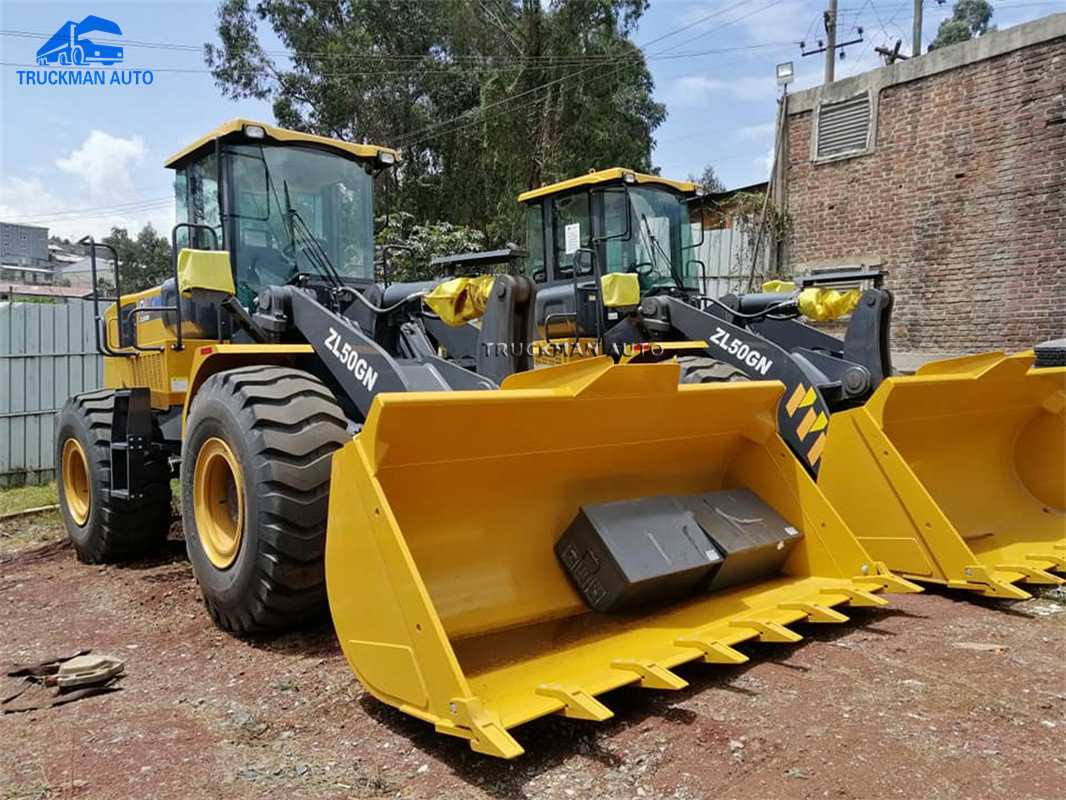

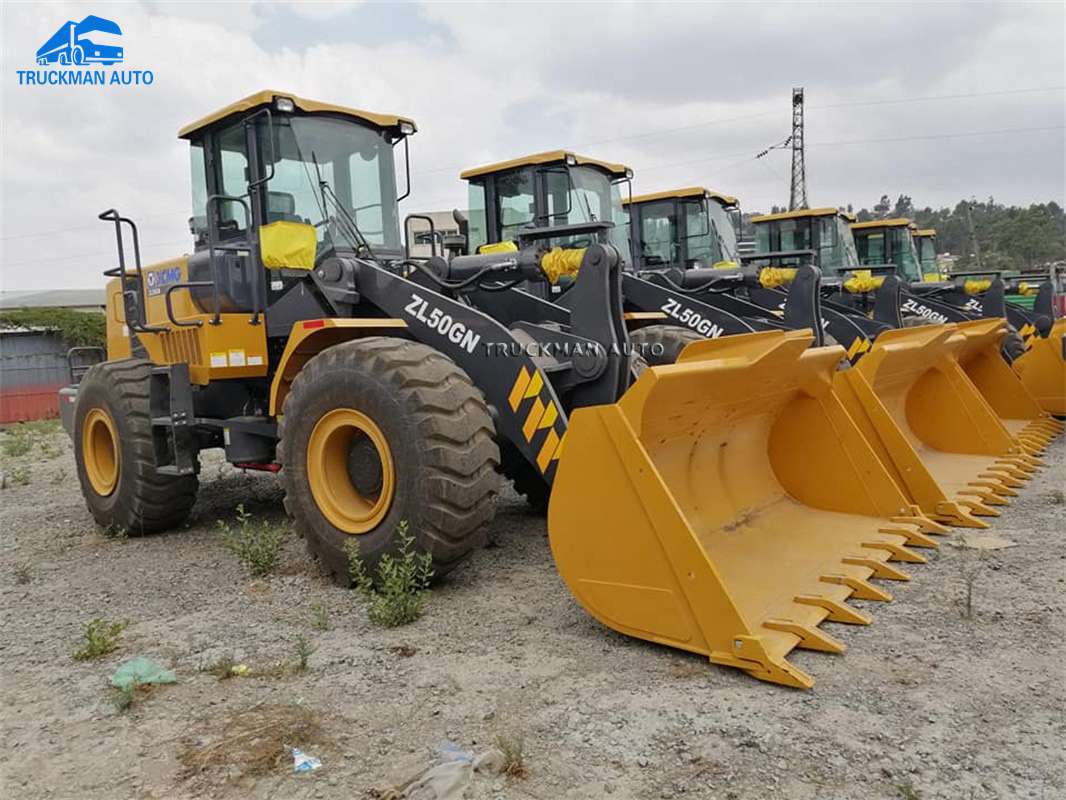

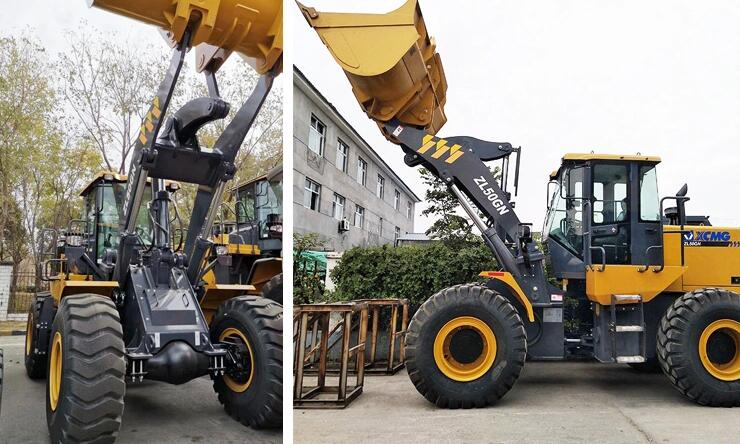

-2. XCMG ZL50GN 5 Ton Wheel Loader Detail Picture.



1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.







2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.





3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

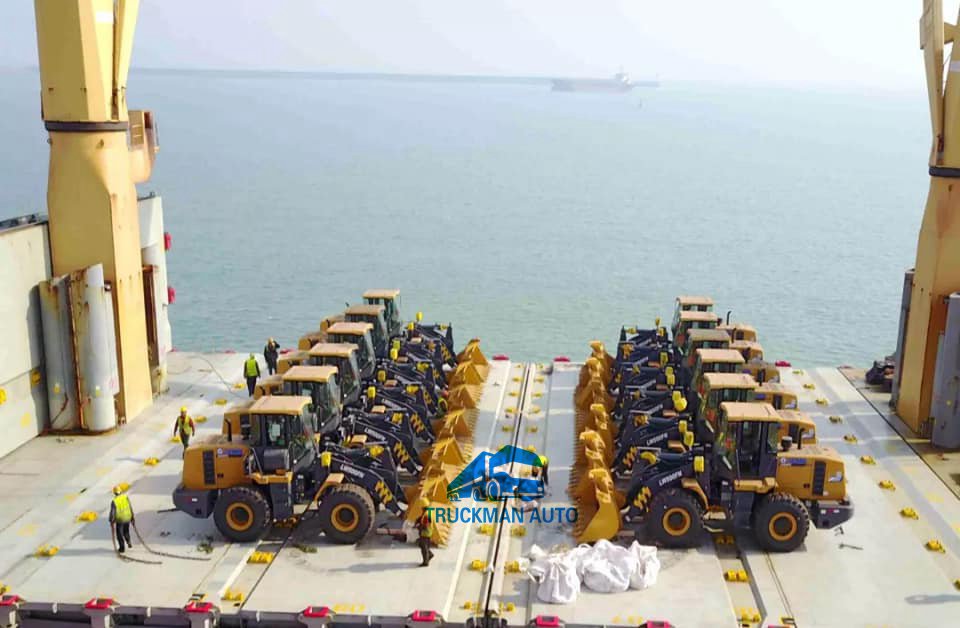

-3. XCMG ZL50GN 5 Ton Wheel Loader Shipment Picture.





The XCMG ZL50GN 5 ton wheel loader could shipment by container and bulk vessel. With the fast shipment time and very safety, the cost is very reasonable.
