JINAN TRUCKMAN AUTOMOBILE CO.,LTD

After 45 working days production, the last units SINOTRUK HOWO 10m3 concrete mixers truck finish production. And these 15 units truck will delivery to Djibouti port next week, the final destination is Ethiopia. The customers owns a large construction company and often purchases various construction machinery and trucks from us. And trust us very much, let us be responsible for the procurement of all goods imported from China. We have been cooperation with together for 8 years now.

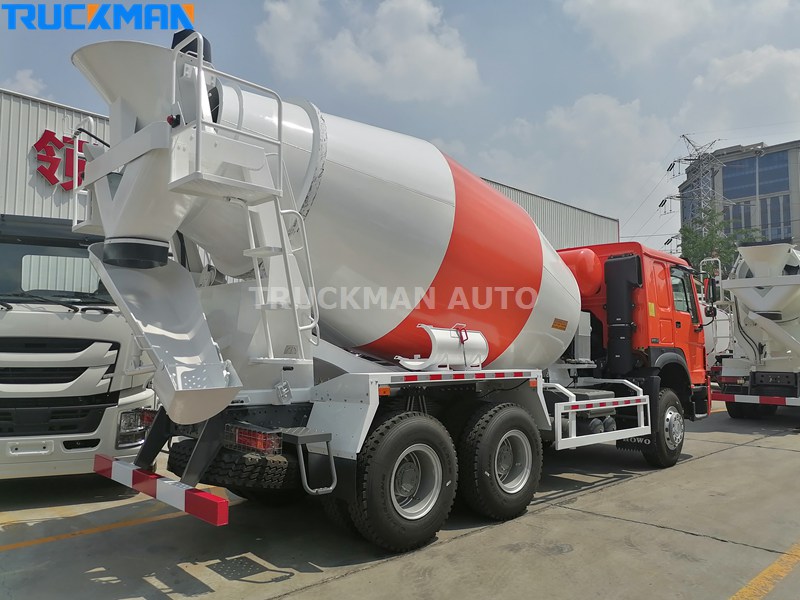

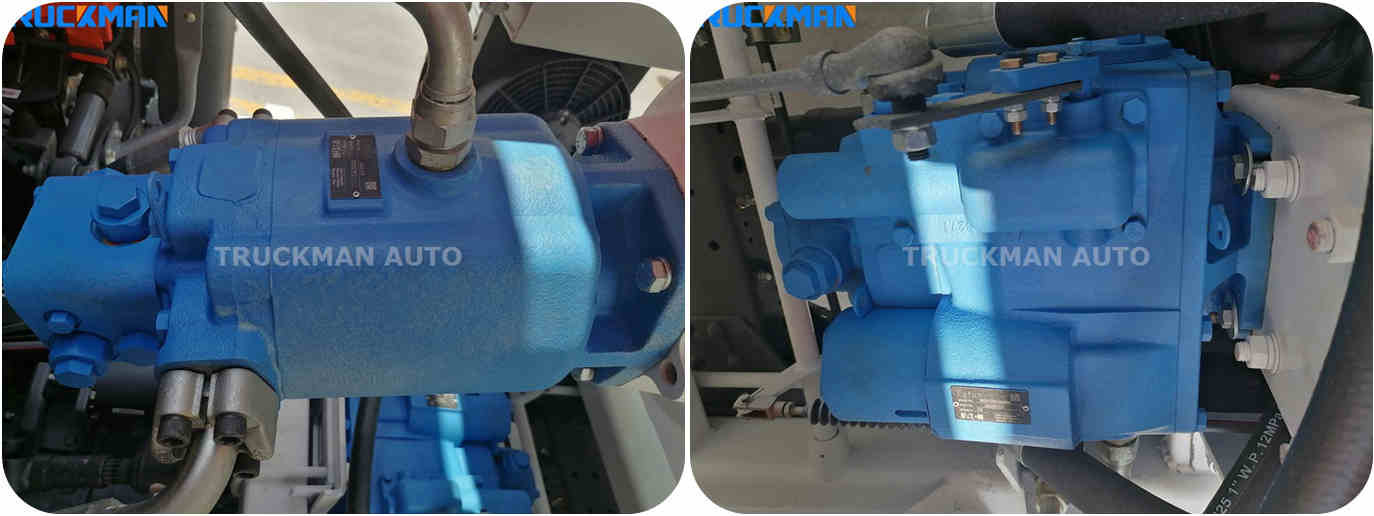

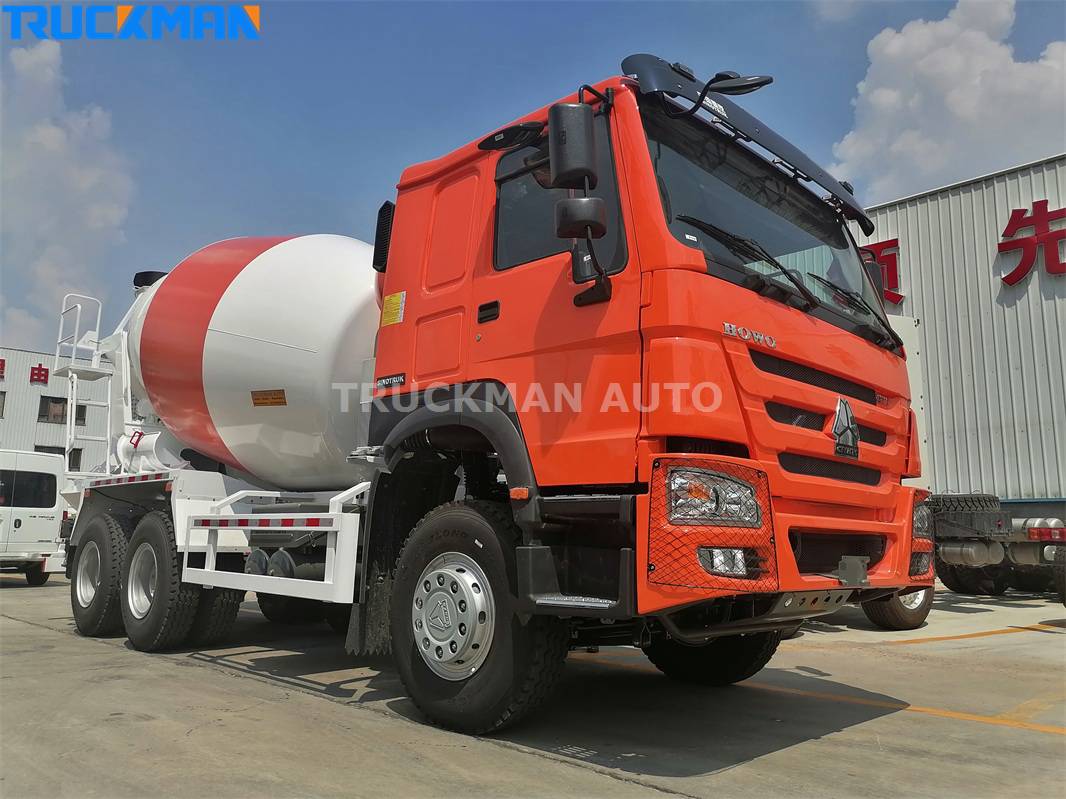

These 15 units concrete mixer tank truck adopt the SINOTRUK HOWO truck chassis, due to SINOTRUK HOWO truck chassis very durable, enjoy a good reputation in local and purchase, maintenance cost is very lower. The customers know the quality of trucks is very important, he said his time is money, and he can get all the payment only if the project is completed on time. All parts he request us choose the famous brand, so the tank body main parts we adopt the EATON brand pump, motor and BONFIGLIOLI brand reducer.

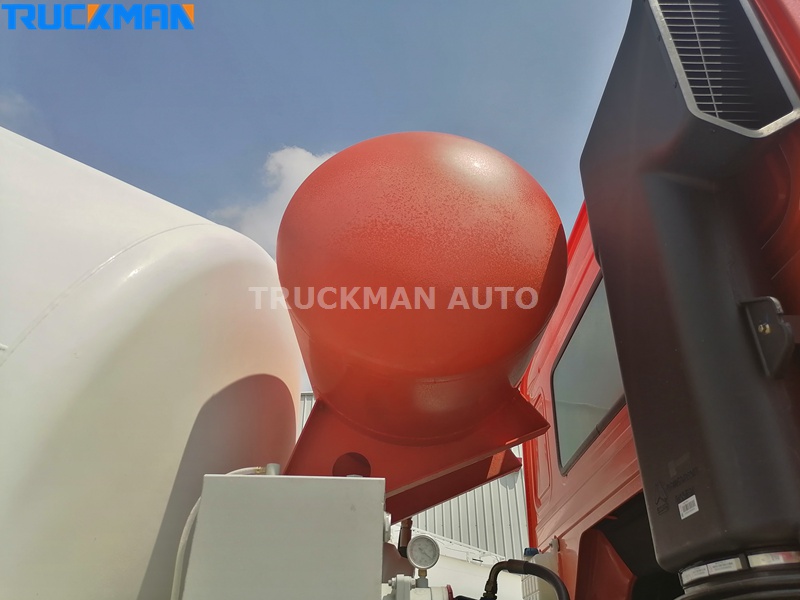

The water supply system is mainly composed of pressure water tank, water gun, water pipe, pressure regulating valve, safety valve, ball valve, etc. The water supply system adopts air pressure water supply. The compressed gas is sent from the chassis air storage tank to the pressure water tank through the single-circuit protection valve, air source switch, pressure reducing valve and one-way valve. The water in the water tank enters the water pipe under the action of air pressure, and the rear control valve is opened Ball valve, you can inject water into the tank or clean the tank body and the feeding and discharging system. The flushing pressure of water can be adjusted in the range of 0-0.4Mpa through the pressure reducing valve. Tank volume is 450 liters.

Working Principle Of SINOTRUK HOWO Concrete Mixer Tank Truck

The mixing device takes power from the engine, drives the mixing drum to rotate through the hydraulic transmission system, and uses the blades in the mixing drum to agitate the concrete, so that the concrete does not segregate and solidify, so as to ensure the quality of the concrete during transportation; through the control system Control the rotation speed and direction of the mixing drum to realize the feeding, stirring and discharging functions of the mixing device; the water supply system provides the functions of adding water to dry materials, washing the cylinder and blades, and washing the vehicle.
