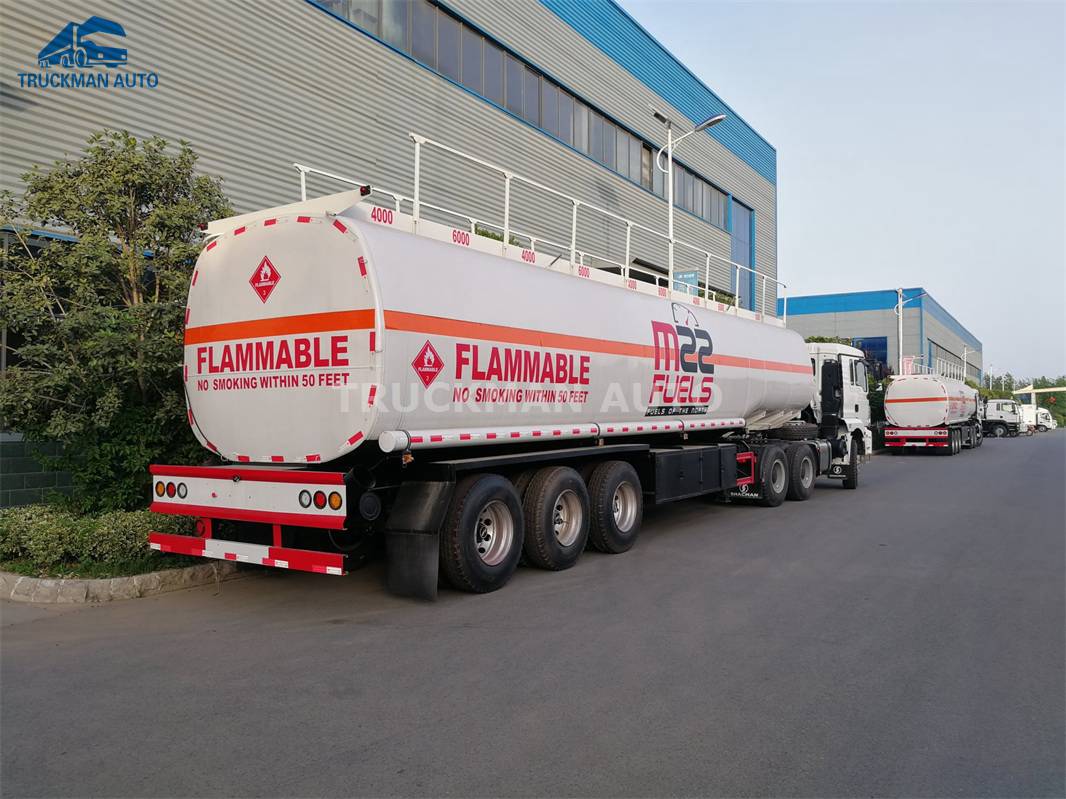

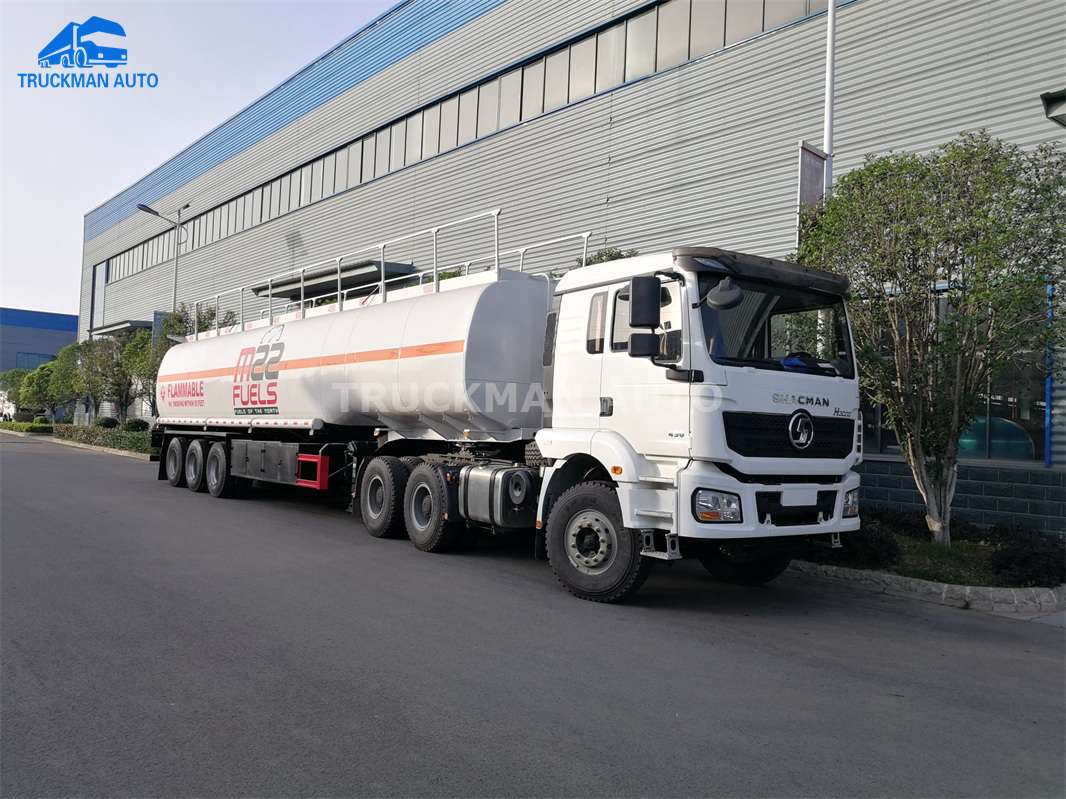

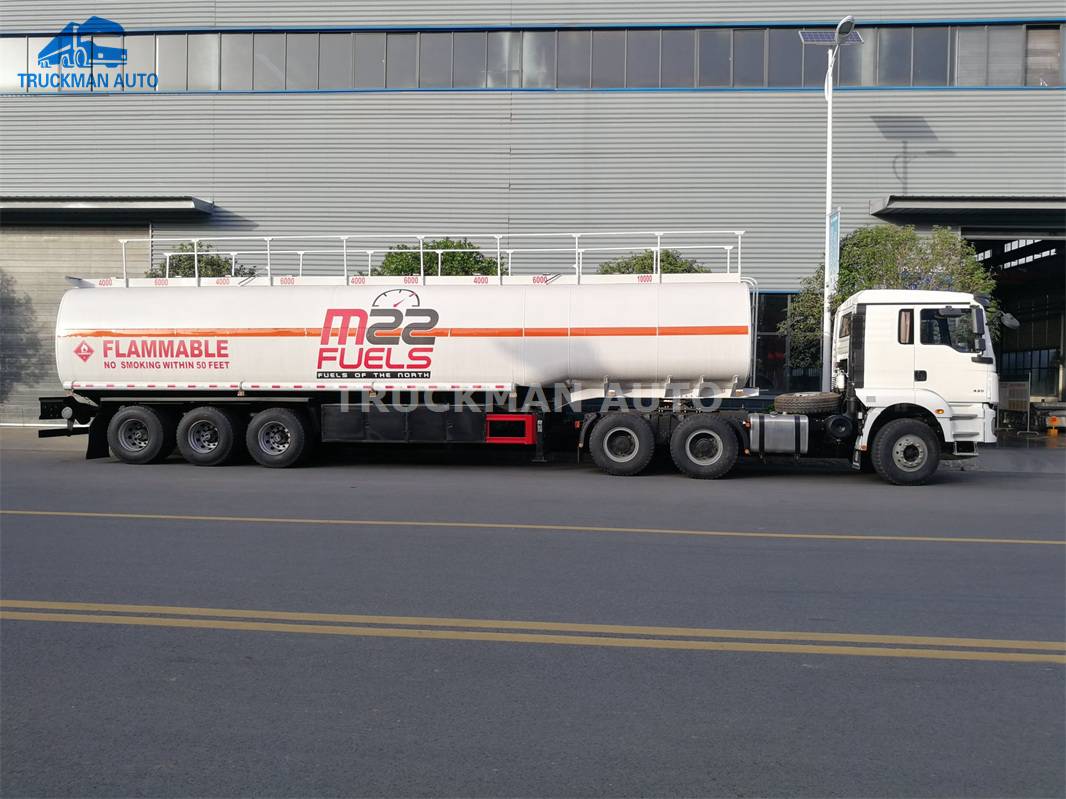

3 Axle 40000 Liter Fuel Tanker Trailer With 4 Compartment
-1. 40000 Liter Fuel Tanker Trailer Detail.
The fuel tanker trailer material use the Q235 and Q355, the tanker body material is Q235 carbon steel and chassis use the Q355 high strength steel. Two model material confirm the fuel tanker trailer can using with long time.

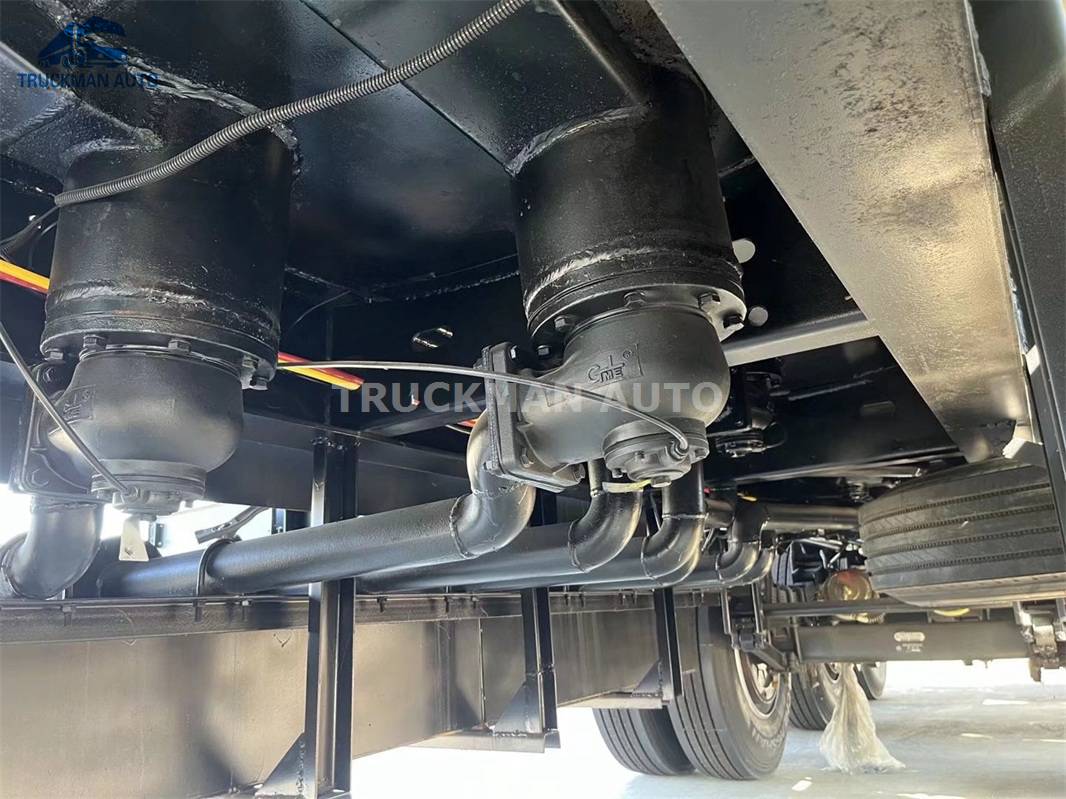

-. Subsea valve, discharge valve is standard specification, for dangerous goods transportation is necessary.

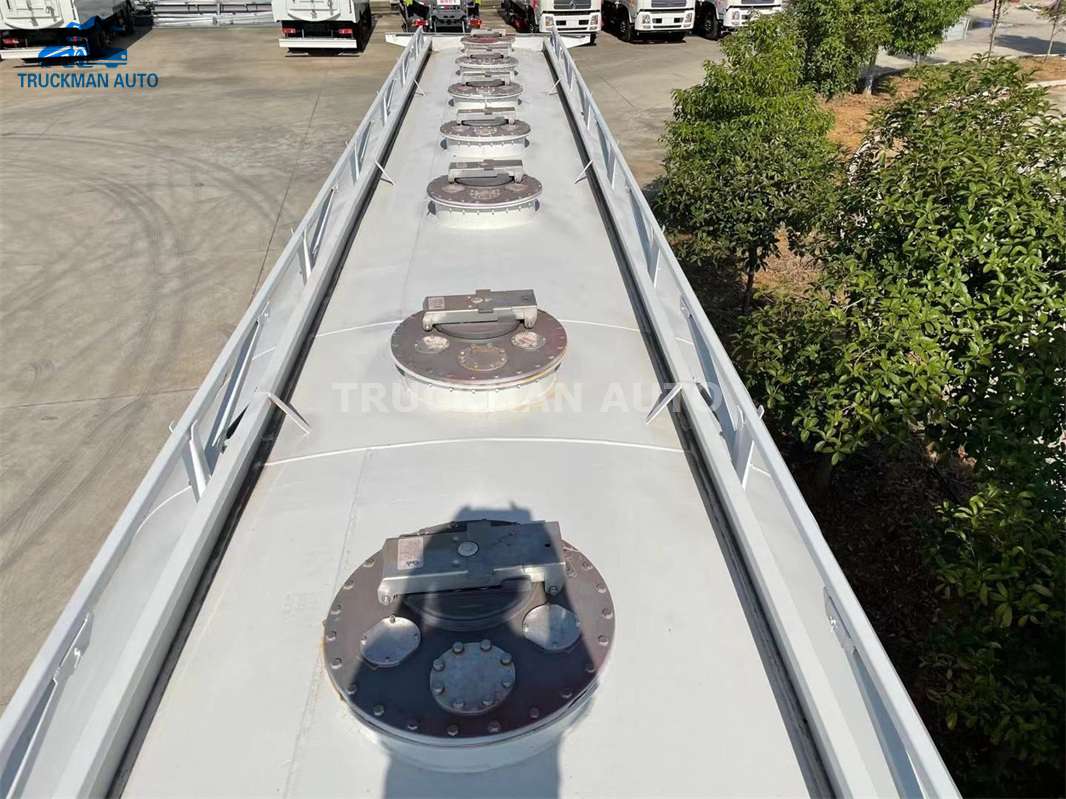

-. The compartment have 1-9 pcs, according to your request.
-2. 40000 Liter Fuel Tanker Trailer Specification.
|
Description |
Parameter Value |
|
Product Name |
40000 Liter Fuel Tanker Trailer |
|
Application |
For chemical liquid haulage |
|
Axle |
3x16000kg |
|
Tire |
315/80R22.5, 12 pcs |
|
Suspension |
Heavy duty mechanical |
|
Support Leg |
JOST 28 tons |
|
Tractor Pin |
90#, JOST brand |
|
Brake System |
WABCO brand |
|
Tanker Body |
40000 liter, 4 pcs compartment |
|
Material |
Tank body Q235, trailer chassis Q355 |
|
Dimension |
11300x2500x3450mm |
The 40000 liter fuel tanker trailer specification only for your reference, we will recommend other model fuel tanker trailer according to your request.
-3. TRUCKMAN AUTO 40000 Liter Fuel Tanker Trailer Advantage.
-. The tank body is welded by imported TIG welding machine, and the pass rate of radiographic inspection is 100%;
-. The head wave-proof board is an expanding structure with high strength, and the thickness of the board is the national standard full-thickness board;
-. The loading and unloading system adopts European standard design, which is safe and environmentally friendly;
-. The tank section is a national standard small arc, and the tank is more uniform and stronger;
-. The tank body is a gooseneck structure with low center of gravity and good stability;
-. Tank top roll protection device to improve vehicle safety;
-. Ladders and tank top walkways are designed to be non-slip;
-. The rear protective material is high-strength steel, with large spacing, anti-drilling and anti-collision, improving the driving safety of the vehicle.
