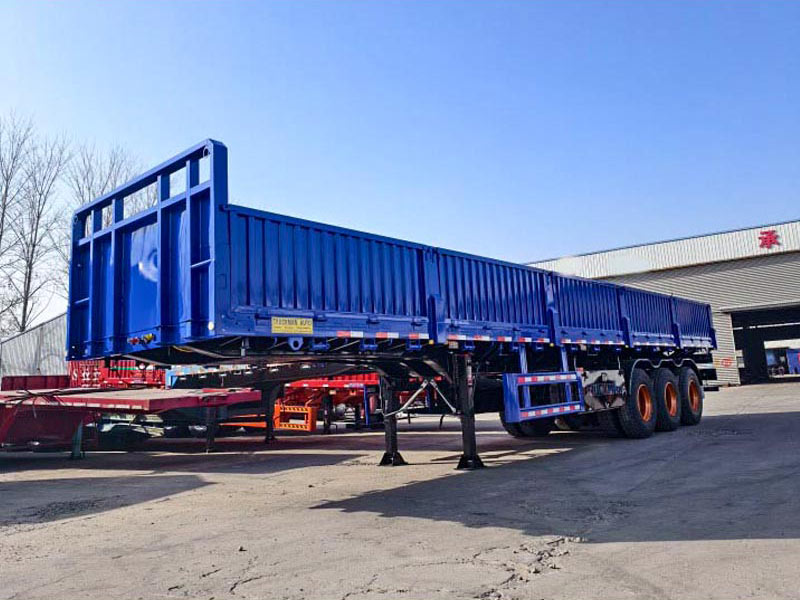

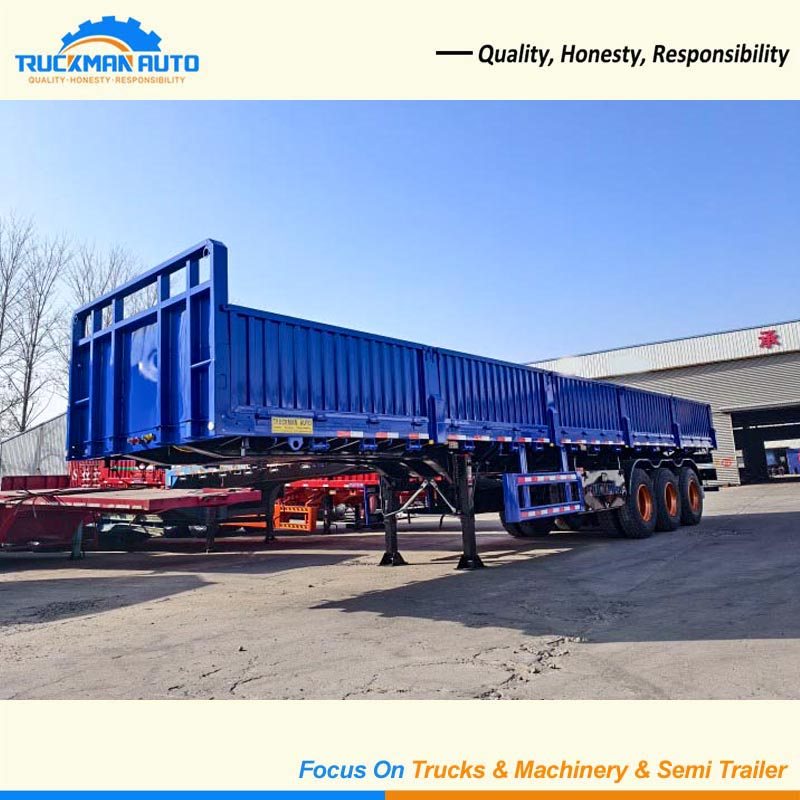

3 Axles 60 Tons Side Wall Trailer for Bulk Transportation
The 3 Axles 60 Tons Side Wall Trailer is a heavy-duty semi-trailer designed for efficient bulk cargo transport over long distances, combining robust construction, reliable suspension, and high payload capacity to meet demanding logistics needs.
What Applications Is the Side Wall Trailer Best Suited For?
This trailer is ideal for hauling bulk cargo such as bagged commodities, packaged goods, construction materials, agricultural products, and more.
Its side wall design helps contain loose or uneven cargo, preventing spillage and making loading/unloading more efficient for logistics companies, construction firms, mining operations, and freight transporters.
What are the Key Features & Engineering Advantages of 3 Axles 60 Tons Side Wall Trailer?
Superior Load-Bearing Structure
Triple-Beam Frame Design

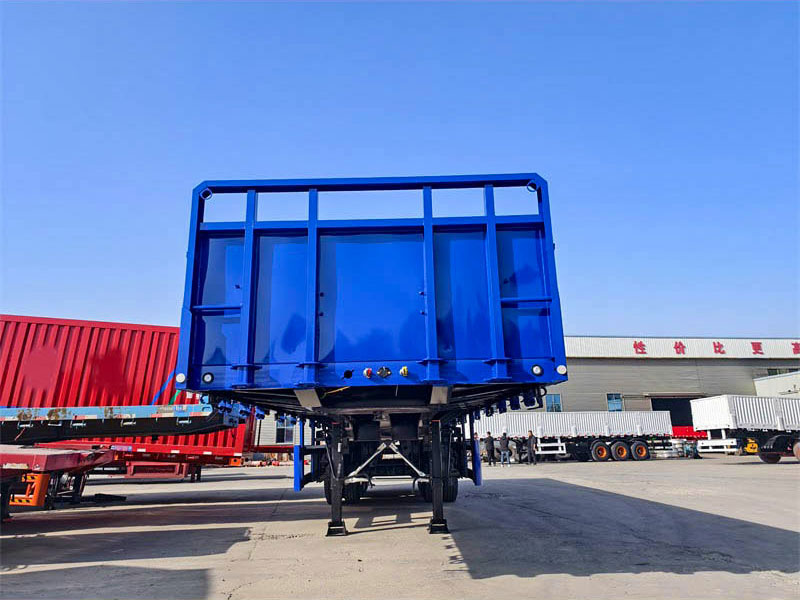

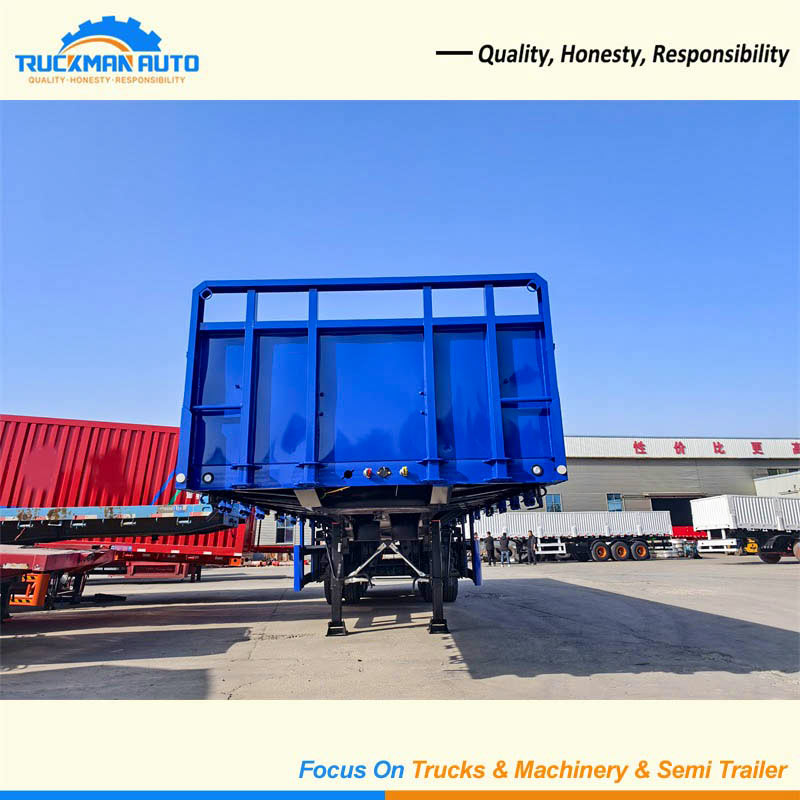

The trailer features a high-strength steel frame with a rationally engineered longitudinal and transverse beam structure. This triple-beam design distributes weight evenly and significantly enhances overall load-bearing capacity and structural integrity.
Heavy-Duty Axle Configuration
Equipped with three robust 16-ton ZY brand axles, this setup provides a solid foundation for heavy loads. The multi-axle system increases stability and ensures compliance with road weight regulations during bulk transport operations.
High-Performance Components for Reliability
Enhanced Tire System

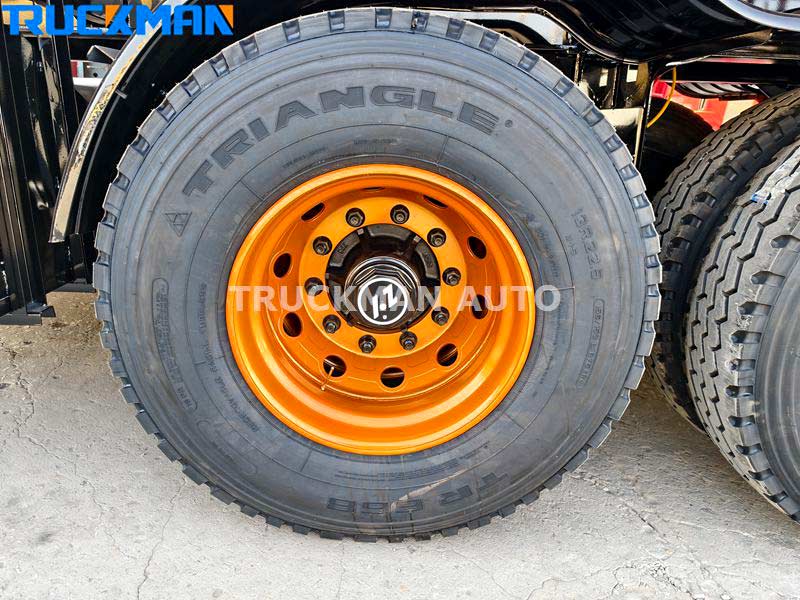

Fitted with 12 pieces of 13R22.5 TRIANGLE brand tubeless tires. These wide-section tires feature a high-strength steel wire construction, thickened carcass, and wear-resistant tread compound. They offer a larger contact patch, reducing ground pressure for better flotation and are built to withstand complex road conditions and frequent start-stop cycles.
Premium Braking & Suspension
Incorporates a reliable WABCO brand brake system for consistent and safe stopping power under heavy loads. Paired with a heavy-duty suspension system, it ensures stability, protects cargo from excessive vibration, and improves vehicle handling.
Practical Design for Bulk Materials

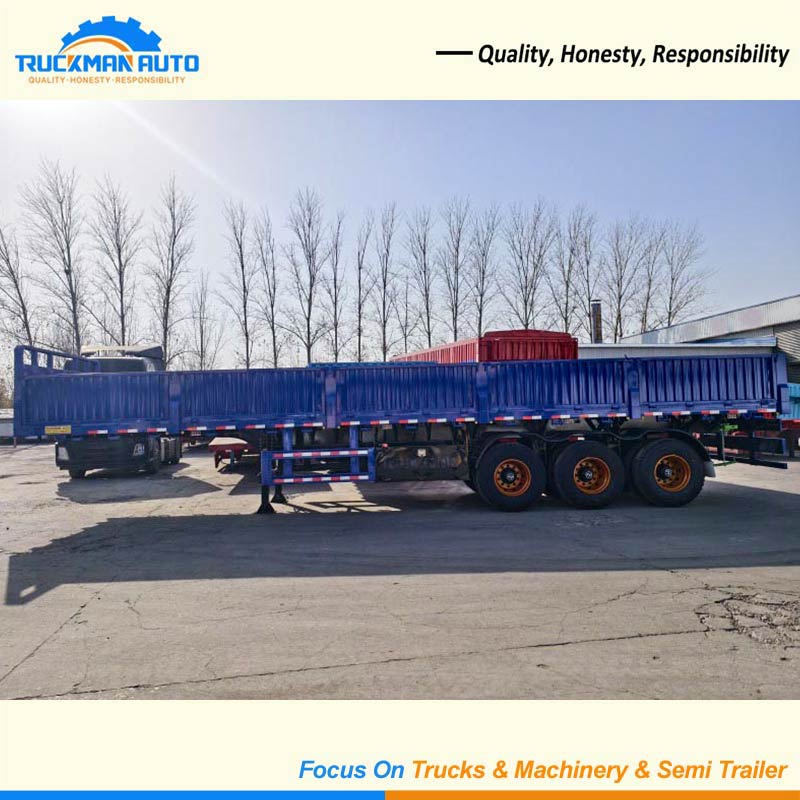

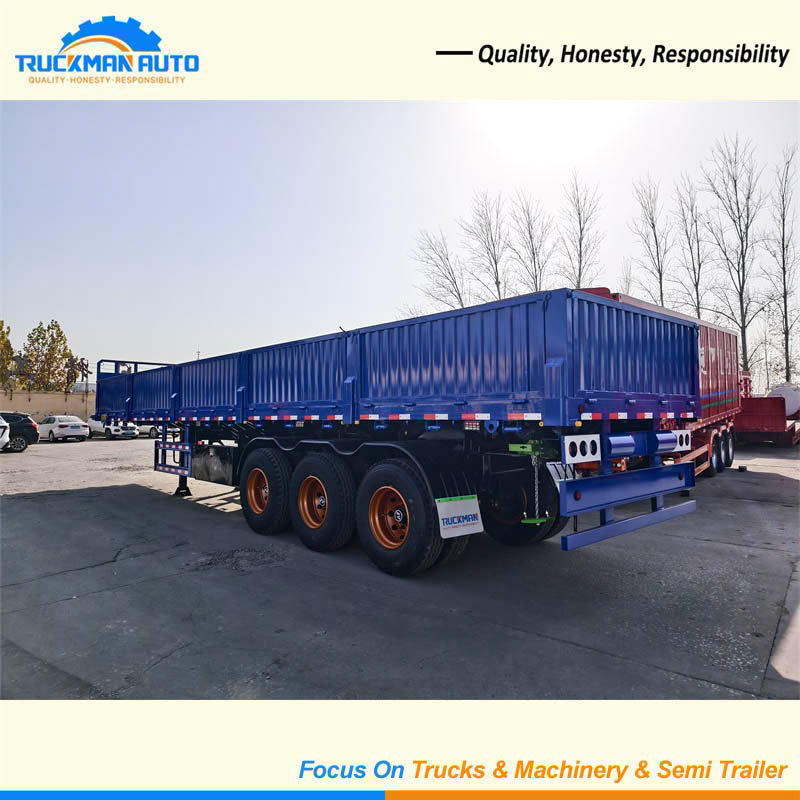

Fixed Side Walls
The sturdy side walls are ideal for containing loose bulk materials, preventing spillage during transit, and facilitating faster loading and unloading compared to flatbed trailers.
Optimized Dimensions
With an overall size of 12500x2500x2450mm, the trailer offers a substantial cargo volume, making it highly efficient for large-scale transportation projects.
Detailed Technical Specifications
The table below outlines the core technical specifications of the 3 Axles 60 Tons Side Wall Trailer.
| Category | Specification |
| Product Name | 3 Axles 60 Tons Side Wall Trailer For Bulk Transportation |
| Model | TKM360SWT |
| Overall Dimension | 12500 x 2500 x 2450 mm |
| Loading Capacity | 60,000 kg (60 Tons) |
| Axle Configuration | 3 Axles |
| Axle Type & Capacity | ZY Brand, 3 x 16 Tons |
| Tire Specification | 13R22.5, Tubeless (12 pieces), TRIANGLE Brand |
| Suspension | Heavy Duty Suspension |
| Brake System | WABCO Brand |
| Primary Application | Bulk Cargo Transportation (e.g., Grains, Coal, Sand, Aggregates) |
Note: The above specifications are for the standard reference model. We provide customization services and can recommend other trailer models (e.g., 70-80 ton payloads) based on your specific cargo type, regional road regulations, and operational requirements.
JINAN TRUCKMAN AUTOMOBILE CO., LTD was founded in 2018, it is dedicated to the R&D, production and sales of various semi-trailers and full trailers, and is your trusted first-choice partner.
You can contact us directly to receive full specifications, pricing, and shipping solutions.
We will recommend the most suitable configuration based on the local market conditions in your area.
Related Semi Trailer You May Be Interested In
Truckman 3 Axles 80 Tons Side Wall Trailer
Truckman 3 Axles 25000 Liters Liquid Nitrogen Semi Trailer Industrial Gas Tanks
Why Should You Choose a 60 Tons Side Wall Trailer?
You should choose this 60-ton side wall trailer because it provides a high payload capacity, rugged structural design, and reliable components from quality brands, making it suitable for heavy-duty freight transport.
It balances cost-effectiveness, cargo safety, and operational efficiency — ideal for commercial fleets and industrial cargo applications in regions like Liberia, Africa, and emerging markets.
How can I choose the correct semi-trailer type based on the local actual situation?
Please visit Guide To Bulk Transport Semi-trailer Types to learn how to correctly choose your semi-trailer type.
Frequently Asked Questions (FAQ)
Q1: How much can this side wall trailer carry?
The 3 Axles Side Wall Trailer is designed to carry up to 60 tons of cargo, thanks to its three-axle configuration and reinforced structure.
Q2: What is the standard delivery time for this trailer?
Standard delivery typically takes 25–35 days, with custom configurations requiring slightly longer.
Q3: Do you provide after-sales support and spare parts?
Yes — global after-sales support and spare parts supply are available.
Q4: How can I get a quote for this trailer?
You can request an FOB, CIF, or DAP quotation by contacting via WhatsApp, email, or website inquiry form.
