Introduction



This side wall trailer is the most widely sold cargo transport trailer in West African markets, including Ghana, Liberia, and Burkina Faso.



The side wall trailer features a design with steel side panels that can be detached or folded down on three sides, while its low-platform structure facilitates rapid loading and unloading.



It is particularly well-suited for transporting cash crops in Burkina Faso, such as sorghum, cotton, and peanuts.

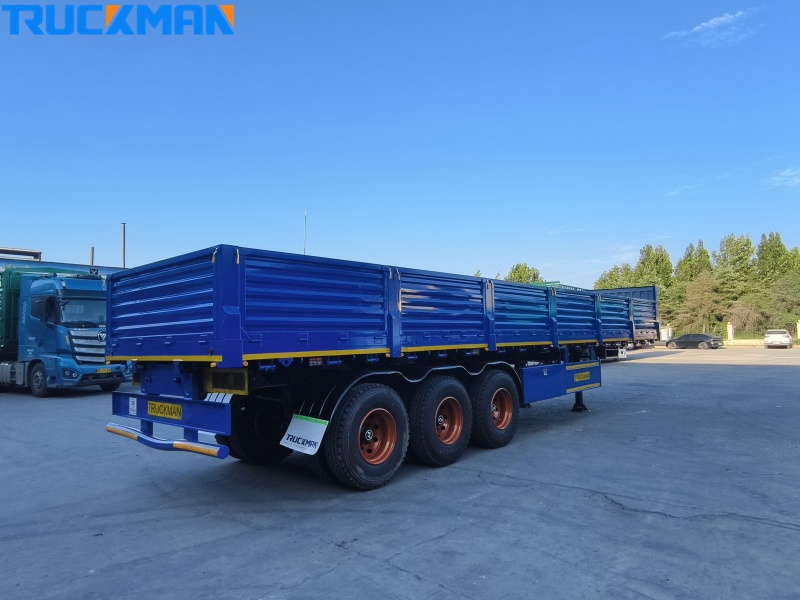

What Is A 3 Axles Side Wall Trailer ?



With a load capacity of 60 tons, this semi-trailer is ideally suited for short- to medium-distance transport; combining high load-bearing capacity with ease of operation, it offers a cost-effective and efficient solution for logistics and transportation.



Compared to other trailers, TRUCKMAN versions feature:



●High-strength steel

●Innovative design

●High load-bearing capacity



These features enable the trailer to be suitable for various working environments.





Technical Specifications



Description	Parameter Value
Product Name	Brand New 3 Axles 60 Tons Side Wall Trailer
Application	Bulk cargo transport
Axle	3 Axle, 3x16 tons, ZY brand
Tire	13R22.5, 12 pcs, TRIANGLE brand
Suspension	Heavy duty suspension
Brake System	WABCO brand
Loading Tons	60,000kg
Overall Dimension	12500x2580x2450mm



How Can The Long-Term Service Life Of The Trailer Be Insured?



1.Reinforcement Design



The following components feature a reinforced design:

●Chassis with four main beams

●Reinforced suspension

●Reinforced outriggers



Compared to the standard two-beam design, the four-beam configuration offers greater structural integrity, while the reinforcement enhances load-bearing capacity.



2.Tire



The trailer is equipped with 13R22.5 tires featuring:



●Robust carcass

●Wide tread design

●Good heat dissipation performance



These tires offer high load-bearing capacity and excellent heavy-load performance, making them suitable for the unpaved roads found in many parts of Africa.



3.Steel



This trailer is constructed from high-strength steel:



●Lightweight

●High load-bearing capacity

●Resistant to deformation



It maintains superior load-bearing capacity while reducing its own weight.

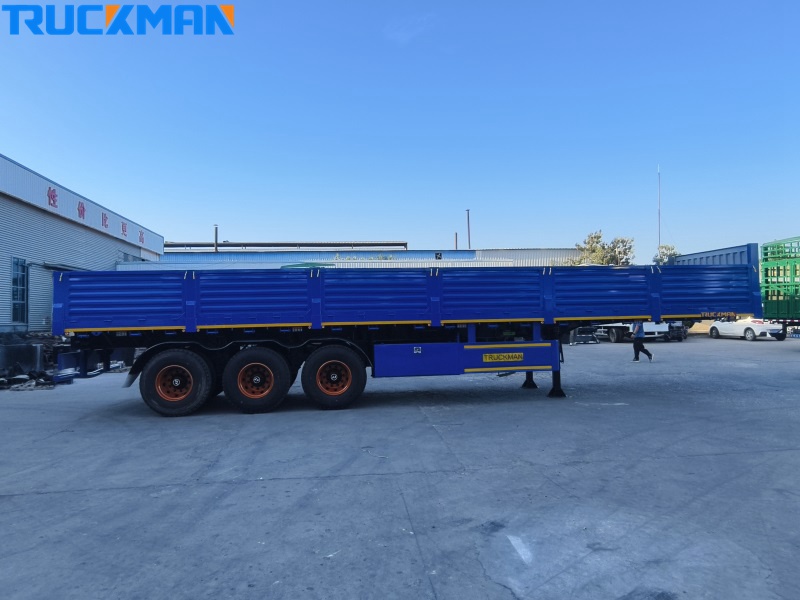

60 Tons vs 80 Tons Side Wall Trailer Comparison



Model	60 Tons	80 Tons
Fuel Consumption	Lower	Higher
Purchase Cost	Lower	Higher
Load-bearing Capacity	Good	Excellent
Maintenance Cost	Lower	Higher



For most cargo transportation, 60 Tons side wall trailer provides better cost-performance balance.



Transport Efficiency Cost Model (Example):



Assuming:

● Distance: 45 km per trip

● 2 trips per day

● Diesel consumption: 35L/ 100km

● Diesel price: $1.2/L

Estimated daily fuel cost:

=37.8 USD per day

Over one year, optimized route planning can reduce cost by 7-11%.



Export Case



Country: Burkina Faso

Client Type: Transportation company

Quantity: 3 Units

Application: Cargo transportation

Feedback:After 15 months of operation, no issues have occurred.

For more information, please visit Brand New 3 Axles 60 Tons Side Wall Trailer To Burkina Faso



Frequently Asked Questions



Q1: What Is The Price Of a Side Wall Trailer?



Price varies by configuration, carrying capacity and shipping destination. Contact Us for an FOB, CIF, or CFR quotation.



Q2: How Long Does Shipping Take To Africa, Southeast Asia, Or South America?



Standard delivery is 25-35 days.Customized modules may require 35-45 days.



Q3: What Is Mini Quantity For A Order?



Minimum order for one unit.



Q4: Do You Provide After-Sales Service And Spare Parts Support?



Yes, we offer global spare parts supply, technical support.



Q5: How Can We Get The Price Of A Trailer?



Sent us a inquiry on the website or contact us by Whats app and then we will share you a quotation according to your requirement.
