With the rapid development of mining industry in West Africa, Guinea has become the core area of global mining investment with rich iron ore and bauxite resources, and the demand for mining transportation continues to rise. For short-distance transshipment within the mining area and long-distance transportation from the mine to the port, the selection of the right type of transportation vehicle directly determines the cost control and profit margin of the mining project.

Many mining contractors are faced with the central dilemma:



How to choose between a dump truck and a tractor + dump semi-trailer?

Which model combination is more suitable for Guinea's working conditions?

How to ensure the stable operation of vehicles under complex road conditions?



Once choosing the wrong model, it may lead to:



High fuel consumption cost

Frequent vehicle maintenance

Low transportation efficiency

Project profit is seriously compressed



Based on the actual road conditions, transportation distance and mining characteristics in Guinea, this article carries out a systematic technical analysis of dump trucks, tractor trucks and dump semi-trailers to provide targeted model selection suggestions to help mine transportation projects to achieve the optimization of both efficiency and cost.

---



1. Characterization of The Transportation Environment in Guinea's Mining Areas



1.1 Geography and Road Conditions



Guinea's iron ore and bauxite mining areas are mostly located in inland and mountainous areas, and the road conditions are extremely challenging as follows:



Unpaved roads account for a high proportion of the road surface, with a lot of gravel and poor smoothness.

During the rainy season, the roadbed is softened seriously by precipitation, and it is easy to be muddy and slippery.

Some of the mountainous road sections have large slopes, and the requirements for the vehicle's ability to climb slopes and braking are severe.



The demand for long-distance road transportation from mines to ports is prominent, testing the ability of vehicles to sustain operations.



1.2 Structure of Mineral Species



Guinea's mineral species are mainly iron ore and bauxite, with significant differences in characteristics and different requirements for transportation vehicles.



Iron ore





Iron ore has a high density, which puts great pressure on the load of a single vehicle. Taking Simandou iron ore mine as the core representative, the mine is located in the Simandou mountain range of Kerouane prefecture in southeastern Guinea, about 700km away from the port of Conakry, with a proven reserve of 4.4 billion tons and an average iron grade of more than 65%, one of the world's best-quality hematite iron ore mine, which was formally put into operation in November 2025, pushing the demand for transportation of Guinean iron ore to grow on a large scale.

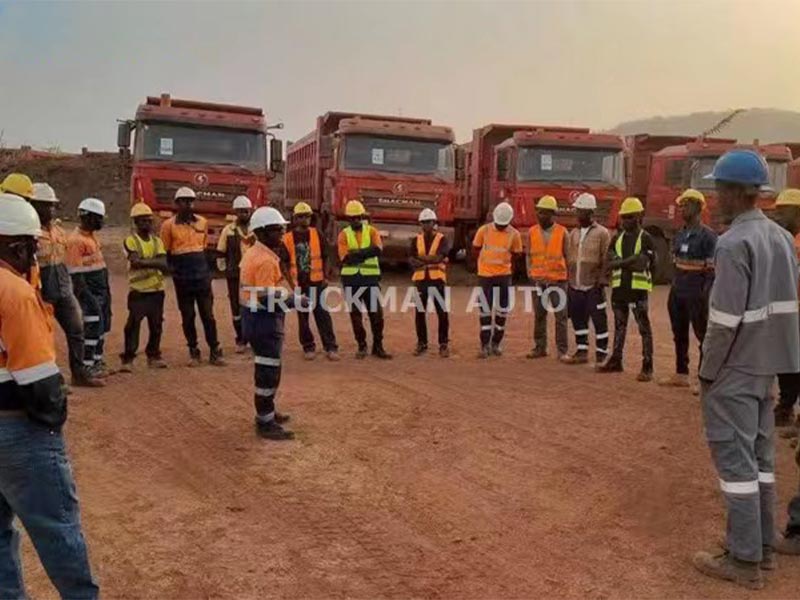

Bauxite





Bauxite is large in volume and high in transportation frequency. Guinea's proven bauxite reserves exceed 40 billion tons, accounting for more than one-third of the world's total reserves, and production will reach 175-180 million tons in 2025, making it the world's largest producer and exporter, with exports accounting for 85% of the country's total exports.



1.3 Analysis of Guinea's transportation industry



Guinea is rich in mineral resources, and many powerful Chinese enterprises are jointly participating in the mineral development in Guinea, such as Aluminum Corporation of China, Winning International Group, etc. The transportation industry associated with the mineral industry is also developing rapidly.

In order to ensure the transportation of minerals, the number of heavy-duty trucks exported to Guinea by Chinese automobile enterprises has been increasing. According to the industry statistics from the General Administration of Customs of the People's Republic of China and China Association of Automobile Manufacturers (CAAM) and other organizations, from 2023 to 2025, SINOTRUK (HOWO) exported more than 3,000 heavy-duty trucks to Guinea, with the market accounting for about 40%, while Shaanxi Automobile Group (SHACMAN) exported about 2,800 units, accounting for about 35% of the market,  from the point of view of Guinea's heavy-duty trucks, Chinese brand heavy-duty trucks accounted for more than 85%. Popular Chinese brands such as SINOTRUK HOWO and SHACMAN dominate Guinea mining transport market.



Comparison Table of Core Vehicle Companies and Main Models

Vehicle Manufacturer	Core Models	Key Configurations	Application
SINOTRUK	HOWO Dump Truck	6X4 / 380-430 HP	Bauxite short-haul trans-shipment, Conakry port infrastructure
	HOWO Tractor Truck	6X4 / 380-430 HP	Container, heavy haul, rail/public transport
SHACMAN	F3000 Dump Truck	6X4 / 430 HP	Trans-Guinean Railway(CTG) (sleeper/bridge transportation), bauxite mine transshipment
	F3000 Tractor Truck	6X4 / 430 HP	Container, heavy haul, rail/public transport

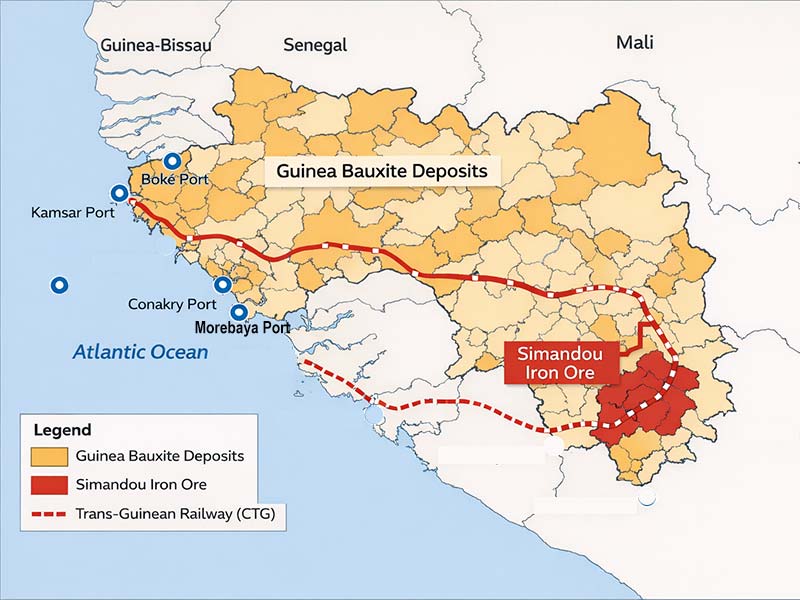

1.4 Analysis of mineral transportation links in Guinea



Comparison table of the full link between bauxite and Simandou iron ore mines in Guinea

Items	Simandou Iron Ore	Guinea Bauxite
Core Production Area	South-eastern Guinea, deep inland and far from the coast	NW Boké near the coast
Main Modes of Transportation	Mining → Heavy railroads → Specialized ports → Ocean shipping	1. Mining area → railroad → port 2. Mining area → road → inland waterway terminal → barge → ocean-going
Inland Transportation	Trans-Guinean Railway(CTG)	Narrow-gauge railroads + heavy-duty highways
Main Export Ports	Morebaya Port	1. Kamsar Port 2. Boké Port / Nunez River Marina 3. Conakry Port



Simandou Iron Ore: Extremely heavy-duty, off-highway, long-distance railroads dominate, trucks are only responsible for short dumps within the mine.

Bauxite: no full coverage railroads, trucks are the lifeblood of the chain as it is entirely dependent on trucks to get the ore to the ports / terminals.





An analysis of Guinea's geographic road conditions, types of mines, transportation industries, and transportation links has led to the conclusion that mining transportation vehicles in Guinea must have:



High strength chassis structure.

Strengthened drive axle carrying capacity.

Stable high temperature heat dissipation performance.

Good passability.



with these four core features in order to be able to adapt to the local operating environment.

---

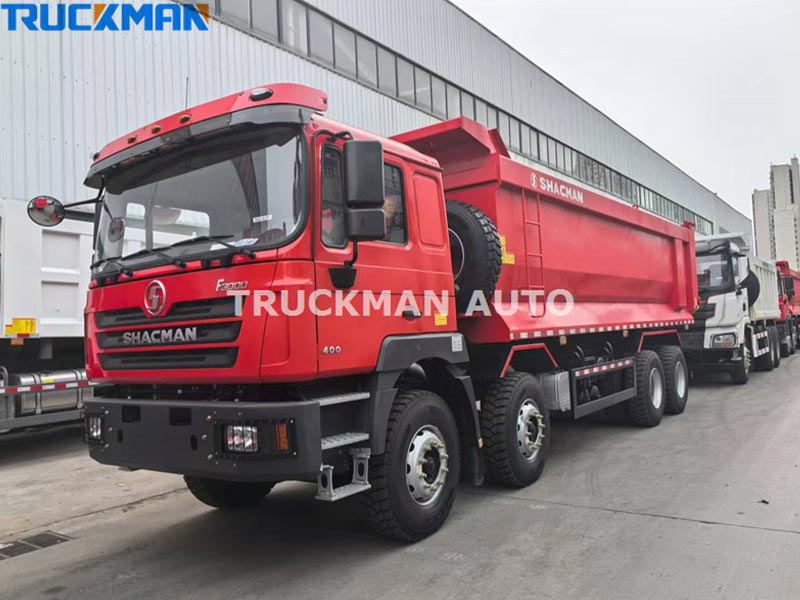

2. Analysis of The Suitability of Dump Trucks for Internal Transportation in Mines



2.1 Technical Features



Dump trucks adapted to mining areas in Guinea all adopt heavy-duty configuration, typically in 6x4 or 8x4 drive mode, with a rated load of 30-50 tons, and equipped with reinforced frame and heavy-duty steel plate suspension, which can withstand the impact of complex road surfaces and the pressure of heavy loads.





2.2 Advantages of Engineering Adaptation



The body structure is integrated, with strong rigidity and outstanding deformation resistance.

Small turning radius, flexible operation, adaptable to the narrow and complex operating conditions in mining areas.

Simple structure of the whole vehicle, convenient maintenance system, locally can complete the basic maintenance, reduce the downtime for overhauling.



2.3 Scope of Application

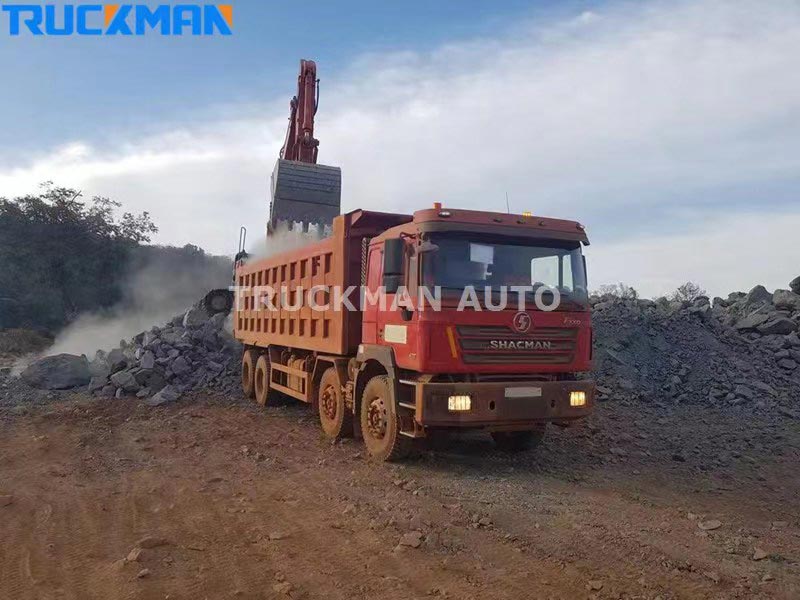

Core for short-distance transportation within the mining area, earthworks, quarry operations and other scenarios, when the transportation distance is controlled within 50 kilometers, dump trucks have significant advantages in terms of operational stability and investment risk control, and they are the main truck for ore transfer within the mining area in Guinea.



---



3. Technical Advantages of Tractor Truck in Medium and Long Distance Transportation



Tractor truck, as an independent power unit, needs to be used in combination with tipping semi-trailer, which is the core choice for medium and long-distance transportation from mine to port in Guinea.



3.1 Recommended Technical Parameters



Priority is given to the 6x4 drive mode, equipped with 371-430 HP engine with high torque output, and heavy-duty rear axle, which can balance power and carrying capacity.

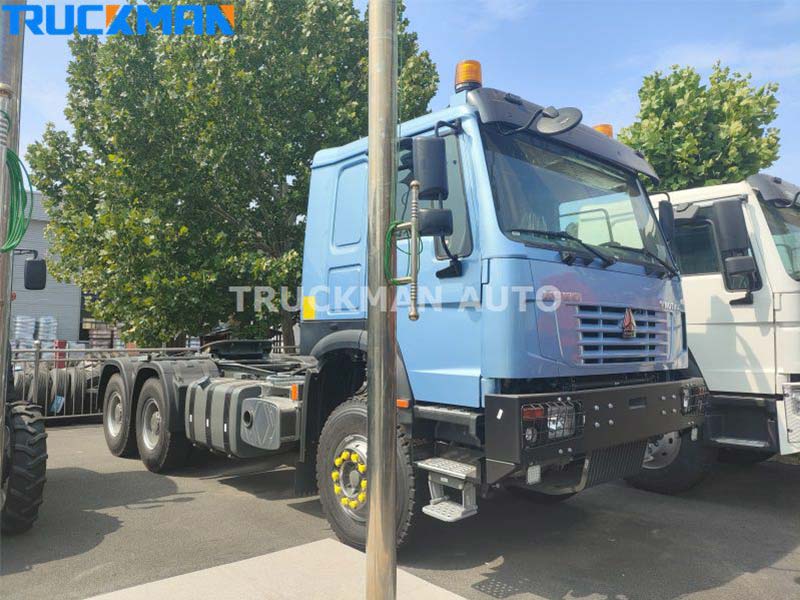

SINOTRUK HOWO 6X4 Tractor Truck

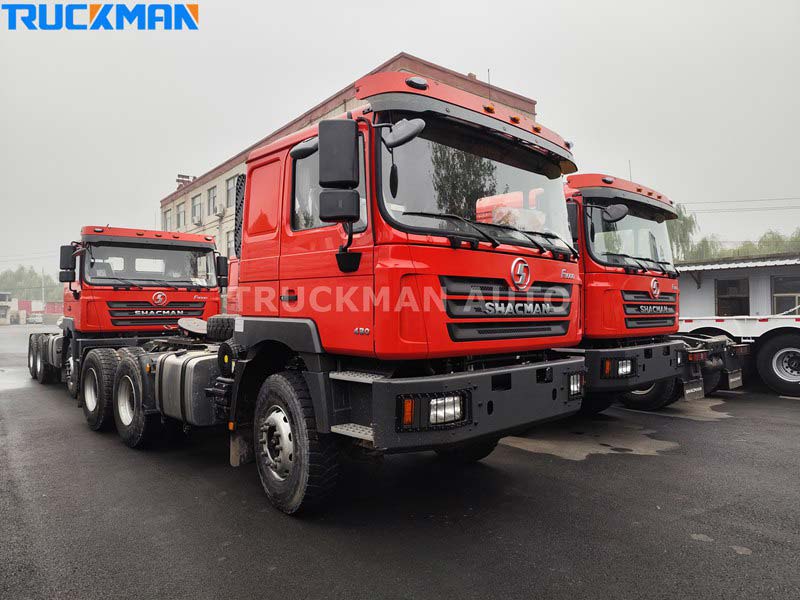

SHACMAN F3000 6X4 Tractor Truck



3.2 Technical Advantages



Power reserve is more abundant, which can easily cope with mountainous climbing and heavy load starting demand, and has strong continuous operation ability.

Fuel consumption control is better, and high torque and low rotational speed design significantly reduces fuel consumption in long-distance transportation.

It is specially designed for long-distance transportation on highway, and it is suitable for paved highway routes from mines to ports, and its fuel economy and operation efficiency are far better than that of tipper trucks.

---

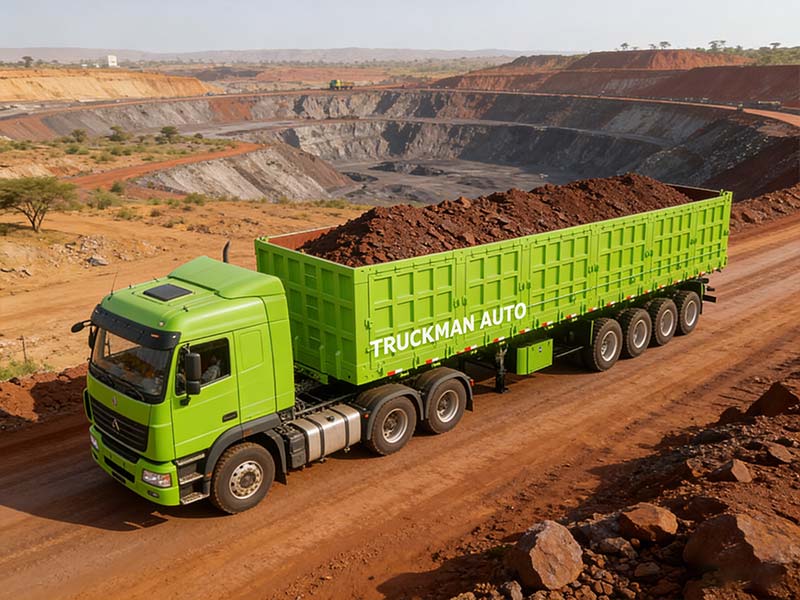

4. Efficiency Advantages of Self-dumping Semi-trailer in Scale Transportation



4.1 Typical Specifications



Mainstream 3-axle or 4-axle structure, with a transport capacity of 80-120 tons, adopting high-strength box design, strong anti-wear and anti-deformation ability, suitable for heavy-duty ore transportation needs. Among them, the 4-axis configuration is more outstanding in terms of structural safety in the transportation of high-density minerals such as iron ore.

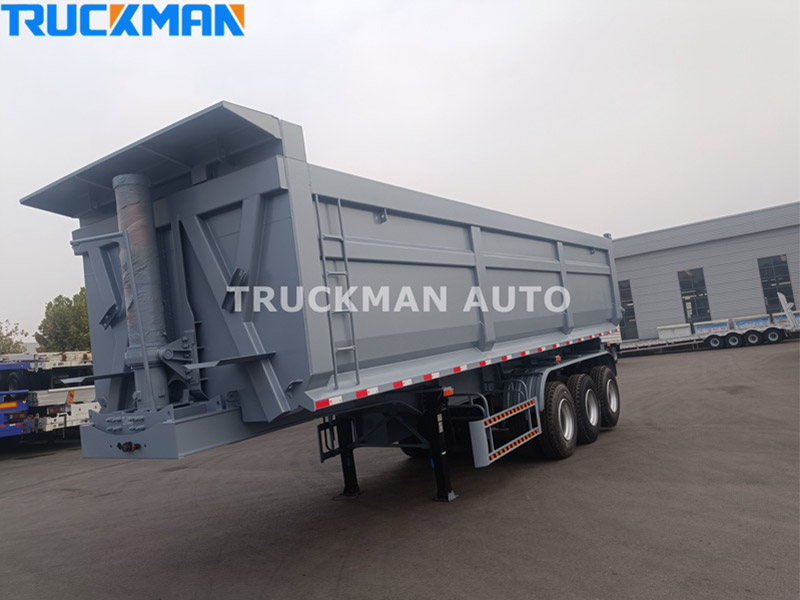

3 axle 80 tons dump semi-trailer

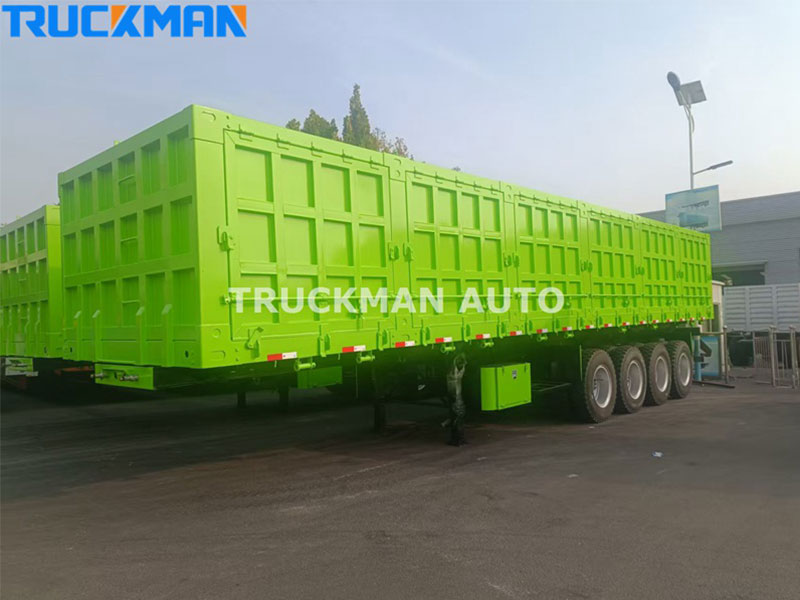

4 axle 120 tons dump semi-trailer



4.2 Technical Advantages



The single transport volume is 2-3 times of dump trucks, which can significantly improve the efficiency of large-scale transportation.

Large load capacity brings scale effect, effectively dilutes the cost of labor, fuel, road and bridge, and significantly reduces the cost of single-ton transportation.

Adapts to the needs of high-frequency and large-scale transportation, and the hydraulic lifting and unloading system is easy to operate and fast in unloading, which improves the turnover efficiency of the vehicle.



---



5. Comparative Analysis of Model Combinations



In the selection of mining transportation in Guinea, the core decision lies in the use of dump truck alone or the combination of tractor truck + dump semi-trailer, and there are significant differences between the two in terms of load capacity, throughput, economy, etc. The specific comparison is as follows:



Technical Dimension	Dump Truck	Tractor + Dump Semi-Trailer
Single load	30-50 tons, suitable for short distances and small quantities	80-120 tons, suitable for medium and long-distance high-volume transportation
Drive Mechanism	Unibody with high structural rigidity	Split construction, separation of power and cargo unit
Passability	Extremely strong, suitable for unpaved, narrow, steeply sloping internal mine roads	Dependent on road conditions, performs well on paved roads, needs to be optimized for unpaved roads
Long Distance Economy	High fuel consumption for long-distance transportation, high cost per ton	Large load capacity dilutes costs and engine fuel consumption is better controlled
Scale of Investment	Low acquisition cost for a single vehicle, low upfront investment	Tractor + semi-trailer double vehicle purchase, the initial investment is large, but the later high returns
Maintenance Difficulty	Low difficulty, simple structure, foundation maintenance can be done locally	Separate maintenance for power and cargo units, core components require specialized maintenance



From the perspective of system operation, the selection of transportation vehicles for Guinea's mines can follow the core principles:



 For short-distance transportation within 50km, dump truck are more stable.

 For medium and long-distance transportation of more than 50km, the combination of tractor truck + dump semi-trailer is more efficient and less costly.

---



6. Selection of Core Technical Indicators Proposed



Combined with the operating environment of mining areas in Guinea, the selection of five core technical indicators to focus on, to ensure stable operation of the vehicle:



Frame strength: give priority to thickening the double-layer beam structure, to enhance torsion and impact resistance.

Drive Axle Carrying Capacity: the choice of heavy-duty axle configurations, to cope with the pressure of the load of high-density minerals.

Engine Torque Curve: high torque and low speed design, which is conducive to the heavy duty Engine torque curve: high torque and low rotational speed design, which is good for heavy-duty starting and climbing, and reduces fuel consumption.

Heat Dissipation System Design: stable high-temperature heat dissipation performance is required to meet the demand of continuous operation in tropical areas.

Braking System Reliability: mountainous road conditions have high braking requirements, and it is necessary to ensure the stability of the braking system to enhance operational safety.

---



7. Suggestions on technical matching for different kinds of ore transportation



Iron ore transportation

Recommended configuration: 6x4 high-horsepower tractor + 4-axle dump semi-trailer.

Matching reason: high density of iron ore, strict requirements on axle, braking system bearing and stability, 4-axle semi-trailer can disperse the load and improve the safety of the structure, and the power reserve of high-horsepower tractor can meet the demand of long-distance heavy-duty transportation.



Bauxite transportation

Inside the mining area: 8x4 dump truck, suitable for the characteristics of large volume and quick turnover of bauxite, flexible operation, and improving the efficiency of short-distance transshipment.

Port transportation: 6x4 tractor + 3-axle semi-trailer, balancing the load and transportation frequency, taking into account the economy of long-distance transportation and the roadability, and matching the needs of bauxite outbound transportation on a large scale.

---



8. Systematic Thinking is Better than Single Vehicle Selection



In Guinea's mining transportation system, a single vehicle model can't meet the demand of the whole process of transportation. Vehicle selection needs to be based on the comprehensive consideration of the five core factors: transportation distance, daily transportation volume, ore density, road structure, and project cycle, so that we can abandon the thinking of a single model selection and adopt the design of systematic transportation solutions.

According to the actual situation of the project, the combination of dump truck and tractor + dump semi-trailer can be reasonably matched to realize the efficient connection between short-distance transit within the mine and long-distance port transportation, which can not only guarantee the flexibility of short-distance transportation, but also give full play to the scale advantage of long-distance transportation, and ultimately achieve the balance between efficiency and cost.



Professional Recommendations



Before the actual project starts, it is recommended to complete four core tasks:

Carry out transportation route survey, clarify the road conditions, gradient and other key information.

Accurately measure the daily transportation volume, matching the model load and quantity.

Establish fuel consumption model analysis, measure the fuel consumption of single-ton transportation, and control the cost.

Evaluate the payback cycle, taking into account the initial investment and the later return.

Through the scientific selection process, we can significantly improve the stability and economy of Guinea mine transportation system.



If you have the demand for vehicle configuration for Guinea mine project, you can provide specific project parameters, and we will provide you with professional vehicle technology matching analysis and customized transportation system program design support.

---



9. Choose a reliable exporter



African mining contractors often face difficulties in choosing brands and suppliers when purchasing mining transportation equipment such as dump trucks, tractor trucks and semi-trailers. Choosing the wrong one can easily lead to the lack of after-sales service, no guidance for maintenance, and untimely spare parts, resulting in vehicle downtime and additional economic losses, which makes the already complicated mining transportation operation even worse.

As a professional exporter of Chinese heavy trucks, JINAN TRUCKMAN AUTOMOBILE CO., LTD is a reliable choice for mining transportation equipment in Guinea. We have the formal export authorization of SINOTRUK (CNHTC), SHACMAN, BEIBEN and other domestic leading heavy truck brands, and we can provide a full range of compliant dump trucks and tractor trucks, and we also independently produce semi-trailers to meet the demand of heavy loads in mines, so as to realize the integration of the supply of complete trucks and trailers with the supporting facilities.



---



FAQ



1. What type of truck is best for mining in Guinea?

For short-distance transport inside mines in Guinea, heavy-duty dump trucks (6x4 or 8x4) are more suitable due to strong passability.
For medium and long-distance transport (over 50km), tractor truck + dump semi-trailer combinations are more cost-effective.



2. Is a dump truck or tractor trailer better for bauxite transport in Guinea?

For bauxite mining areas such as Boké, dump trucks are ideal for internal mine transfer.
For transport to ports like Port of Kamsar, tractor + 3-axle dump semi-trailer is more efficient.



3. What truck configuration is recommended for Simandou iron ore?

For Simandou iron ore projects, a 6x4 high-horsepower tractor truck with a 4-axle dump semi-trailer is recommended due to high ore density and long-distance requirements.



4. Which Chinese truck brands are popular in Guinea mining?

Popular brands include:

SINOTRUK (HOWO series)

SHACMAN (F3000 series)

Chinese heavy trucks account for more than 80% of the Guinea mining transport market.
