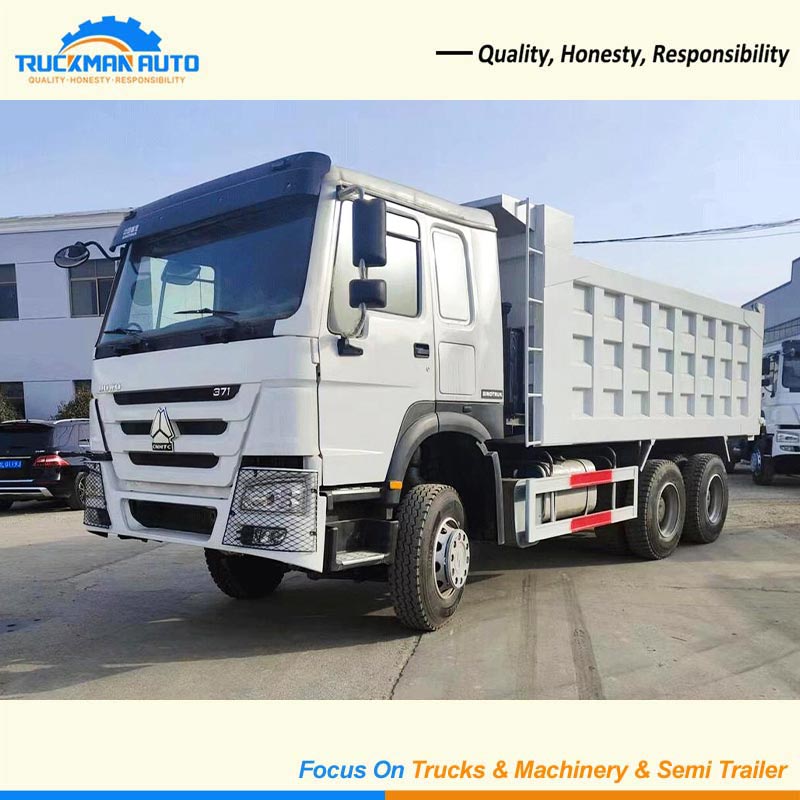

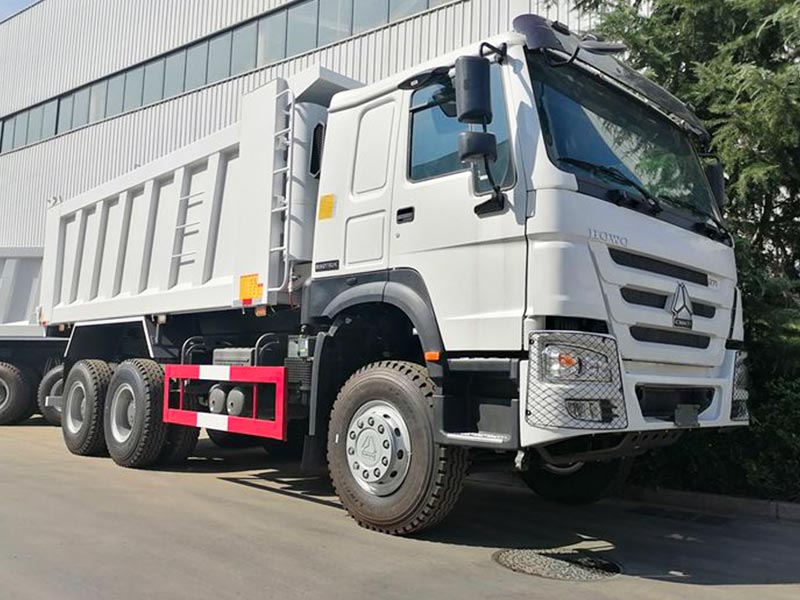

SINOTRUK HOWO 371HP 6x4 Dump Truck: Robust and Efficient Heavy-Duty Tipper



The SINOTRUK HOWO 371HP 6x4 Dump Truck is engineered as a powerful and reliable solution for demanding construction, mining, and quarrying operations. With its robust 6x4 all-wheel-drive configuration, powerful 371HP EURO III engine, and durable tipping mechanism, this truck is built to excel in tough Philippine terrains—handling earth, sand, gravel, and demolition materials with maximum efficiency and uptime.



---



What Is the SINOTRUK HOWO 371HP Dump Truck Used For?



The HOWO 371HP Dump Truck can carry around 25–30 tons of material, it is used mainly for:



Mining Work

Construction Material Transport

Heavy Haulage Operations

Earthmoving

Quarrying Engineering

Infrastructure Projects



---



What Are The Key Features And Advantages Of HOWO 371 HP 6x4 Dump Truck?



Powerful & Environmentally Compliant Powertrain



High-Performance Engine

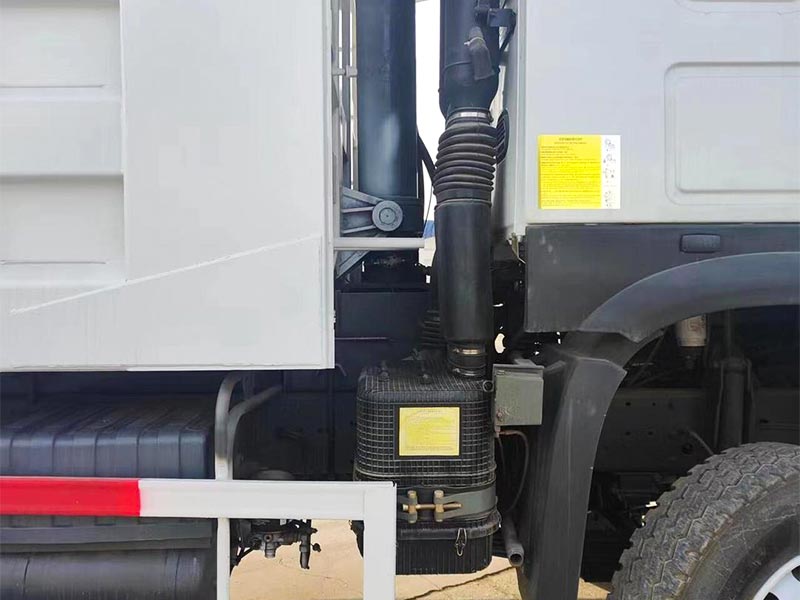

Powered by a WD615.46 diesel engine, delivering 371 horsepower (273 kW) at 2200 rpm and a substantial 1570 N·m of torque at 1300-1500 rpm. This provides exceptional pulling power for fully-loaded climbs and acceleration on site.



EURO II Compliance

Meets EURO II emission standards, balancing strong performance with responsible environmental consideration, making it suitable for regions with evolving regulations.



Durable Transmission

Equipped with the HW19710 10F+2R manual transmission and a high-strength double-reduction rear axle, designed to reliably handle shock loads and sustained stress in heavy-duty dumping cycles.





Superior Load-Bearing & Chassis Strength

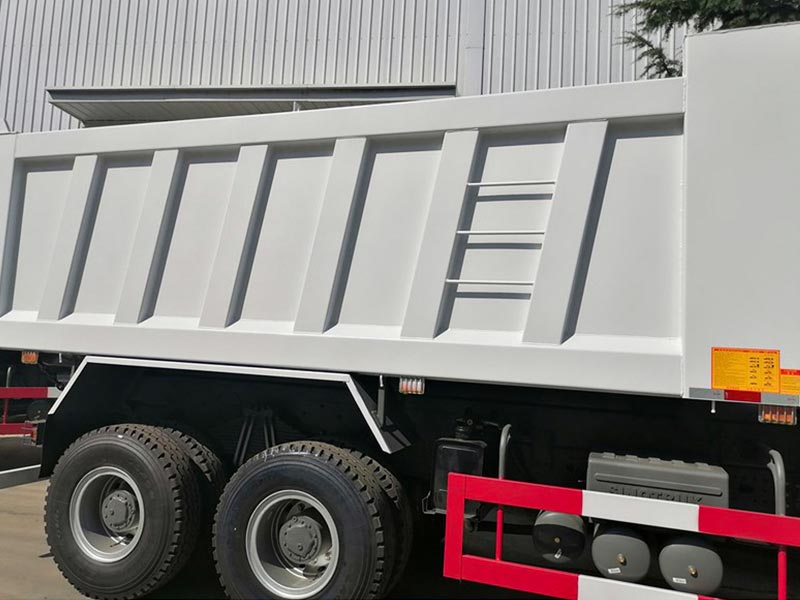

Heavy-Duty Chassis & Axles

The core of the truck is its reinforced ladder-type frame and powerful axle configuration. The front axle boasts a 7-tons capacity, while the dual rear axles provide a massive 20-tons capacity, forming an ultra-stable platform for the 20-25 tons’ payload.



Optimized Dumping Mechanism

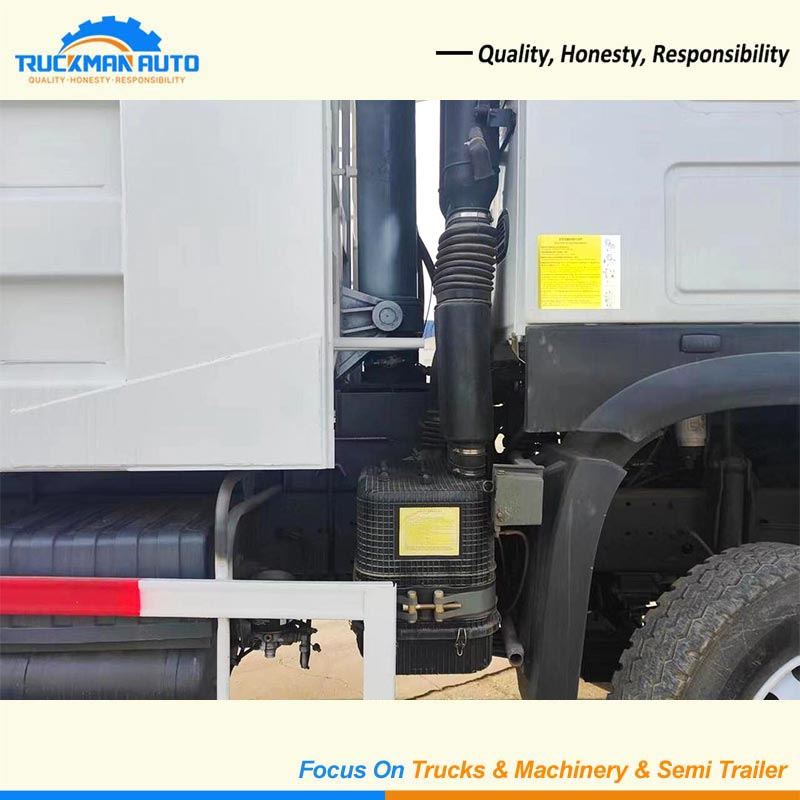

The front-mounted hydraulic tipping cylinder provides a smooth and powerful lift. Coupled with a durable steel body, it ensures fast, reliable unloading of even cohesive materials like wet clay.



High-Capacity Fuel System

A large 300-liter fuel tank supports extended operational hours, minimizing downtime for refueling and boosting job site productivity.



Operator-Focused Design for Harsh Conditions



All-Wheel Drive Traction

The 6x4 drive configuration ensures superior traction and power delivery on loose, muddy, or uneven ground commonly found on construction sites and in quarries, preventing wheel spin and getting the job done.



Comfortable & Functional Cabin

The cabin is designed for operator efficiency during long shifts. It features a functional design with good visibility and basic amenities to reduce fatigue, contributing to safer operation.



Rugged Construction

From the reinforced cargo body to the robust undercarriage, every component is selected and built to withstand the impacts, vibrations, and abrasion of heavy-duty material transport.



---



Detailed Technical Specifications



Category	Specification
Product Name	SINOTRUK HOWO 371HP 6x4 Dump Truck
Model	ZZ3257N3847A
Application	Mining & construction haulage
Payload Capacity	20-25 Tons (approx.)
Dimension (L×W×H)	8500 × 2580 × 3450 mm
Engine Model	WD615.47
Power Output	371 HP (273 kW) @ 2200 rpm
Max Torque	1570 N·m @ 1300-1500 rpm
Emission Standard	EURO II
Transmission	HW19710, 10 forward + 2 reverse
Drive Configuration	6x4 (All-Wheel Drive)
Front Axle Capacity	7 Tons
Rear Axle Capacity	20 Tons (Double Axle)
Fuel Tank Capacity	300 Liters
Tire Specification	12.00R20 (10 +1 pieces)
Brake System	Dual-line air brakes
Cargo Box Volume	About 20 m³

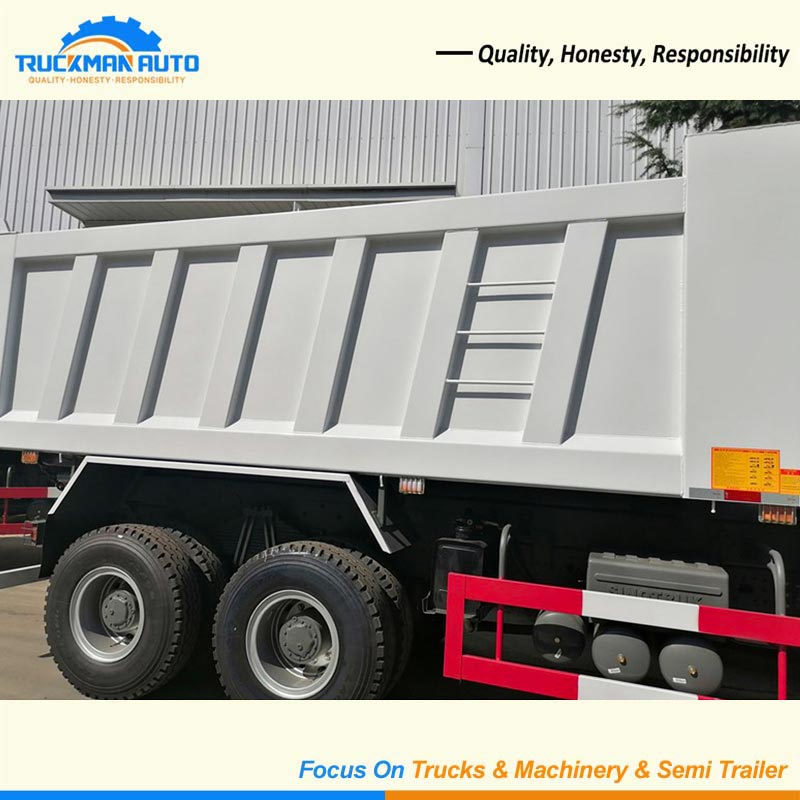

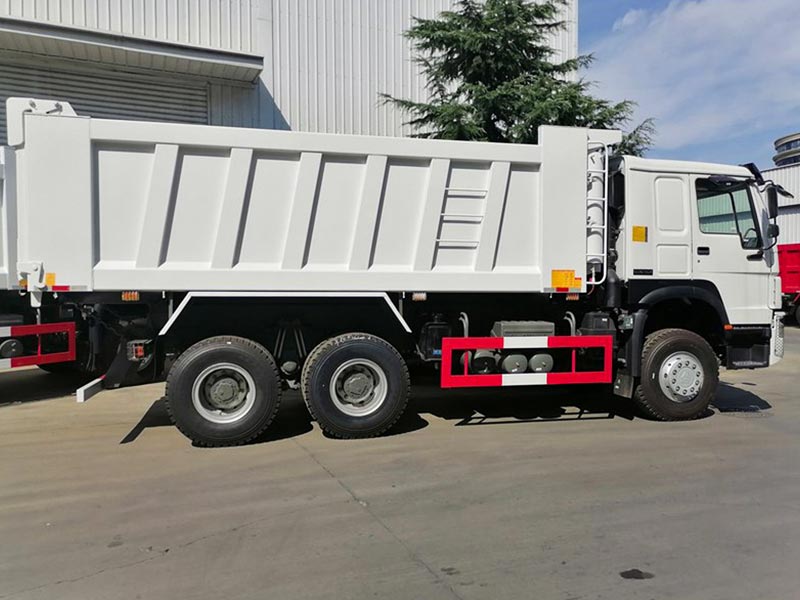

Cargo Box Material	Q355 manganese steel (8mm bottom, 6mm side)



Note: Specifications are indicative. Final payload may vary based on body design and local regulations. We provide customization for body size, liner type, and other site-specific requirements.



Contact Us

Directly to receive full specifications, pricing, and shipping solutions.

We will recommend the most suitable configuration based on the local market conditions in your area.



Related Dump Trucks You May Be Interested In



SINOTRUK HOWO 10 Wheels 371HP 30 Tons 6x4 Dump Truck



SHACMAN X3000 20 CBM 6x4 Tipper Truck



Other Dump Truck Models

---



Why Choose the SINOTRUK HOWO 371HP Dump Truck?



You should choose this model because it combines:



Powerful Engine Performance

Robust Construction

Large Cargo Capacity

Reliable Driveline Components



Making it ideal for heavy haulage tasks, mining sites, and large construction projects.



---



Frequently Asked Questions (FAQ)



Q1: What is the cargo box volume?

The standard cargo box volume for this truck is around 20 cubic meters, made from high-strength manganese steel for lasting durability.



Q2: What maintenance advantages does the HOWO truck offer?

SINOTRUK HOWO trucks are known for their simple, robust design and use of widely available components. This translates to easier servicing, lower maintenance costs, and shorter downtime—key advantages in remote project locations.



Q3: Can the cargo body be customized for specific materials?

Yes. We can configure the truck with various options: high-strength steel liners for abrasive rock, a thinner body for lighter aggregates to increase payload, or even a U-shaped body to prevent material sticking.



Q4: Do you offer warranty for the HOWO 371HP dump truck?

Yes. We provide 12-months warranty for major engine and transmission components.
