Papua New Guinea customer contact us on Facebook, and wanted a 25 ton SINOTRUCK dump truck. Based on feedback from the customer, we recommended SINOTRUCK 6x6 all drive dump truck to the customer. SINOTRUCK 6x6 all driven dump truck has strong passing ability, off-road capability and can climb 60° steep slopes. Perfect for local mountain roads.

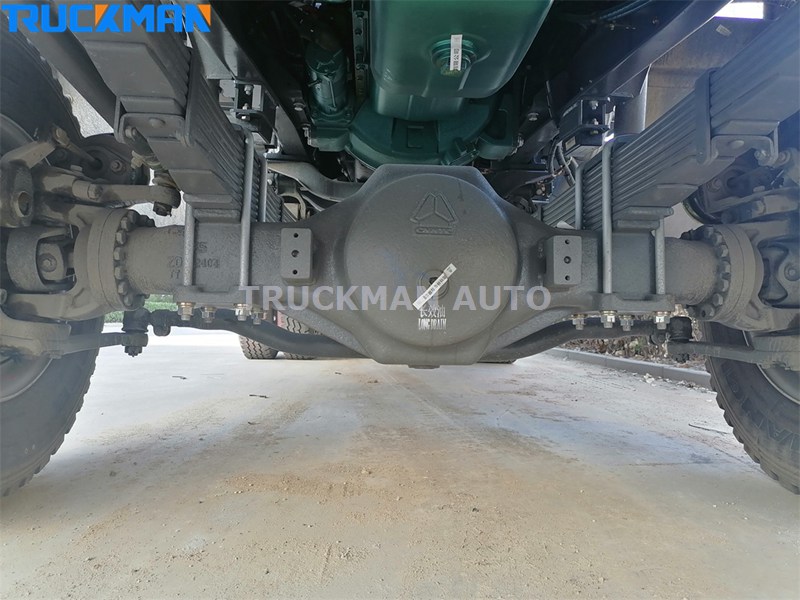

The dump truck is equipped with ST16 and STR drive axles, of which the ST16 axle has an axle load rating of 16,000 kg and drum brakes. In addition to serving as a steering axle, it also has a drive function. A two-stage reduction with central spiral bevel gear and wheelside cylindrical planetary gear is used. In order to improve the strength of the axle housing, cast steel axle housing is used, which is mature, reliable, easy to use and easy to maintain. Optional: ABS, automatic gap adjustment arm, etc.

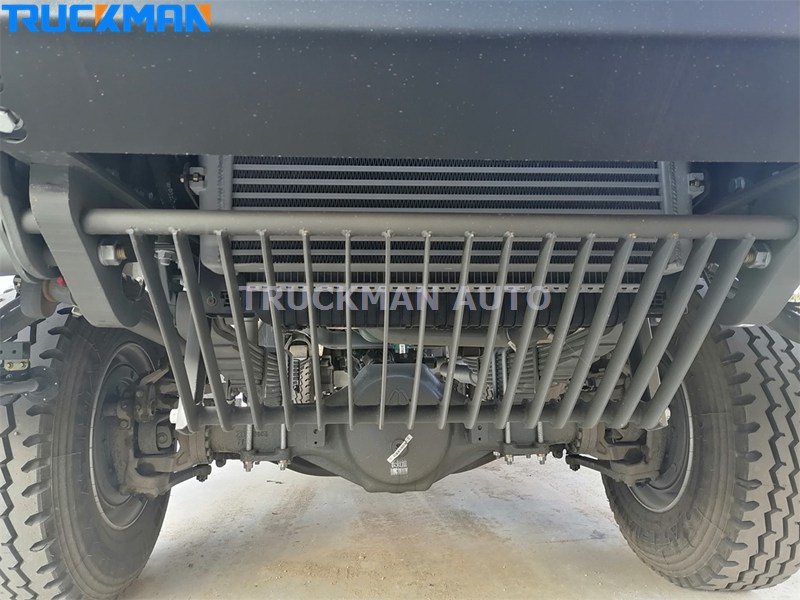

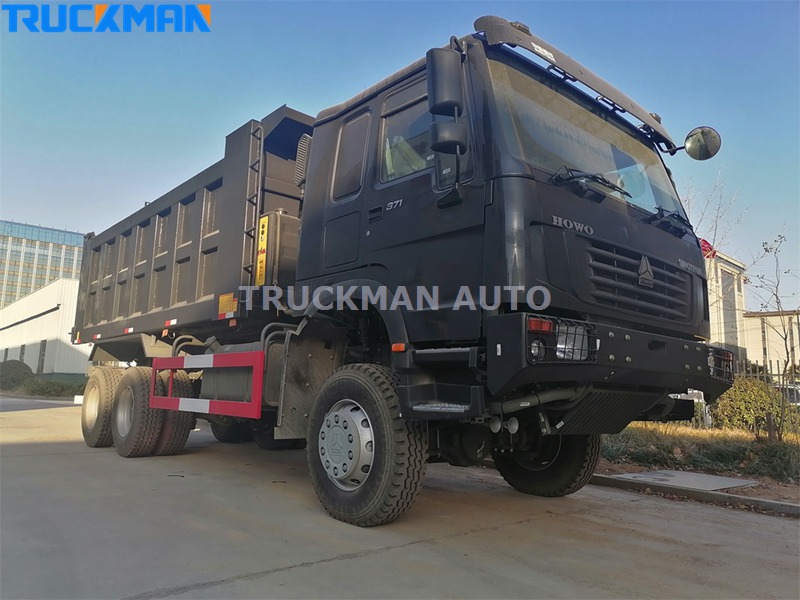

The 6x6 dump truck cabin model also is HW76, only front cabin face is different. 95% cabin parts is same, the customer can easy get from us or local. And engine, oil pan, intercooler all have protect cover, avoid bad road conditions that damage accessories and cause unnecessary losses. In addition, the fuel tank and battery also adopt the anti-theft devices.

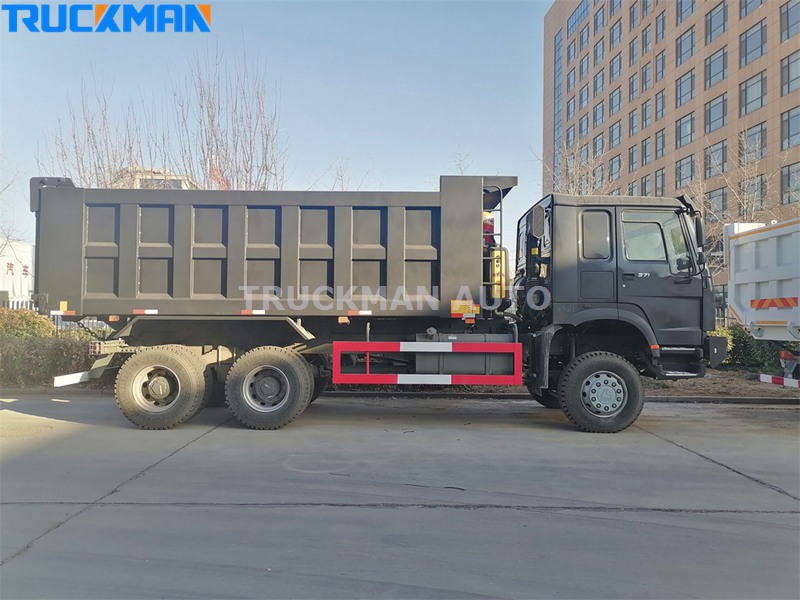

About the dump truck cargo box, there are two model, rectangle shape and U shape. U shape is more better for transport sand and clay etc goods. The cargo box length max can reach to 5800mm, thickness is depend on the loading goods type. As usual is bottom 8mm, side 6mm. For the lifting type, there are have middle and front hydraulic lifting system is optional. Material of cargo box have carbon steel, manganese plate and wear-resistant steel.
